820.02.00 - Air Conditioning

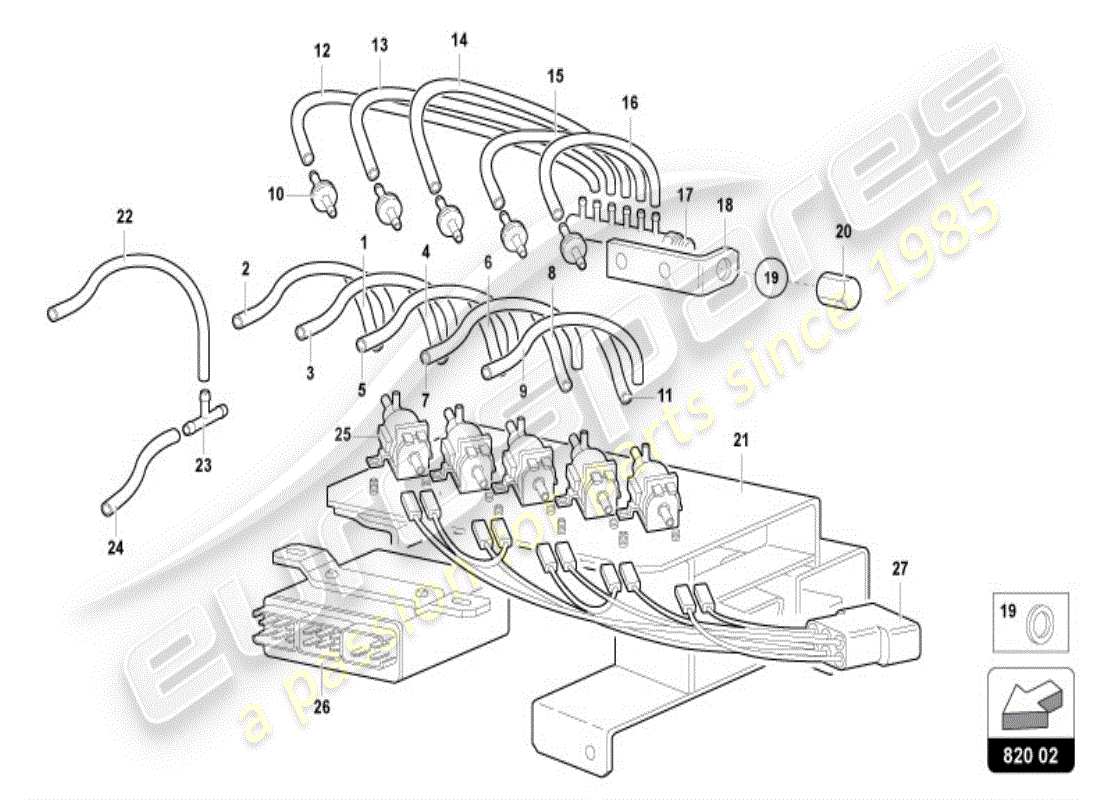

Lamborghini Diablo VT (1995) AIR CONDITIONING Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                            #
                            Part number
                            Description
                            Key
                            Price
                            # 001
                            MPN: 009414612
                            PIPE
                            Rosso
                            from £5.78
                            from £5.78
                            ONE-WAY VALVE VACUUMPIPE Genuine Lamborghini - New (to order)
                            # 002
                            MPN: 009414613
                            PIPE
                            Rosso
                            from £5.78
                            from £5.78
                            SOLENOID ACTUATOR VACUUM PIPE Genuine Lamborghini - New (to order)
                            # 003
                            MPN: 009414614
                            PIPE
                            Verde
                            from £5.78
                            from £5.78
                            SOLENOID ACTUATOR VACUUM PIPE Genuine Lamborghini - New (to order)
                            # 004
                            MPN: 009414611
                            PIPE
                            Verde
                            from £5.78
                            from £5.78
                            ONE-WAY VALVE VACUUMPIPE Genuine Lamborghini - New (to order)
                            # 005
                            MPN: 009414615
                            PIPE
                            BLU
                            from £5.78
                            from £5.78
                            SOLENOID 3 WAY VACUUM PIPE Genuine Lamborghini - New (to order)
                            # 006
                            MPN: 009414610
                            PIPE
                            BLU
                            from £5.78
                            from £5.78
                            ONE-WAY VALVE VACUUMPIPE Genuine Lamborghini - New (to order)
                            # 007
                            MPN: 009414616
                            PIPE
                            WHITE
                            from £5.78
                            from £5.78
                            SOLENOID 3 WAY VACUUM PIPE Genuine Lamborghini - New (to order)
                            # 008
                            MPN: 009414609
                            PIPE
                            WHITE
                            from £5.78
                            from £5.78
                            ONE-WAY VALVE VACUUMPIPE Genuine Lamborghini - New (to order)
                            # 009
                            MPN: 009414617
                            PIPE
                            NERO
                            from £5.78
                            from £5.78
                            SOLENOID 3 WAY VACUUM PIPE Genuine Lamborghini - New (to order)
                            # 010
                            MPN: 004621574
                            VALVE
                            from £12.52
                            from £12.52
                            VALVE A822 EPG 2108 Genuine Lamborghini - New (to order)
                            # 011
                            MPN: 009414608
                            PIPE
                            NERO
                            from £5.78
                            from £5.78
                            ONE-WAY VALVE VACUUMPIPE Genuine Lamborghini - New (to order)
                            # 012
                            MPN: 009414601
                            PIPE
                            Rosso
                            from £5.78
                            from £5.78
                            6 WAY VACUUM PIPE Genuine Lamborghini - New (to order)
                            # 013
                            MPN: 009414602
                            PIPE
                            Verde
                            from £5.78
                            from £5.78
                            6 WAY VACUUM PIPE Genuine Lamborghini - New (to order)
                            # 014
                            MPN: 009414604
                            PIPE
                            BLU
                            from £5.78
                            from £5.78
                            6 WAY VACUUM PIPE Genuine Lamborghini - New (to order)
                            # 015
                            MPN: 009414603
                            PIPE
                            WHITE
                            from £5.78
                            from £5.78
                            6 WAY VACUUM PIPE Genuine Lamborghini - New (to order)
                            # 016
                            MPN: 009414605
                            PIPE
                            NERO
                            from £5.78
                            from £5.78
                            6 WAY VACUUM PIPE Genuine Lamborghini - New (to order)
                            # 017
                            MPN: 004621565
                            PIPE
                            from £51.44
                            from £51.44
                            6-WAY VACUUM MANIFOLD Genuine Lamborghini - New (to order)
                            # 018
                            -
                            PLATE
                            NOT FOR THIS MODEL
                            # 019
                            MPN: 008401008
                            WASHER
                            Supersession
                            Supersession
                            Genuine Lamborghini (no longer available to order)
                            # 020
                            MPN: 009414606
                            CAP
                            from £45.42
                            from £45.42
                            6 WAY CAP Genuine Lamborghini - New (to order)
                            # 021
                            MPN: 009414628
                            PLATE
                            from £167.54
                            from £167.54
                            SOLENOID PLATE Genuine Lamborghini - New (to order)
                            # 022
                            MPN: 009414620
                            PIPE
                            from £5.78
                            from £5.78
                            3 WAY ACTUATOR VACUUM PIPE Genuine Lamborghini - New (to order)
                            # 023
                            MPN: 007014169
                            3 WAY CONNECTION
                            from £15.81
                            from £15.81
                            T UNION T S4 76000 Genuine Lamborghini - New (to order)
                            # 024
                            MPN: 009414621
                            PIPE
                            from £5.78
                            from £5.78
                            3 WAY ACTUATOR VACUUM PIPE Genuine Lamborghini - New (to order)
                            # 025
                            MPN: 004627300
                            ELECTRO-VALVE
                            ELECTRIC VALVE Genuine Lamborghini - New (to order)
                            # 026
                            MPN: 004526659
                            ECU CLIMA
                            from £3,053.95
                            from £3,053.95
                            CONTROL UNIT Genuine Lamborghini - New (to order)
                            # 027
                            MPN: 006130618
                            WIRING
                            from £77.03
                            from £77.03
                            FAN WIRING Genuine Lamborghini - New (to order)
                            # 028
                            MPN: 008200401
                            NUT
                            from £0.51
                            from £0.51
                            M4 UNI 5587/5S/Z NUT Genuine Lamborghini - New (to order)
                            # 029
                            MPN: 008700449
                            SCREW
                            from £2.09
                            from £2.09
                            SCREW 1/56819/01 RIF. FIAT Genuine Lamborghini - New (to order)
