820.03.00 - Air Conditioning

Lamborghini Diablo VT (1995) AIR CONDITIONING Parts Diagram

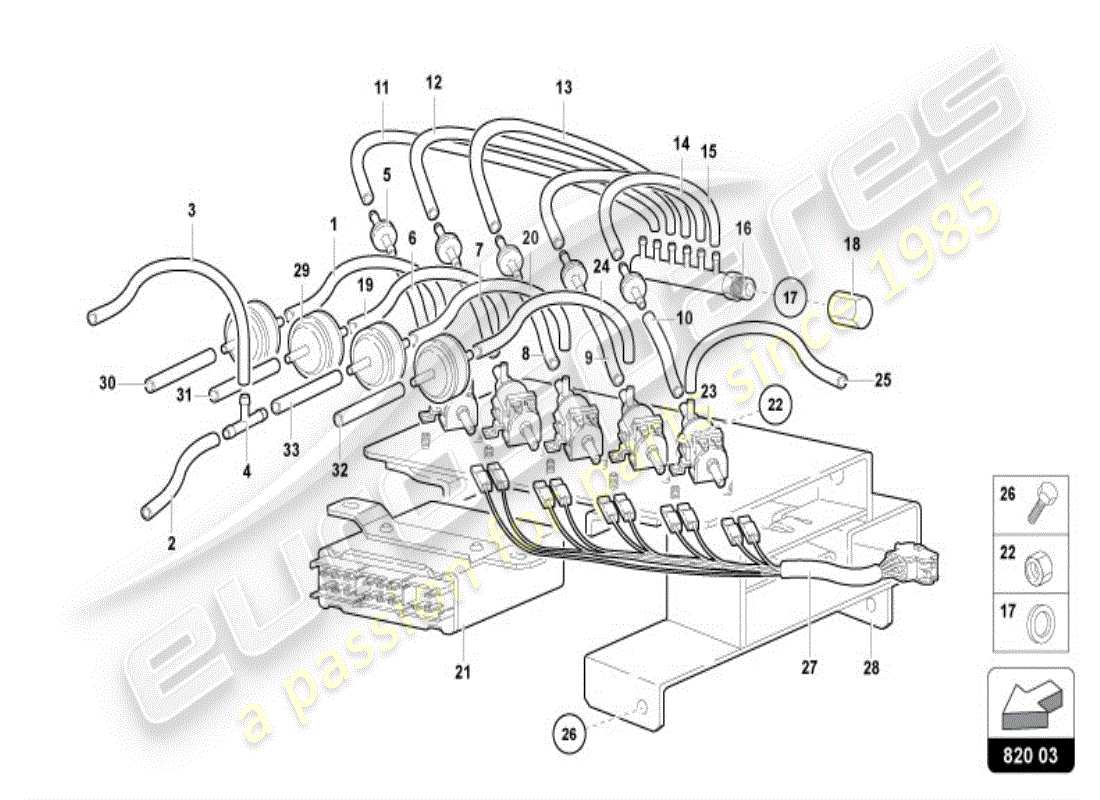

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                            #
                                                            Part number
                                                            Description
                                                            Key
                                                            Price
                                                            # 001
                                                            MPN: 009414613
                                                            RED PIPE
                                                            from £5.78
                                                            from £5.78
                                                            SOLENOID ACTUATOR VACUUM PIPE Genuine Lamborghini - New (to order)
                                                            # 002
                                                            MPN: 009414621
                                                            BLUE PIPE
                                                            from £5.78
                                                            from £5.78
                                                            3 WAY ACTUATOR VACUUM PIPE Genuine Lamborghini - New (to order)
                                                            # 003
                                                            MPN: 009414620
                                                            BLUE PIPE
                                                            from £5.78
                                                            from £5.78
                                                            3 WAY ACTUATOR VACUUM PIPE Genuine Lamborghini - New (to order)
                                                            # 004
                                                            MPN: 007014169
                                                            CONNECTION
                                                            from £15.81
                                                            from £15.81
                                                            T UNION T S4 76000 Genuine Lamborghini - New (to order)
                                                            # 005
                                                            MPN: 004621574
                                                            NON-RETURN VALVE
                                                            from £12.52
                                                            from £12.52
                                                            VALVE A822 EPG 2108 Genuine Lamborghini - New (to order)
                                                            # 006
                                                            MPN: 009414612
                                                            RED PIPE
                                                            from £5.78
                                                            from £5.78
                                                            ONE-WAY VALVE VACUUMPIPE Genuine Lamborghini - New (to order)
                                                            # 007
                                                            MPN: 009414611
                                                            GREEN PIPE
                                                            from £5.78
                                                            from £5.78
                                                            ONE-WAY VALVE VACUUMPIPE Genuine Lamborghini - New (to order)
                                                            # 008
                                                            MPN: 009414610
                                                            BLUE PIPE
                                                            from £5.78
                                                            from £5.78
                                                            ONE-WAY VALVE VACUUMPIPE Genuine Lamborghini - New (to order)
                                                            # 009
                                                            MPN: 009414609
                                                            WHITE PIPE
                                                            from £5.78
                                                            from £5.78
                                                            ONE-WAY VALVE VACUUMPIPE Genuine Lamborghini - New (to order)
                                                            # 010
                                                            MPN: 009414608
                                                            BLACK PIPE
                                                            from £5.78
                                                            from £5.78
                                                            ONE-WAY VALVE VACUUMPIPE Genuine Lamborghini - New (to order)
                                                            # 011
                                                            MPN: 009414601
                                                            RED PIPE
                                                            from £5.78
                                                            from £5.78
                                                            6 WAY VACUUM PIPE Genuine Lamborghini - New (to order)
                                                            # 012
                                                            MPN: 009414602
                                                            GREEN PIPE
                                                            from £5.78
                                                            from £5.78
                                                            6 WAY VACUUM PIPE Genuine Lamborghini - New (to order)
                                                            # 013
                                                            MPN: 009414604
                                                            BLUE PIPE
                                                            from £5.78
                                                            from £5.78
                                                            6 WAY VACUUM PIPE Genuine Lamborghini - New (to order)
                                                            # 014
                                                            MPN: 009414603
                                                            WHITE PIPE
                                                            from £5.78
                                                            from £5.78
                                                            6 WAY VACUUM PIPE Genuine Lamborghini - New (to order)
                                                            # 015
                                                            MPN: 009414605
                                                            BLACK PIPE
                                                            from £5.78
                                                            from £5.78
                                                            6 WAY VACUUM PIPE Genuine Lamborghini - New (to order)
                                                            # 016
                                                            MPN: 004621565
                                                            CONNECTION
                                                            from £51.44
                                                            from £51.44
                                                            6-WAY VACUUM MANIFOLD Genuine Lamborghini - New (to order)
                                                            # 017
                                                            MPN: 008401008
                                                            WASHER
                                                            Supersession
                                                            Supersession
                                                            Genuine Lamborghini (no longer available to order)
                                                            # 018
                                                            MPN: 009414606
                                                            PLUG
                                                            from £45.42
                                                            from £45.42
                                                            6 WAY CAP Genuine Lamborghini - New (to order)
                                                            # 019
                                                            MPN: 009414614
                                                            GREEN PIPE
                                                            from £5.78
                                                            from £5.78
                                                            SOLENOID ACTUATOR VACUUM PIPE Genuine Lamborghini - New (to order)
                                                            # 020
                                                            MPN: 009414615
                                                            BLUE PIPE
                                                            from £5.78
                                                            from £5.78
                                                            SOLENOID 3 WAY VACUUM PIPE Genuine Lamborghini - New (to order)
                                                            # 021
                                                            MPN: 004526659
                                                            ELECTRONIC CON. U.
                                                            from £3,053.97
                                                            from £3,053.97
                                                            CONTROL UNIT Genuine Lamborghini - New (to order)
                                                            # 022
                                                            MPN: 008200401
                                                            NUT
                                                            Supersession
                                                            Supersession
                                                            Genuine Lamborghini (no longer available to order)
                                                            # 023
                                                            MPN: 004627300
                                                            ELECTRO-VALVE
                                                            ELECTRIC VALVE Genuine Lamborghini - New (to order)
                                                            # 024
                                                            MPN: 009414616
                                                            WHITE PIPE
                                                            from £5.78
                                                            from £5.78
                                                            SOLENOID 3 WAY VACUUM PIPE Genuine Lamborghini - New (to order)
                                                            # 025
                                                            MPN: 009414617
                                                            BLACK PIPE
                                                            from £5.78
                                                            from £5.78
                                                            SOLENOID 3 WAY VACUUM PIPE Genuine Lamborghini - New (to order)
                                                            # 026
                                                            MPN: 008700449
                                                            SCREW
                                                            from £2.09
                                                            from £2.09
                                                            SCREW 1/56819/01 RIF. FIAT Genuine Lamborghini - New (to order)
                                                            # 027
                                                            MPN: 006130618
                                                            ELECT CABLE
                                                            from £77.03
                                                            from £77.03
                                                            FAN WIRING Genuine Lamborghini - New (to order)
                                                            # 028
                                                            MPN: 009414628
                                                            SUPPORT
                                                            from £167.54
                                                            from £167.54
                                                            SOLENOID PLATE Genuine Lamborghini - New (to order)
                                                            # 029
                                                            MPN: 009414633
                                                            VALVE
                                                            from £104.88
                                                            from £104.88
                                                            E.P.G. DELAY VALVE Genuine Lamborghini - New (to order)
                                                            # 030
                                                            -
                                                            FLEX. HOSE
                                                            NON AVAILABLE
                                                            # 031
                                                            -
                                                            FLEX. HOSE
                                                            NON AVAILABLE
                                                            # 032
                                                            -
                                                            FLEX. HOSE
                                                            NON AVAILABLE
                                                            # 033
                                                            -
                                                            FLEX. HOSE
                                                            NON AVAILABLE
