lamborghini diablo vt (1995) bonnet front parts diagram

823.01.00 - BONNET FRONT

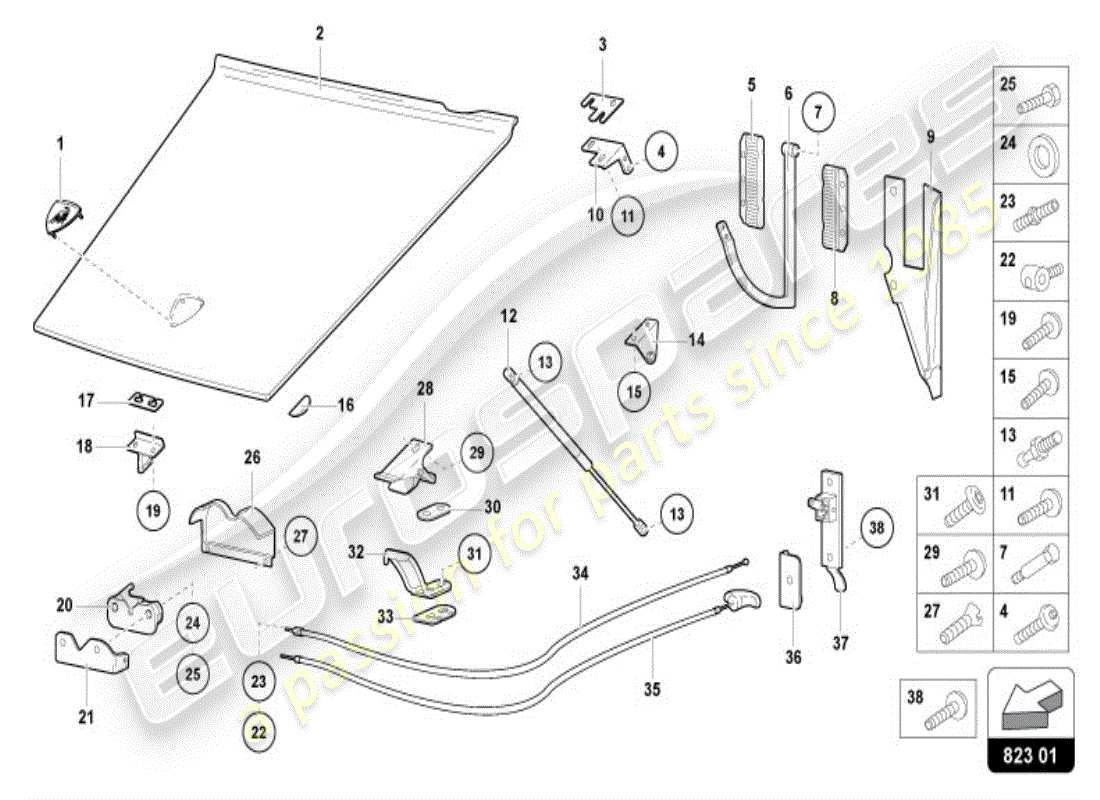

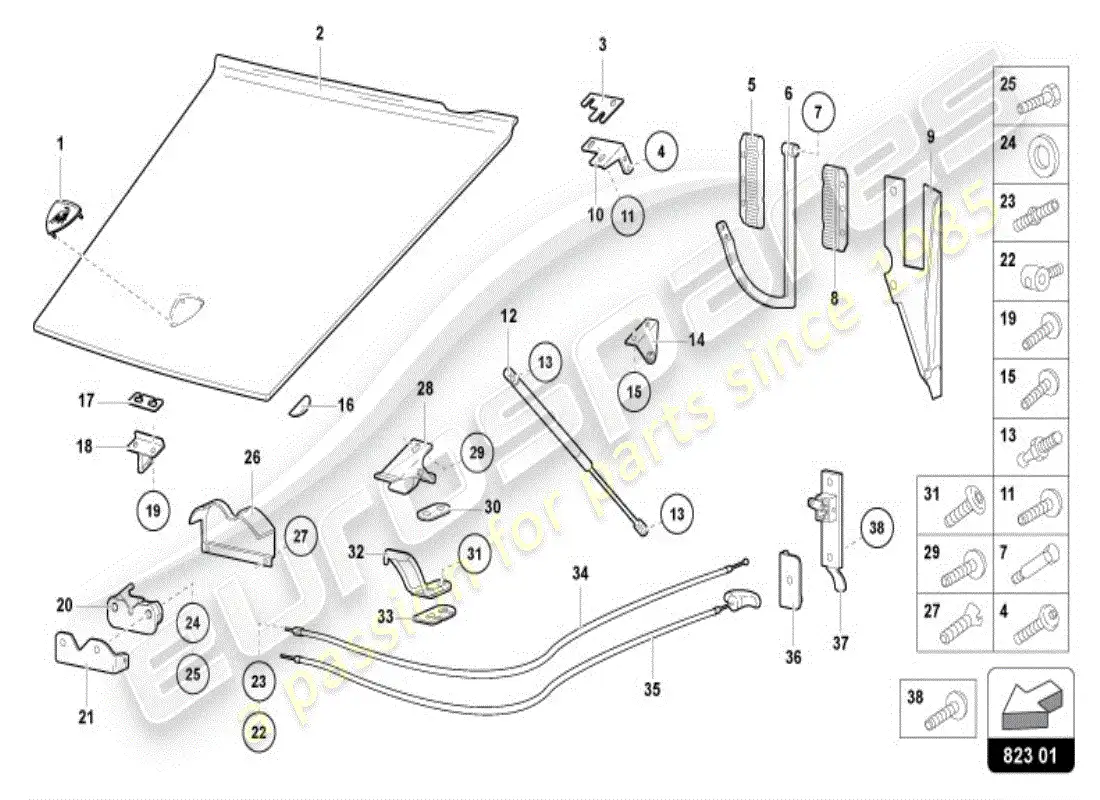

Lamborghini Diablo VT (1995) BONNET FRONT Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                        #
                                                        Part number
                                                        Description
                                                        Key
                                                        Price
                                                        # 001
                                                        MPN: 009466003
                                                        Lamborghini LOGO
                                                        Lamborghini PART 009466003 Genuine Lamborghini - New (to order)
                                                        # 002
                                                        MPN: 009459010
                                                        FRONT BONNET
                                                        FRONT (EUROPE, USA spec vehicles)
                                                        from £1,224.86
                                                        from £1,224.86
                                                        FRONT HOOD ASSEMBLY LHD Genuine Lamborghini - New (to order)
                                                        # 002
                                                        MPN: 009459012
                                                        FRONT BONNET
                                                        FRONT (UK spec vehicles)
                                                        Supersession
                                                        Supersession
                                                        Genuine Lamborghini (no longer available to order)
                                                        # 003
                                                        -
                                                        SHIM
                                                        NOT FOR THIS MODEL
                                                        # 004
                                                        MPN: 008700674
                                                        SCREW
                                                        Supersession
                                                        Supersession
                                                        Genuine Lamborghini (no longer available to order)
                                                        # 005
                                                        MPN: 009459310
                                                        BRUSH
                                                        from £48.55
                                                        from £48.55
                                                        BOOT HINGE BRUSH Genuine Lamborghini - New (to order)
                                                        # 006
                                                        MPN: 009459320
                                                        ARM
                                                        LEFT (EUROPE, USA spec vehicles)
                                                        Lamborghini PART 009459320 Genuine Lamborghini - New (to order)
                                                        # 006
                                                        MPN: 009459324
                                                        ARM
                                                        RIGHT (UK spec vehicles)
                                                        Lamborghini PART 009459324 Genuine Lamborghini - New (to order)
                                                        # 006
                                                        MPN: 009459325
                                                        ARM
                                                        RIGHT (EUROPE, USA spec vehicles)
                                                        from £155.67
                                                        from £155.67
                                                        FRONT RH GOOSENECK HINGE Genuine Lamborghini - New (to order)
                                                        # 006
                                                        MPN: 009459326
                                                        ARM
                                                        LEFT (UK spec vehicles)
                                                        Lamborghini Part 009459326 RHD Genuine Lamborghini - New (to order)
                                                        # 007
                                                        MPN: 009459323
                                                        PIN
                                                        from £31.25
                                                        from £31.25
                                                        BONNET/CHASSIS HINGEPIN Genuine Lamborghini - New (to order)
                                                        # 008
                                                        MPN: 009459311
                                                        BRUSH
                                                        from £48.55
                                                        from £48.55
                                                        BOOT HINGE BRUSH Genuine Lamborghini - New (to order)
                                                        # 009
                                                        MPN: 009459316
                                                        PLATE
                                                        LEFT
                                                        from £121.65
                                                        from £121.65
                                                        RH BONNET HINGE PLATE Genuine Lamborghini - New (to order)
                                                        # 009
                                                        MPN: 009459317
                                                        PLATE
                                                        RIGHT
                                                        from £29.77
                                                        from £29.77
                                                        LH BONNET HINGE PLATE Genuine Lamborghini - New (to order)
                                                        # 010
                                                        MPN: 009459321
                                                        BASE
                                                        RIGHT
                                                        from £32.41
                                                        from £32.41
                                                        RH BONNET HINGE U-BOLT Genuine Lamborghini - New (to order)
                                                        # 010
                                                        MPN: 009459322
                                                        BASE
                                                        LEFT
                                                        from £32.41
                                                        from £32.41
                                                        LH BONNET HINGE U-BOLT Genuine Lamborghini - New (to order)
                                                        # 012
                                                        MPN: 009459318
                                                        DAMPER
                                                        Black
                                                        Supersession
                                                        Supersession
                                                        Genuine Lamborghini (no longer available to order)
                                                        # 013
                                                        MPN: 009459305
                                                        PIN
                                                        from £1.73
                                                        from £1.73
                                                        CAP BONNET PIN Genuine Lamborghini - New In stock
                                                        # 014
                                                        MPN: 009459309
                                                        BRACKET
                                                        from £24.47
                                                        from £24.47
                                                        BONNET ROD BRACKET Genuine Lamborghini - New (to order)
                                                        # 016
                                                        MPN: 009459108
                                                        DOWEL
                                                        RIGHT
                                                        from £22.38
                                                        from £22.38
                                                        RH BONNET RUBBER PAD Genuine Lamborghini - New (to order)
                                                        # 016
                                                        MPN: 009459109
                                                        DOWEL
                                                        LEFT
                                                        from £22.38
                                                        from £22.38
                                                        LH BONNET RUBBER PAD Genuine Lamborghini - New (to order)
                                                        # 017
                                                        MPN: 009459228
                                                        SHIM
                                                        from £6.25
                                                        from £6.25
                                                        BONNET LOCK STRIKER SHIM Genuine Lamborghini - New (to order)
                                                        # 018
                                                        MPN: 009459227
                                                        HOOK
                                                        from £81.28
                                                        from £81.28
                                                        BONNET LOCK STRIKER Genuine Lamborghini - New (to order)
                                                        # 019
                                                        MPN: 008700665
                                                        SCREW
                                                        from £32.41
                                                        from £32.41
                                                        SCREW M6X12X13 (BLACK) Genuine Lamborghini - New (to order)
                                                        # 021
                                                        MPN: 009459213
                                                        SUPPORT
                                                        (EUROPE, USA spec vehicles)
                                                        from £14.28
                                                        from £14.28
                                                        BONNET LOCK SHIM Genuine Lamborghini - New (to order)
                                                        # 021
                                                        MPN: 009459220
                                                        SUPPORT
                                                        (UK spec vehicles)
                                                        from £45.34
                                                        from £45.34
                                                        BONNET LOCK SHIM Genuine Lamborghini - New (to order)
                                                        # 022
                                                        MPN: 009459217
                                                        CLAMP
                                                        Supersession
                                                        Supersession
                                                        Genuine Lamborghini (no longer available to order)
                                                        # 023
                                                        MPN: 009460213
                                                        ADJUSTING SLEEVE
                                                        Supersession
                                                        Supersession
                                                        Genuine Lamborghini (no longer available to order)
                                                        # 024
                                                        MPN: 008400607
                                                        WASHER
                                                        Supersession
                                                        Supersession
                                                        Genuine Lamborghini (no longer available to order)
                                                        # 025
                                                        MPN: 008100623
                                                        SCREW
                                                        Supersession
                                                        Supersession
                                                        Genuine Lamborghini (no longer available to order)

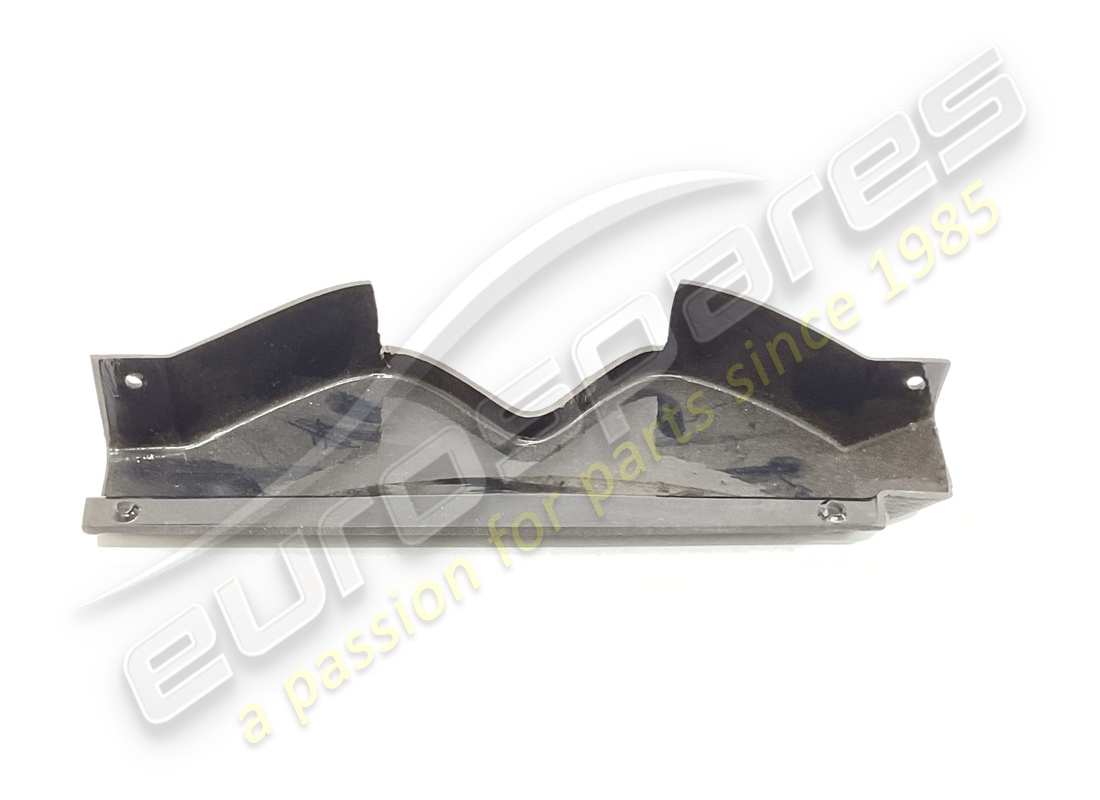

                                                        # 026
                                                        MPN: 009459212
                                                        SHIELD
                                                        (EUROPE, USA spec vehicles)
                                                        from £113.06
                                                        from £113.06
                                                        BONNET LOCK COVER Genuine Lamborghini - New (to order)
                                                        # 026
                                                        MPN: 009459218
                                                        SHIELD
                                                        (UK spec vehicles)
                                                        from £200.36
                                                        from £200.36
                                                        BONNET LOCK COVER Genuine Lamborghini - New (to order)
                                                        # 028
                                                        MPN: 009459208
                                                        HOOK
                                                        from £73.74
                                                        from £73.74
                                                        BONNET SAFETY LOCK Genuine Lamborghini - New (to order)
                                                        # 030
                                                        MPN: 009459226
                                                        PLATE
                                                        from £19.42
                                                        from £19.42
                                                        SAFETY LOCK PLATE Genuine Lamborghini - New (to order)
                                                        # 032
                                                        MPN: 009459224
                                                        RETAINER
                                                        from £97.94
                                                        from £97.94
                                                        SAFETY LOCK STRIKER Genuine Lamborghini - New (to order)
                                                        # 033
                                                        MPN: 009459225
                                                        SHIM
                                                        1MM
                                                        from £10.20
                                                        from £10.20
                                                        SAFETY LOCK STRIKER SHIM Genuine Lamborghini - New (to order)
                                                        # 034
                                                        MPN: 009459001
                                                        CABLE
                                                        from £12.99
                                                        from £12.99
                                                        BONNET LOCK WIRE Genuine Lamborghini - New (to order)
                                                        # 035
                                                        MPN: 009459003
                                                        CABLE
                                                        Emergency
                                                        EMERGENCY CABLE Genuine Lamborghini - New (to order)
                                                        # 036
                                                        MPN: 009459223
                                                        PLATE
                                                        from £9.06
                                                        from £9.06
                                                        HANDLE PLATE Genuine Lamborghini - New (to order)
                                                        # 037
                                                        MPN: 009459200
                                                        OPENI. HOOD HANDLE
                                                        from £332.68
                                                        from £332.68
                                                        BONNET LOCK HANDLE Genuine Lamborghini - New In stock
                                                        Alternative (#30195903) BOOT PULL ASSEMBLY Genuine Ferrari Part - New (to order)
                                                        # 038
                                                        MPN: 008700544
                                                        SCREW
                                                        from £1.09
                                                        from £1.09
                                                        SCREW FRONT M5 TBCE Genuine Lamborghini - New (to order)
                                                        # 039
                                                        MPN: 008400627
                                                        WASHER
                                                        from £14.04
                                                        from £14.04
                                                        WASHER 6.3X16X2 1/26476/78 Genuine Lamborghini - New (to order)
                                                        # 040
                                                        MPN: 009459222
                                                        PIN
                                                        (UK spec vehicles)
                                                        from £14.28
                                                        from £14.28
                                                        UPPER GROMMET PIN Genuine Lamborghini - New (to order)
                                                        # 041
                                                        MPN: 009459221
                                                        SUPPORT
                                                        (UK spec vehicles)
                                                        from £18.69
                                                        from £18.69
                                                        BOOT WIRE GROMMET Genuine Lamborghini - New (to order)
