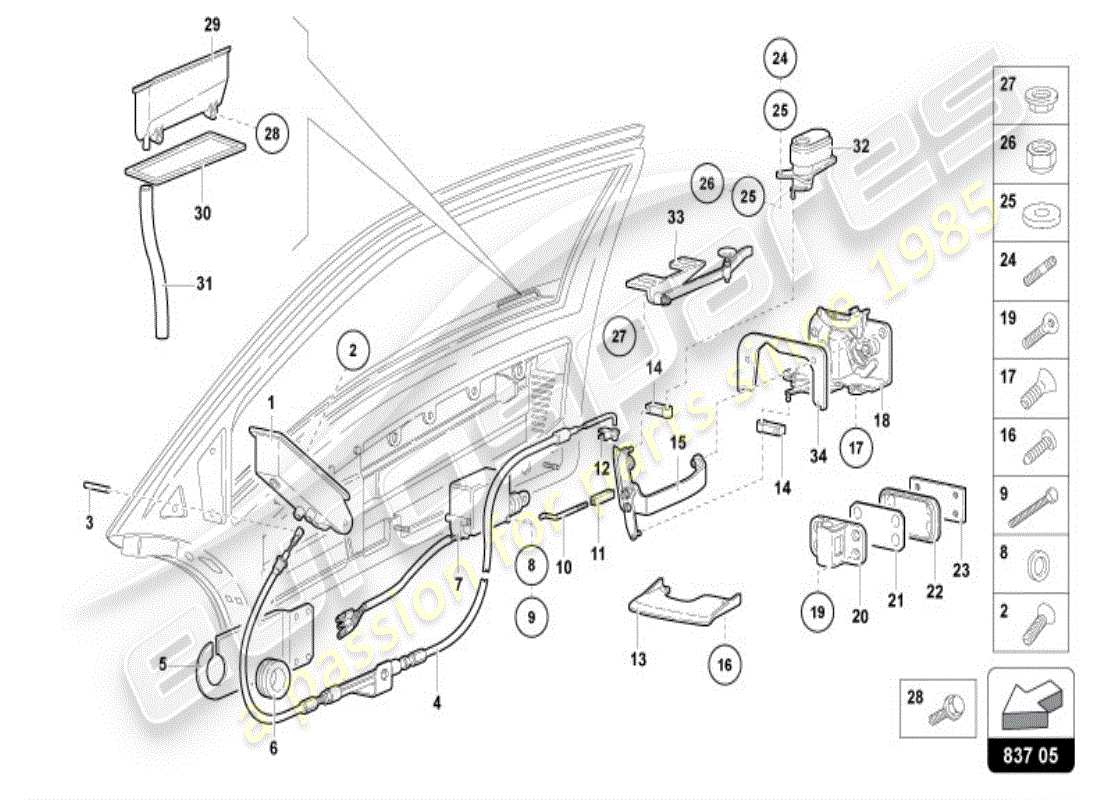

837.05.00 - DOOR
Lamborghini Diablo VT (1995) DOOR Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 008700539
SCREW
Supersession
Supersession
# 002
MPN: 009421008
HANDLE
# 003
MPN: 008850304
PIN
from £1.41
from £1.41
# 004
MPN: 009421011
CABLE
RIGHT
from £661.18
from £661.18
This part replaces part number 009921005 which we have in stock
# 004
MPN: 009421012
CABLE
LEFT
from £773.37
from £773.37
# 005
MPN: 009421141
BRACKET
from £70.29
from £70.29
# 006
MPN: 008612503
GASKET
from £8.99
from £8.99
# 007
MPN: 005929912
CONTROL
from £130.02
from £130.02
# 008
MPN: 008400401
WASHER
Supersession
Supersession
# 009
MPN: 008100404
SCREW
Supersession
Supersession
# 010
MPN: 009421252
TIE ROD
from £16.13
from £16.13
# 011
MPN: 007021016
PAWL
Supersession
Supersession
# 012
MPN: 009421251
CLIP
Supersession
Supersession
# 013
MPN: 009421236
SHIELD
RIGHT
from £123.33
from £123.33
# 013
MPN: 009421237
SHIELD
LEFT
from £157.42
from £157.42
# 014
MPN: 009421214
COUPLING
Supersession
Supersession
# 015
MPN: 009421253
IDLE LEVER
RIGHT
from £325.29
from £325.29
# 015
MPN: 009421254
IDLE LEVER
LEFT
from £325.29
from £325.29
# 016
MPN: 008700332
SCREW
from £0.53
from £0.53
# 017
MPN: 008700613
SCREW
from £0.51
from £0.51
# 018
MPN: 009421238
lock
RIGHT
# 018
MPN: 009421239
lock
LEFT
# 019
MPN: 008700610
SCREW
from £0.51
from £0.51
# 020
MPN: 006821003
LOCK STRIKER
RIGHT
from £295.00
from £295.00
# 021
MPN: 007021249
SPACER
Supersession
Supersession
# 021
MPN: 007021250
SPACER
Supersession
Supersession
# 022
MPN: 007021281
Frame
Supersession
Supersession
# 023
MPN: 007021253
PLATE
from £458.01
from £458.01
# 024
MPN: 008300403
STUD
from £16.85
from £16.85
# 025
MPN: 008400401
WASHER
Supersession
Supersession
# 026
MPN: 008200406
NUT
from £0.52
from £0.52
# 027
MPN: 008200614
NUT
Supersession
Supersession
# 028
MPN: 008700660
SCREW
from £0.53
from £0.53
# 029
MPN: 009421200
HANDLE
RIGHT
from £197.21
from £197.21
# 029
MPN: 009421201
HANDLE
LEFT
from £206.61
from £206.61
# 030
MPN: 009421712
GASKET
RIGHT
from £3.45
from £3.45
# 030
MPN: 009421713
GASKET
LEFT
from £8.51
from £8.51
# 031
MPN: 009421245
PIPE
from £11.47
from £11.47
# 032
MPN: 009421227
button
RIGHT
from £17.35
from £17.35
# 032
MPN: 009421228
button
LEFT
from £26.03
from £26.03
# 033
MPN: 009421255
IOLE LEVER
RIGHT
from £325.29
from £325.29
# 033
MPN: 009421256
IOLE LEVER
LEFT
from £325.29
from £325.29
# 034
-
GASKET
NOT FOR THIS MODEL

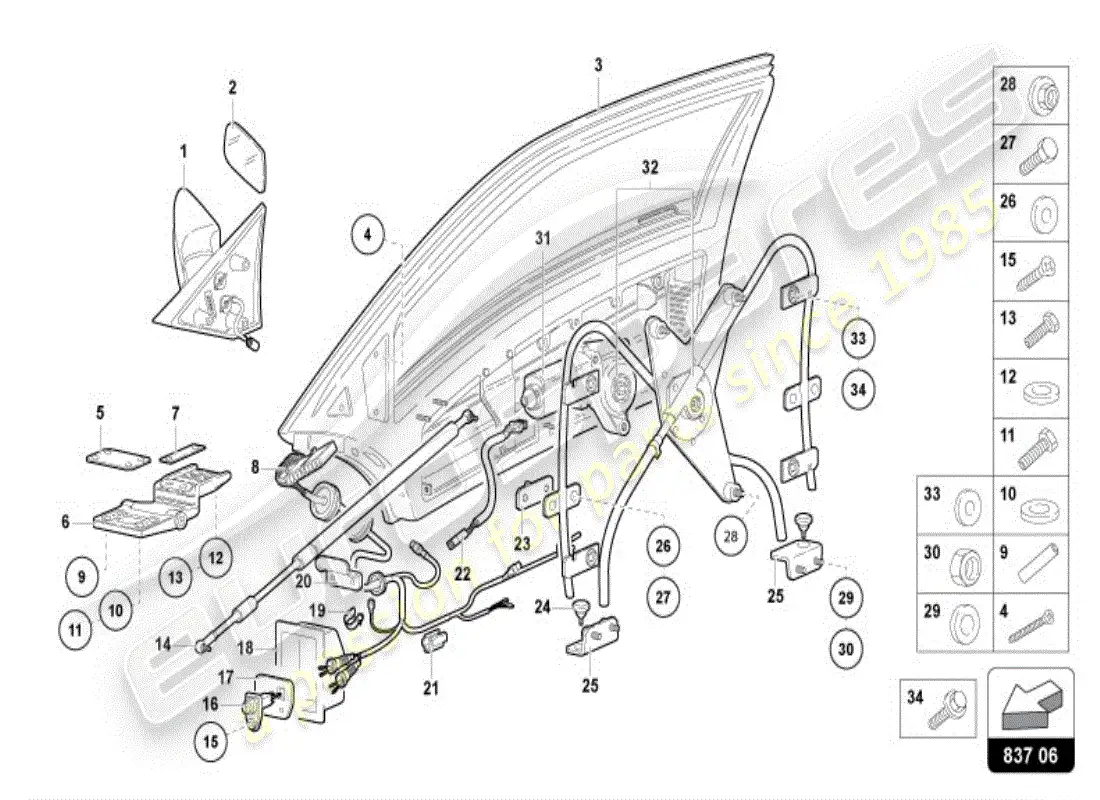

-part-diagram-837.06.00.webp "LAMBORGHINI DIABLO VT (1995) DOOR AND EXTERIOR MIRROR PARTS DIAGRAM")

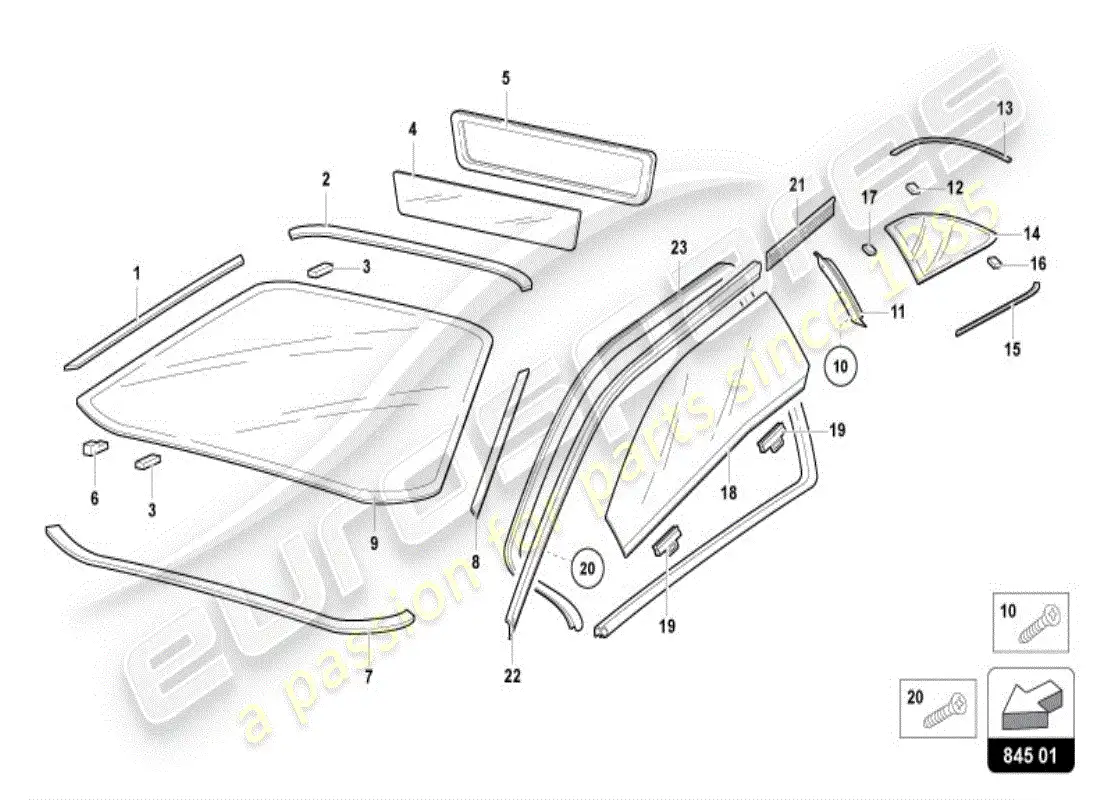

-part-diagram-845.01.00.webp "LAMBORGHINI DIABLO VT (1995) WINDOW GLASSES PARTS DIAGRAM")

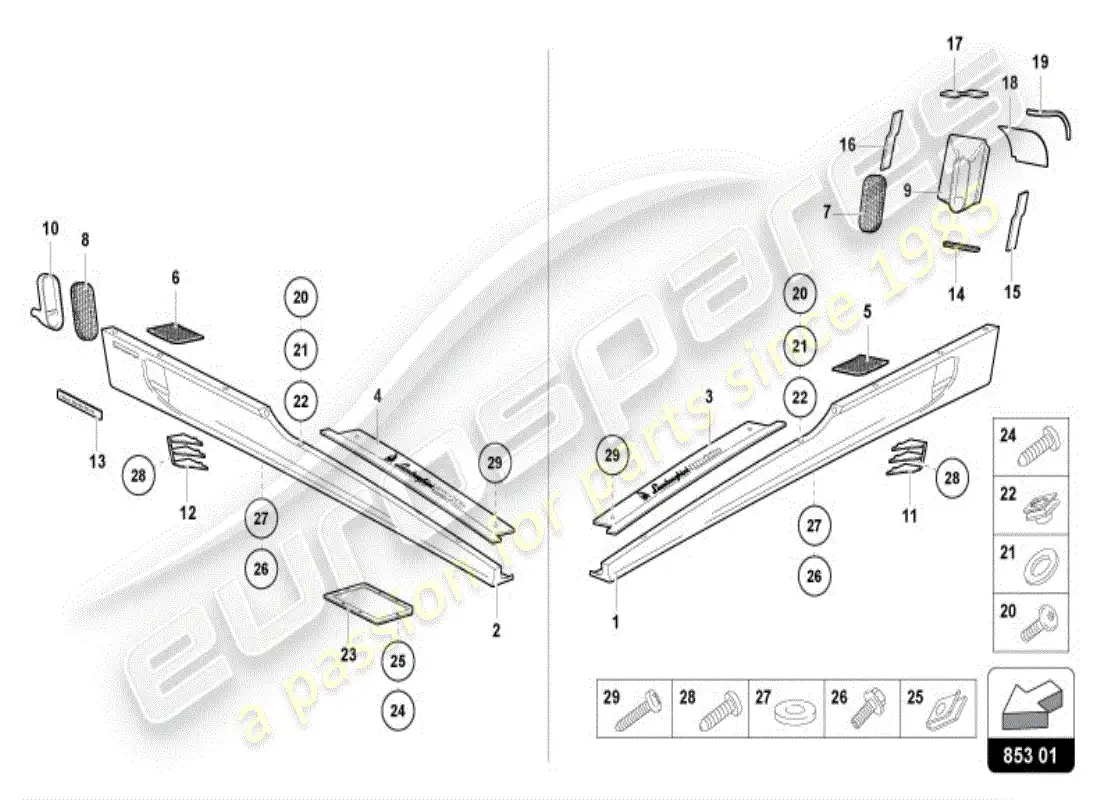

-part-diagram-853.01.00.webp "LAMBORGHINI DIABLO VT (1995) LOWER EXTERNAL SIDE MEMBER FOR WHEEL HOUSING PARTS DIAGRAM")

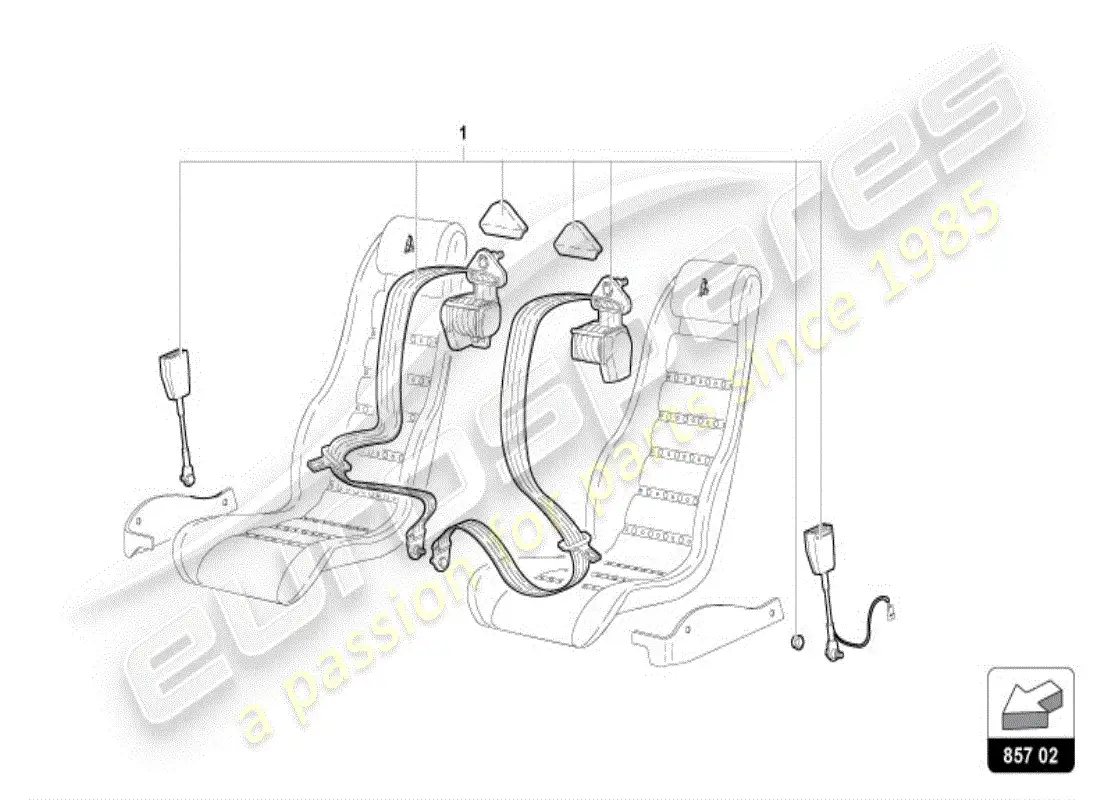

-part-diagram-857.02.00.webp "LAMBORGHINI DIABLO VT (1995) SEAT BELTS PARTS DIAGRAM")
-part-diagram-857.03.00.webp "LAMBORGHINI DIABLO VT (1995) SEAT BELTS PARTS DIAGRAM")
-part-diagram-857.04.00.webp "LAMBORGHINI DIABLO VT (1995) COMBI-INSTRUMENT PARTS DIAGRAM")
-part-diagram-857.05.00.webp "LAMBORGHINI DIABLO VT (1995) EXTERIOR MIRROR PARTS DIAGRAM")
-part-diagram-863.02.00.webp "LAMBORGHINI DIABLO VT (1995) SHIFT LEVER PARTS DIAGRAM")
-part-diagram-863.04.00.webp "LAMBORGHINI DIABLO VT (1995) TUNNEL PARTS DIAGRAM")
-part-diagram-863.05.00.webp "LAMBORGHINI DIABLO VT (1995) COVERS PARTS DIAGRAM")
-part-diagram-868.03.00.webp "LAMBORGHINI DIABLO VT (1995) INTERIOR DECOR PARTS DIAGRAM")
-part-diagram-868.04.00.webp "LAMBORGHINI DIABLO VT (1995) INTERIOR DECOR PARTS DIAGRAM")
-part-diagram-868.05.00.webp "LAMBORGHINI DIABLO VT (1995) INTERIOR DECOR PARTS DIAGRAM")
-part-diagram-868.06.00.webp "LAMBORGHINI DIABLO VT (1995) INTERIOR DECOR PARTS DIAGRAM")
-part-diagram-881.01.00.webp "LAMBORGHINI DIABLO VT (1995) SEAT PARTS DIAGRAM")
-part-diagram-905.03.00.webp "LAMBORGHINI DIABLO VT (1995) IGNITION SYSTEM PARTS DIAGRAM")
-part-diagram-905.04.00.webp "LAMBORGHINI DIABLO VT (1995) IGNITION SYSTEM PARTS DIAGRAM")
-part-diagram-907.01.00.webp "LAMBORGHINI DIABLO VT (1995) ELECTRICS PARTS DIAGRAM")
-part-diagram-911.02.00.webp "LAMBORGHINI DIABLO VT (1995) STARTER PARTS DIAGRAM")
-part-diagram-915.02.00.webp "LAMBORGHINI DIABLO VT (1995) BATTERY PARTS DIAGRAM")
-part-diagram-915.03.00.webp "LAMBORGHINI DIABLO VT (1995) BATTERY PARTS DIAGRAM")
-part-diagram-941.02.00.webp "LAMBORGHINI DIABLO VT (1995) HEADLIGHT DEVICE PARTS DIAGRAM")
-part-diagram-941.03.00.webp "LAMBORGHINI DIABLO VT (1995) HEADLIGHTS PARTS DIAGRAM")
-part-diagram-945.02.00.webp "LAMBORGHINI DIABLO VT (1995) TAIL LIGHT REAR PARTS DIAGRAM")
-part-diagram-953.01.00.webp "LAMBORGHINI DIABLO VT (1995) RACK AND PINION STEERING PARTS DIAGRAM")
-part-diagram-955.02.00.webp "LAMBORGHINI DIABLO VT (1995) WINDSHIELD WIPER PARTS DIAGRAM")
-part-diagram-971.05.00.webp "LAMBORGHINI DIABLO VT (1995) ELECTRICS PARTS DIAGRAM")
-part-diagram-971.06.00.webp "LAMBORGHINI DIABLO VT (1995) FUSES PARTS DIAGRAM")
-part-diagram-971.07.00.webp "LAMBORGHINI DIABLO VT (1995) ELECTRICAL SYSTEM PARTS DIAGRAM")
-part-diagram-971.08.00.webp "LAMBORGHINI DIABLO VT (1995) ELECTRICAL SYSTEM PARTS DIAGRAM")
-part-diagram-971.09.00.webp "LAMBORGHINI DIABLO VT (1995) FUSES PARTS DIAGRAM")
-part-diagram-971.10.00.webp "LAMBORGHINI DIABLO VT (1995) ELECTRICAL SYSTEM PARTS DIAGRAM")
-part-diagram-971.11.00.webp "LAMBORGHINI DIABLO VT (1995) ELECTRICAL SYSTEM PARTS DIAGRAM")
-part-diagram-012.02.00.webp "LAMBORGHINI DIABLO VT (1995) VEHICLE TOOLS PARTS DIAGRAM")
-part-diagram-035.03.00.webp "LAMBORGHINI DIABLO VT (1995) RADIO UNIT PARTS DIAGRAM")
-part-diagram-035.04.00.webp "LAMBORGHINI DIABLO VT (1995) RADIO UNIT PARTS DIAGRAM")
-part-diagram-103.03.00.webp "LAMBORGHINI DIABLO VT (1995) ENGINE BLOCK PARTS DIAGRAM")
-part-diagram-103.05.00.webp "LAMBORGHINI DIABLO VT (1995) RIGHT HEAD ACCESSORIES PARTS DIAGRAM")
-part-diagram-103.06.00.webp "LAMBORGHINI DIABLO VT (1995) LEFT HEAD ACCESSORIES PARTS DIAGRAM")
-part-diagram-103.07.00.webp "LAMBORGHINI DIABLO VT (1995) ENGINE BLOCK PARTS DIAGRAM")
-part-diagram-105.01.00.webp "LAMBORGHINI DIABLO VT (1995) CRANKSHAFT WITH BEARINGS PARTS DIAGRAM")
-part-diagram-109.05.00.webp "LAMBORGHINI DIABLO VT (1995) RIGHT HEAD CAMSHAFT PARTS DIAGRAM")
-part-diagram-109.06.00.webp "LAMBORGHINI DIABLO VT (1995) LEFT HEAD CAMSHAFT PARTS DIAGRAM")
-part-diagram-109.07.00.webp "LAMBORGHINI DIABLO VT (1995) CAMSHAFT, VALVES PARTS DIAGRAM")
-part-diagram-109.08.00.webp "LAMBORGHINI DIABLO VT (1995) CAMSHAFT, VALVES PARTS DIAGRAM")
-part-diagram-115.02.00.webp "LAMBORGHINI DIABLO VT (1995) OIL FILTER PARTS DIAGRAM")
-part-diagram-115.03.00.webp "LAMBORGHINI DIABLO VT (1995) OIL PUMP PARTS DIAGRAM")
-part-diagram-115.04.00.webp "LAMBORGHINI DIABLO VT (1995) ENGINE OIL SYSTEM PARTS DIAGRAM")
-part-diagram-117.03.00.webp "LAMBORGHINI DIABLO VT (1995) OIL SUMP PARTS DIAGRAM")
-part-diagram-117.04.00.webp "LAMBORGHINI DIABLO VT (1995) OIL COOLER PARTS DIAGRAM")
-part-diagram-117.05.00.webp "LAMBORGHINI DIABLO VT (1995) OIL SUMP PARTS DIAGRAM")
-part-diagram-121.03.00.webp "LAMBORGHINI DIABLO VT (1995) COOLER FOR COOLANT PARTS DIAGRAM")
-part-diagram-121.04.00.webp "LAMBORGHINI DIABLO VT (1995) COOLANT PUMP PARTS DIAGRAM")
-part-diagram-121.05.00.webp "LAMBORGHINI DIABLO VT (1995) COOLANT PUMP PARTS DIAGRAM")
-part-diagram-121.06.00.webp "LAMBORGHINI DIABLO VT (1995) COOLER FOR COOLANT PARTS DIAGRAM")
-part-diagram-133.06.00.webp "LAMBORGHINI DIABLO VT (1995) FUEL SUPPLY SYSTEM PARTS DIAGRAM")
-part-diagram-133.07.00.webp "LAMBORGHINI DIABLO VT (1995) INTAKE MANIFOLD PARTS DIAGRAM")
-part-diagram-133.08.00.webp "LAMBORGHINI DIABLO VT (1995) AIR FILTER PARTS DIAGRAM")
-part-diagram-133.09.00.webp "LAMBORGHINI DIABLO VT (1995) LINKAGE PARTS DIAGRAM")
-part-diagram-133.10.00.webp "LAMBORGHINI DIABLO VT (1995) FUEL SYSTEM PARTS DIAGRAM")
-part-diagram-133.11.00.webp "LAMBORGHINI DIABLO VT (1995) INTAKE MANIFOLD (FROM VIN 12382) PARTS DIAGRAM")
-part-diagram-141.01.00.webp "LAMBORGHINI DIABLO VT (1995) FLYWHEEL WITH CLUTCH PARTS DIAGRAM")
-part-diagram-141.03.00.webp "LAMBORGHINI DIABLO VT (1995) CLUTCH PARTS DIAGRAM")
-part-diagram-141.04.00.webp "LAMBORGHINI DIABLO VT (1995) FLYWHEEL WITH CLUTCH PARTS DIAGRAM")
-part-diagram-141.05.00.webp "LAMBORGHINI DIABLO VT (1995) CLUTCH PARTS DIAGRAM")
-part-diagram-201.03.00.webp "LAMBORGHINI DIABLO VT (1995) FUEL TANK PARTS DIAGRAM")
-part-diagram-201.04.00.webp "LAMBORGHINI DIABLO VT (1995) FUEL TANK PARTS DIAGRAM")
-part-diagram-201.05.00.webp "LAMBORGHINI DIABLO VT (1995) ACTIVATED CARBON FILTER SYSTEM PARTS DIAGRAM")
-part-diagram-251.01.00.webp "LAMBORGHINI DIABLO VT (1995) EXHAUST SYSTEM PARTS DIAGRAM")
-part-diagram-251.02.00.webp "LAMBORGHINI DIABLO VT (1995) CATALYTIC CONVERTER PARTS DIAGRAM")
-part-diagram-253.02.00.webp "LAMBORGHINI DIABLO VT (1995) SILENCER WITH CATALYST PARTS DIAGRAM")
-part-diagram-253.03.00.webp "LAMBORGHINI DIABLO VT (1995) SILENCER WITH CATALYST PARTS DIAGRAM")
-part-diagram-301.01.00.webp "LAMBORGHINI DIABLO VT (1995) CARDAN SHAFT PARTS DIAGRAM")
-part-diagram-301.04.00.webp "LAMBORGHINI DIABLO VT (1995) CARDAN SHAFT PARTS DIAGRAM")
-part-diagram-301.05.00.webp "LAMBORGHINI DIABLO VT (1995) VISCOUS JOINT PARTS DIAGRAM")
-part-diagram-311.01.00.webp "LAMBORGHINI DIABLO VT (1995) GEARBOX CONTROL TURRET PARTS DIAGRAM")
-part-diagram-311.02.00.webp "LAMBORGHINI DIABLO VT (1995) GEARBOX PARTS DIAGRAM")
-part-diagram-311.06.00.webp "LAMBORGHINI DIABLO VT (1995) GEARBOX PARTS DIAGRAM")
-part-diagram-311.07.00.webp "LAMBORGHINI DIABLO VT (1995) GEARBOX PARTS DIAGRAM")
-part-diagram-407.02.00.webp "LAMBORGHINI DIABLO VT (1995) AXLE SHAFT FRONT PARTS DIAGRAM")
-part-diagram-407.03.00.webp "LAMBORGHINI DIABLO VT (1995) WHEEL HUB PARTS DIAGRAM")
-part-diagram-409.01.00.webp "LAMBORGHINI DIABLO VT (1995) FRONT AXLE DIFFERENTIAL PARTS DIAGRAM")
-part-diagram-409.02.00.webp "LAMBORGHINI DIABLO VT (1995) FRONT AXLE DIFFERENTIAL BOX PARTS DIAGRAM")
-part-diagram-409.03.00.webp "LAMBORGHINI DIABLO VT (1995) FRONT AXLE DIFFERENTIAL PARTS DIAGRAM")
-part-diagram-411.01.00.webp "LAMBORGHINI DIABLO VT (1995) SUSPENSION FRONT PARTS DIAGRAM")
-part-diagram-419.01.00.webp "LAMBORGHINI DIABLO VT (1995) STEERING SYSTEM PARTS DIAGRAM")
-part-diagram-422.02.00.webp "LAMBORGHINI DIABLO VT (1995) STEERING ROD PARTS DIAGRAM")
-part-diagram-422.03.00.webp "LAMBORGHINI DIABLO VT (1995) POWER STEERING PARTS DIAGRAM")
-part-diagram-422.04.00.webp "LAMBORGHINI DIABLO VT (1995) STEERING ROD PARTS DIAGRAM")
-part-diagram-505.03.00.webp "LAMBORGHINI DIABLO VT (1995) AXLE SHAFT REAR PARTS DIAGRAM")
-part-diagram-505.04.00.webp "LAMBORGHINI DIABLO VT (1995) WHEEL HUB PARTS DIAGRAM")
-part-diagram-512.01.00.webp "LAMBORGHINI DIABLO VT (1995) SUSPENSION REAR PARTS DIAGRAM")
-part-diagram-601.01.00.webp "LAMBORGHINI DIABLO VT (1995) WHEELS/TYRES FRONT PARTS DIAGRAM")
-part-diagram-601.02.00.webp "LAMBORGHINI DIABLO VT (1995) WHEELS/TYRES REAR PARTS DIAGRAM")
-part-diagram-611.02.00.webp "LAMBORGHINI DIABLO VT (1995) VACUUM PUMP FOR BRAKE SERVO PARTS DIAGRAM")
-part-diagram-611.03.00.webp "LAMBORGHINI DIABLO VT (1995) VACUUM PUMP FOR BRAKE SERVO PARTS DIAGRAM")
-part-diagram-615.04.00.webp "LAMBORGHINI DIABLO VT (1995) HANDBRAKE PARTS DIAGRAM")
-part-diagram-615.05.00.webp "LAMBORGHINI DIABLO VT (1995) BRAKE DISC FRONT PARTS DIAGRAM")
-part-diagram-615.06.00.webp "LAMBORGHINI DIABLO VT (1995) BRAKE DISC REAR PARTS DIAGRAM")
-part-diagram-701.02.00.webp "LAMBORGHINI DIABLO VT (1995) TRIM FRAME FRONT PART PARTS DIAGRAM")
-part-diagram-701.03.00.webp "LAMBORGHINI DIABLO VT (1995) TRIM FRAME FRONT PART PARTS DIAGRAM")
-part-diagram-701.04.00.webp "LAMBORGHINI DIABLO VT (1995) TRIM FRAME FRONT PART PARTS DIAGRAM")
-part-diagram-723.02.00.webp "LAMBORGHINI DIABLO VT (1995) BRAKE AND ACCEL. LEVER MECH. PARTS DIAGRAM")
-part-diagram-723.03.00.webp "LAMBORGHINI DIABLO VT (1995) BRAKE AND ACCEL. LEVER MECH. PARTS DIAGRAM")
-part-diagram-807.03.00.webp "LAMBORGHINI DIABLO VT (1995) BUMPER, COMPLETE PARTS DIAGRAM")
-part-diagram-807.04.00.webp "LAMBORGHINI DIABLO VT (1995) BUMPER, COMPLETE PARTS DIAGRAM")
-part-diagram-809.01.00.webp "LAMBORGHINI DIABLO VT (1995) FUEL FILLER FLAP PARTS DIAGRAM")
-part-diagram-810.02.00.webp "LAMBORGHINI DIABLO VT (1995) FRONT WHEEL HOUSING PARTS DIAGRAM")
-part-diagram-810.03.00.webp "LAMBORGHINI DIABLO VT (1995) REAR WHEEL HOUSING PARTS DIAGRAM")
-part-diagram-815.01.00.webp "LAMBORGHINI DIABLO VT (1995) FRONT AIR DUCT CARDBOARD PARTS DIAGRAM")
-part-diagram-815.02.00.webp "LAMBORGHINI DIABLO VT (1995) REAR AIR INTAKE PARTS DIAGRAM")
-part-diagram-819.03.00.webp "LAMBORGHINI DIABLO VT (1995) HEATING, AIR COND. SYSTEM PARTS DIAGRAM")
-part-diagram-819.04.00.webp "LAMBORGHINI DIABLO VT (1995) AIR GUIDE CHANNEL PARTS DIAGRAM")
-part-diagram-819.05.00.webp "LAMBORGHINI DIABLO VT (1995) HEATING, AIR COND. SYSTEM PARTS DIAGRAM")
-part-diagram-820.01.00.webp "LAMBORGHINI DIABLO VT (1995) AIR COND. SYSTEM PARTS DIAGRAM")
-part-diagram-820.02.00.webp "LAMBORGHINI DIABLO VT (1995) AIR CONDITIONING PARTS DIAGRAM")
-part-diagram-820.03.00.webp "LAMBORGHINI DIABLO VT (1995) AIR CONDITIONING PARTS DIAGRAM")
-part-diagram-821.01.00.webp "LAMBORGHINI DIABLO VT (1995) WING FRONT PARTS DIAGRAM")
-part-diagram-821.02.00.webp "LAMBORGHINI DIABLO VT (1995) WING PROTECTOR REAR PARTS DIAGRAM")
-part-diagram-823.01.00.webp "LAMBORGHINI DIABLO VT (1995) BONNET FRONT PARTS DIAGRAM")
-part-diagram-825.03.00.webp "LAMBORGHINI DIABLO VT (1995) TRIM PANEL FOR FRAME LOWER SECTION PARTS DIAGRAM")
-part-diagram-825.04.00.webp "LAMBORGHINI DIABLO VT (1995) TRIM PANEL FOR ENGINE PARTS DIAGRAM")
-part-diagram-827.01.00.webp "LAMBORGHINI DIABLO VT (1995) REAR SPOILER PARTS DIAGRAM")
-part-diagram-827.02.00.webp "LAMBORGHINI DIABLO VT (1995) ENGINE COVER WITH INSP. COVER PARTS DIAGRAM")
-part-diagram-827.03.00.webp "LAMBORGHINI DIABLO VT (1995) ENGINE COVER WITH INSP. COVER PARTS DIAGRAM")

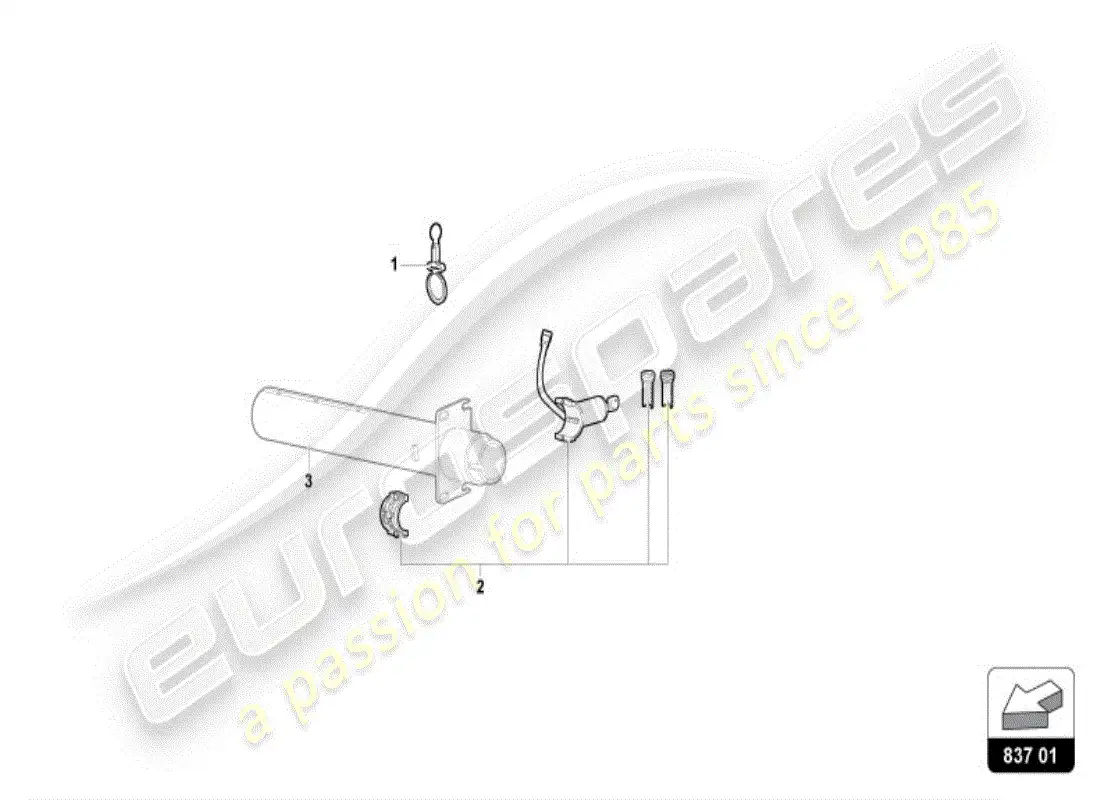

-part-diagram-837.01.00.webp "LAMBORGHINI DIABLO VT (1995) LOCK CYLINDER WITH KEYS PARTS DIAGRAM")
-part-diagram-837.04.00.webp "LAMBORGHINI DIABLO VT (1995) DRIVER AND PASSENGER DOOR PARTS DIAGRAM")
