lamborghini diablo vt (1995) ignition system parts diagram

905.03.00 - IGNITION SYSTEM

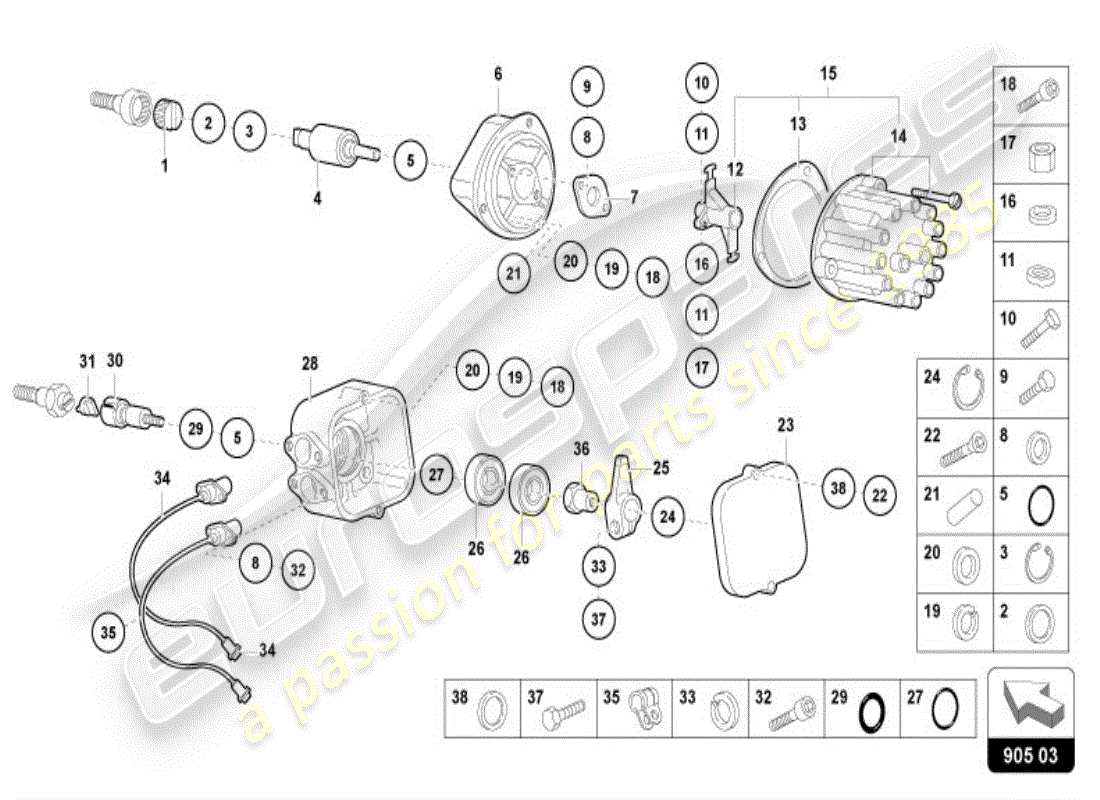

Lamborghini Diablo VT (1995) IGNITION SYSTEM Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                            #
                                                                            Part number
                                                                            Description
                                                                            Key
                                                                            Price
                                                                            # 001
                                                                            MPN: 001632296
                                                                            COUPLING
                                                                            from £105.28
                                                                            from £105.28
                                                                            TIMING DRIVE GEAR JOINT Genuine Lamborghini - New (to order)
                                                                            # 002
                                                                            MPN: 008611604
                                                                            SEAL
                                                                            from £14.67
                                                                            from £14.67
                                                                            OIL SEAL 16X30X7 MM Genuine Lamborghini - New (to order)
                                                                            # 003
                                                                            MPN: 008573202
                                                                            RETAINER RING
                                                                            from £3.61
                                                                            from £3.61
                                                                            O-RING I 30 UNI 3654 Genuine Lamborghini - New In stock
                                                                            # 004
                                                                            MPN: 001625446
                                                                            BEARING
                                                                            from £124.14
                                                                            from £124.14
                                                                            SPARK DISTRIBUTOR CAP RADIAL B EARING Genuine Lamborghini - New (to order)
                                                                            # 005
                                                                            MPN: 008605001
                                                                            SEAL
                                                                            from £0.81
                                                                            from £0.81
                                                                            OR RING Genuine Lamborghini - New In stock
                                                                            # 006
                                                                            MPN: 001632283
                                                                            FLANGE
                                                                            from £639.03
                                                                            from £639.03
                                                                            DISTRIBUTOR CAP BRACKET Genuine Lamborghini - New (to order)
                                                                            # 007
                                                                            MPN: 001629805
                                                                            FLANGE
                                                                            from £16.61
                                                                            from £16.61
                                                                            SHEET Genuine Lamborghini - New In stock
                                                                            # 008
                                                                            MPN: 008410502
                                                                            WASHER
                                                                            Supersession
                                                                            Supersession
                                                                            Genuine Lamborghini (no longer available to order)
                                                                            # 009
                                                                            MPN: 008100508
                                                                            SCREW
                                                                            from £3.78
                                                                            from £3.78
                                                                            SCREW M5X10 UNI 5739/5S/Z Genuine Lamborghini - New (to order)
                                                                            # 010
                                                                            MPN: 008100516
                                                                            SCREW
                                                                            from £3.61
                                                                            from £3.61
                                                                            SCREW M5X0.8X25 20081/062 ORI GINALE M Genuine Lamborghini - New (to order)
                                                                            # 011
                                                                            MPN: 008410503
                                                                            WASHER
                                                                            Supersession
                                                                            Supersession
                                                                            Genuine Lamborghini (no longer available to order)
                                                                            # 012
                                                                            MPN: 001627730
                                                                            BRUSH
                                                                            from £211.44
                                                                            from £211.44
                                                                            ROTATING BRUSH Genuine Lamborghini - New (to order)
                                                                            ROTATING BRUSH Eurospares Approved Part - New In stock

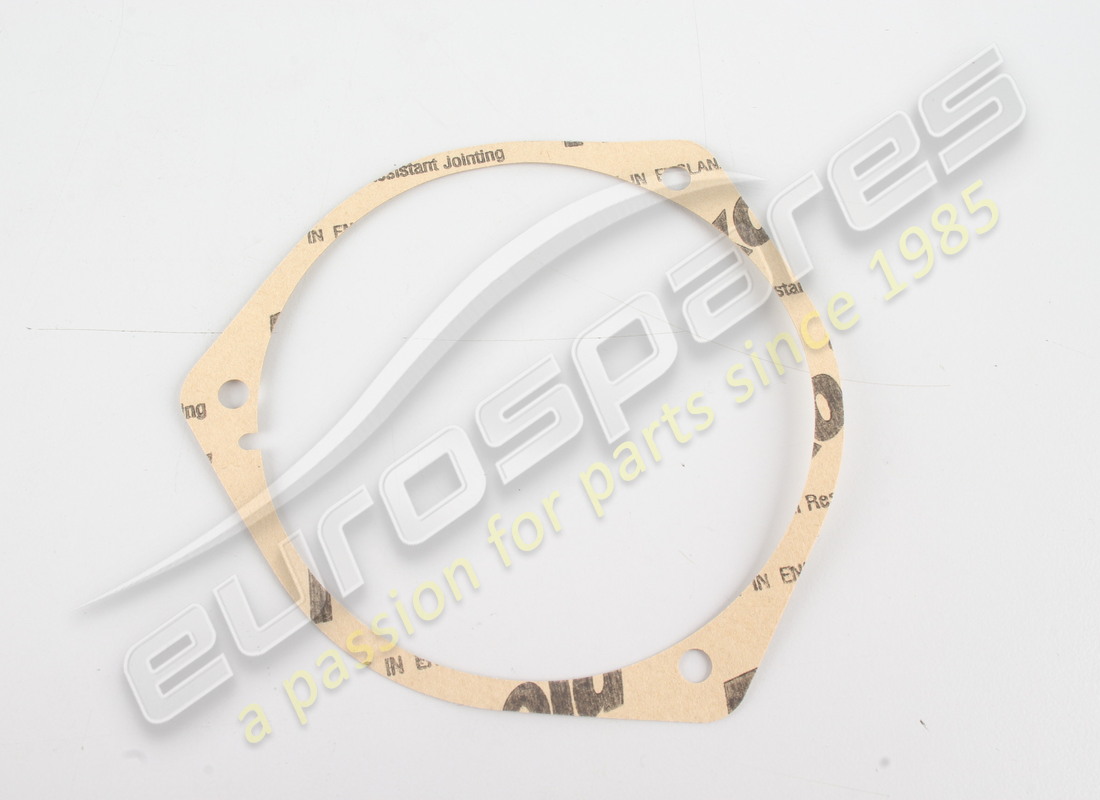

                                                                            # 013
                                                                            MPN: 001627729
                                                                            GASKET
                                                                            from £9.86
                                                                            from £9.86
                                                                            SEAL Genuine Lamborghini - New In stock
                                                                            # 014
                                                                            MPN: 001633864
                                                                            CAP
                                                                            from £827.51
                                                                            from £827.51
                                                                            This part replaces part number 001627728
                                                                            DISTRIBUTOR CAP Genuine Lamborghini - New (to order)
                                                                            Eurospares Approved Part (no longer available to order)
                                                                            # 015
                                                                            MPN: 001633845
                                                                            IGNITION DISTRIBUTOR
                                                                            Lamborghini PART 001633845 Genuine Lamborghini - New (to order)
                                                                            # 016
                                                                            MPN: 008400507
                                                                            WASHER
                                                                            WASHER Genuine Lamborghini - New (to order)
                                                                            # 017
                                                                            MPN: 008200509
                                                                            NUT
                                                                            NUT Genuine Lamborghini - New (to order)
                                                                            # 018
                                                                            MPN: 008700627
                                                                            SCREW
                                                                            Supersession
                                                                            Supersession
                                                                            Genuine Lamborghini (no longer available to order)
                                                                            # 019
                                                                            MPN: 008410611
                                                                            WASHER
                                                                            from £0.51
                                                                            from £0.51
                                                                            SNAP RING D.6 DIN 7980 Genuine Lamborghini - New In stock
                                                                            # 020
                                                                            MPN: 008400606
                                                                            WASHER
                                                                            Supersession
                                                                            Supersession
                                                                            Genuine Lamborghini (no longer available to order)
                                                                            # 021
                                                                            MPN: 008850201
                                                                            DOWEL
                                                                            from £32.64
                                                                            from £32.64
                                                                            PIN UNI 1707H11 Z.5X8 Genuine Lamborghini - New In stock
                                                                            # 022
                                                                            MPN: 008700501
                                                                            SCREW
                                                                            from £1.93
                                                                            from £1.93
                                                                            SCREW M5X10 UNI 5933/12K/F Genuine Lamborghini - New In stock
                                                                            # 022
                                                                            MPN: 008700504
                                                                            SCREW
                                                                            from £0.53
                                                                            from £0.53
                                                                            SCREW M5X12 UNI 59318G Genuine Lamborghini - New (to order)
                                                                            # 023
                                                                            MPN: 001629246
                                                                            COVER
                                                                            Lamborghini PART 001629246 Genuine Lamborghini - New (to order)
                                                                            # 023
                                                                            MPN: 001634715
                                                                            COVER
                                                                            from £45.57
                                                                            from £45.57
                                                                            PICK-UP BRACKET COVER Genuine Lamborghini - New (to order)
                                                                            # 024
                                                                            MPN: 008573501
                                                                            RETAINER RING
                                                                            Supersession
                                                                            Supersession
                                                                            Genuine Lamborghini (no longer available to order)
                                                                            # 025
                                                                            MPN: 001632292
                                                                            PULSE GENERATOR
                                                                            from £142.19
                                                                            from £142.19
                                                                            TDC BRUSH Genuine Lamborghini - New (to order)
                                                                            # 026
                                                                            MPN: 008501501
                                                                            BEARING
                                                                            Supersession
                                                                            Supersession
                                                                            Genuine Lamborghini (no longer available to order)
                                                                            # 027
                                                                            MPN: 008603501
                                                                            ESTATE
                                                                            Supersession
                                                                            Supersession
                                                                            Genuine Lamborghini (no longer available to order)
                                                                            # 028
                                                                            MPN: 001632281
                                                                            CASE
                                                                            from £323.60
                                                                            from £323.60
                                                                            TDC SENSOR BRACKET Genuine Lamborghini - New (to order)
                                                                            # 028
                                                                            MPN: 001635932
                                                                            CASE
                                                                            from £142.19
                                                                            from £142.19
                                                                            TDC SENSOR PICK UP BRACKET Genuine Lamborghini - New (to order)
                                                                            # 029
                                                                            MPN: 008600901
                                                                            SEAL
                                                                            Supersession
                                                                            Supersession
                                                                            Genuine Lamborghini (no longer available to order)
                                                                            # 030
                                                                            MPN: 001632289
                                                                            SMALL SHAFT
                                                                            from £47.74
                                                                            from £47.74
                                                                            BRUSH SHAFT Genuine Lamborghini - New (to order)
                                                                            # 031
                                                                            MPN: 001634052
                                                                            COUPLING
                                                                            from £222.03
                                                                            from £222.03
                                                                            CROSS JOINT Genuine Lamborghini - New (to order)
                                                                            # 032
                                                                            MPN: 008700512
                                                                            SCREW
                                                                            Supersession
                                                                            Supersession
                                                                            Genuine Lamborghini (no longer available to order)
                                                                            # 033
                                                                            MPN: 008410603
                                                                            WASHER
                                                                            Supersession
                                                                            Supersession
                                                                            Genuine Lamborghini (no longer available to order)
                                                                            # 034
                                                                            MPN: 001625411
                                                                            TIMING SENSOR
                                                                            TIMING SENSOR Genuine Lamborghini - New (to order)
                                                                            # 035
                                                                            MPN: 006134202
                                                                            STRAP
                                                                            from £0.76
                                                                            from £0.76
                                                                            CLIP Genuine Lamborghini - New (to order)
                                                                            # 036
                                                                            MPN: 001632291
                                                                            NUT
                                                                            from £35.71
                                                                            from £35.71
                                                                            TDC SPINDLE MOUNTINGNUT Genuine Lamborghini - New (to order)
                                                                            # 037
                                                                            MPN: 008100607
                                                                            SCREW
                                                                            from £3.78
                                                                            from £3.78
                                                                            SCREW M6X18 UNI 5739/5S/Z Genuine Lamborghini - New (to order)
                                                                            # 038
                                                                            -
                                                                            WASHER
                                                                            NOT FOR THIS MODEL
                                                                            # 038
                                                                            MPN: 008410503
                                                                            WASHER
                                                                            Supersession
                                                                            Supersession
                                                                            Genuine Lamborghini (no longer available to order)
