915.03.00 - Battery

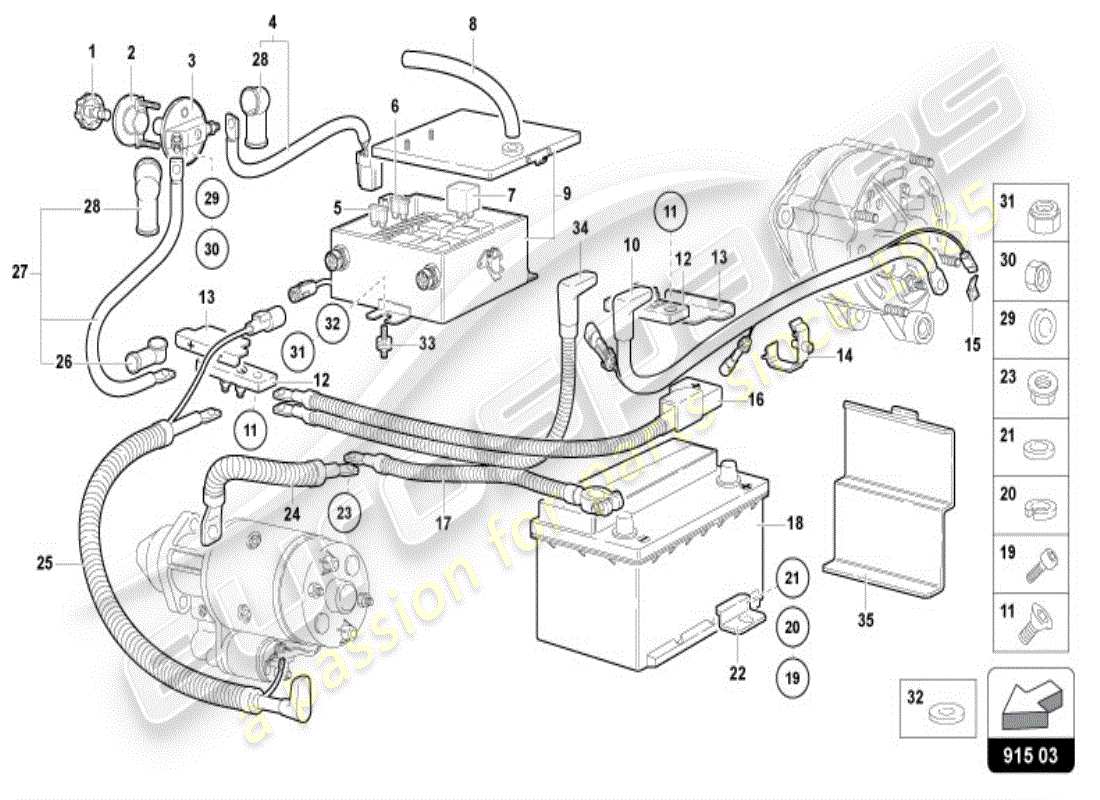

Lamborghini Diablo VT (1995) BATTERY Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                  #
                                                                  Part number
                                                                  Description
                                                                  Key
                                                                  Price
                                                                  # 001
                                                                  MPN: 005931167
                                                                  KNOB
                                                                  from £57.54
                                                                  from £57.54
                                                                  BATTERY DISCONNECT KNOB Genuine Lamborghini - New (to order)
                                                                  # 002
                                                                  MPN: 005931299
                                                                  FLANGE
                                                                  from £149.57
                                                                  from £149.57
                                                                  BATTERY DISCONNECT FLANGE Genuine Lamborghini - New (to order)
                                                                  # 003
                                                                  MPN: 005931163
                                                                  CONNECTING BLOCK
                                                                  from £150.37
                                                                  from £150.37
                                                                  BATTERY DISCONNECT Genuine Lamborghini - New (to order)
                                                                  # 004
                                                                  MPN: 006135928
                                                                  ELECT CABLE
                                                                  from £92.59
                                                                  from £92.59
                                                                  RELAY BOX-BATTERY DISCONNECT W IRE Genuine Lamborghini - New (to order)
                                                                  # 005
                                                                  -
                                                                  FUSE
                                                                  SEE ILLUSTRATION: 971.06
                                                                  # 006
                                                                  -
                                                                  DIODE
                                                                  SEE ILLUSTRATION: 971.06
                                                                  # 007
                                                                  -
                                                                  RELAY
                                                                  SEE ILLUSTRATION: 971.06
                                                                  # 008
                                                                  MPN: 006134396
                                                                  PIPE
                                                                  from £67.32
                                                                  from £67.32
                                                                  AIR DELIVERY PIPE Genuine Lamborghini - New (to order)
                                                                  # 010
                                                                  MPN: 006135922
                                                                  ELECT CABLE
                                                                  from £141.31
                                                                  from £141.31
                                                                  ALTERNATOR-JOINT 1 WIRE Genuine Lamborghini - New (to order)
                                                                  # 011
                                                                  MPN: 008700801
                                                                  SCREW
                                                                  from £0.53
                                                                  from £0.53
                                                                  SCREW M8X16 UNI 5933/5S/Z Genuine Lamborghini - New (to order)
                                                                  # 012
                                                                  MPN: 005934037
                                                                  ELECTRIC CONNECT.
                                                                  Lamborghini PART 005934037 Genuine Lamborghini - New (to order)
                                                                  # 013
                                                                  MPN: 006132457
                                                                  PLATE
                                                                  from £4.33
                                                                  from £4.33
                                                                  BASE POSITIONING REFERENCE PLA TE Genuine Lamborghini - New (to order)
                                                                  # 014
                                                                  MPN: 008832006
                                                                  STRAP
                                                                  from £2.04
                                                                  from £2.04
                                                                  PEG Genuine Lamborghini - New (to order)
                                                                  # 015
                                                                  MPN: 006131975
                                                                  CONTACT PLATE
                                                                  from £0.54
                                                                  from £0.54
                                                                  ALTERNATOR WARNING LIGHT TAB Genuine Lamborghini - New (to order)
                                                                  # 016
                                                                  MPN: 006135926
                                                                  ELECT CABLE
                                                                  from £68.72
                                                                  from £68.72
                                                                  BATTERY-JOINT 2 WIRE Genuine Lamborghini - New (to order)
                                                                  BATTERY-JOINT 2 WIRE Genuine Lamborghini - Used In stock
                                                                  # 017
                                                                  MPN: 006135925
                                                                  ELECT CABLE
                                                                  from £62.84
                                                                  from £62.84
                                                                  BATTERY-CHASSIS WIRE Genuine Lamborghini - New In stock
                                                                  BATTERY-CHASSIS WIRE Genuine Lamborghini - Used In stock
                                                                  # 018
                                                                  MPN: 001624948
                                                                  BATIERY
                                                                  from £657.84
                                                                  from £657.84
                                                                  Battery Genuine Lamborghini - New (to order)
                                                                  # 019
                                                                  MPN: 008700815
                                                                  SCREW
                                                                  from £0.54
                                                                  from £0.54
                                                                  SCREW M8X20 UNI 5931/8G/ZD Genuine Lamborghini - New In stock
                                                                  # 020
                                                                  MPN: 008410819
                                                                  WASHER
                                                                  from £1.53
                                                                  from £1.53
                                                                  SNAP RING D.8 DIN 7980 Genuine Lamborghini - New (to order)
                                                                  SNAP RING D.8 DIN 7980 Genuine Lamborghini - New (other) In stock
                                                                  WASHER
                                                                  # 021
                                                                  MPN: 008400816
                                                                  WASHER
                                                                  Supersession
                                                                  Supersession
                                                                  Genuine Lamborghini (no longer available to order)
                                                                  # 022
                                                                  MPN: 004130608
                                                                  PLATE
                                                                  from £18.68
                                                                  from £18.68
                                                                  BATTERY MOUNTING PLATE Genuine Lamborghini - New In stock
                                                                  # 023
                                                                  MPN: 008200824
                                                                  NUT
                                                                  from £0.54
                                                                  from £0.54
                                                                  8X1.25 DIN 6923 6S/Z NUT Genuine Lamborghini - New (to order)
                                                                  # 024
                                                                  MPN: 006135923
                                                                  ELECT CABLE
                                                                  from £52.47
                                                                  from £52.47
                                                                  ENGINE-CHASSIS WIRE Genuine Lamborghini - New (to order)
                                                                  # 025
                                                                  MPN: 006135924
                                                                  ELECT CABLE
                                                                  from £200.15
                                                                  from £200.15
                                                                  STARTER MOTOR-JOINT 2 WIRE Genuine Lamborghini - New (to order)
                                                                  # 026
                                                                  MPN: 006134287
                                                                  SHIELD
                                                                  from £26.33
                                                                  from £26.33
                                                                  POINT JOINT CAP Genuine Lamborghini - New In stock
                                                                  # 027
                                                                  MPN: 006135921
                                                                  ELECT CABLE
                                                                  from £50.92
                                                                  from £50.92
                                                                  BATTERY DISCONNECT COUPLING WI RE Genuine Lamborghini - New (to order)
                                                                  BATTERY DISCONNECT COUPLING WI RE Genuine Lamborghini - Used In stock
                                                                  # 028
                                                                  MPN: 006132132
                                                                  SHIELD
                                                                  from £2.49
                                                                  from £2.49
                                                                  POWER JOINT CAP Genuine Lamborghini - New (to order)
                                                                  # 029
                                                                  MPN: 008400502
                                                                  WASHER
                                                                  Supersession
                                                                  Supersession
                                                                  Genuine Lamborghini (no longer available to order)
                                                                  # 030
                                                                  MPN: 008200503
                                                                  NUT
                                                                  from £2.19
                                                                  from £2.19
                                                                  M5 UNI 7473 ZD SELF-LOCKIN GNUT Genuine Lamborghini - New (to order)
                                                                  # 031
                                                                  MPN: 008200606
                                                                  NUT
                                                                  Supersession
                                                                  Supersession
                                                                  Genuine Lamborghini (no longer available to order)
                                                                  # 032
                                                                  MPN: 008400607
                                                                  WASHER
                                                                  Supersession
                                                                  Supersession
                                                                  Genuine Lamborghini (no longer available to order)
                                                                  # 033
                                                                  MPN: 008920602
                                                                  ELASTIC SUPPORT
                                                                  from £9.05
                                                                  from £9.05
                                                                  RUBBER SUPPORT D18X8.5 FIL.M6X 10/16 Genuine Lamborghini - New (to order)
                                                                  # 034
                                                                  MPN: 006135927
                                                                  ELECT CABLE
                                                                  from £50.92
                                                                  from £50.92
                                                                  JOINT 1-JOINT 2 WIRE Genuine Lamborghini - New (to order)
                                                                  JOINT 1-JOINT 2 WIRE Genuine Lamborghini - Used In stock
                                                                  # 035
                                                                  MPN: 006134543
                                                                  SHIELD
                                                                  from £37.08
                                                                  from £37.08
                                                                  BATTERY GUARD BULKHEAD Genuine Lamborghini - New (to order)
