971.08.00 - electrical system

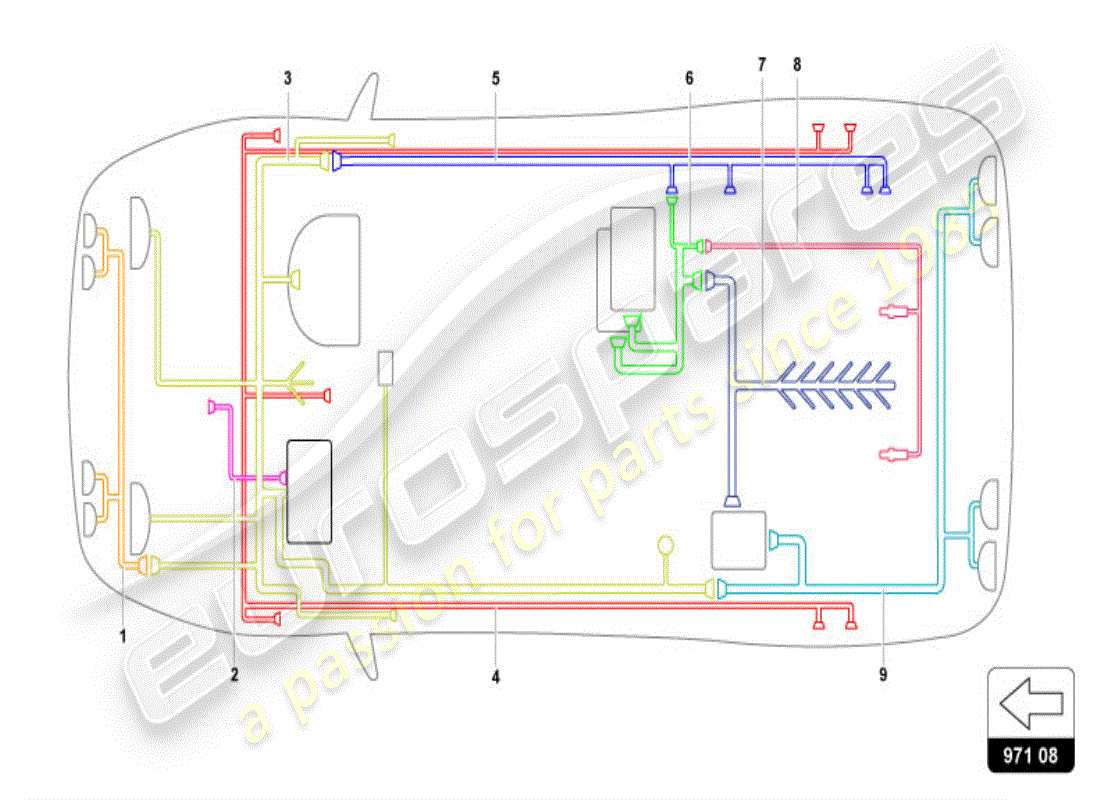

Lamborghini Diablo VT (1995) ELECTRICAL SYSTEM Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 001
MPN: 006132499
harness
(UK spec vehicles)
from £1,988.94
from £1,988.94
CABL.PARAURTI ANT.G.DX Genuine Lamborghini - New (to order)
# 002
MPN: 006132719
DIM-DIP HARNESS
(UK spec vehicles)
from £52.53
from £52.53
DIM-DIP WIRING Genuine Lamborghini - New (to order)
# 003
MPN: 006134639
MAIN HARNESS
(UK spec vehicles)
MAIN HARNESS Genuine Lamborghini - New (to order)
# 004
MPN: 006134645
(KONI) HARNESS
(UK spec vehicles)
from £2,891.41
from £2,891.41
HARNESS SUSPENSION Genuine Lamborghini - New (to order)
# 005
MPN: 006134640
CATALYST HARNESS
(UK spec vehicles)
CATALYST HARNESS Genuine Lamborghini - New (to order)
# 006
MPN: 006132581
E.C.U. HARNESS
(UK spec vehicles)
ECU HARNESS Genuine Lamborghini - New (to order)
# 007
MPN: 006134652
ENGINE HARNESS
(UK spec vehicles)
ENGINE HARNESS Genuine Lamborghini - New (to order)
# 008
MPN: 006131363
OXIGEN SENS. HARN.
(UK spec vehicles)
from £108.56
from £108.56
LAMBDA SENSOR WIRING Genuine Lamborghini - New (to order)
# 009
MPN: 006134641
REAR HARNESS
(UK spec vehicles)
REAR HARNESS Genuine Lamborghini - New (to order)
