Lamborghini Diablo VT (1996) Part Diagrams

Avoid costly mistakes and save time by using our parts diagrams to find the exact spare parts and accessories you need for your Lamborghini Diablo VT (1996).

Diagram Filter: Filter the part diagrams below by typing keywords such as brake, trim, or engine.

lamborghini diablo vt (1996) vehicle tools part diagram
012.02.00

VEHICLE TOOLS
lamborghini diablo vt (1996) radio unit part diagram
035.03.00

RADIO UNIT

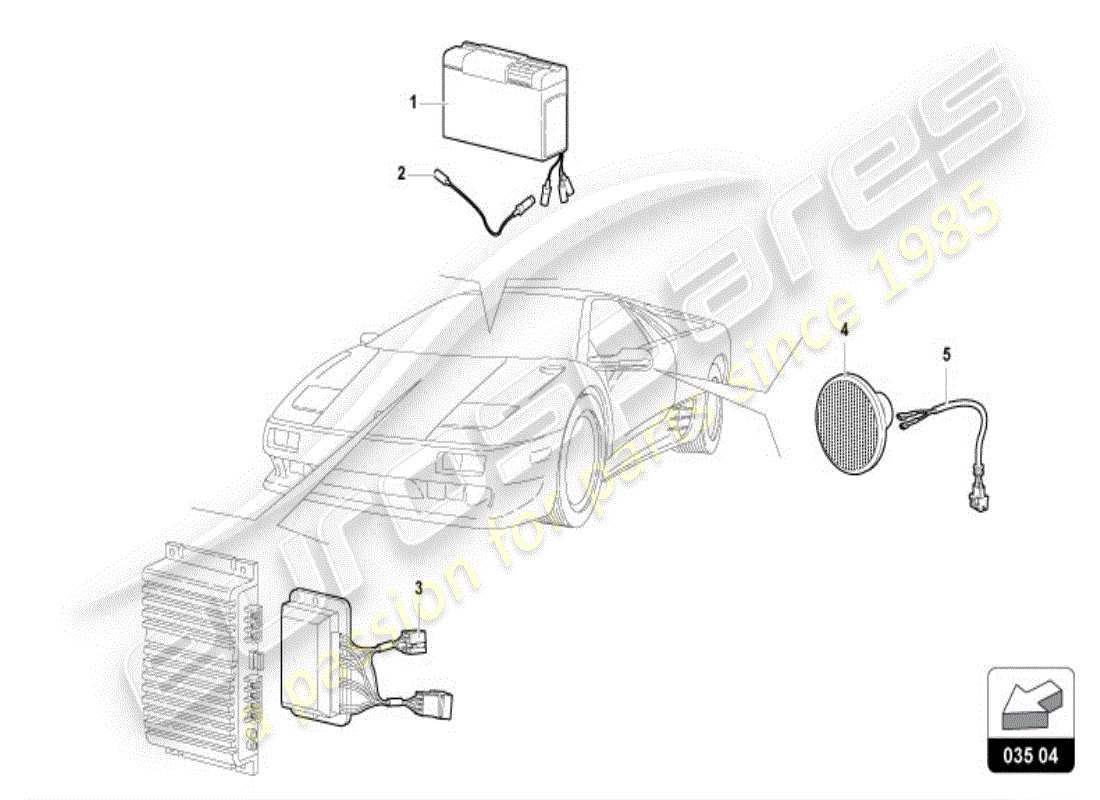

lamborghini diablo vt (1996) radio unit part diagram
035.04.00

RADIO UNIT
lamborghini diablo vt (1996) engine block part diagram

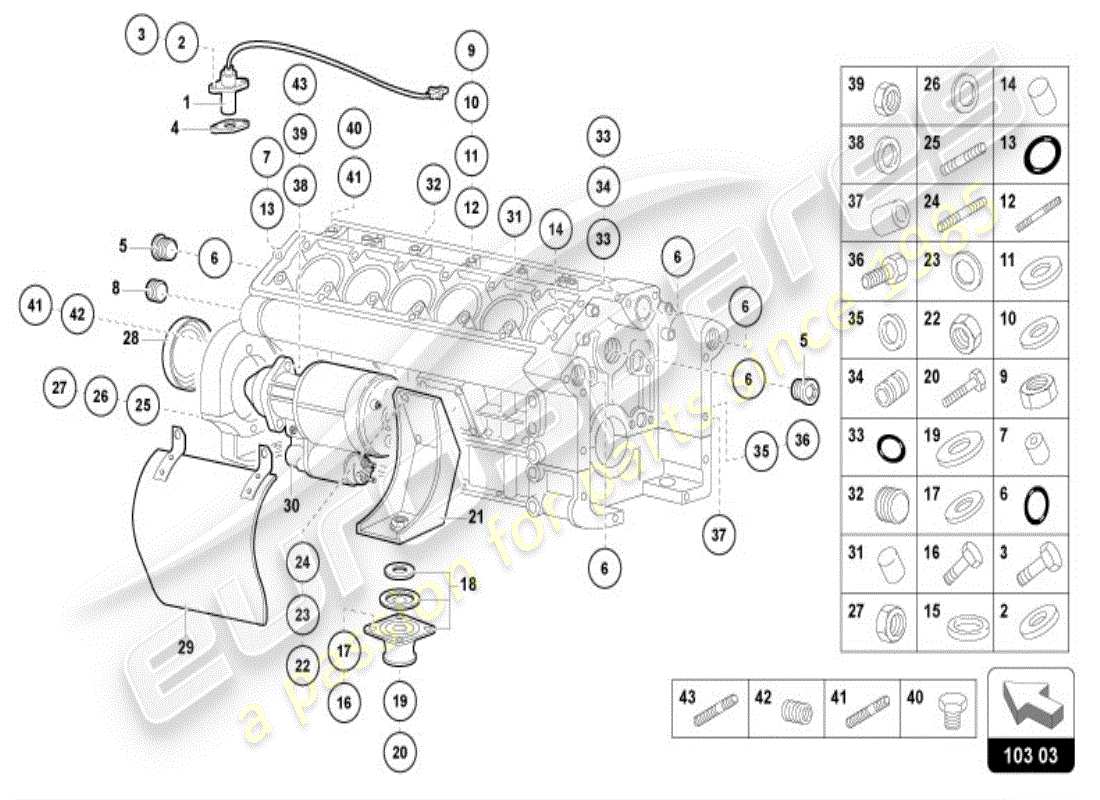

103.03.00

ENGINE BLOCK

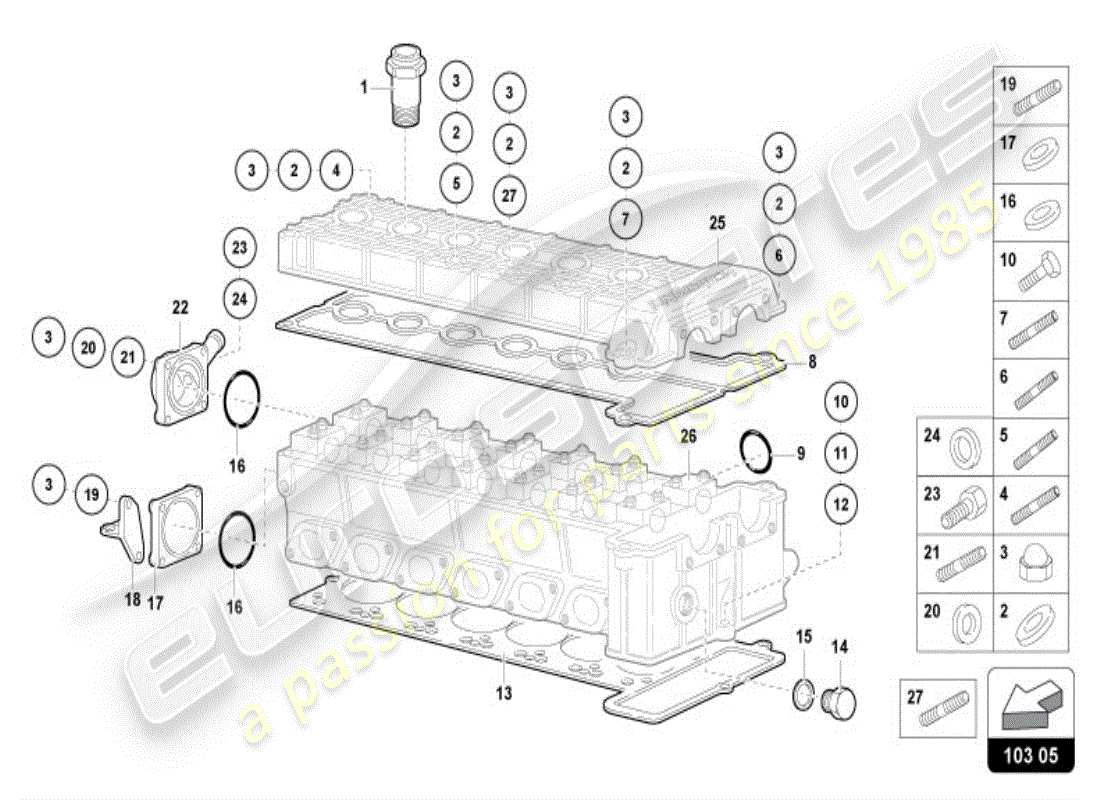

lamborghini diablo vt (1996) right head accessories part diagram
103.05.00

RIGHT HEAD ACCESSORIES

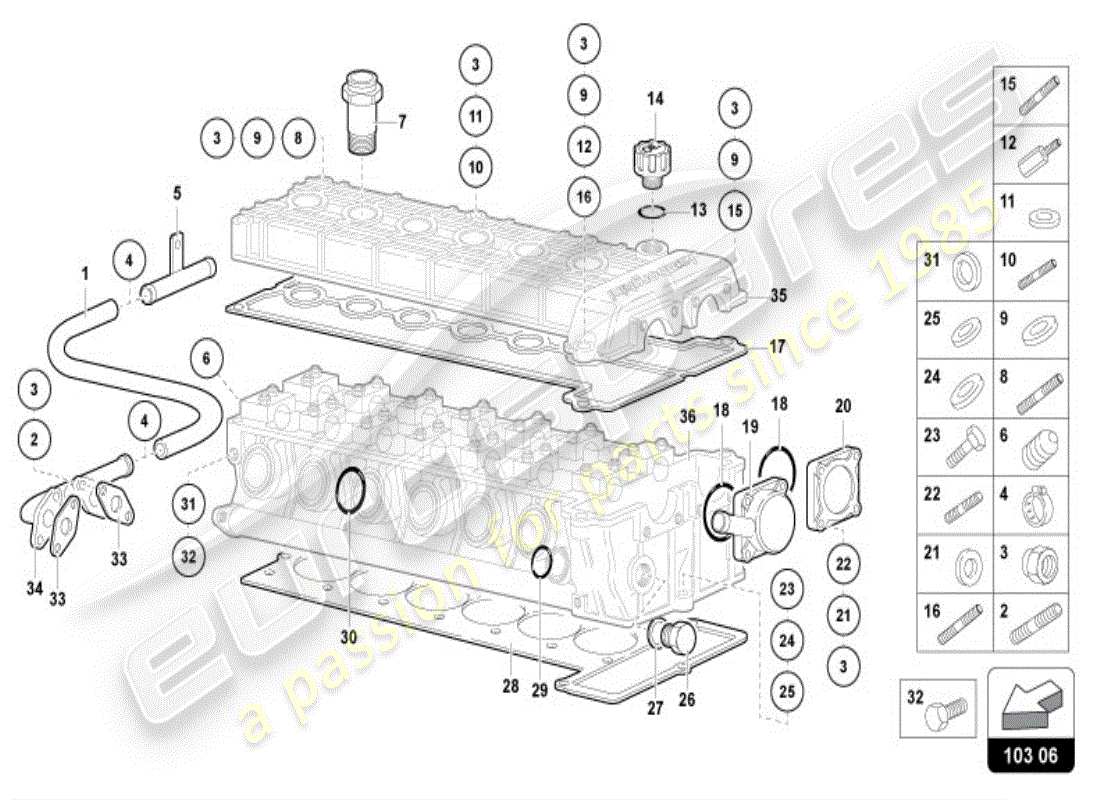

lamborghini diablo vt (1996) left head accessories part diagram
103.06.00

LEFT HEAD ACCESSORIES
lamborghini diablo vt (1996) engine block part diagram
103.07.00

ENGINE BLOCK

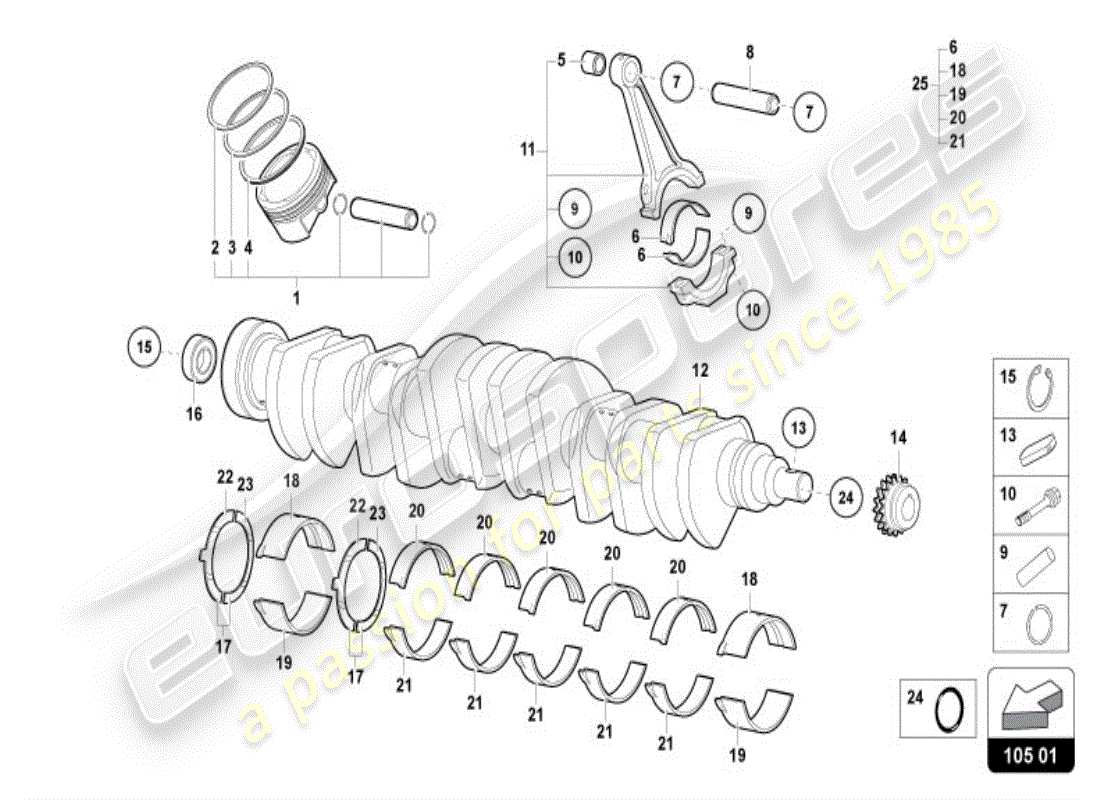

lamborghini diablo vt (1996) crankshaft with bearings part diagram
105.01.00

CRANKSHAFT WITH BEARINGS

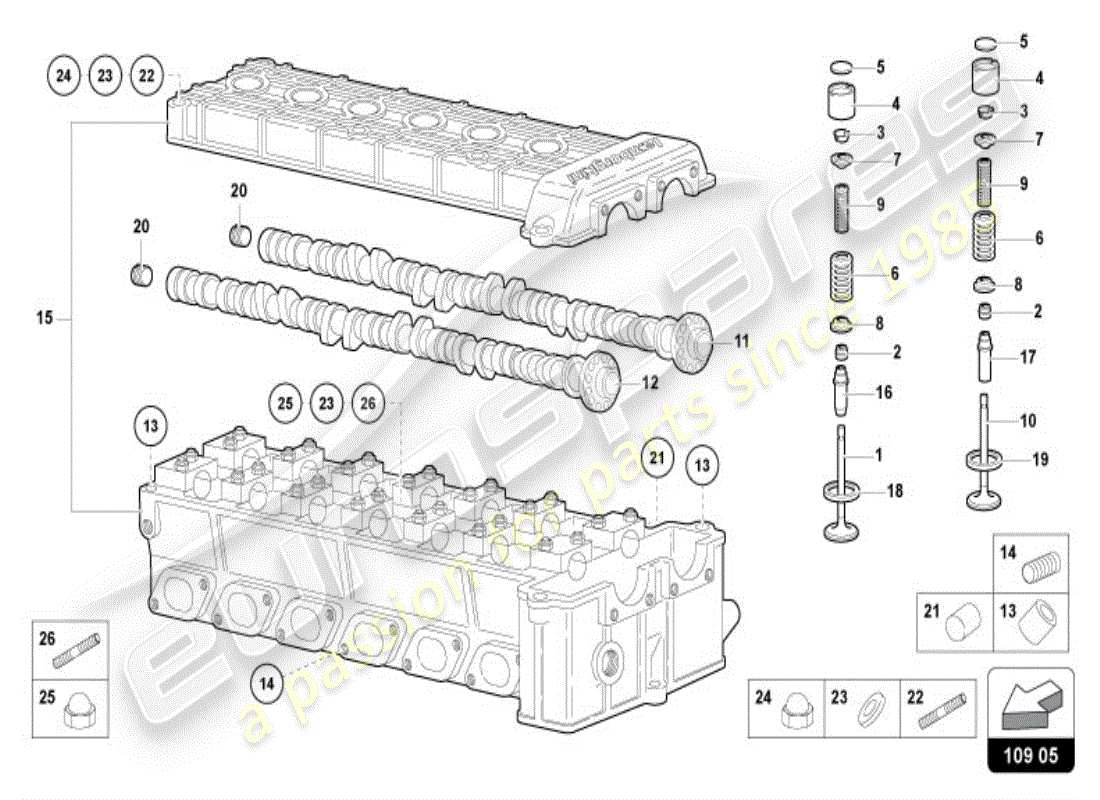

lamborghini diablo vt (1996) right head camshaft part diagram
109.05.00

RIGHT HEAD CAMSHAFT
lamborghini diablo vt (1996) left head camshaft part diagram

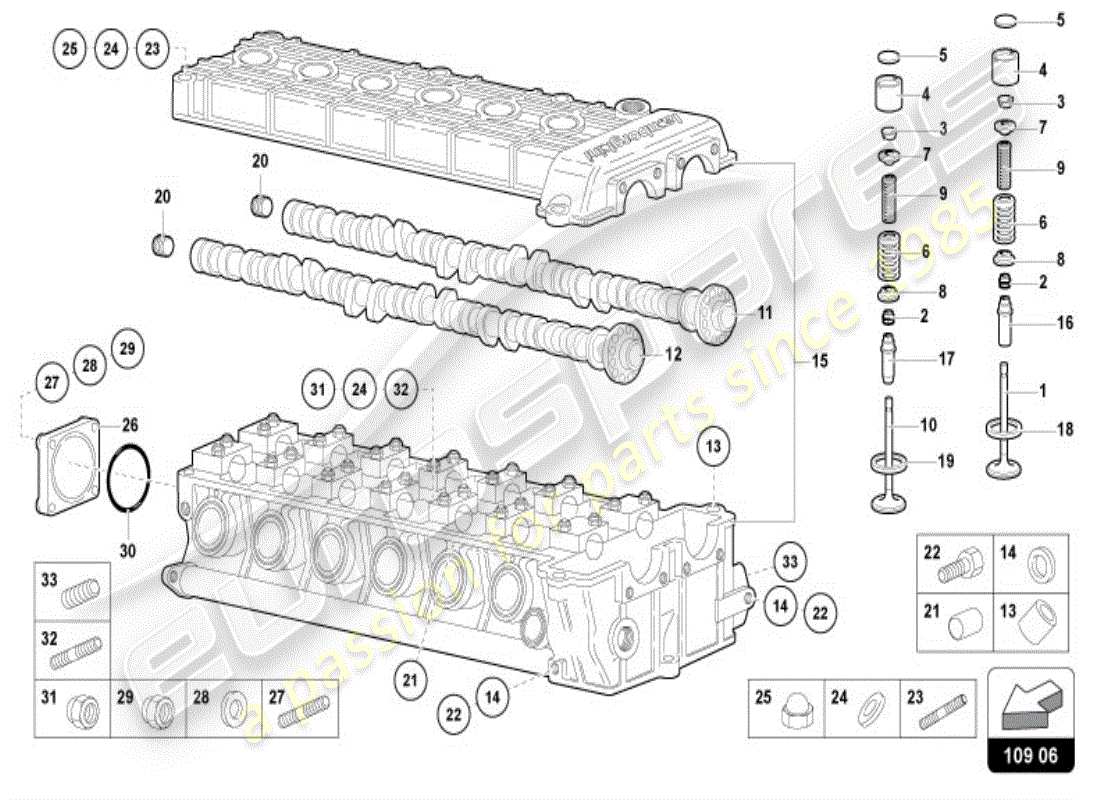

109.06.00

LEFT HEAD CAMSHAFT

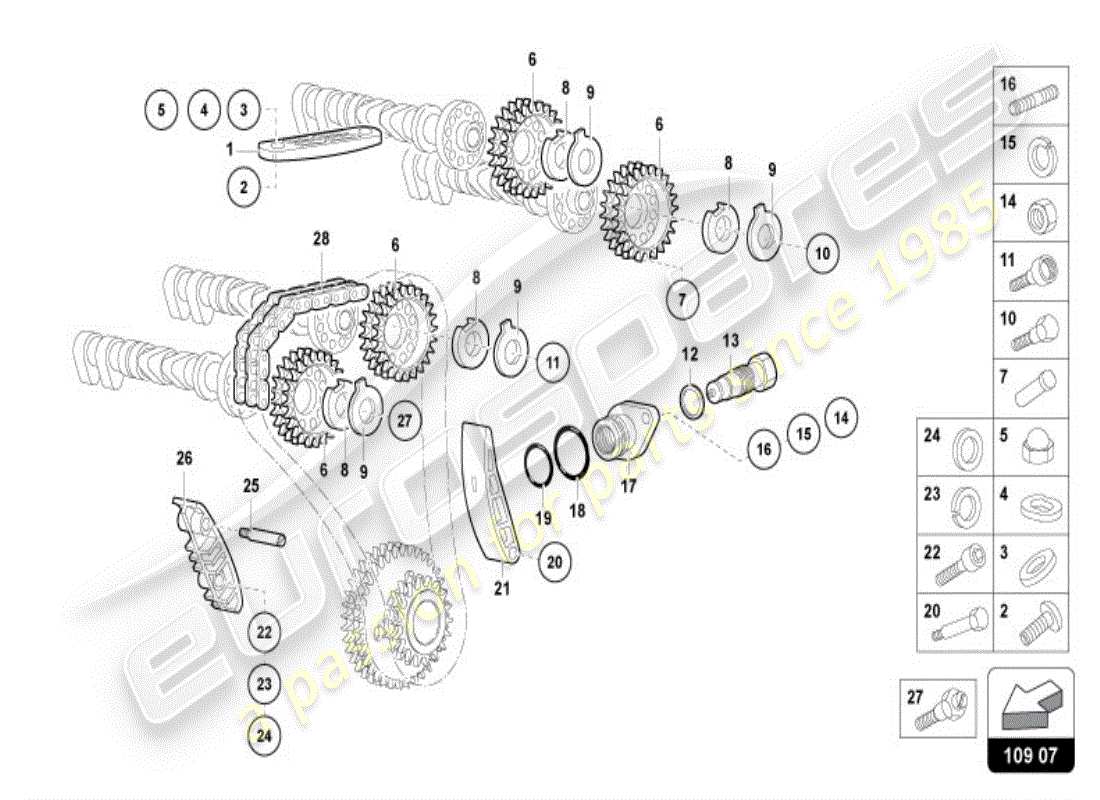

lamborghini diablo vt (1996) camshaft, valves part diagram
109.07.00

CAMSHAFT, VALVES

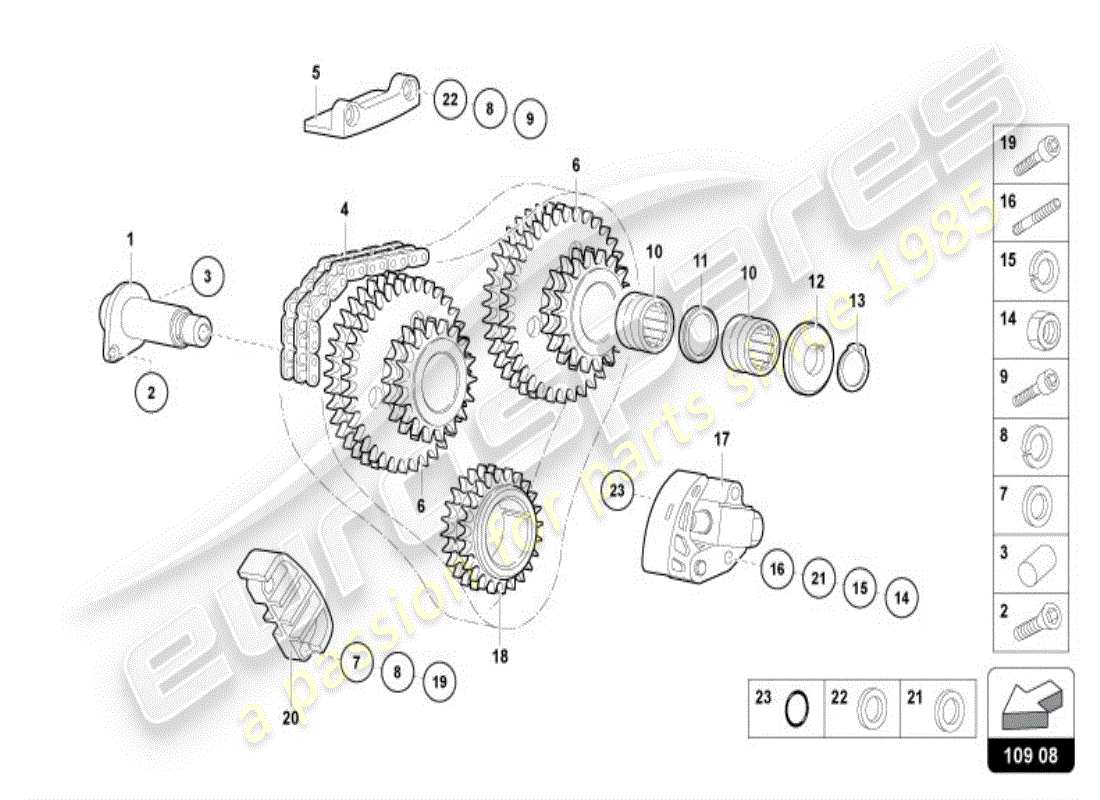

lamborghini diablo vt (1996) camshaft, valves part diagram
109.08.00

CAMSHAFT, VALVES
lamborghini diablo vt (1996) oil filter part diagram
115.02.00

OIL FILTER
lamborghini diablo vt (1996) oil pump part diagram
115.03.00

OIL PUMP
lamborghini diablo vt (1996) engine oil system part diagram
115.04.00

ENGINE OIL SYSTEM

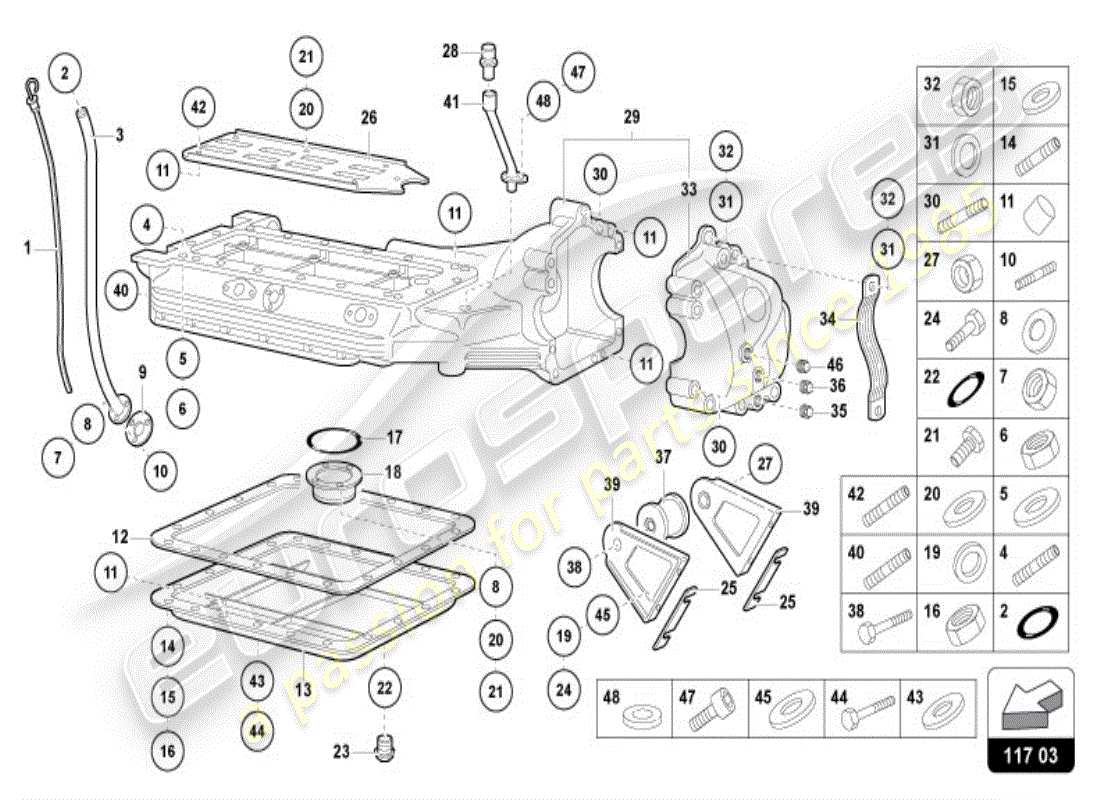

lamborghini diablo vt (1996) oil sump part diagram
117.03.00

OIL SUMP
lamborghini diablo vt (1996) oil cooler part diagram
117.04.00

OIL COOLER

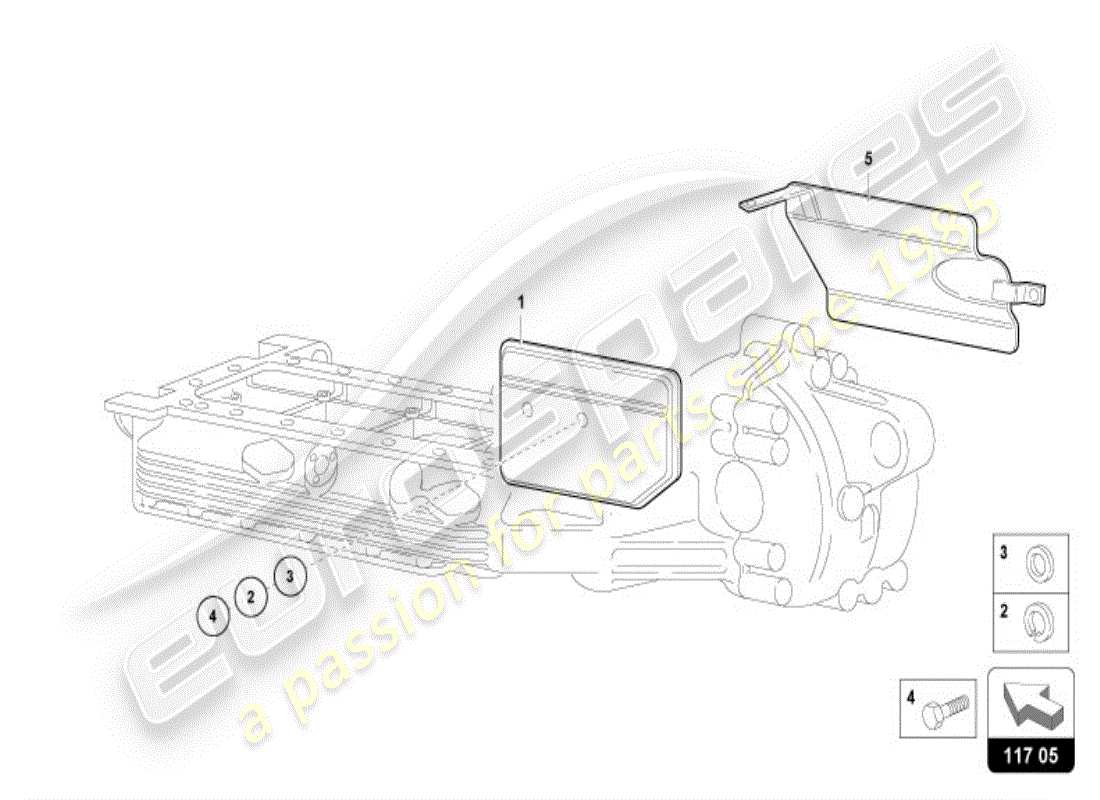

lamborghini diablo vt (1996) oil sump part diagram
117.05.00

OIL SUMP
lamborghini diablo vt (1996) coolant pump part diagram
121.04.00

COOLANT PUMP

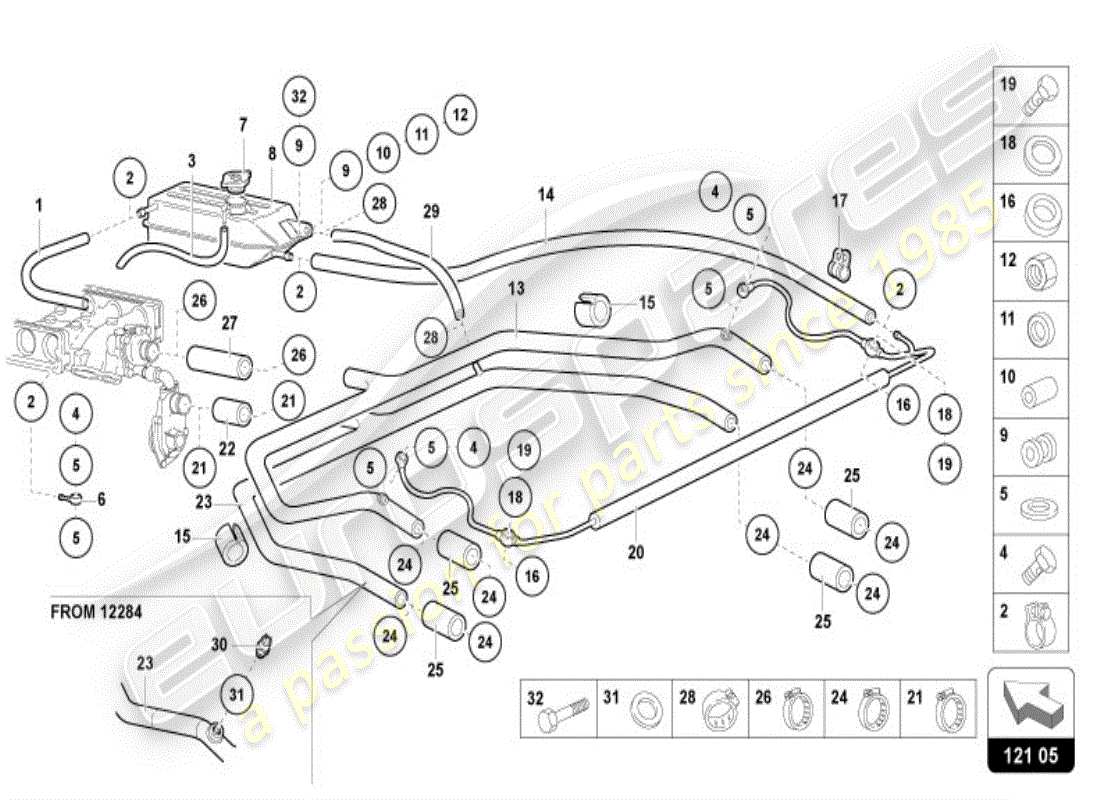

lamborghini diablo vt (1996) coolant pump part diagram
121.05.00

COOLANT PUMP
lamborghini diablo vt (1996) cooler for coolant part diagram
121.07.00

COOLER FOR COOLANT
lamborghini diablo vt (1996) fuel supply system part diagram
133.06.00

FUEL SUPPLY SYSTEM

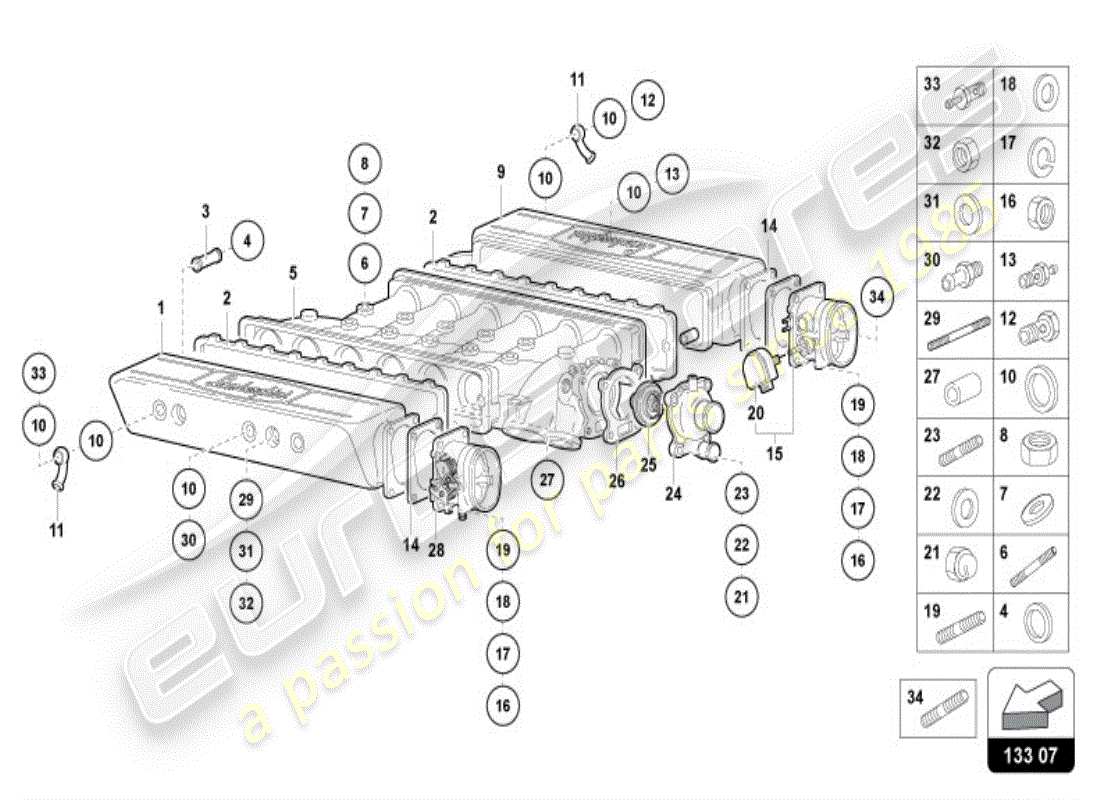

lamborghini diablo vt (1996) intake manifold part diagram
133.07.00

INTAKE MANIFOLD

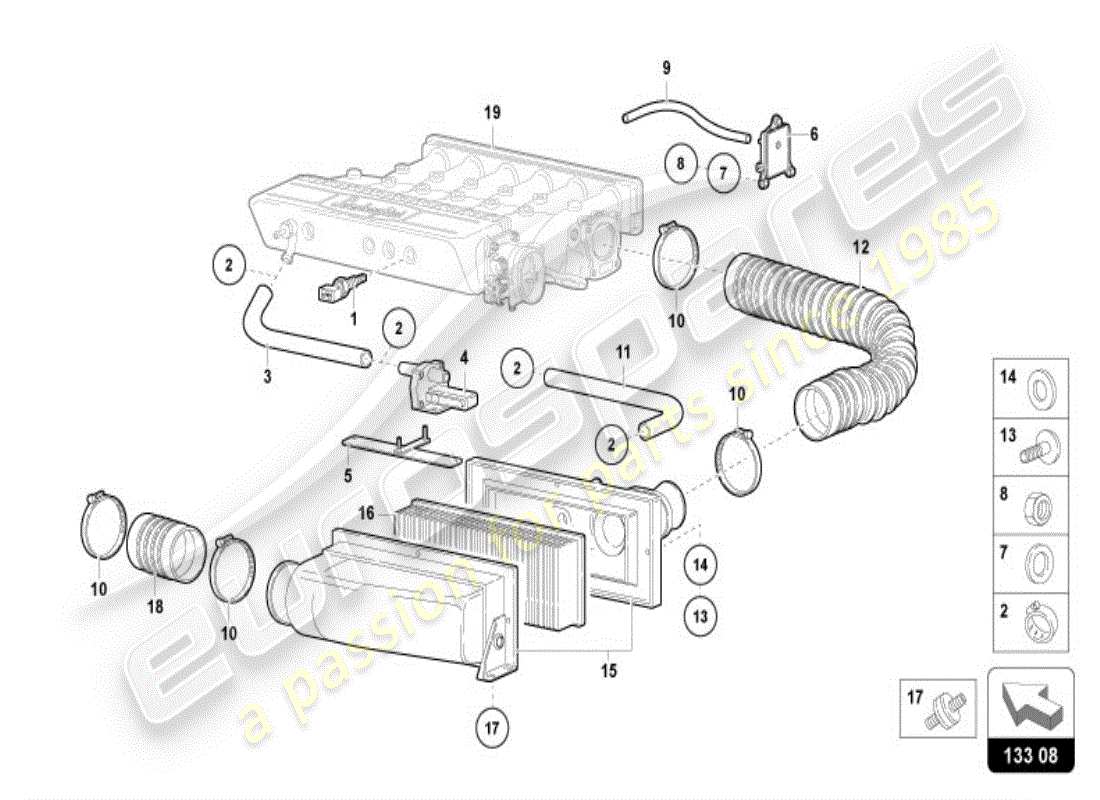

lamborghini diablo vt (1996) air filter part diagram
133.08.00

AIR FILTER

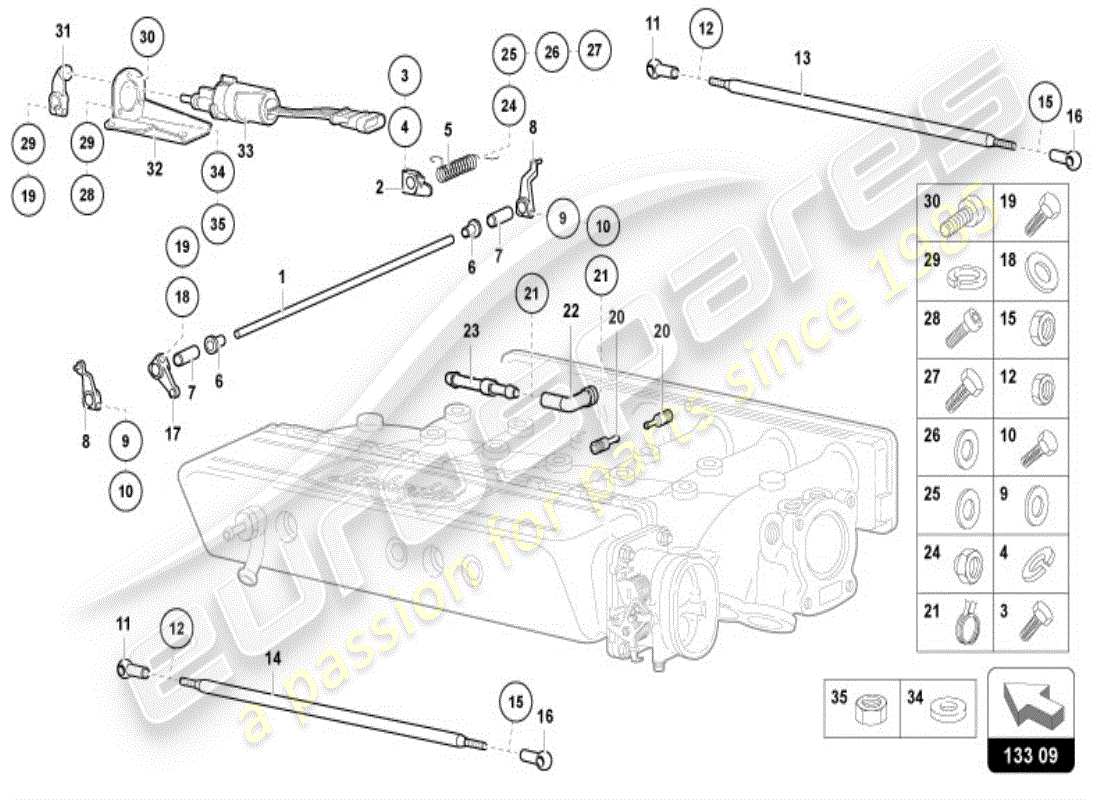

lamborghini diablo vt (1996) linkage part diagram
133.09.00

LINKAGE

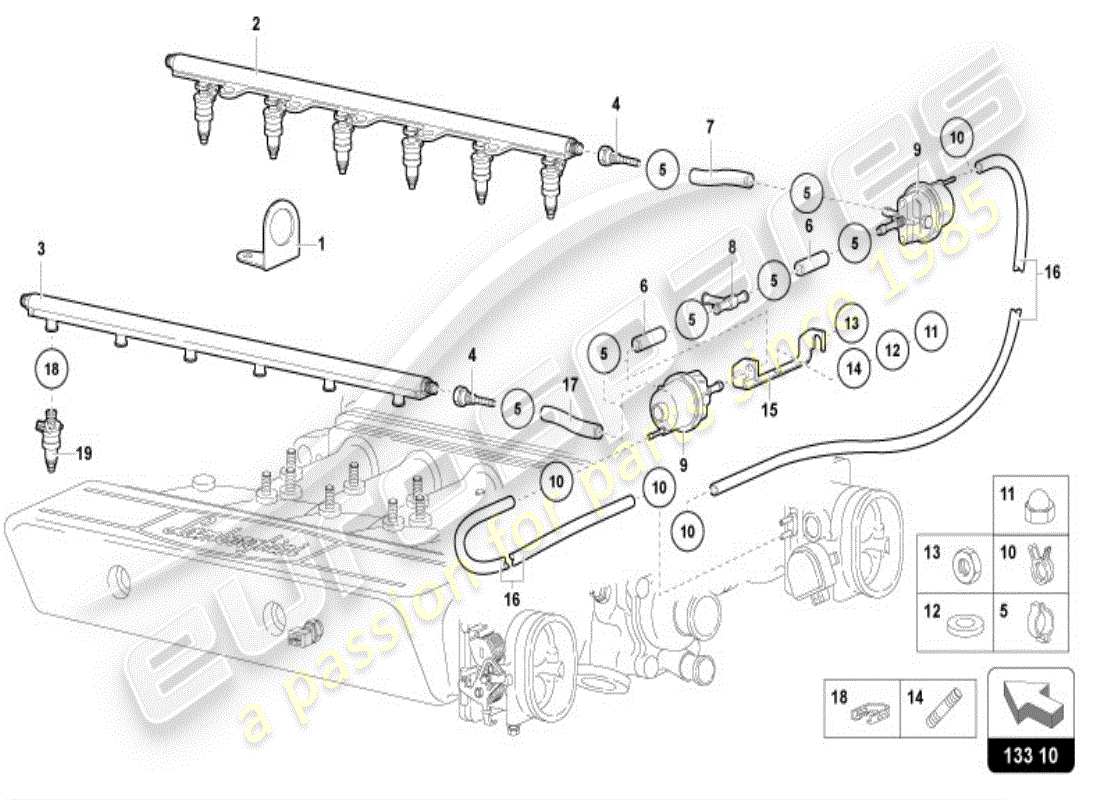

lamborghini diablo vt (1996) fuel system part diagram
133.10.00

FUEL SYSTEM
lamborghini diablo vt (1996) flywheel with clutch part diagram
141.04.00

FLYWHEEL WITH CLUTCH

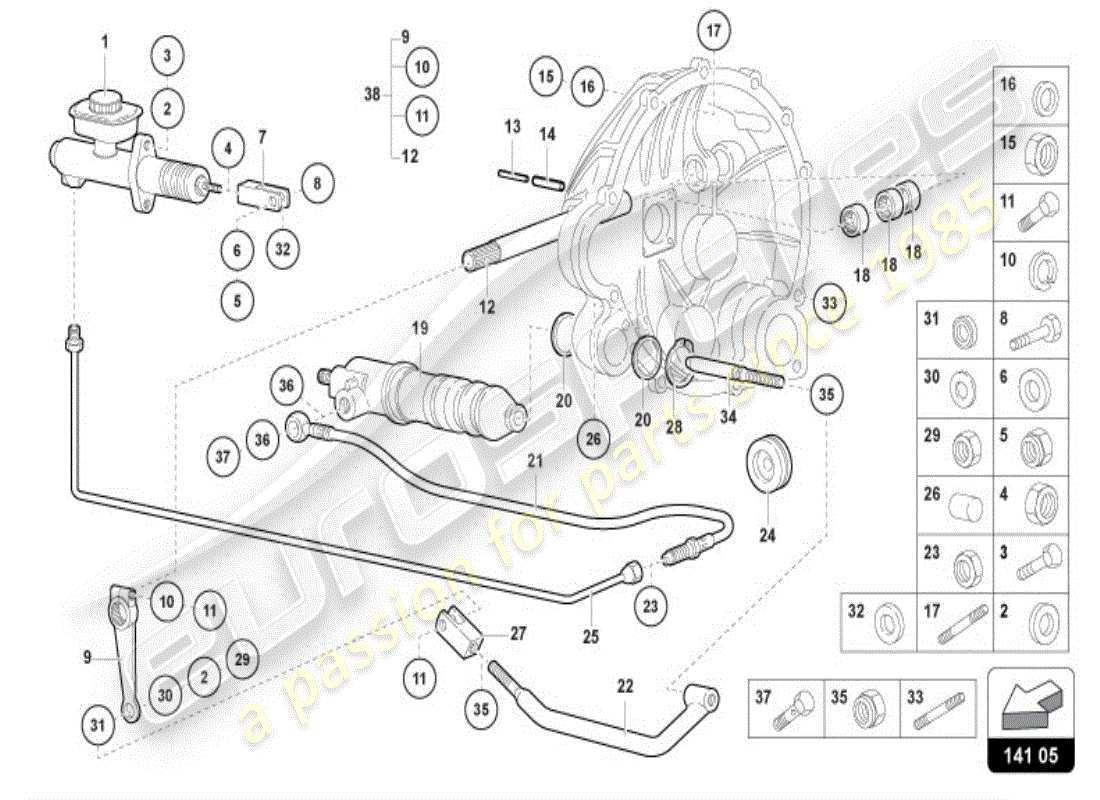

lamborghini diablo vt (1996) clutch part diagram
141.05.00

CLUTCH

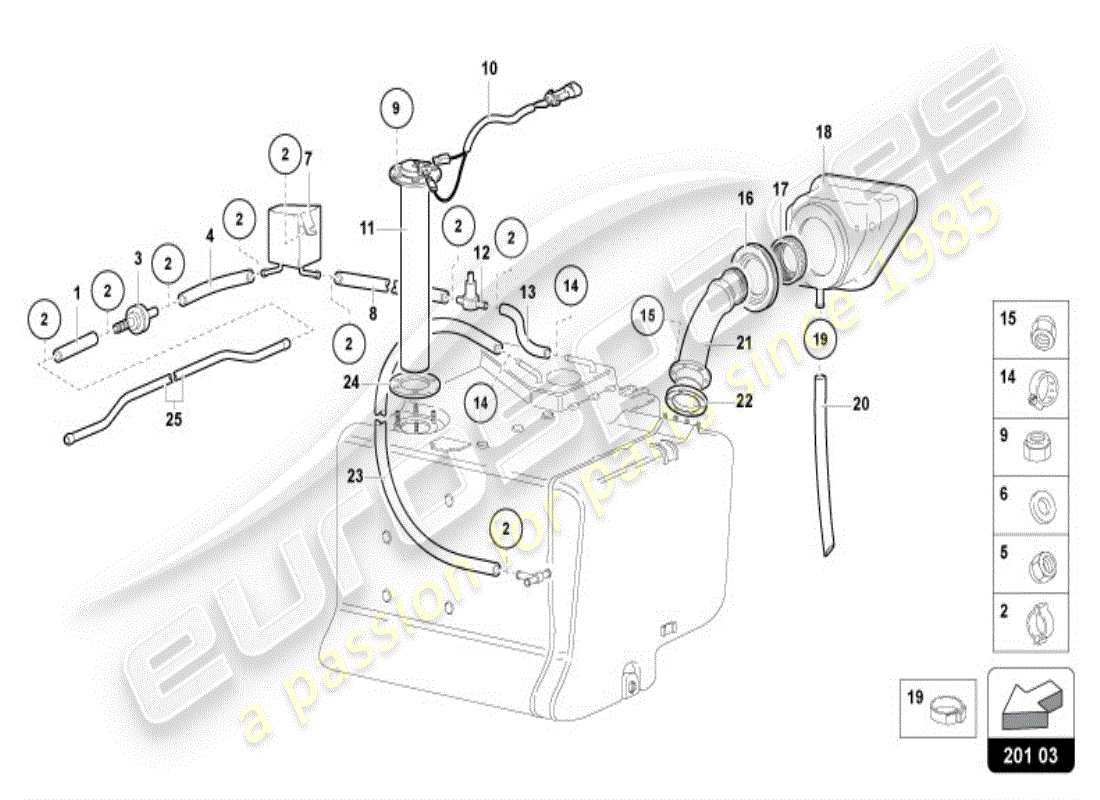

lamborghini diablo vt (1996) fuel tank part diagram
201.03.00

FUEL TANK

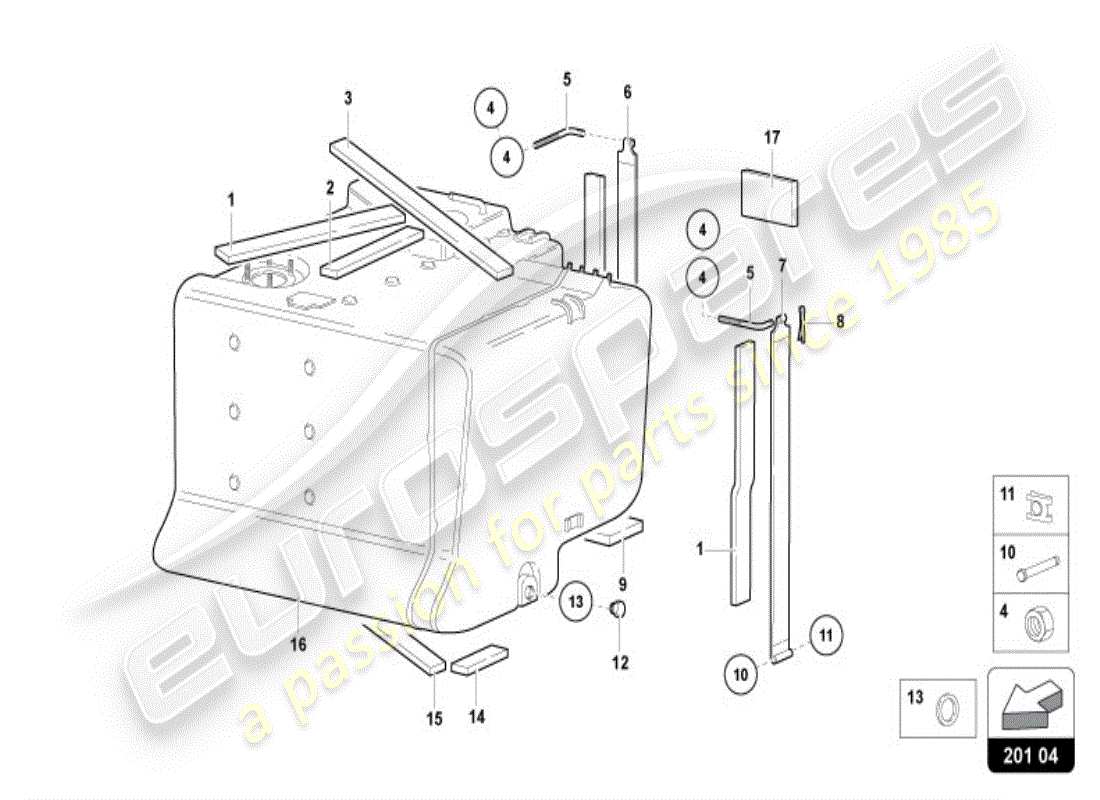

lamborghini diablo vt (1996) fuel tank part diagram
201.04.00

FUEL TANK

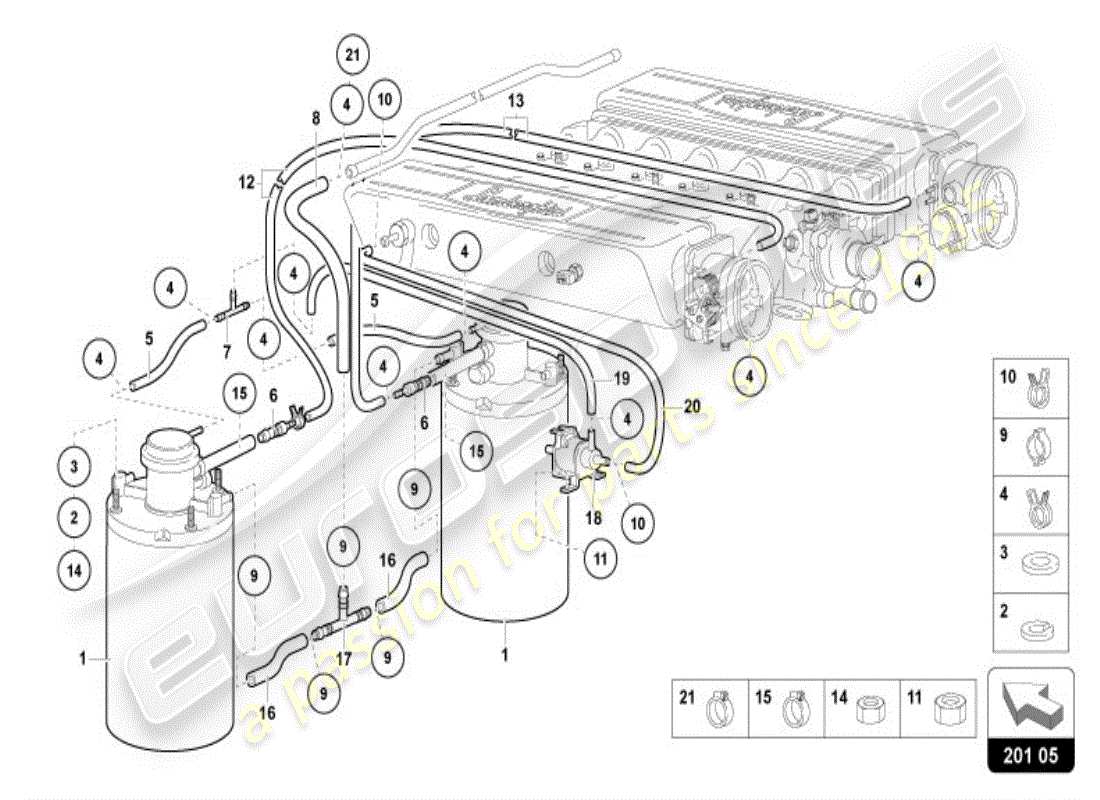

lamborghini diablo vt (1996) activated carbon filter system part diagram
201.05.00

ACTIVATED CARBON FILTER SYSTEM
lamborghini diablo vt (1996) exhaust system part diagram
251.01.00

EXHAUST SYSTEM
lamborghini diablo vt (1996) catalytic converter part diagram
251.02.00

CATALYTIC CONVERTER

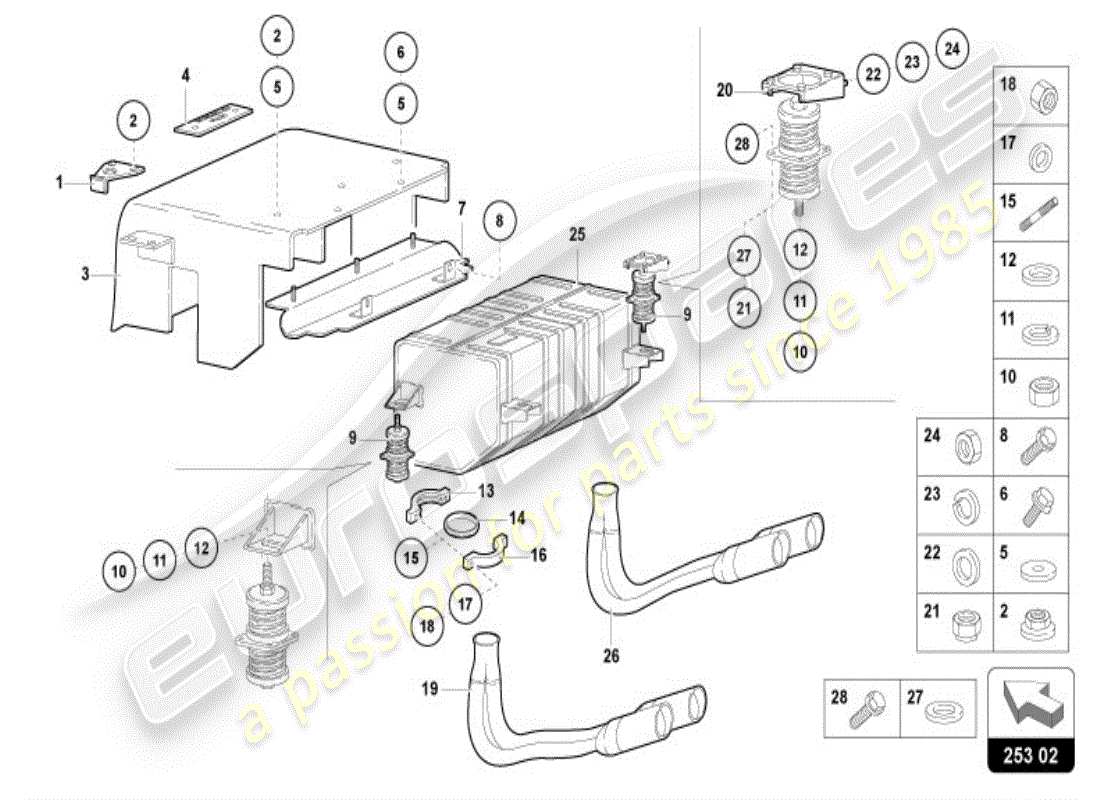

lamborghini diablo vt (1996) silencer with catalyst part diagram
253.02.00

SILENCER WITH CATALYST

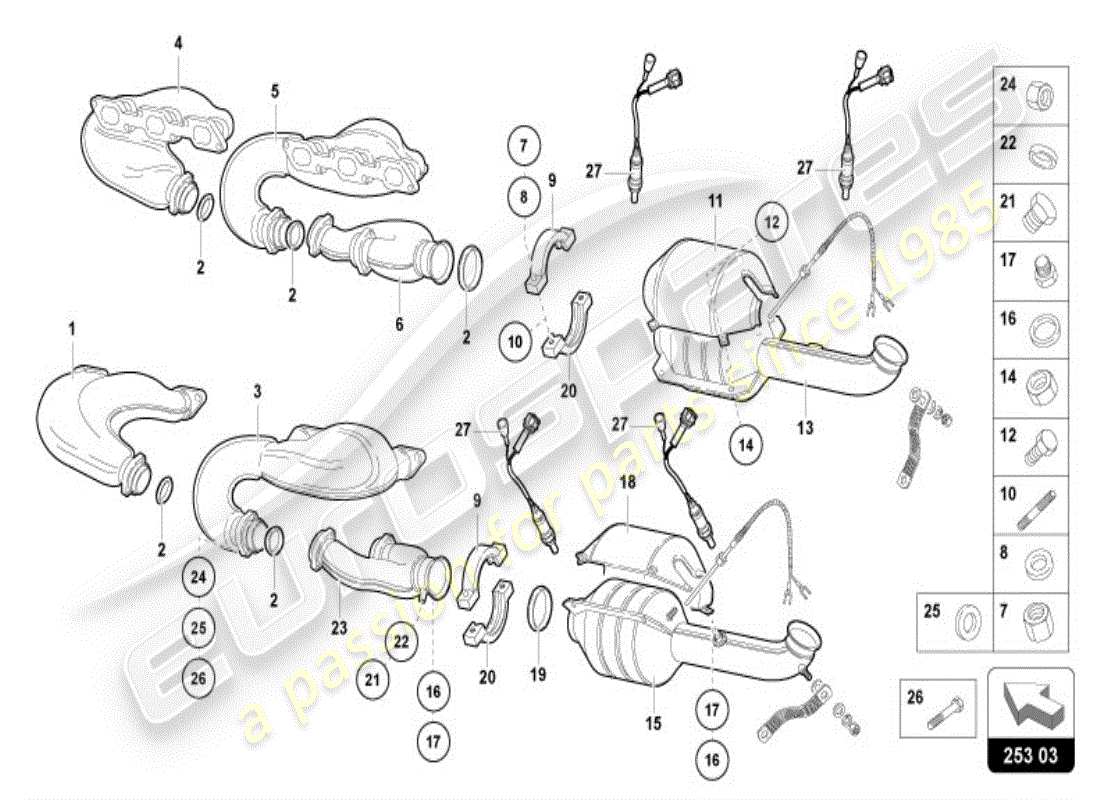

lamborghini diablo vt (1996) silencer with catalyst part diagram
253.03.00

SILENCER WITH CATALYST

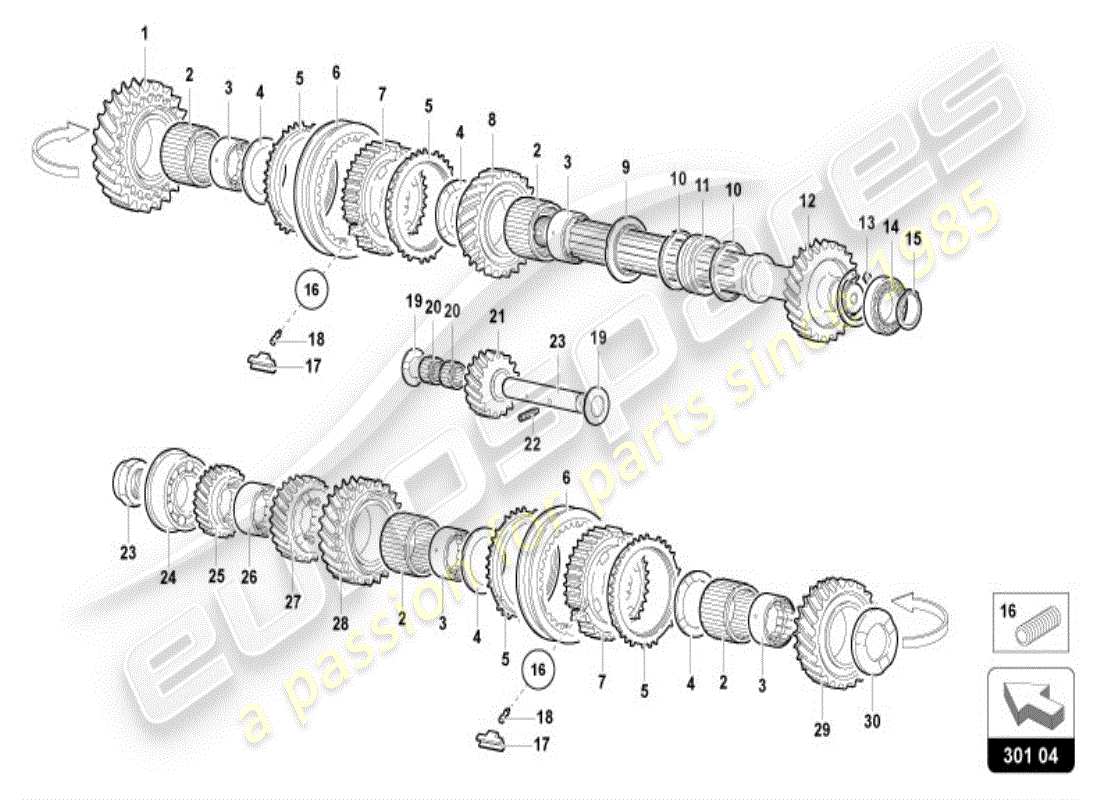

lamborghini diablo vt (1996) cardan shaft part diagram
301.01.00

CARDAN SHAFT
lamborghini diablo vt (1996) cardan shaft part diagram
301.04.00

CARDAN SHAFT

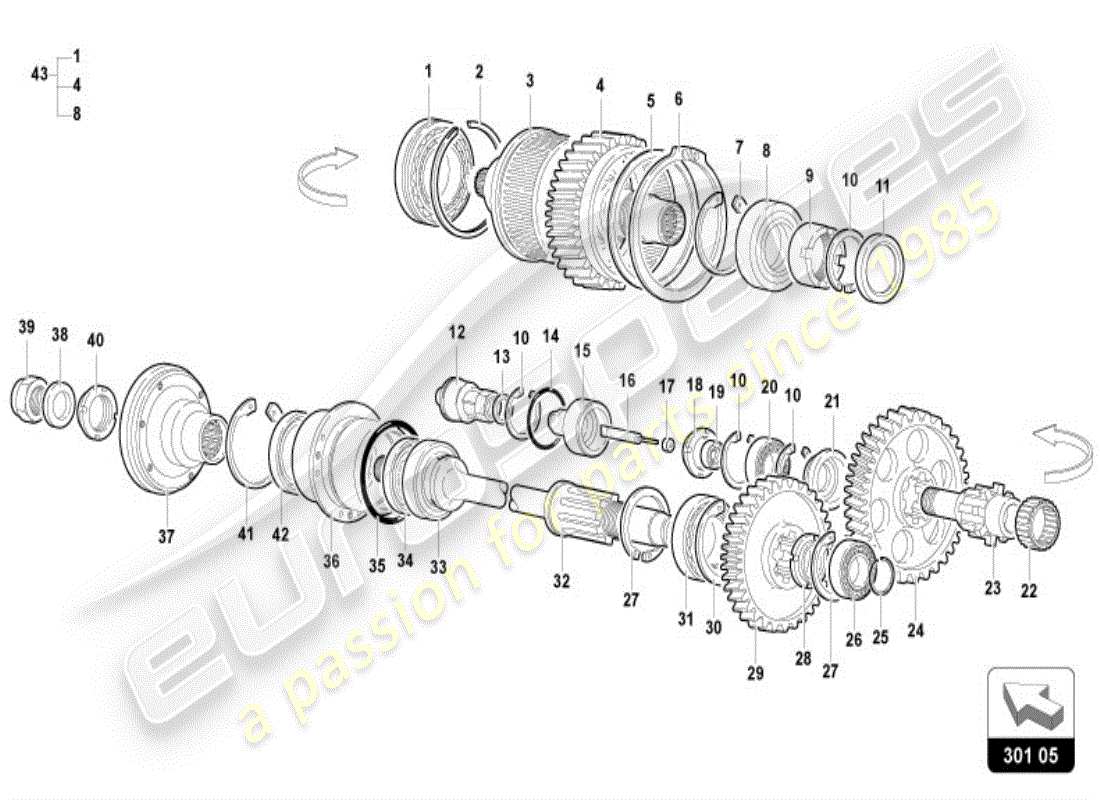

lamborghini diablo vt (1996) viscous joint part diagram
301.05.00

VISCOUS JOINT

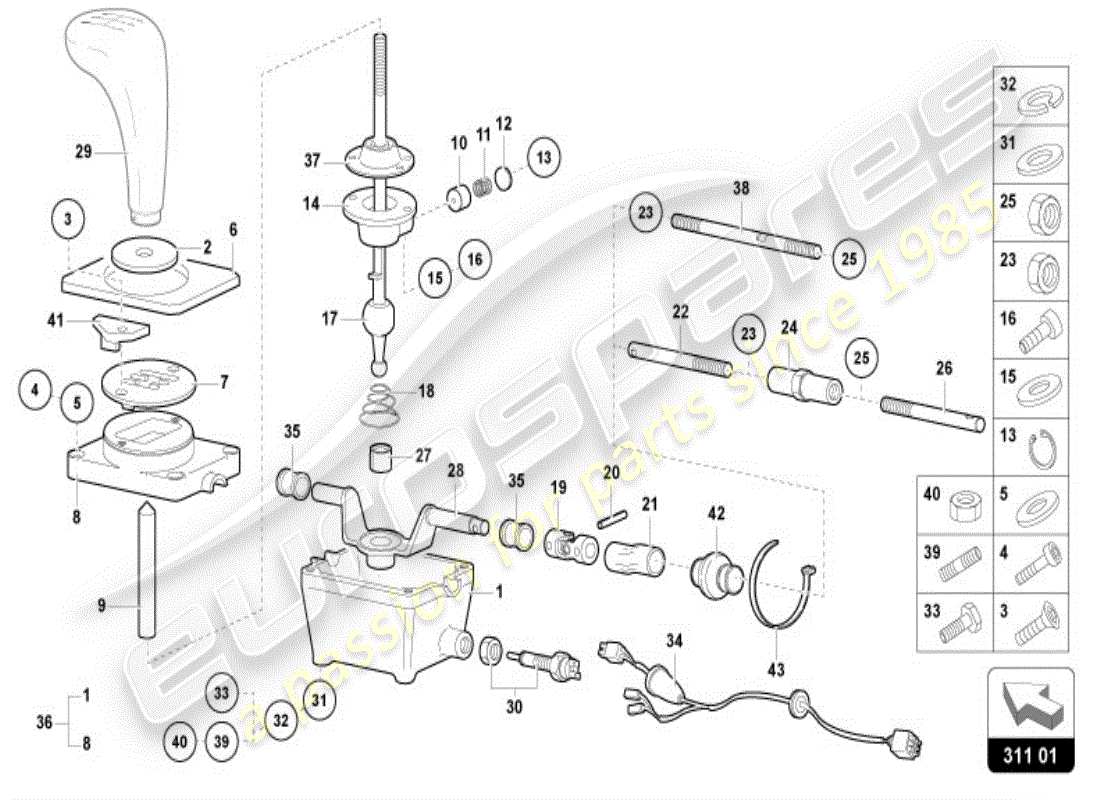

lamborghini diablo vt (1996) gearbox control turret part diagram
311.01.00

GEARBOX CONTROL TURRET

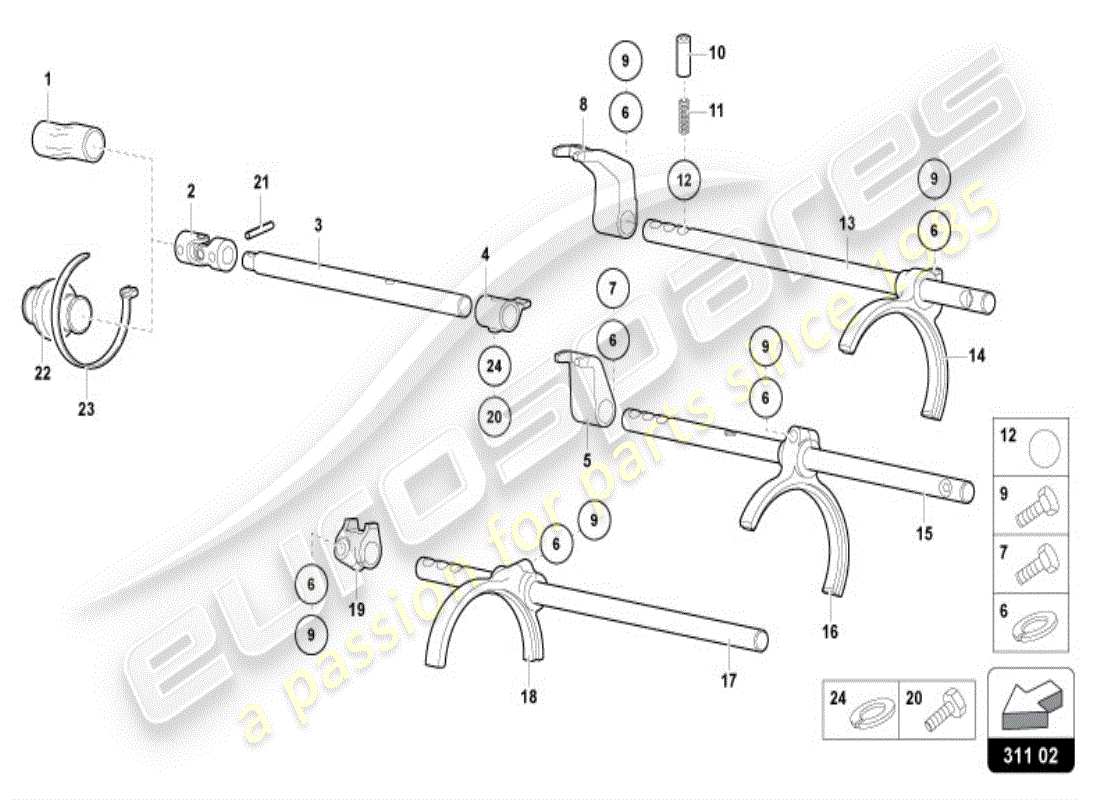

lamborghini diablo vt (1996) gearbox part diagram
311.02.00

GEARBOX
lamborghini diablo vt (1996) gearbox part diagram
311.06.00

GEARBOX
lamborghini diablo vt (1996) gearbox part diagram
311.07.00

GEARBOX
lamborghini diablo vt (1996) axle shaft front part diagram
407.02.00

AXLE SHAFT FRONT

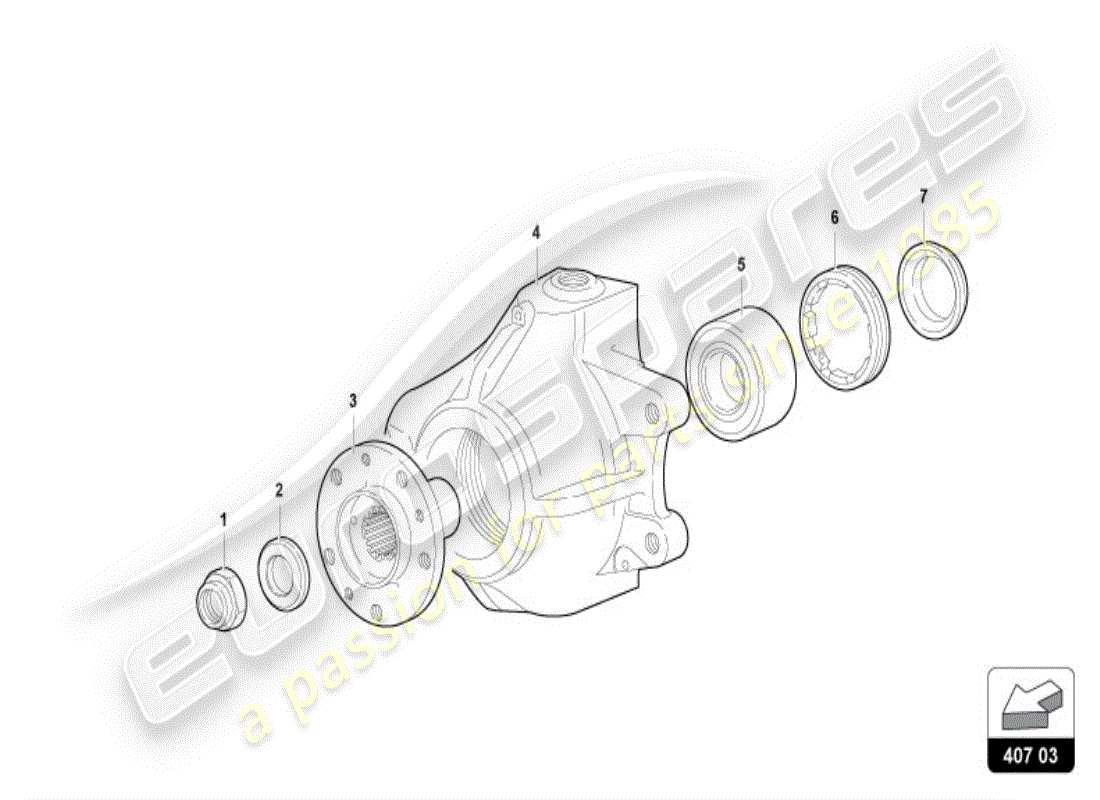

lamborghini diablo vt (1996) wheel hub part diagram
407.03.00

WHEEL HUB

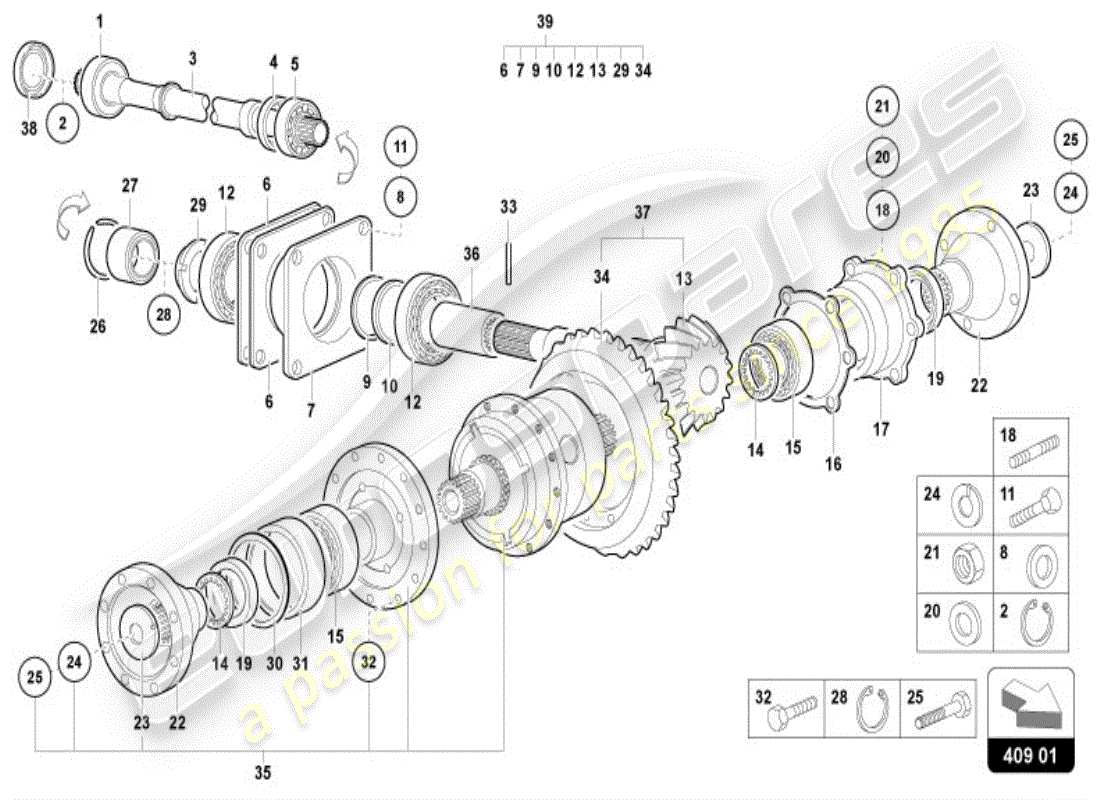

lamborghini diablo vt (1996) front axle differential part diagram
409.01.00

FRONT AXLE DIFFERENTIAL
lamborghini diablo vt (1996) front axle differential box part diagram
409.02.00

FRONT AXLE DIFFERENTIAL BOX
lamborghini diablo vt (1996) front axle differential part diagram
409.03.00

FRONT AXLE DIFFERENTIAL
lamborghini diablo vt (1996) suspension front part diagram

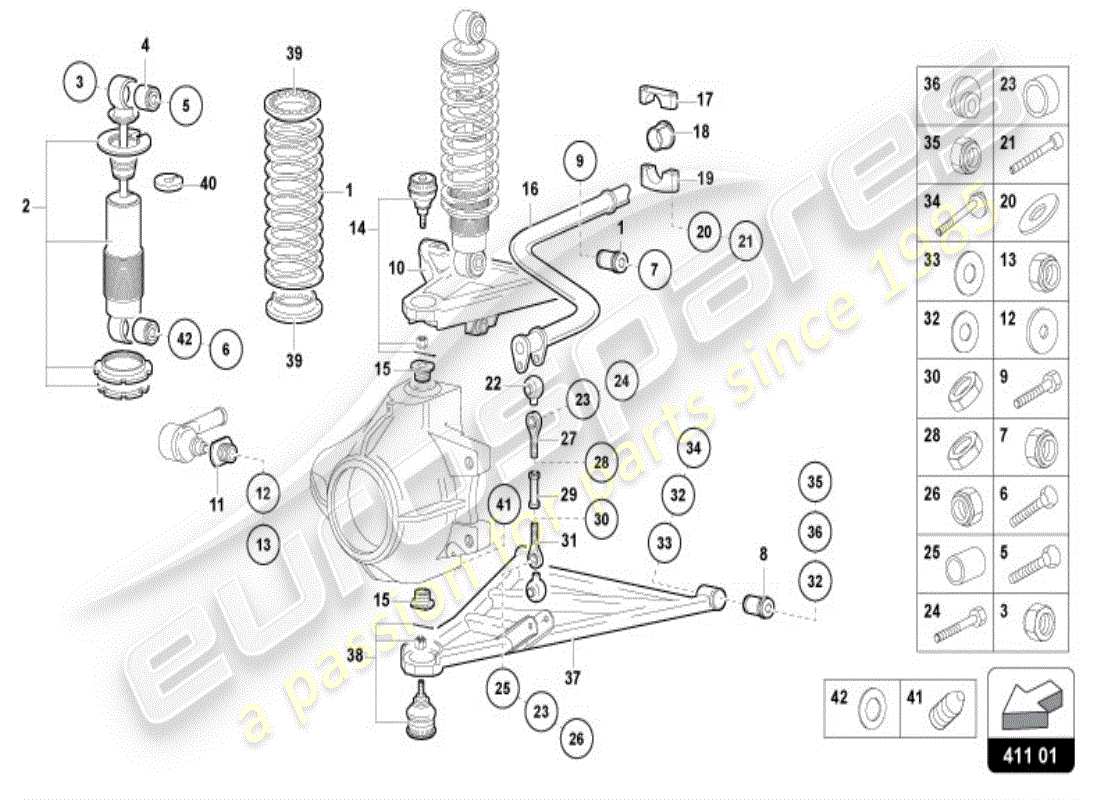

411.01.00

SUSPENSION FRONT

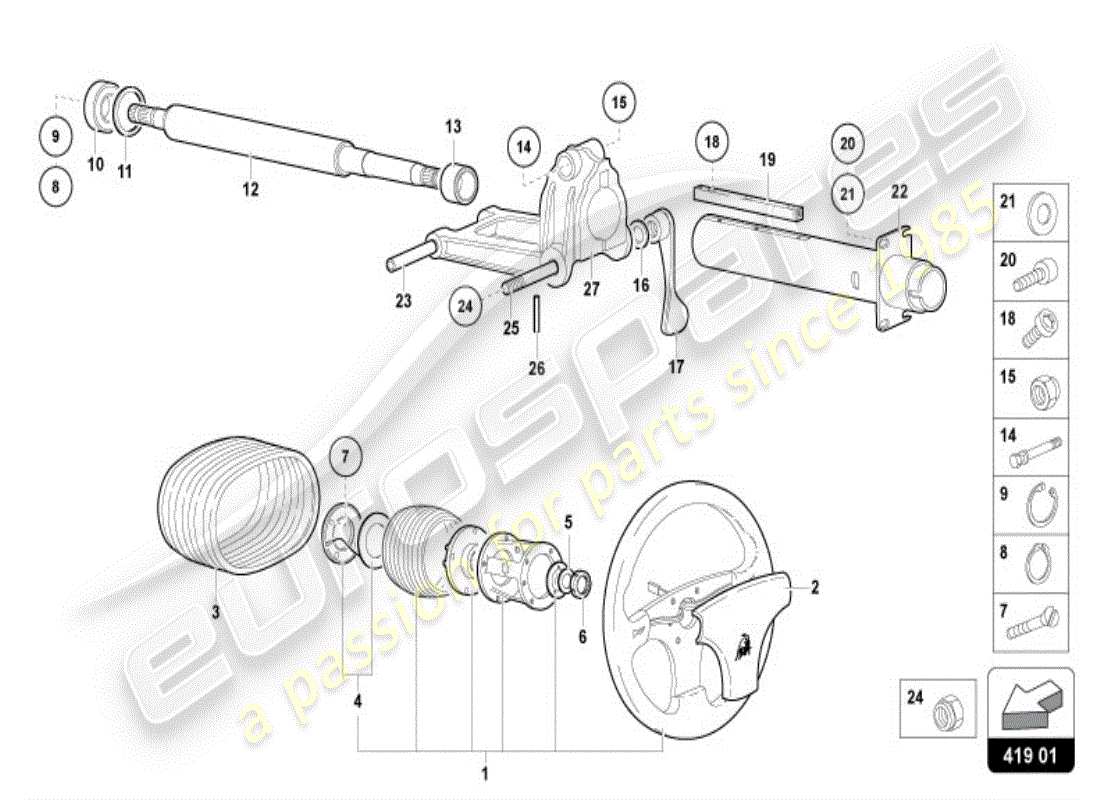

lamborghini diablo vt (1996) steering system part diagram
419.01.00

STEERING SYSTEM

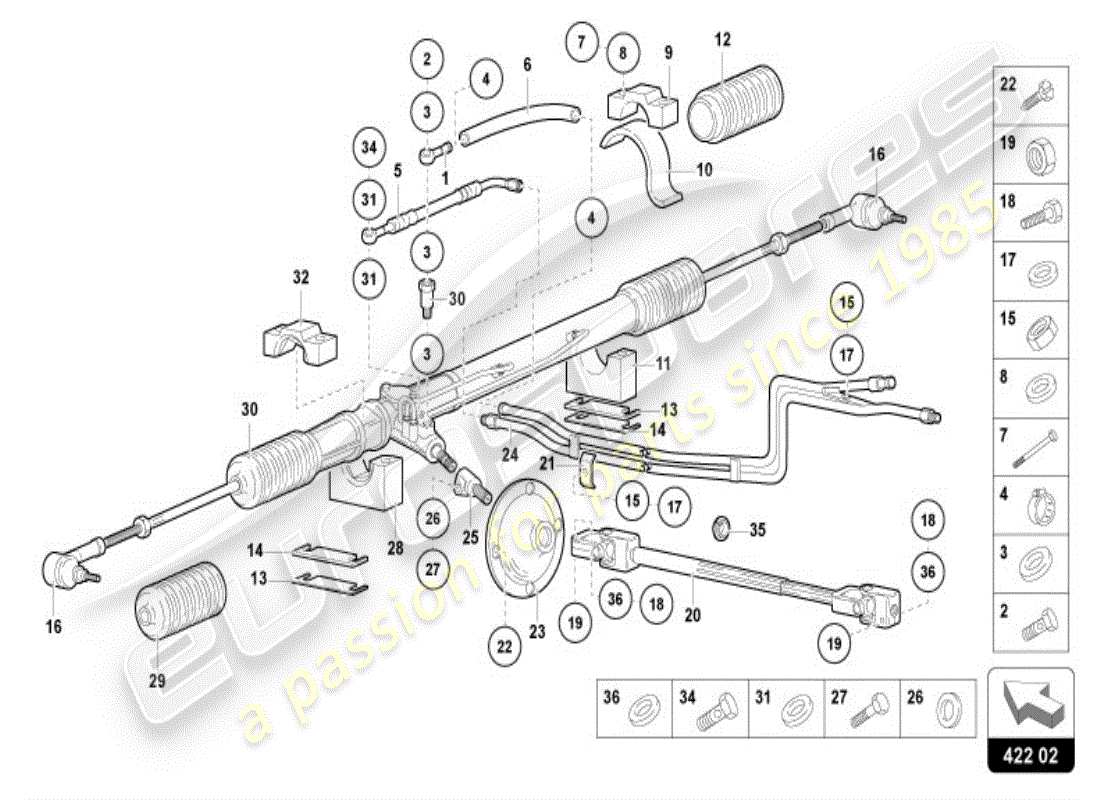

lamborghini diablo vt (1996) steering rod part diagram
422.02.00

STEERING ROD
lamborghini diablo vt (1996) steering rod part diagram
422.04.00

STEERING ROD

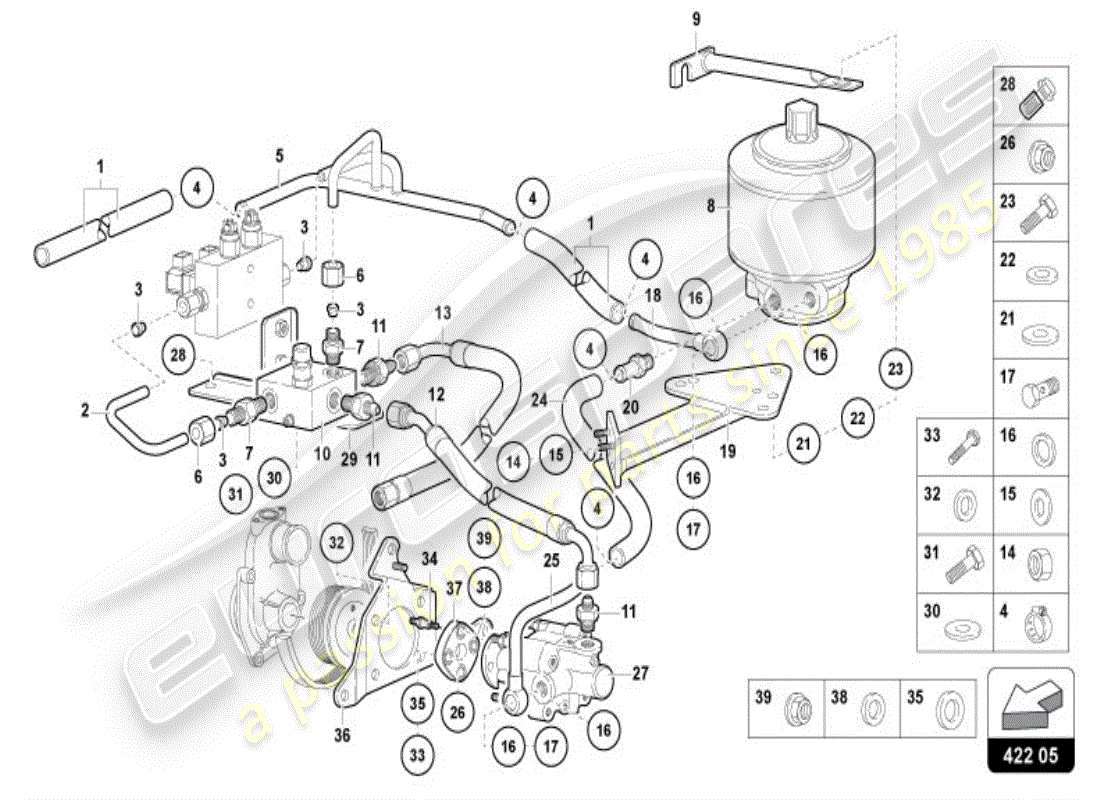

lamborghini diablo vt (1996) power steering part diagram
422.05.00

POWER STEERING
lamborghini diablo vt (1996) axle shaft rear part diagram

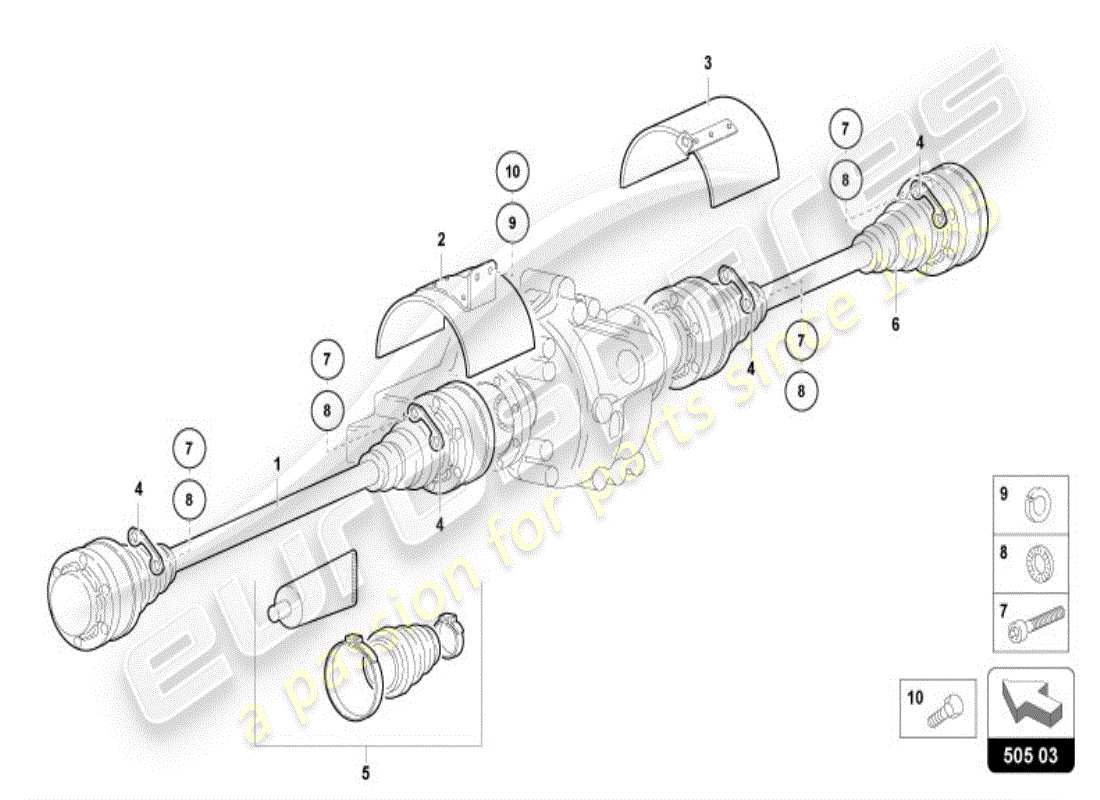

505.03.00

AXLE SHAFT REAR

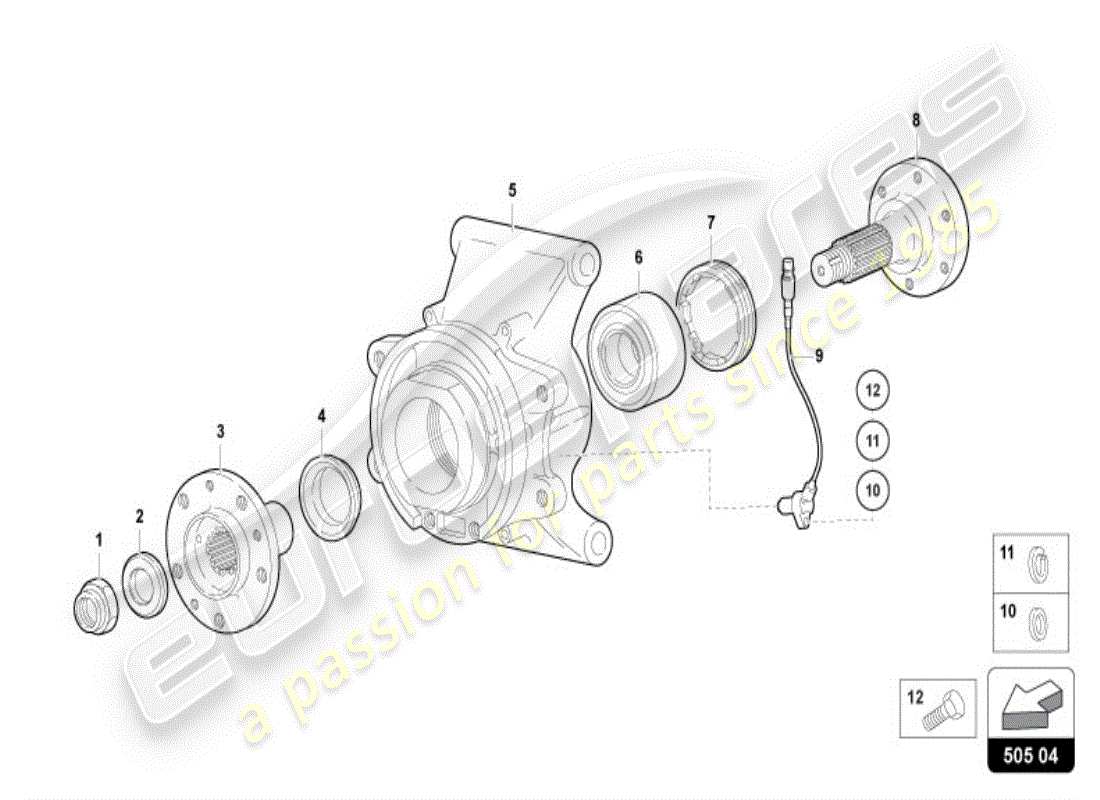

lamborghini diablo vt (1996) wheel hub part diagram
505.04.00

WHEEL HUB
lamborghini diablo vt (1996) suspension rear part diagram
512.01.00

SUSPENSION REAR
lamborghini diablo vt (1996) wheels/tyres front part diagram
601.01.00

WHEELS/TYRES FRONT
lamborghini diablo vt (1996) wheels/tyres rear part diagram
601.02.00

WHEELS/TYRES REAR

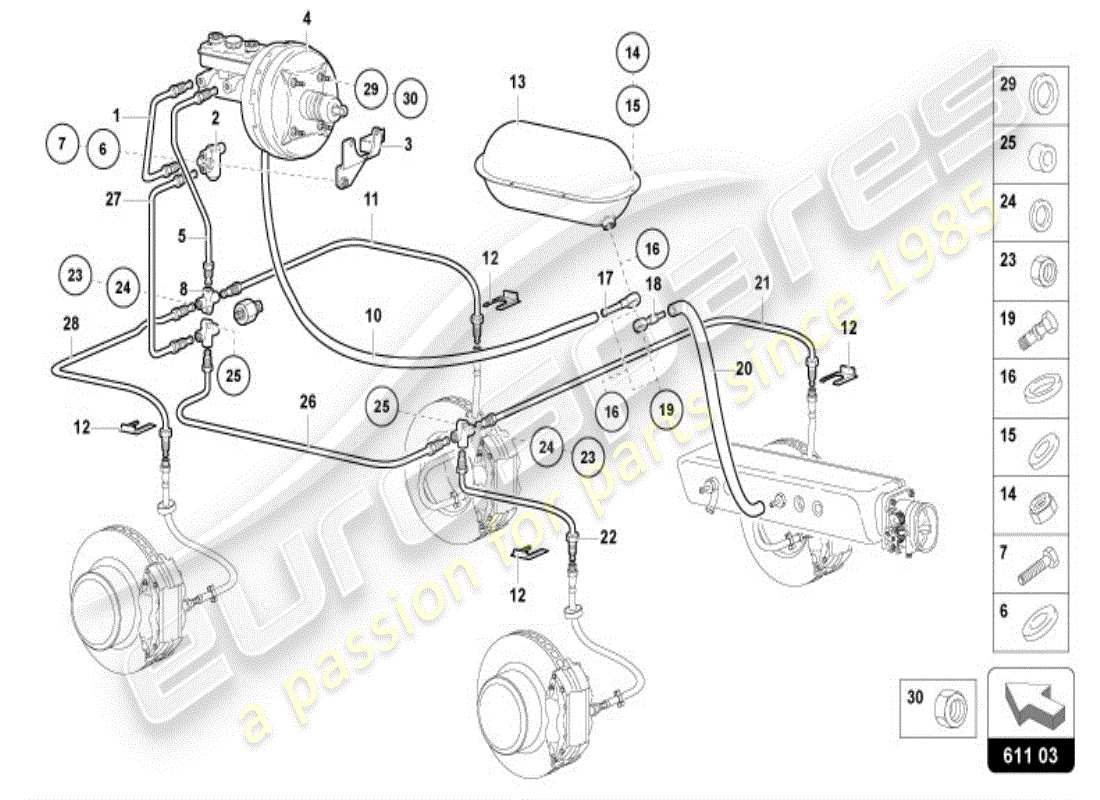

lamborghini diablo vt (1996) vacuum pump for brake servo part diagram
611.03.00

VACUUM PUMP FOR BRAKE SERVO
lamborghini diablo vt (1996) handbrake part diagram
615.04.00

HANDBRAKE
lamborghini diablo vt (1996) brake disc front part diagram
615.05.00

BRAKE DISC FRONT
lamborghini diablo vt (1996) brake disc rear part diagram
615.06.00

BRAKE DISC REAR
lamborghini diablo vt (1996) lifting system part diagram
616.01.00

LIFTING SYSTEM

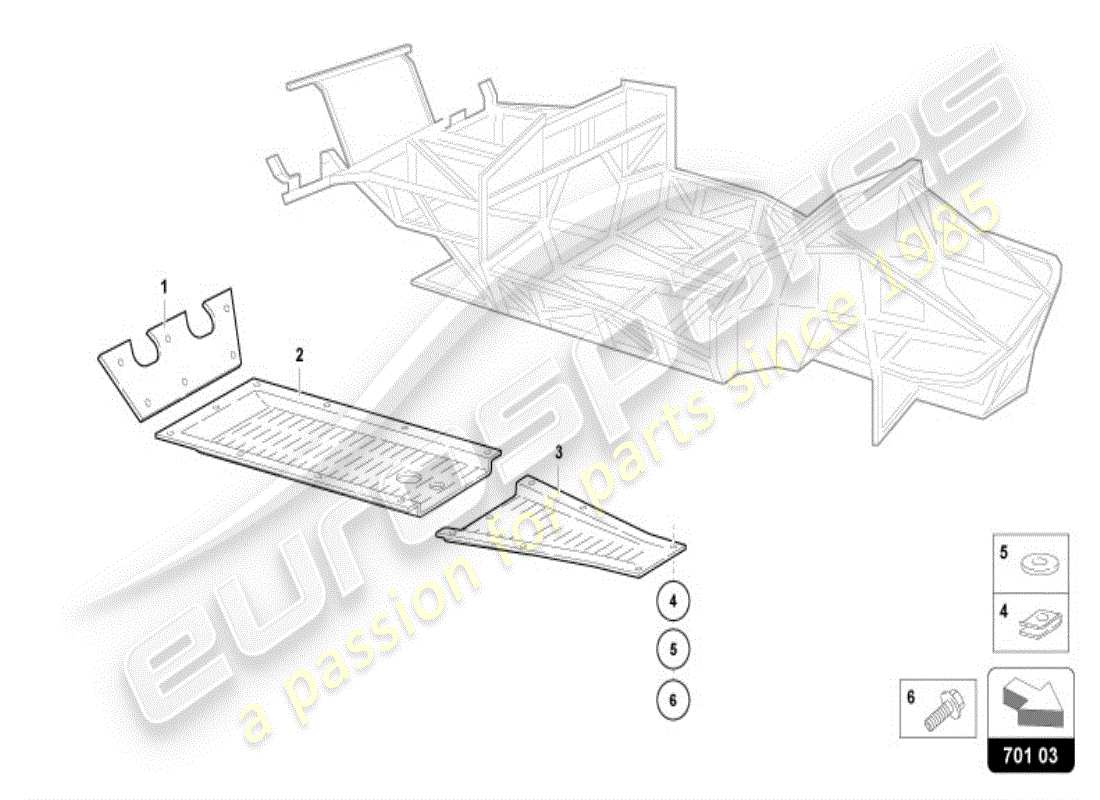

lamborghini diablo vt (1996) trim frame front part part diagram
701.03.00

TRIM FRAME FRONT PART

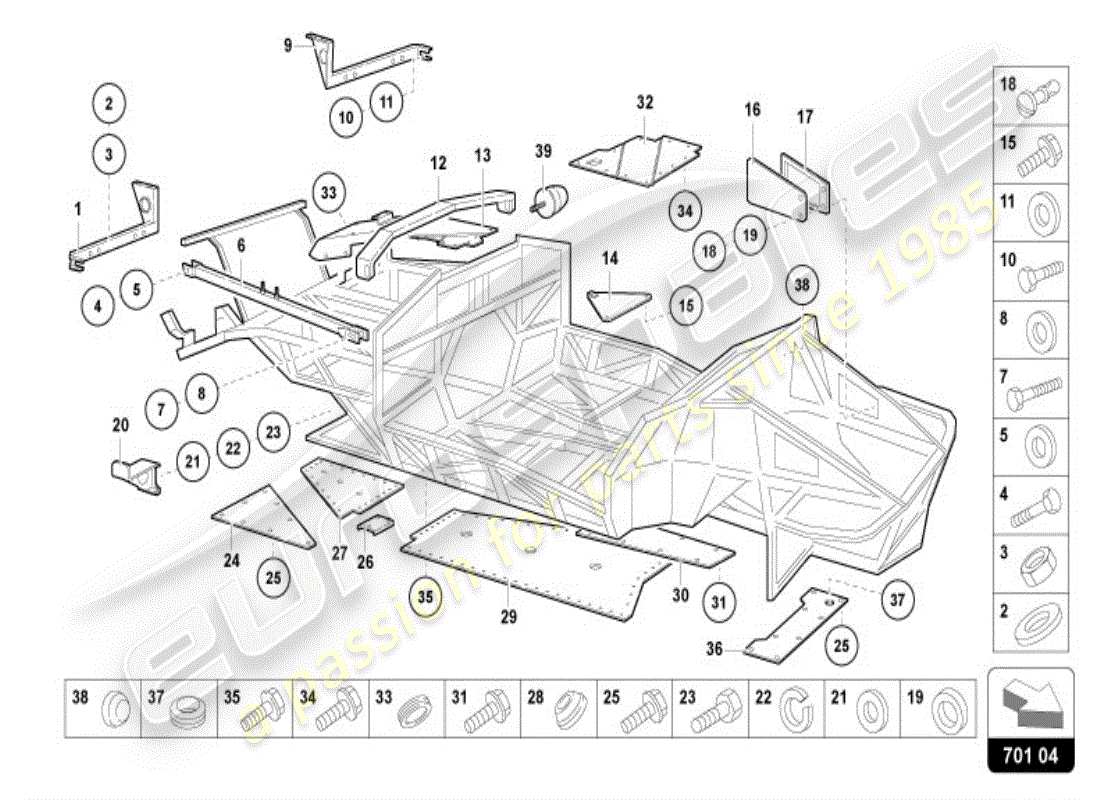

lamborghini diablo vt (1996) trim frame front part part diagram
701.04.00

TRIM FRAME FRONT PART

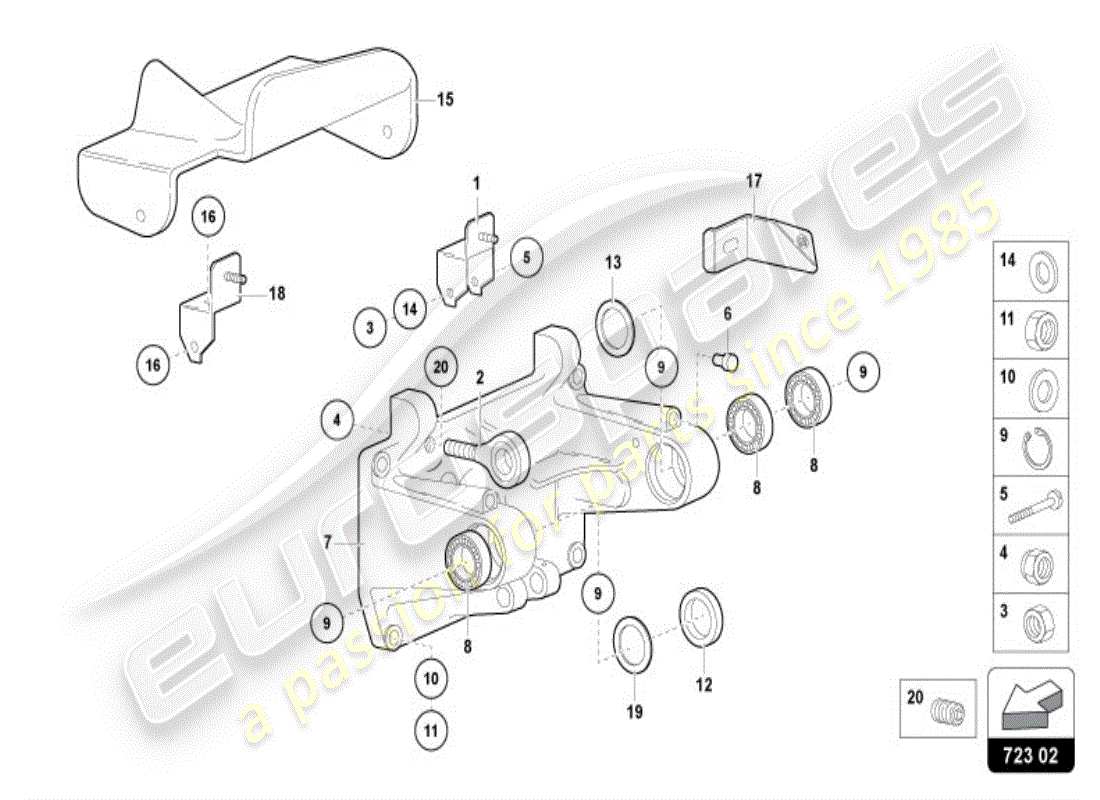

lamborghini diablo vt (1996) brake and accel. lever mech. part diagram
723.02.00

BRAKE AND ACCEL. LEVER MECH.

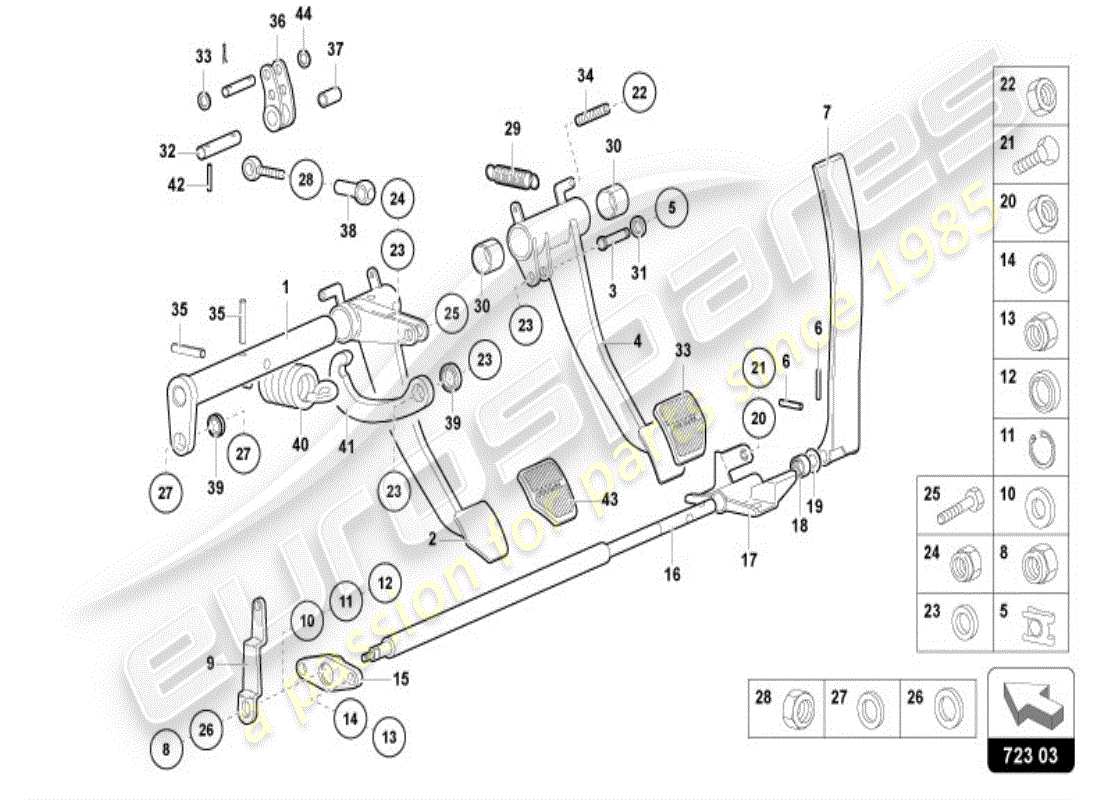

lamborghini diablo vt (1996) brake and accel. lever mech. part diagram
723.03.00

BRAKE AND ACCEL. LEVER MECH.
lamborghini diablo vt (1996) bumper, complete part diagram

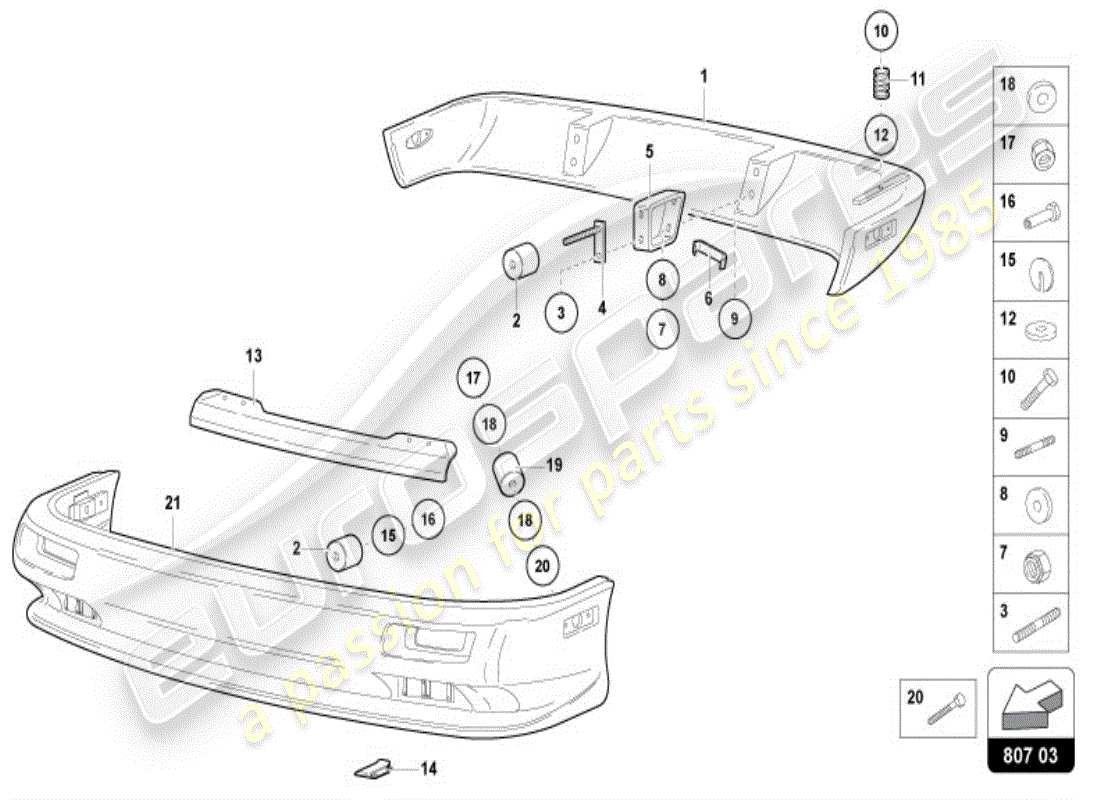

807.03.00

BUMPER, COMPLETE

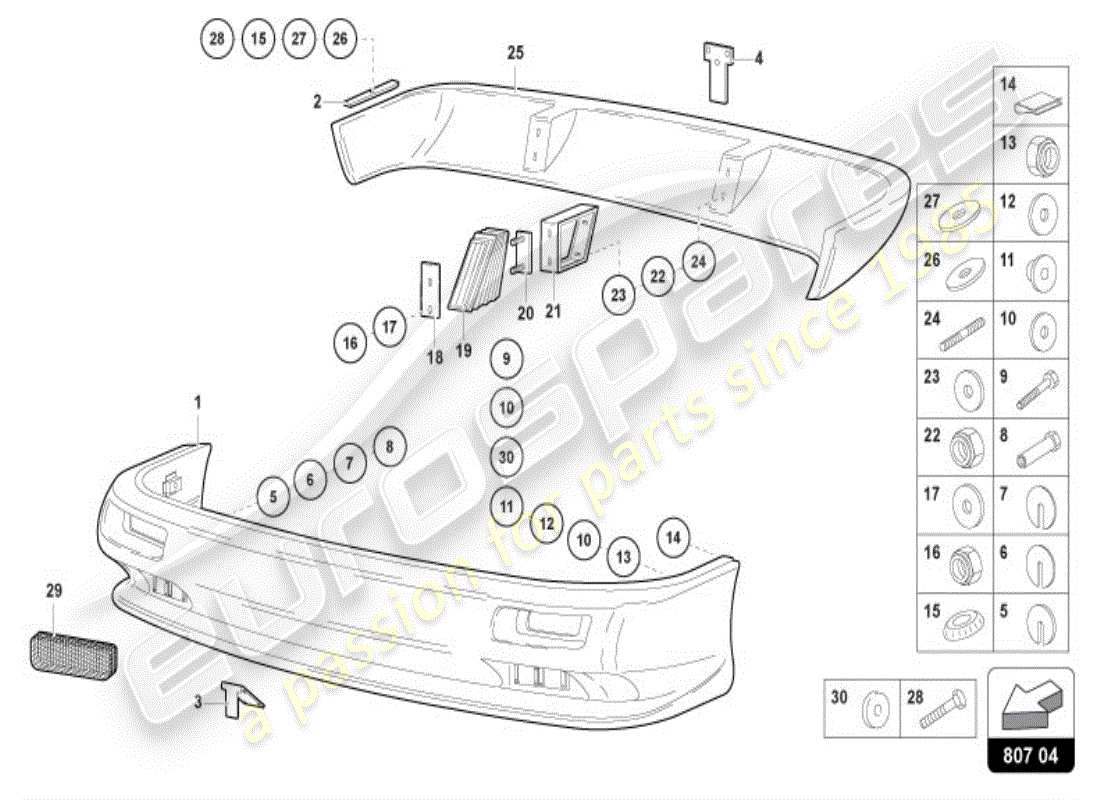

lamborghini diablo vt (1996) bumper, complete part diagram
807.04.00

BUMPER, COMPLETE

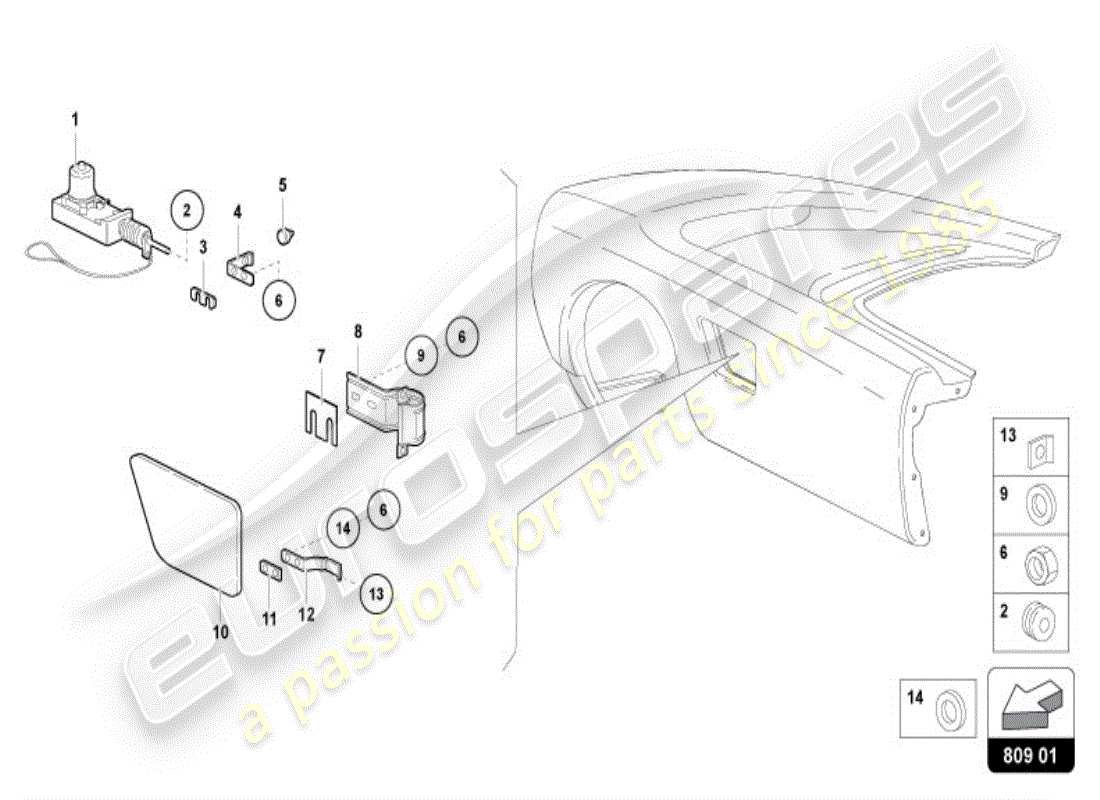

lamborghini diablo vt (1996) fuel filler flap part diagram
809.01.00

FUEL FILLER FLAP

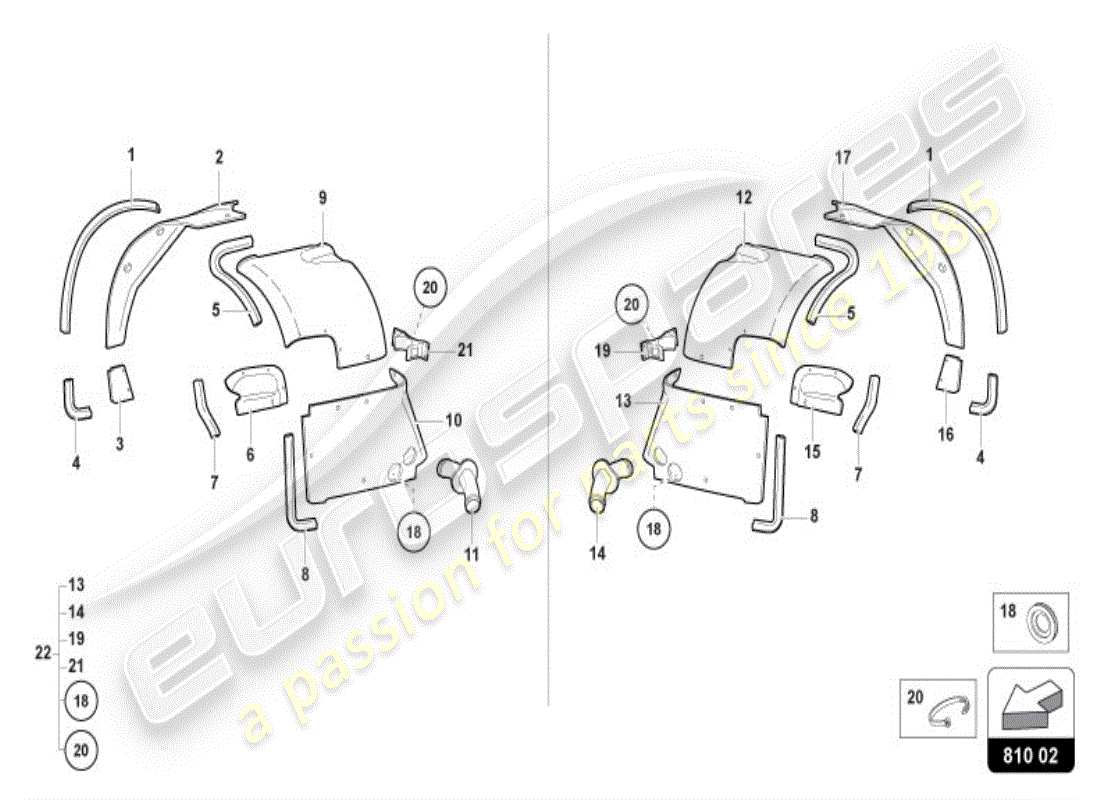

lamborghini diablo vt (1996) front wheel housing part diagram
810.02.00

FRONT WHEEL HOUSING

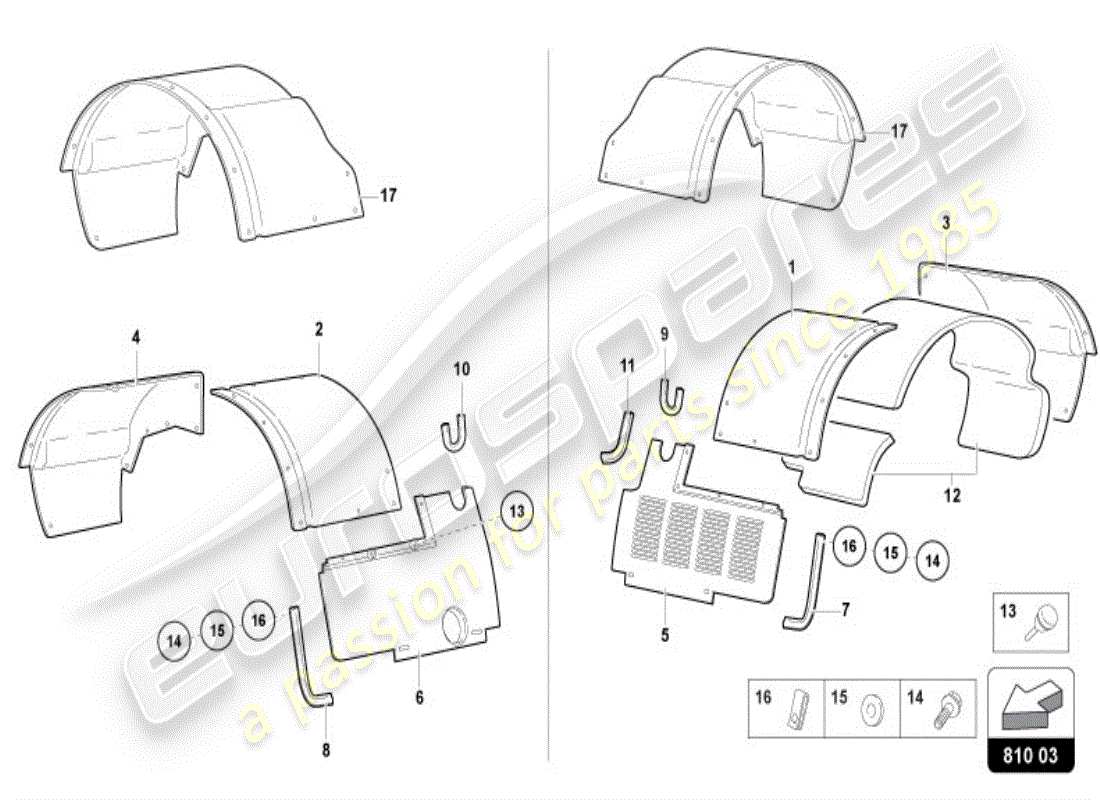

lamborghini diablo vt (1996) rear wheel housing part diagram
810.03.00

REAR WHEEL HOUSING
lamborghini diablo vt (1996) front air duct cardboard part diagram
815.01.00

FRONT AIR DUCT CARDBOARD

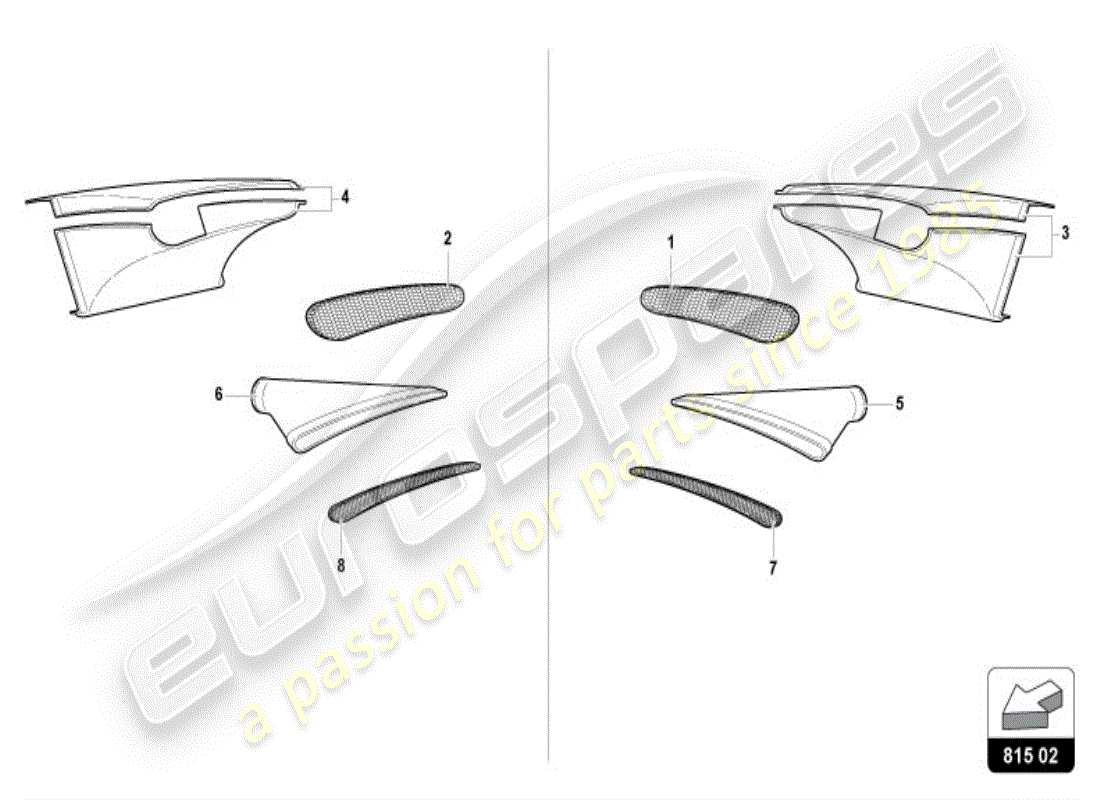

lamborghini diablo vt (1996) rear air intake part diagram
815.02.00

REAR AIR INTAKE

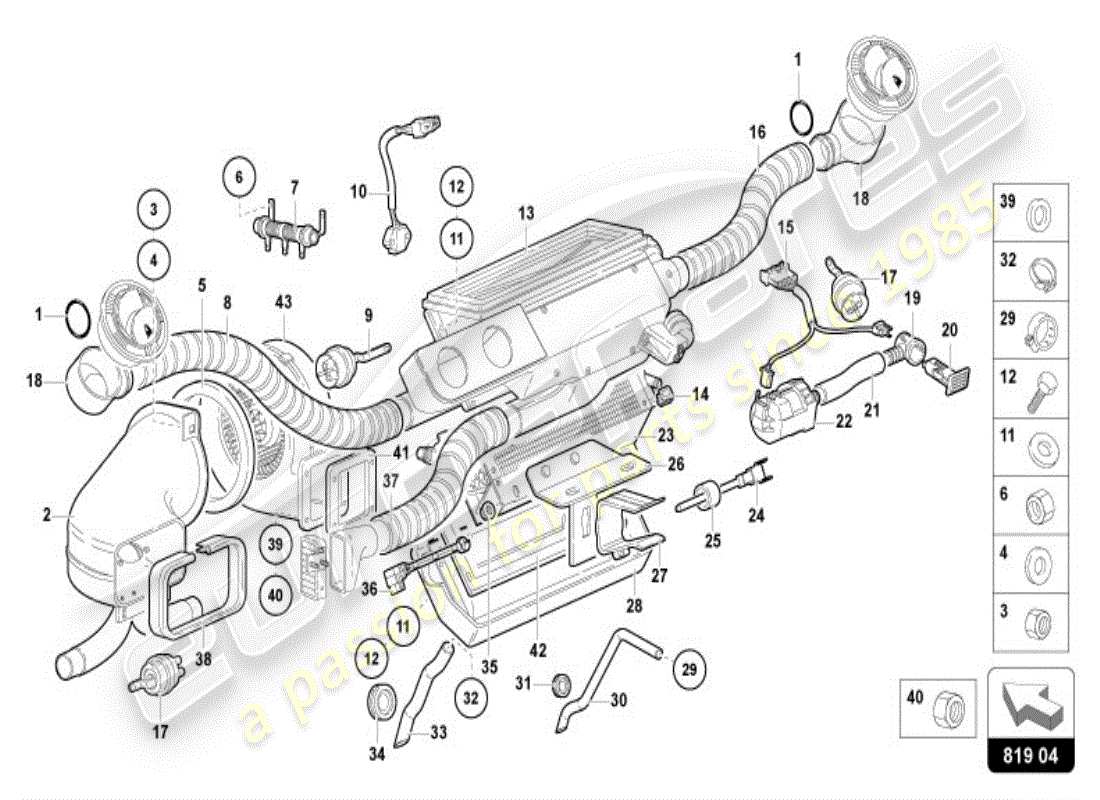

lamborghini diablo vt (1996) air guide channel part diagram
819.04.00

AIR GUIDE CHANNEL

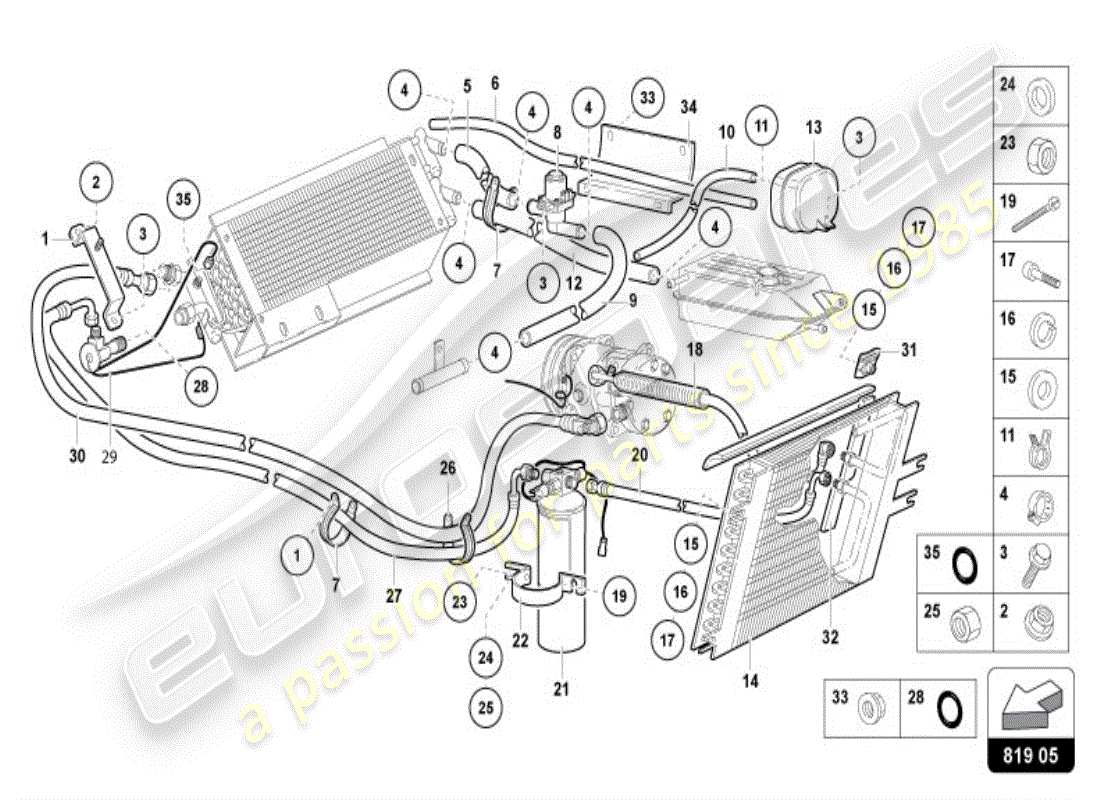

lamborghini diablo vt (1996) heating, air cond. system part diagram
819.05.00

HEATING, AIR COND. SYSTEM

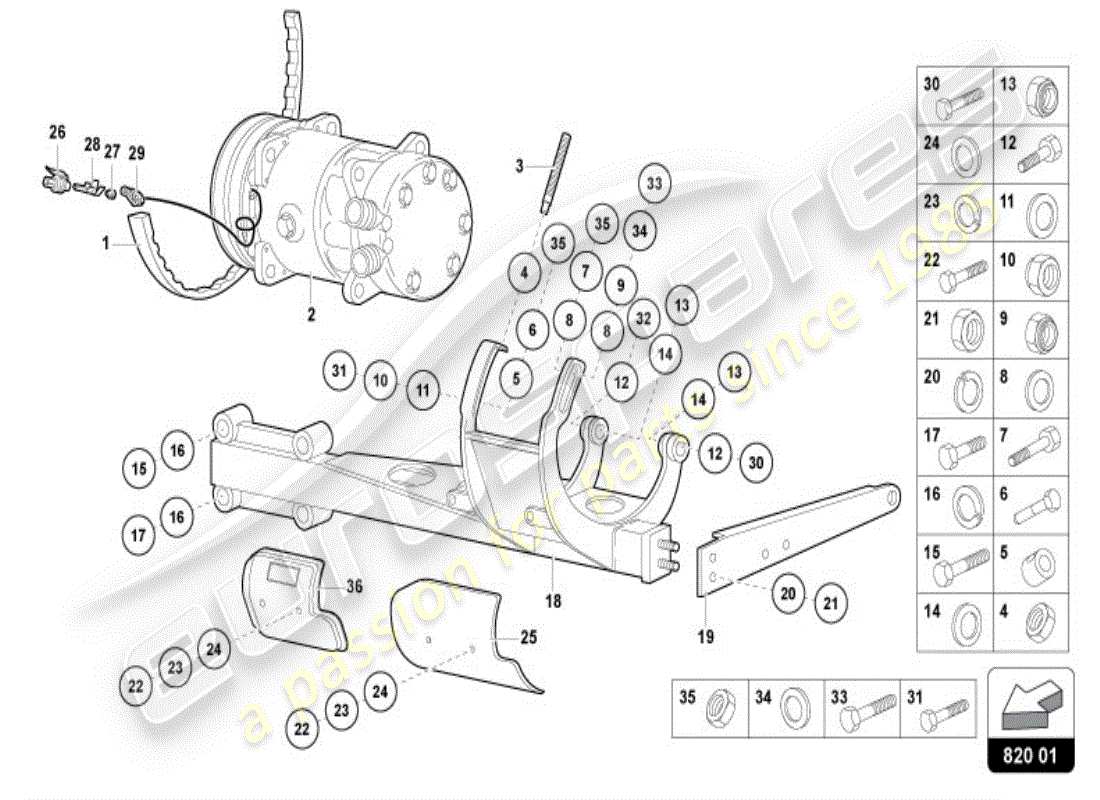

lamborghini diablo vt (1996) air cond. system part diagram
820.01.00

AIR COND. SYSTEM

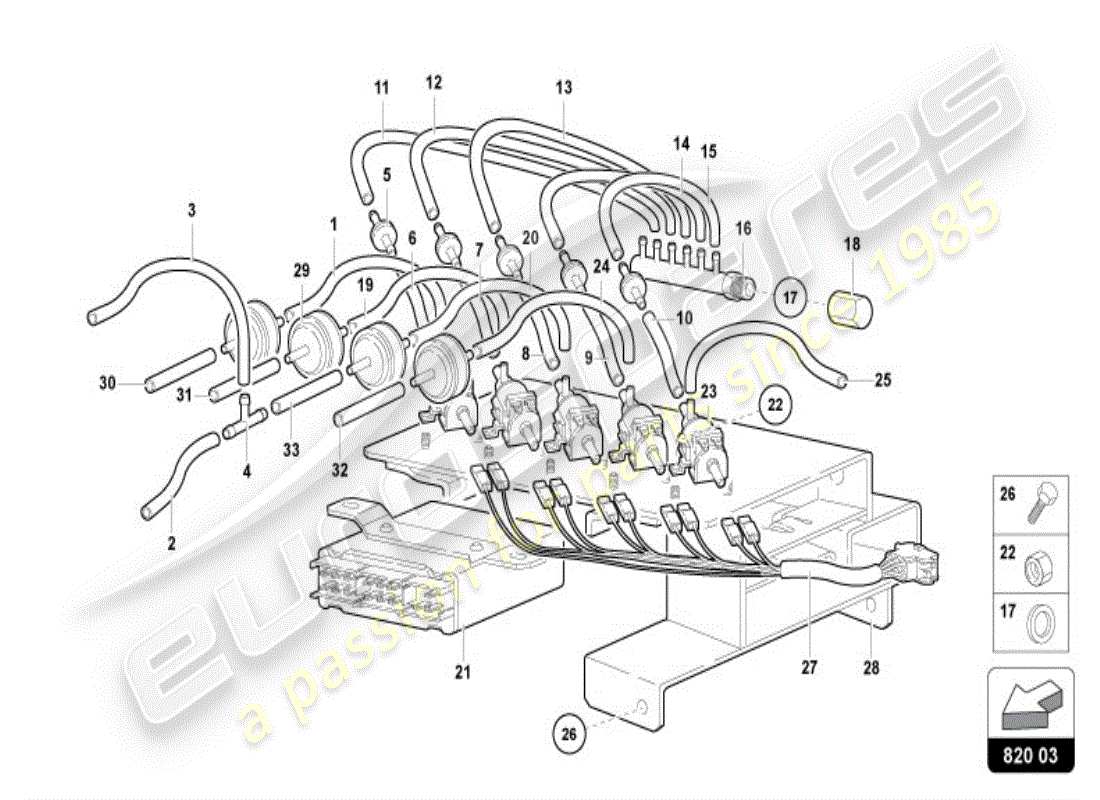

lamborghini diablo vt (1996) air conditioning part diagram
820.03.00

AIR CONDITIONING

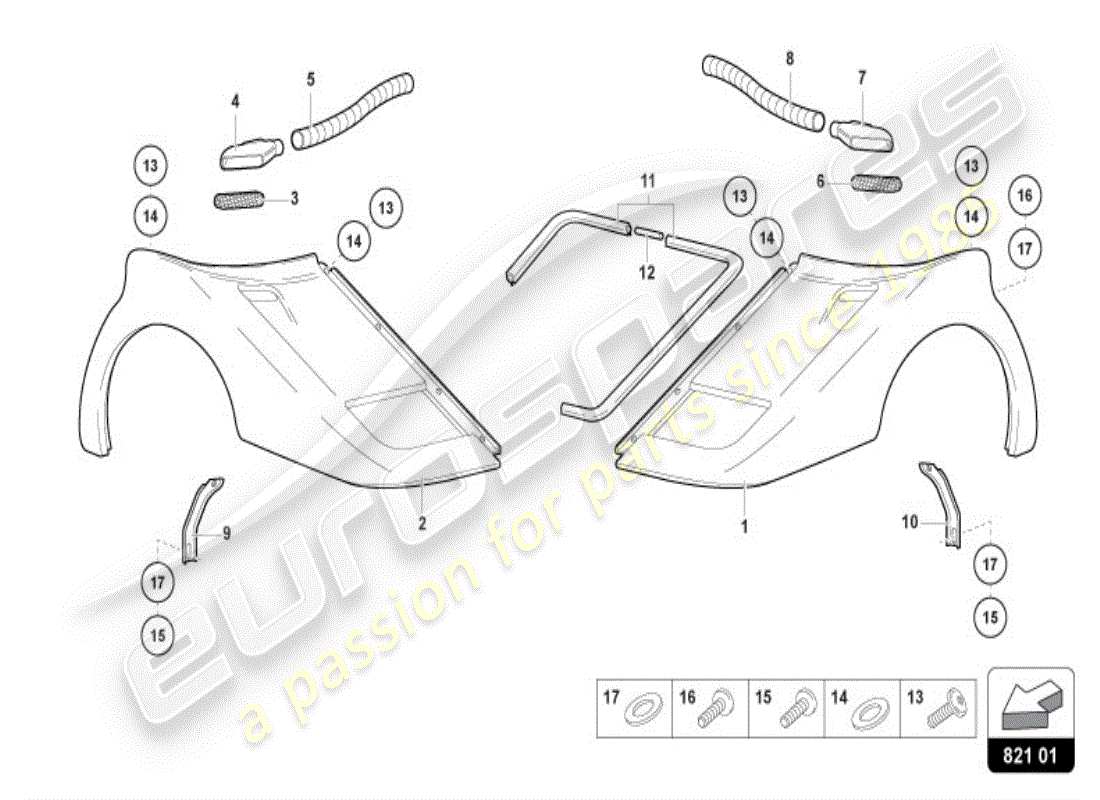

lamborghini diablo vt (1996) wing front part diagram
821.01.00

WING FRONT

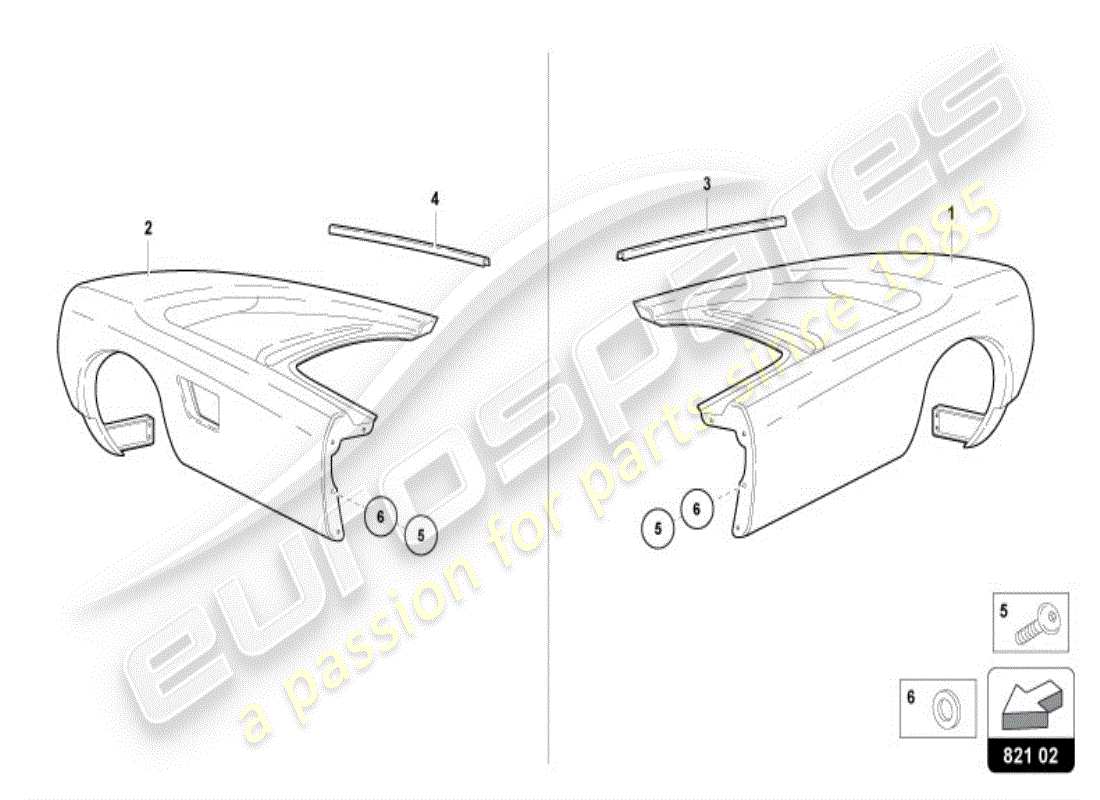

lamborghini diablo vt (1996) wing protector rear part diagram
821.02.00

WING PROTECTOR REAR

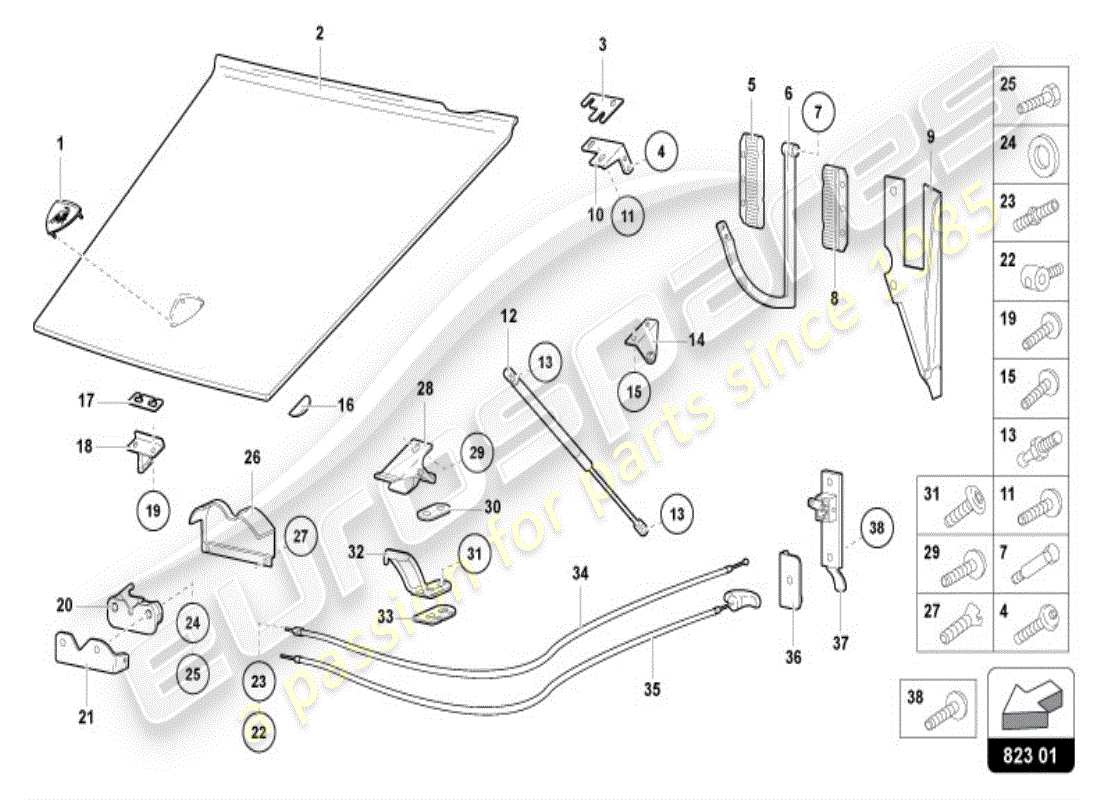

lamborghini diablo vt (1996) bonnet front part diagram
823.01.00

BONNET FRONT

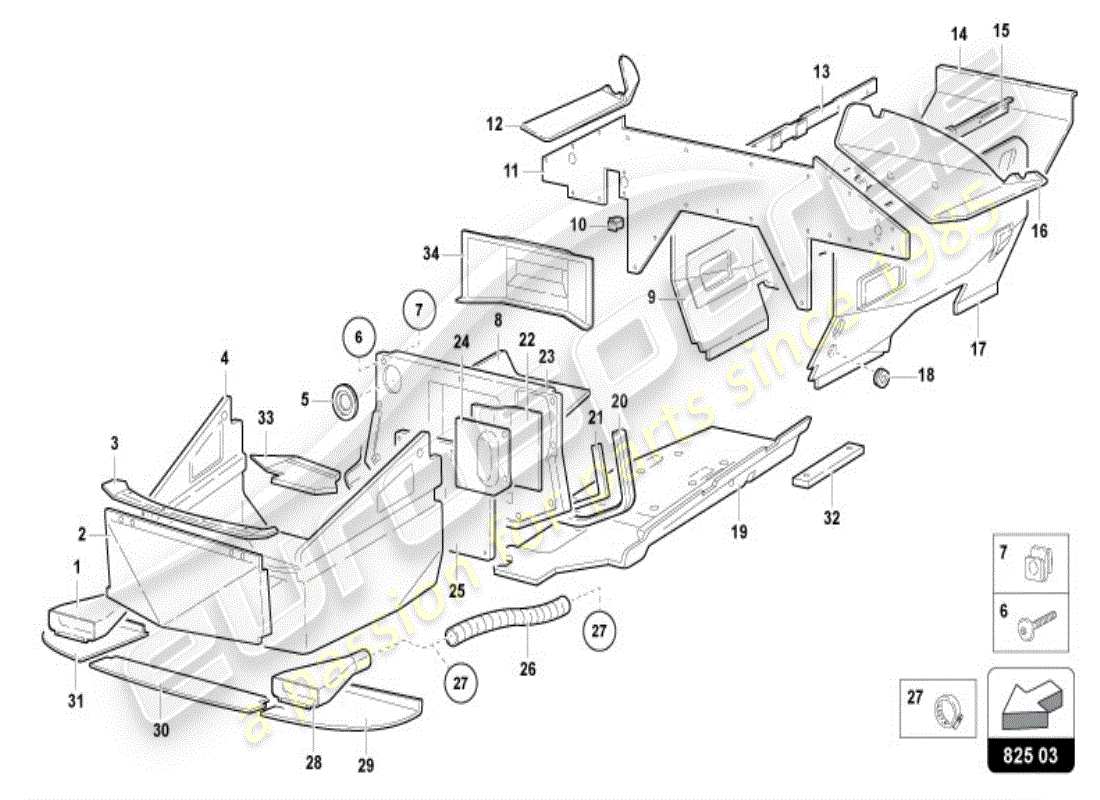

lamborghini diablo vt (1996) trim panel for frame lower section part diagram
825.03.00

TRIM PANEL FOR FRAME LOWER SECTION
lamborghini diablo vt (1996) trim panel for engine part diagram
825.04.00

TRIM PANEL FOR ENGINE
lamborghini diablo vt (1996) rear spoiler part diagram
827.01.00

REAR SPOILER
lamborghini diablo vt (1996) engine cover with insp. cover part diagram
827.02.00

ENGINE COVER WITH INSP. COVER

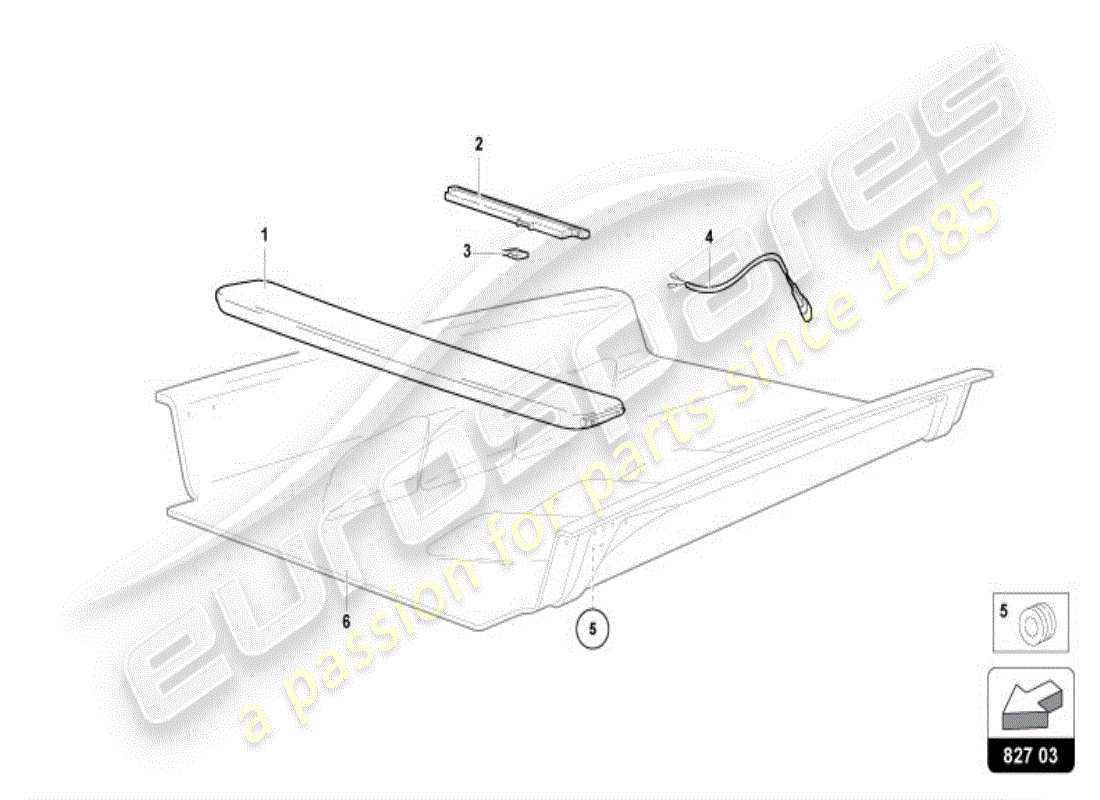

lamborghini diablo vt (1996) engine cover with insp. cover part diagram
827.03.00

ENGINE COVER WITH INSP. COVER

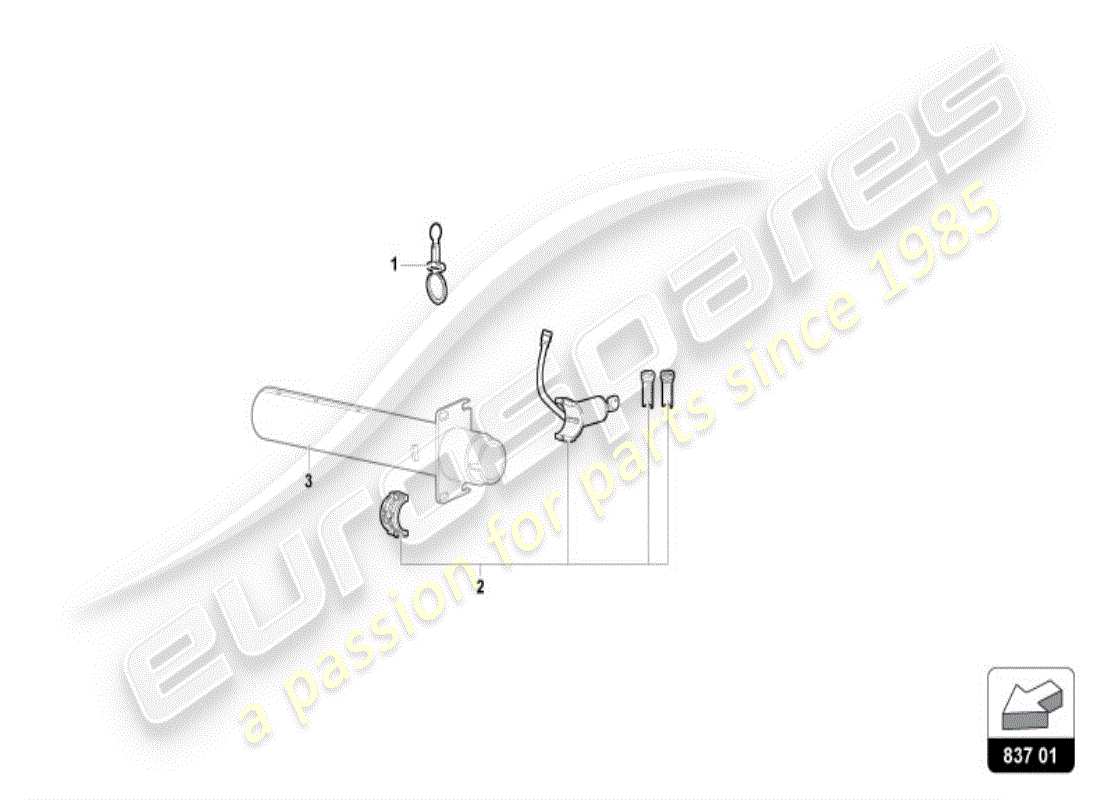

lamborghini diablo vt (1996) lock cylinder with keys part diagram
837.01.00

LOCK CYLINDER WITH KEYS
lamborghini diablo vt (1996) driver and passenger door part diagram

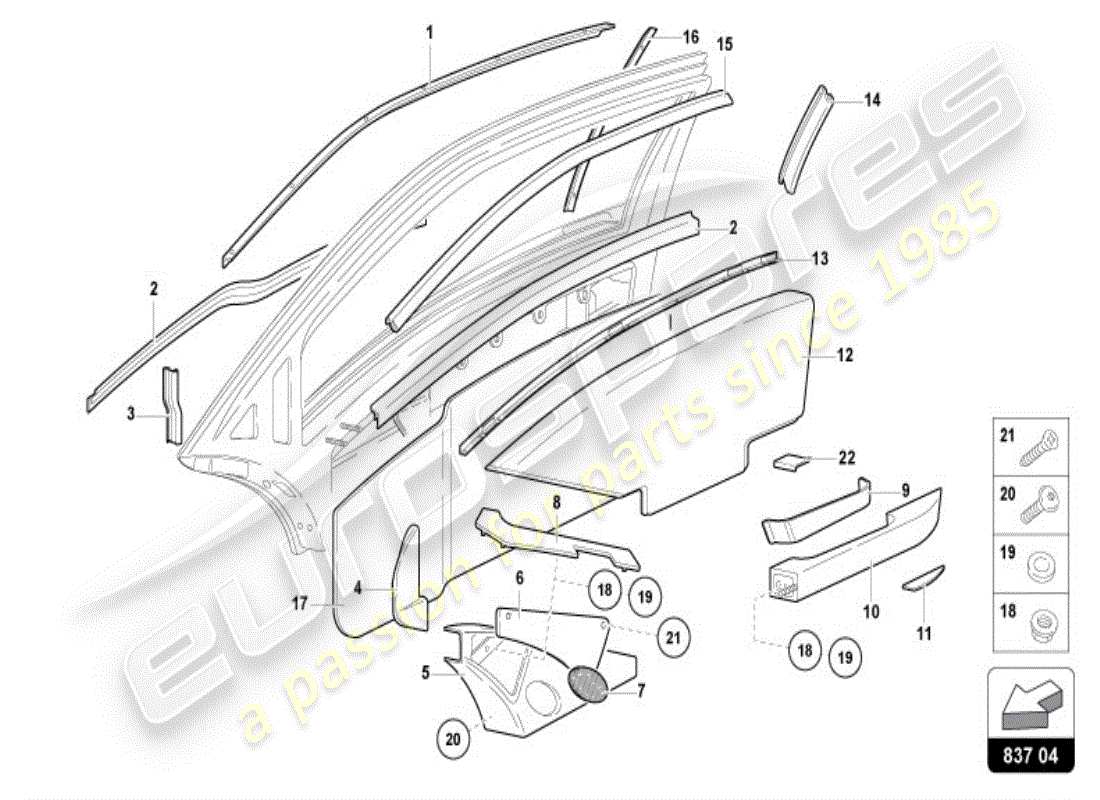

837.04.00

DRIVER AND PASSENGER DOOR

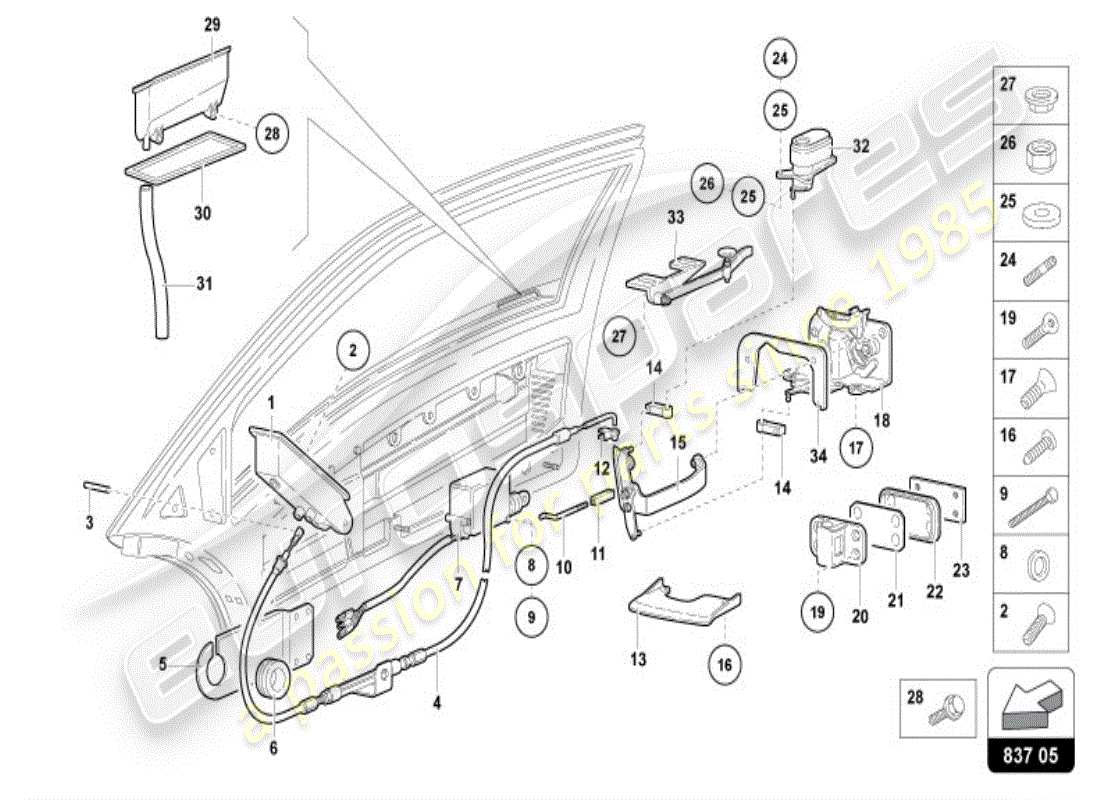

lamborghini diablo vt (1996) door part diagram
837.05.00

DOOR

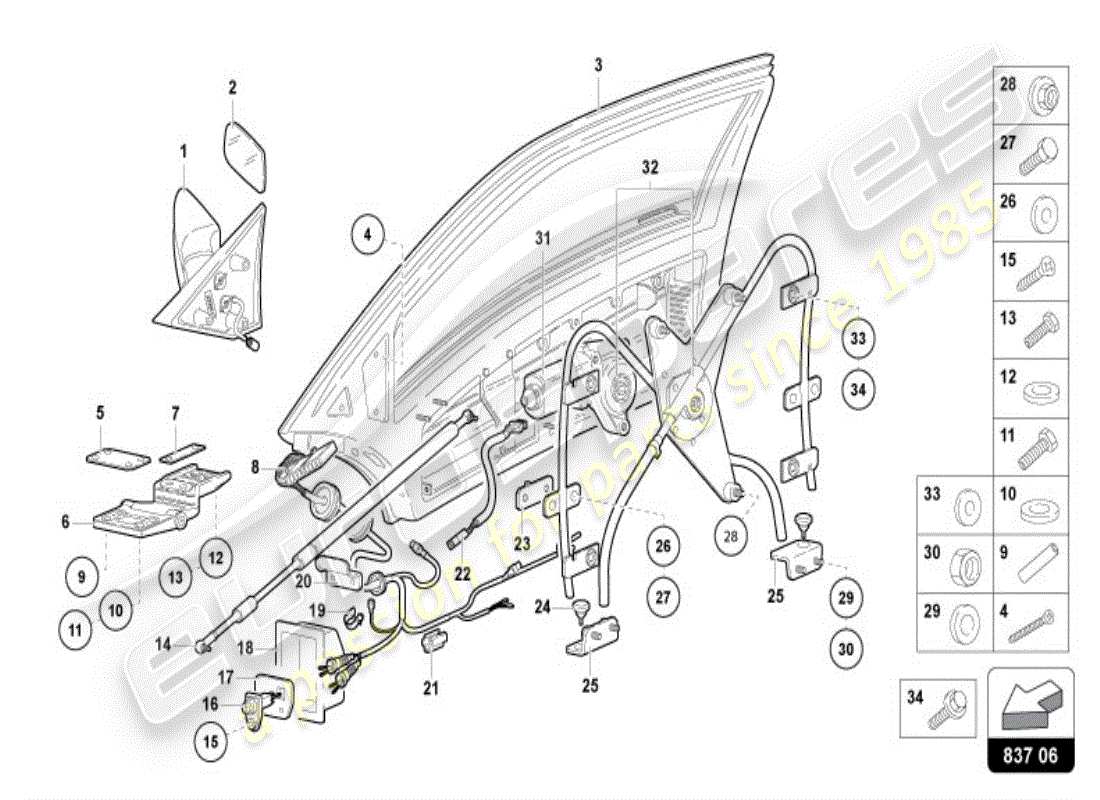

lamborghini diablo vt (1996) door and exterior mirror part diagram
837.06.00

DOOR AND EXTERIOR MIRROR

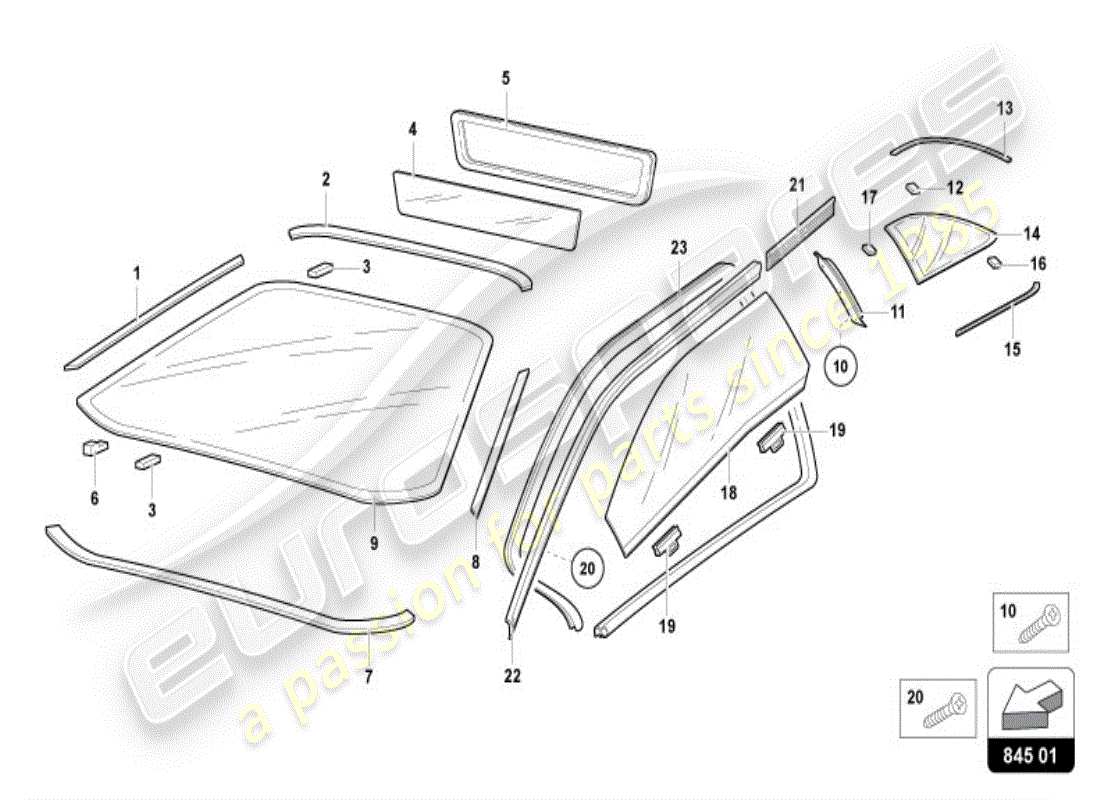

lamborghini diablo vt (1996) window glasses part diagram
845.01.00

WINDOW GLASSES

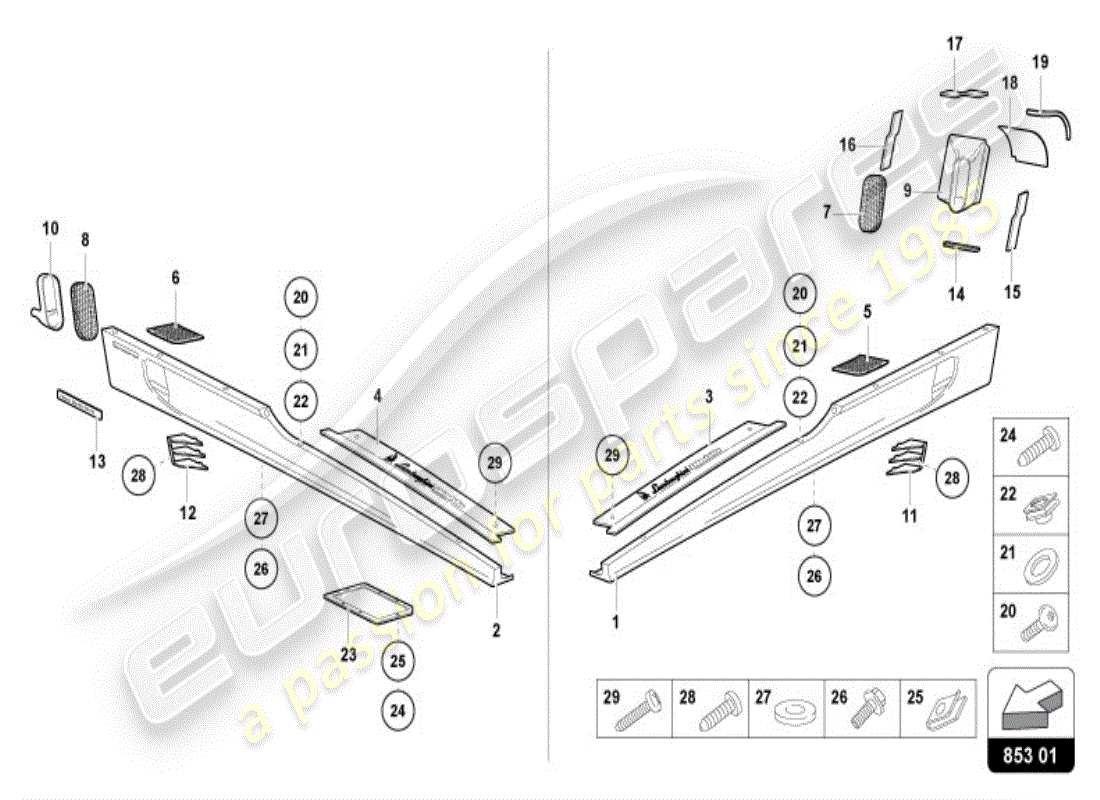

lamborghini diablo vt (1996) lower external side member for wheel housing part diagram
853.01.00

LOWER EXTERNAL SIDE MEMBER FOR WHEEL HOUSING

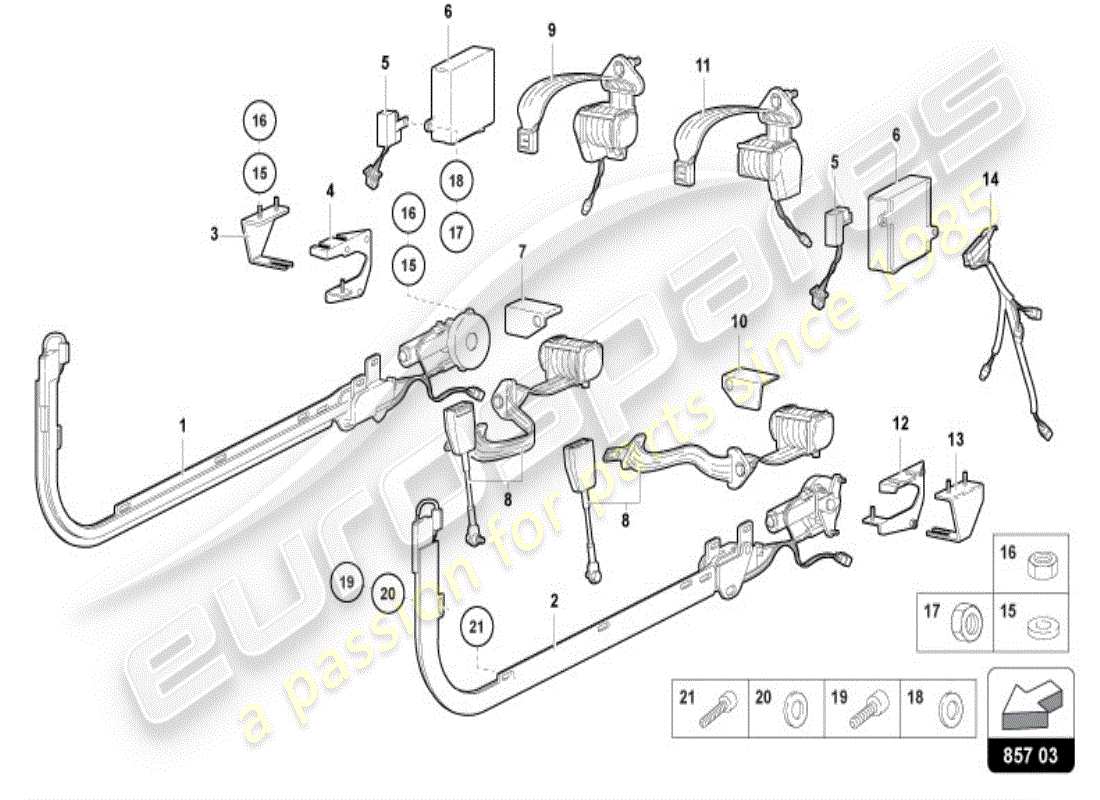

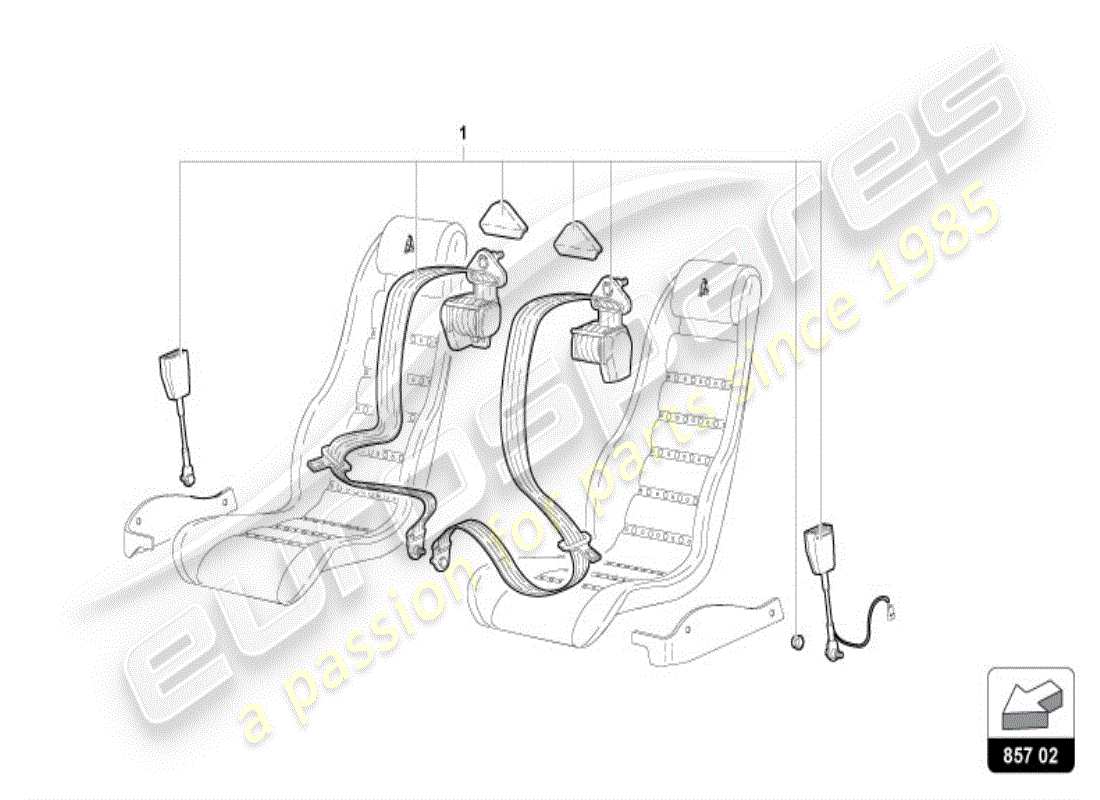

lamborghini diablo vt (1996) seat belts part diagram
857.02.00

SEAT BELTS
lamborghini diablo vt (1996) seat belts part diagram
857.03.00

SEAT BELTS

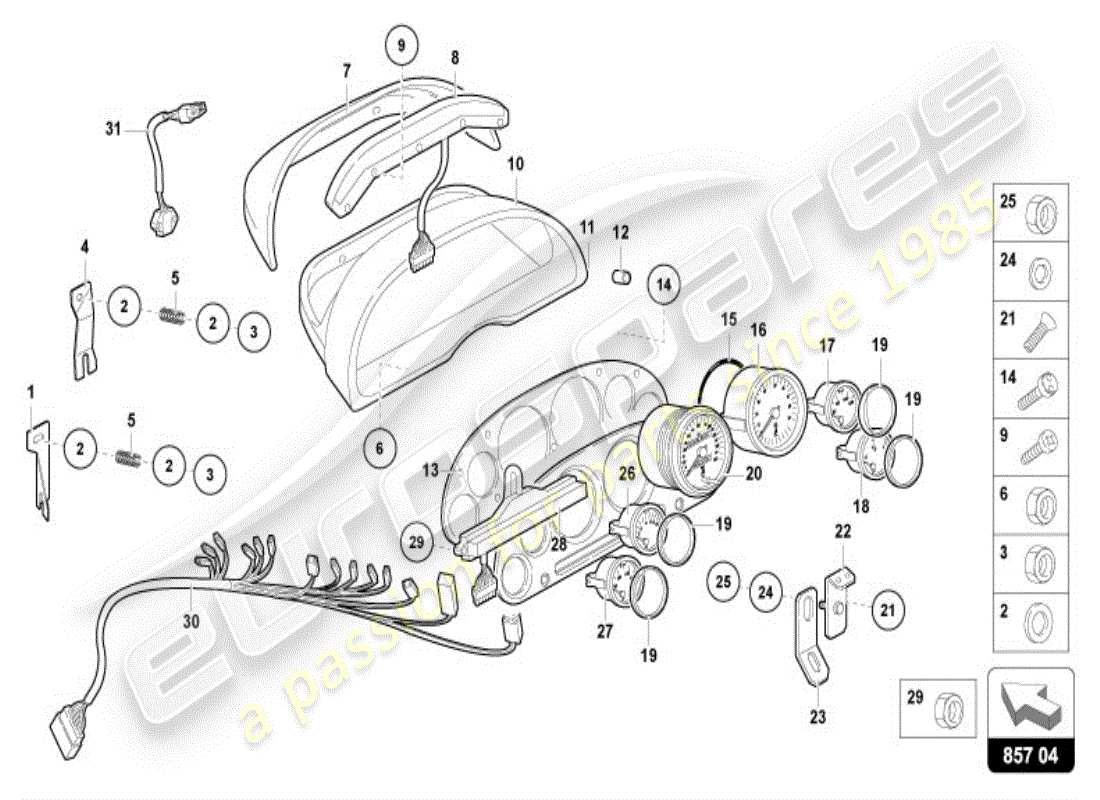

lamborghini diablo vt (1996) combi-instrument part diagram
857.04.00

COMBI-INSTRUMENT
lamborghini diablo vt (1996) exterior mirror part diagram

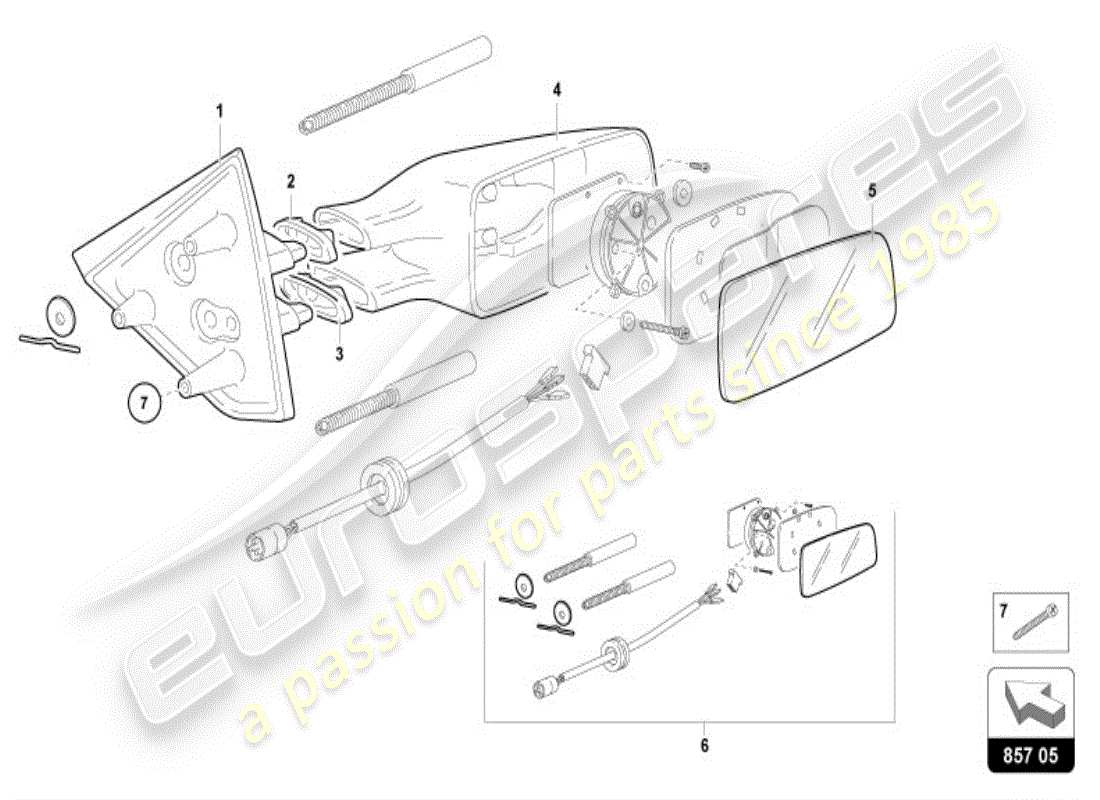

857.05.00

EXTERIOR MIRROR

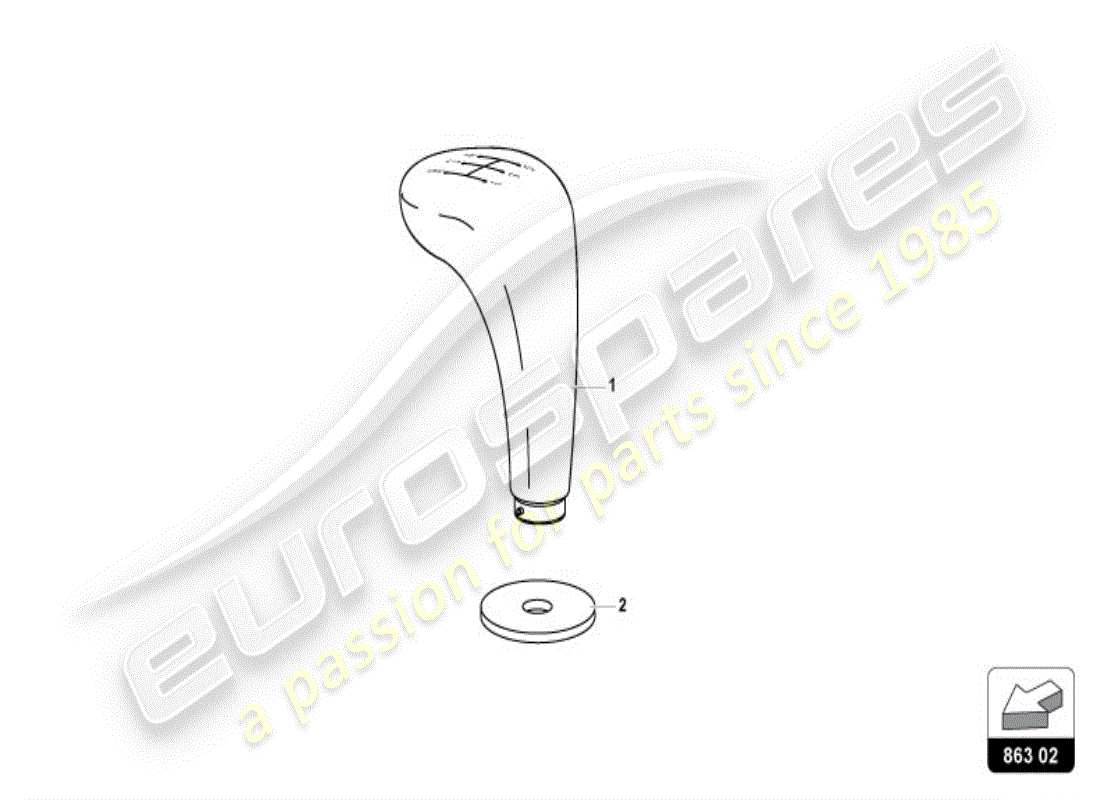

lamborghini diablo vt (1996) shift lever part diagram
863.02.00

SHIFT LEVER
lamborghini diablo vt (1996) tunnel part diagram
863.04.00

TUNNEL

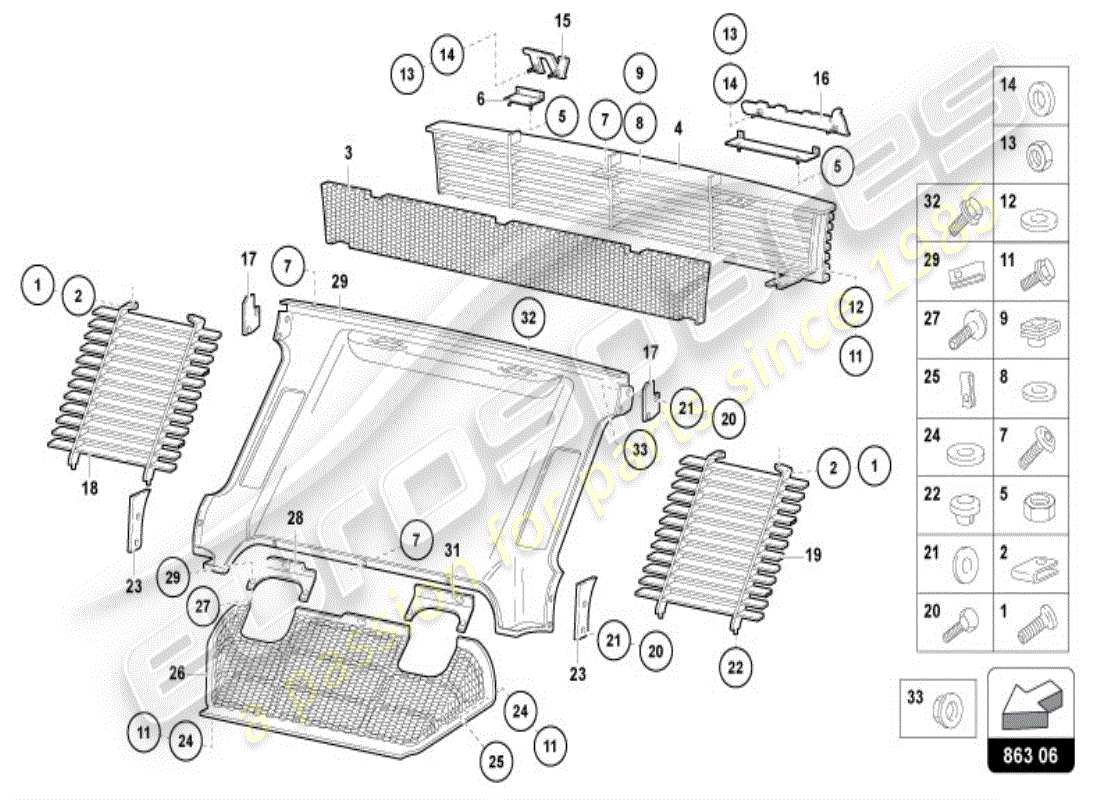

lamborghini diablo vt (1996) covers part diagram
863.06.00

COVERS
lamborghini diablo vt (1996) interior decor part diagram

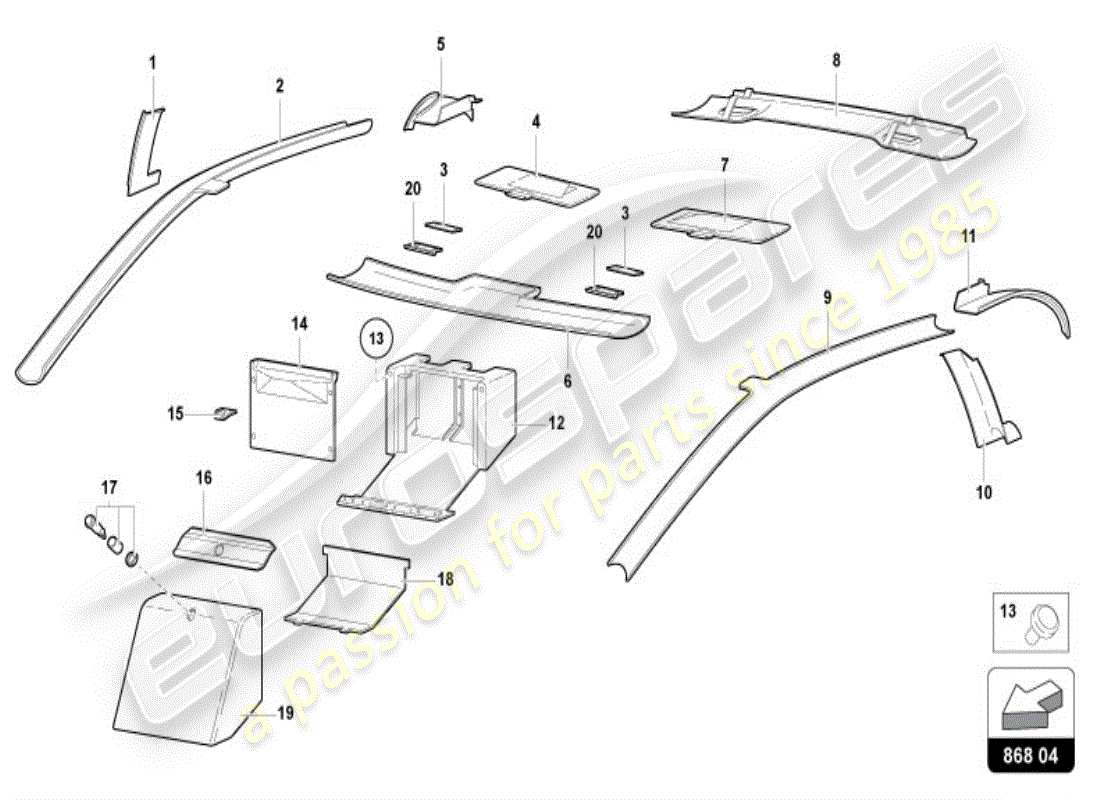

868.04.00

INTERIOR DECOR

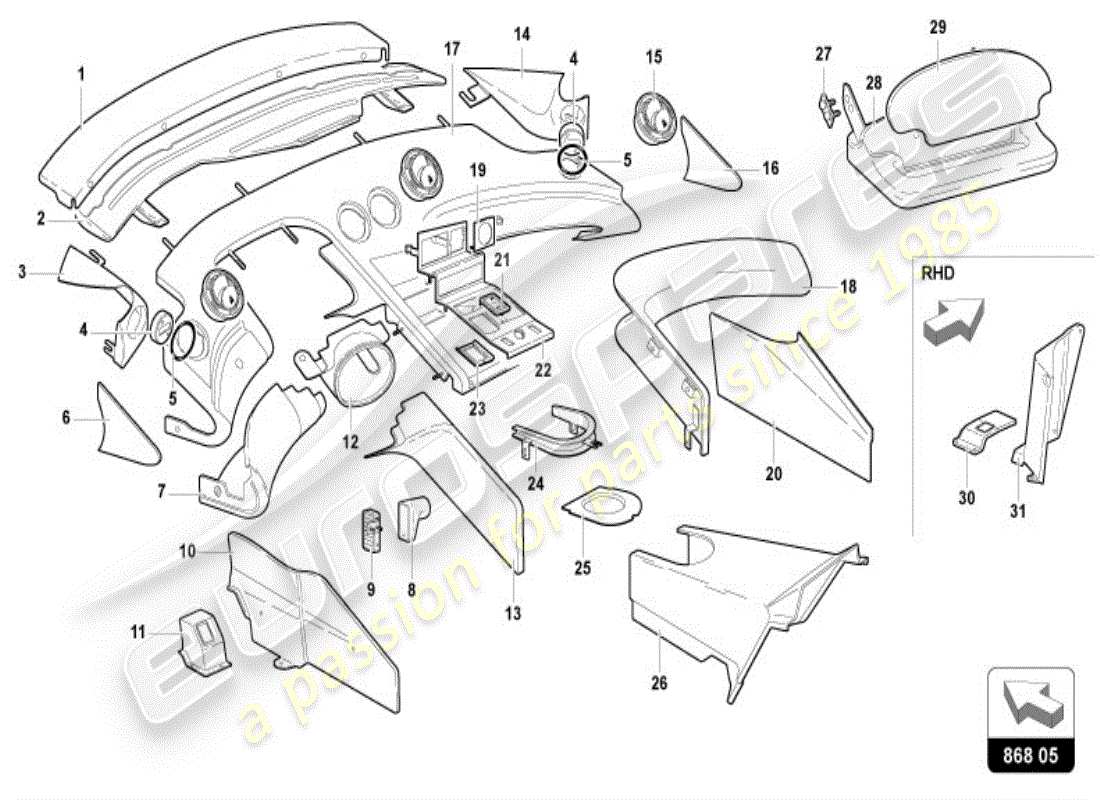

lamborghini diablo vt (1996) interior decor part diagram
868.05.00

INTERIOR DECOR

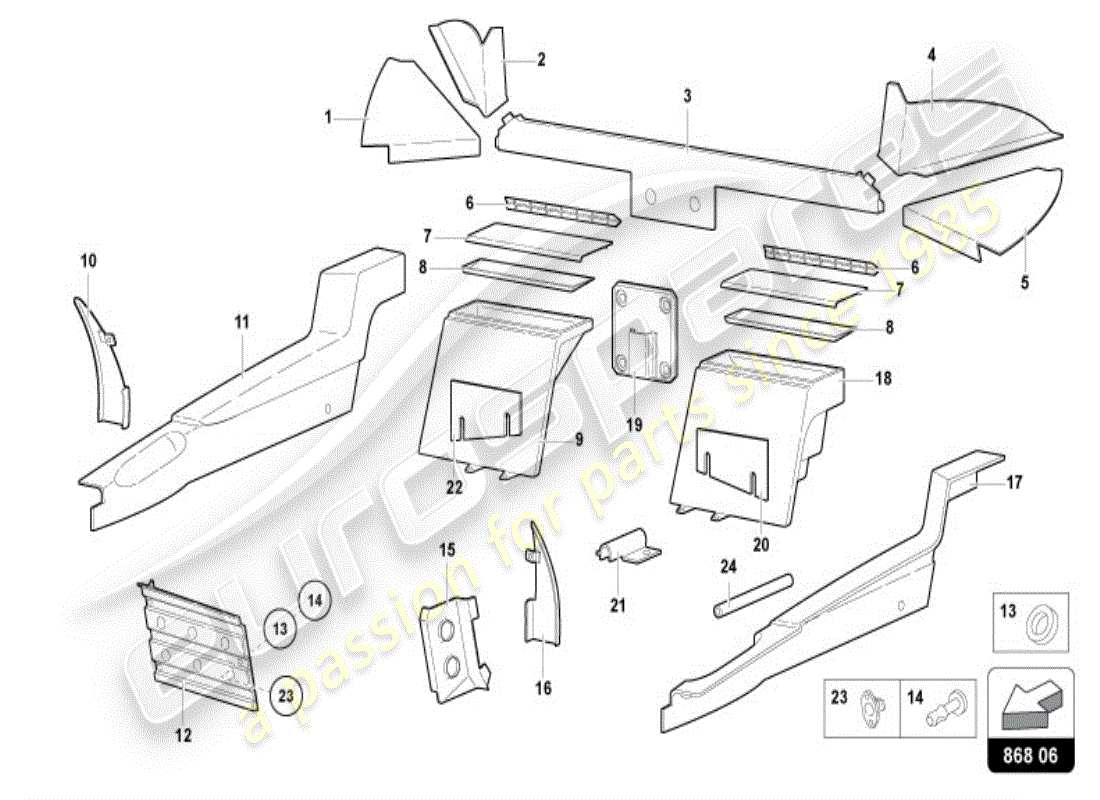

lamborghini diablo vt (1996) interior decor part diagram
868.06.00

INTERIOR DECOR

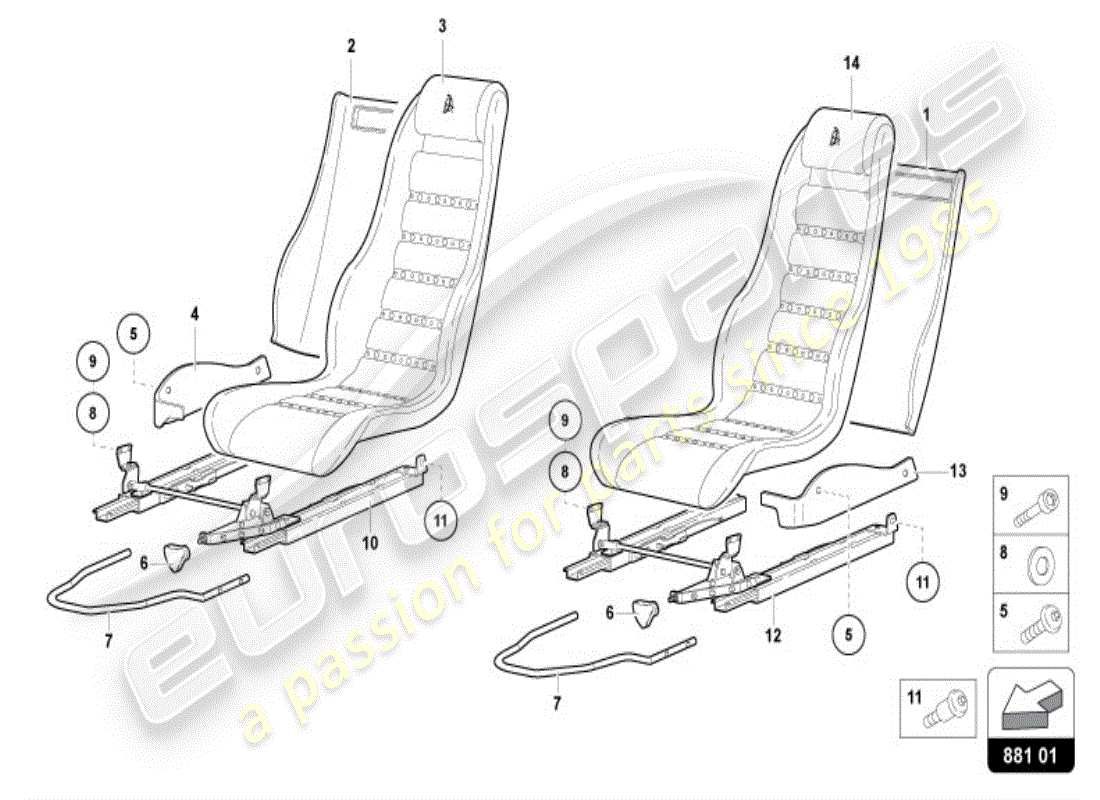

lamborghini diablo vt (1996) seat part diagram
881.01.00

SEAT
lamborghini diablo vt (1996) ignition system part diagram
905.03.00

IGNITION SYSTEM

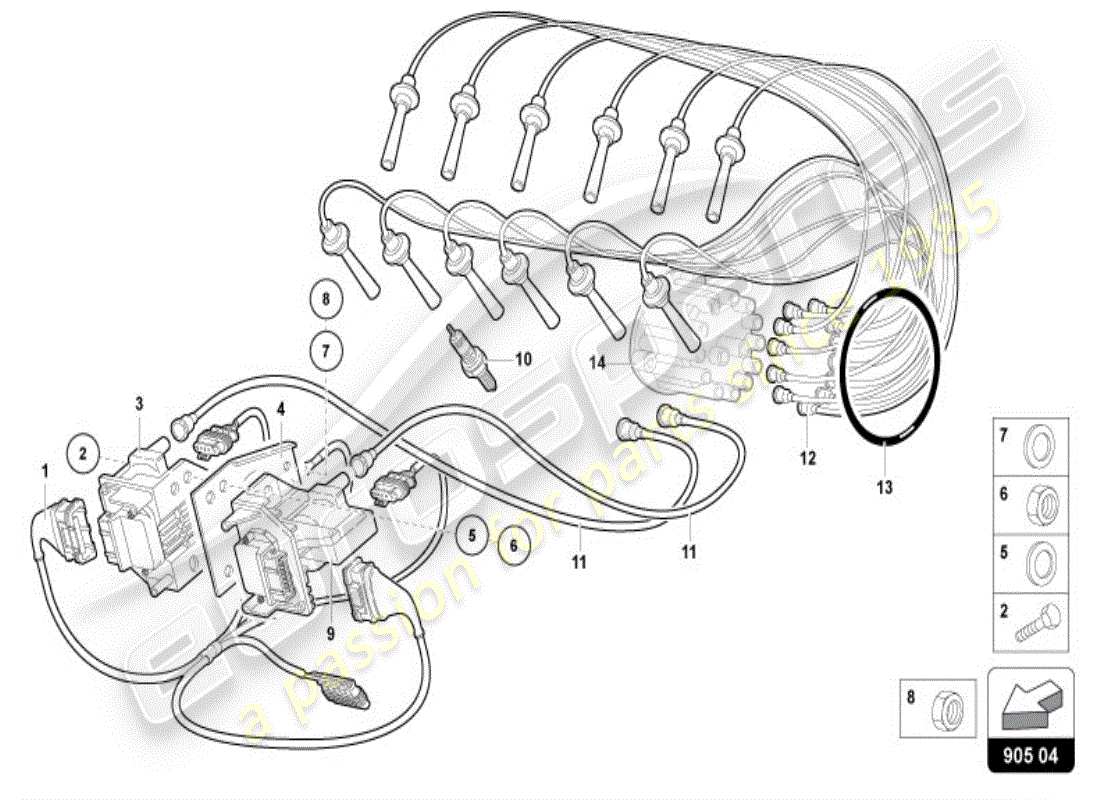

lamborghini diablo vt (1996) ignition system part diagram
905.04.00

IGNITION SYSTEM

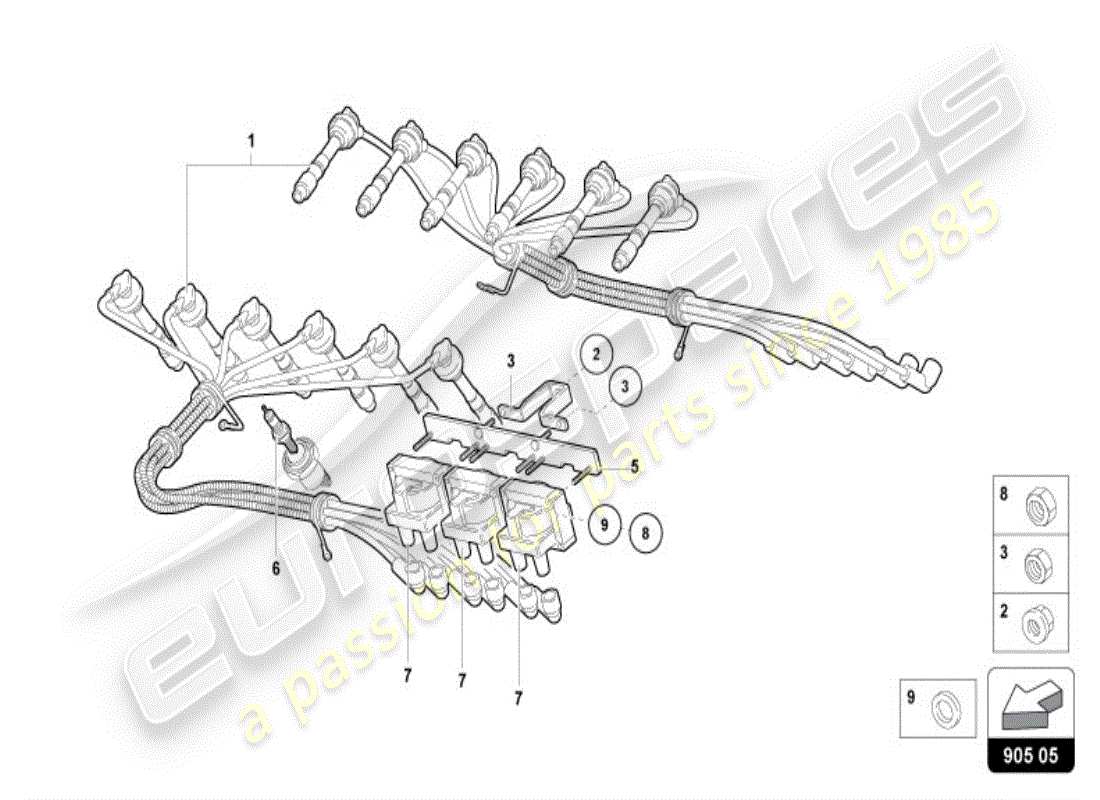

lamborghini diablo vt (1996) static ignition system part diagram
905.05.00

STATIC IGNITION SYSTEM

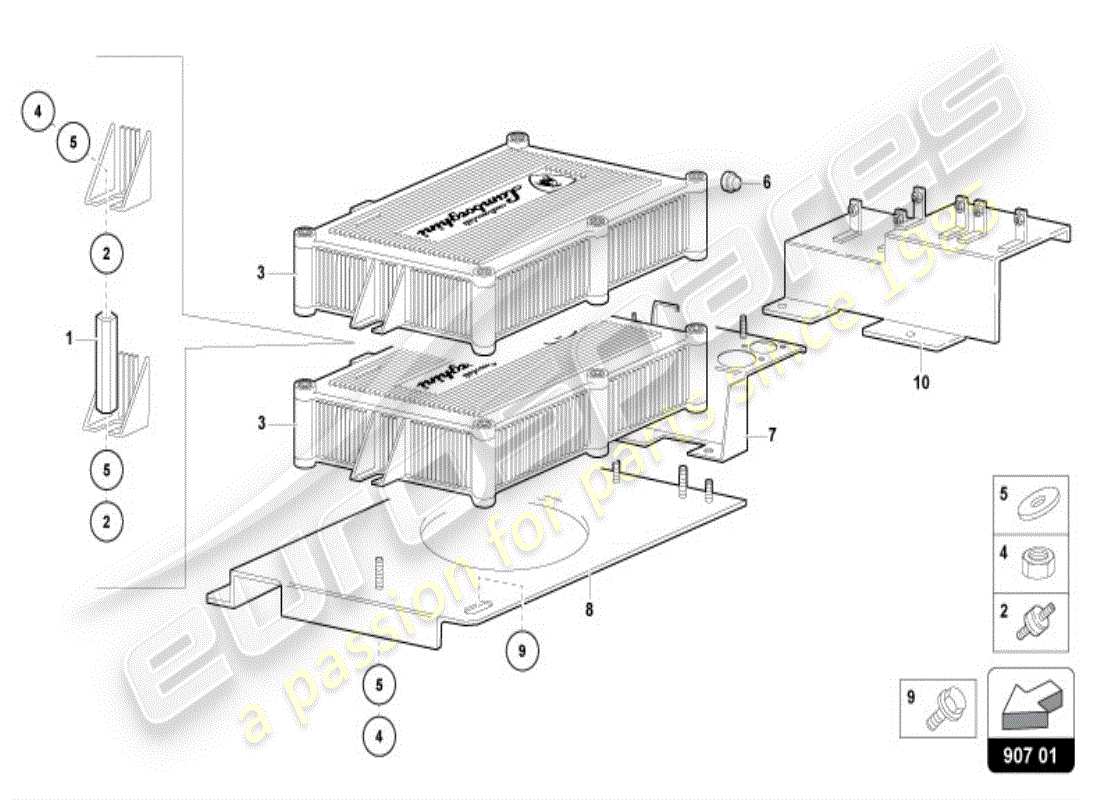

lamborghini diablo vt (1996) electrics part diagram
907.01.00

ELECTRICS
lamborghini diablo vt (1996) starter part diagram
911.02.00

STARTER

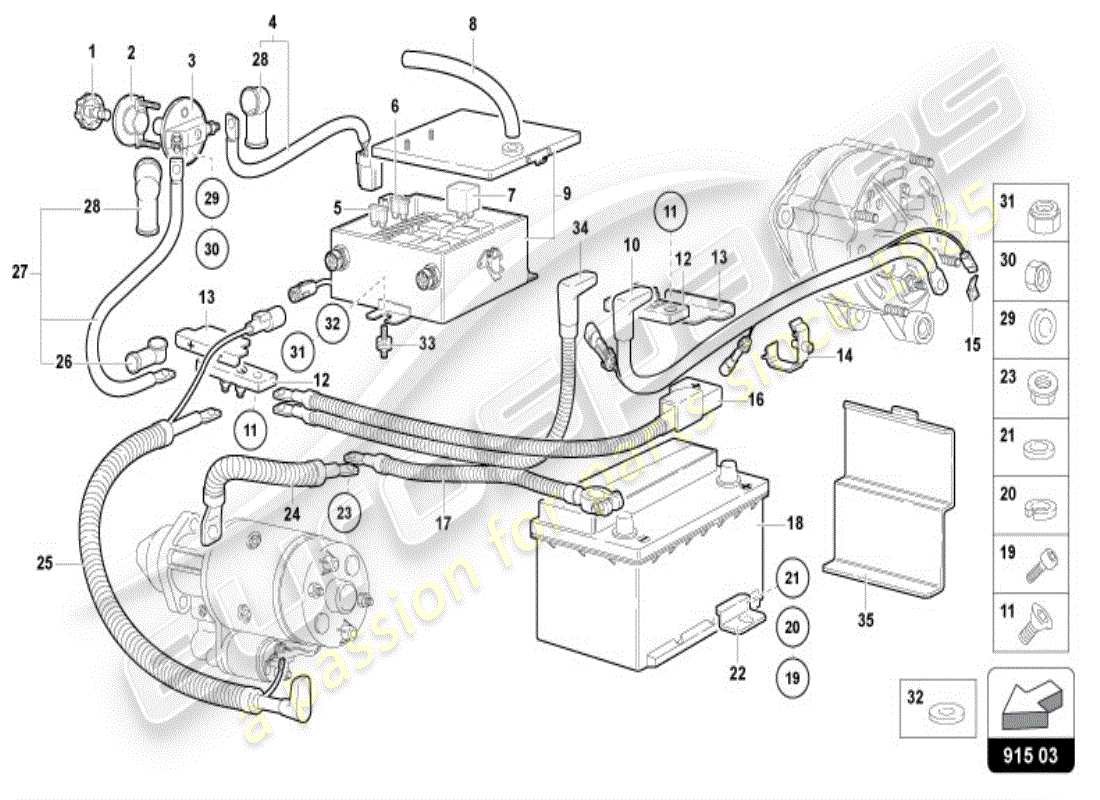

lamborghini diablo vt (1996) battery part diagram
915.03.00

BATTERY

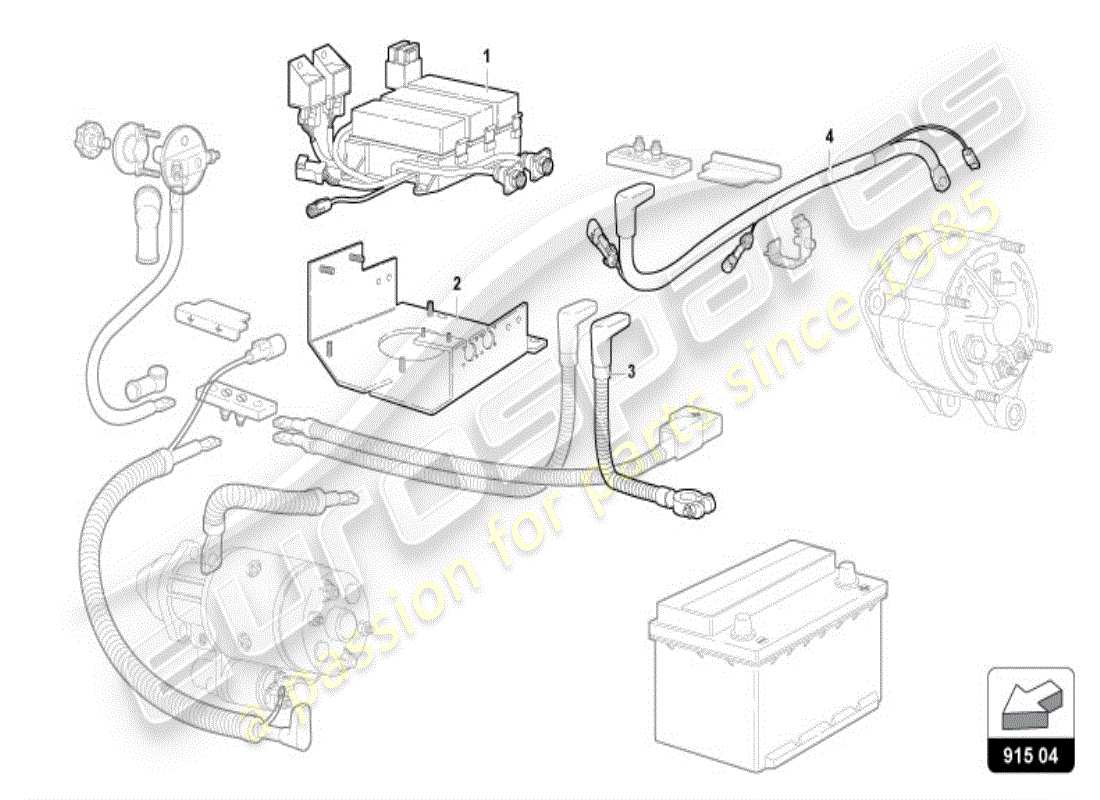

lamborghini diablo vt (1996) battery part diagram
915.04.00

BATTERY

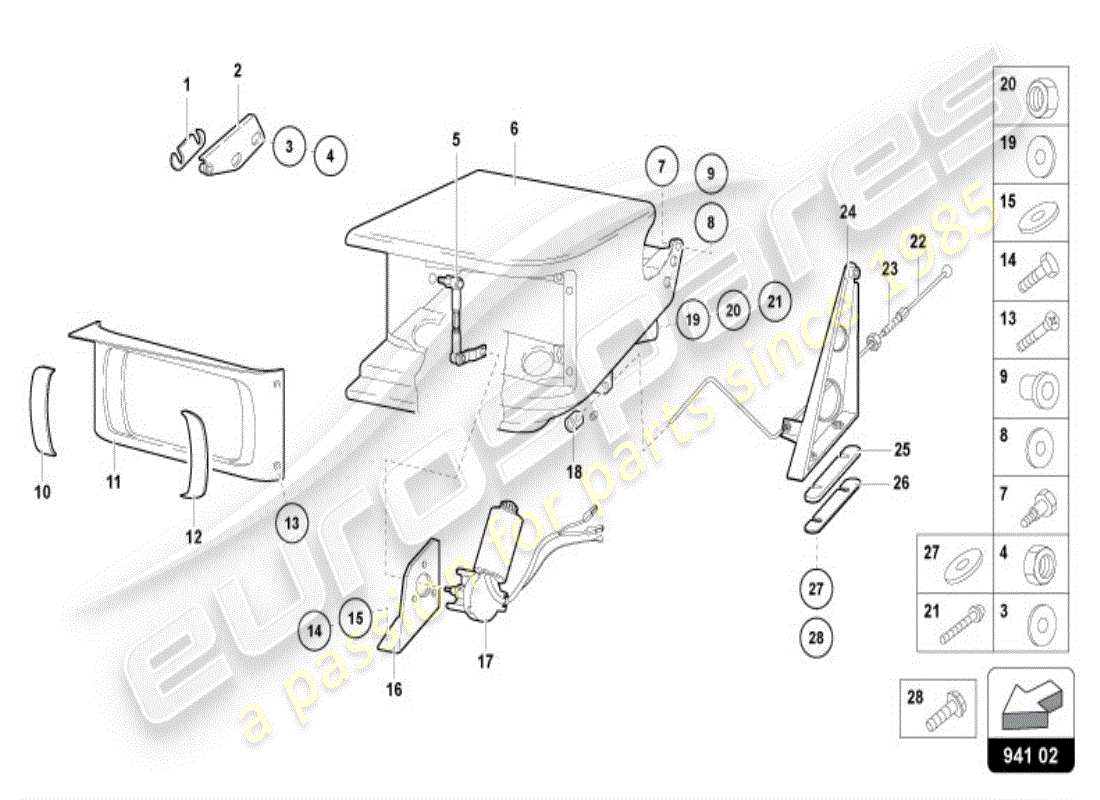

lamborghini diablo vt (1996) headlight device part diagram
941.02.00

HEADLIGHT DEVICE

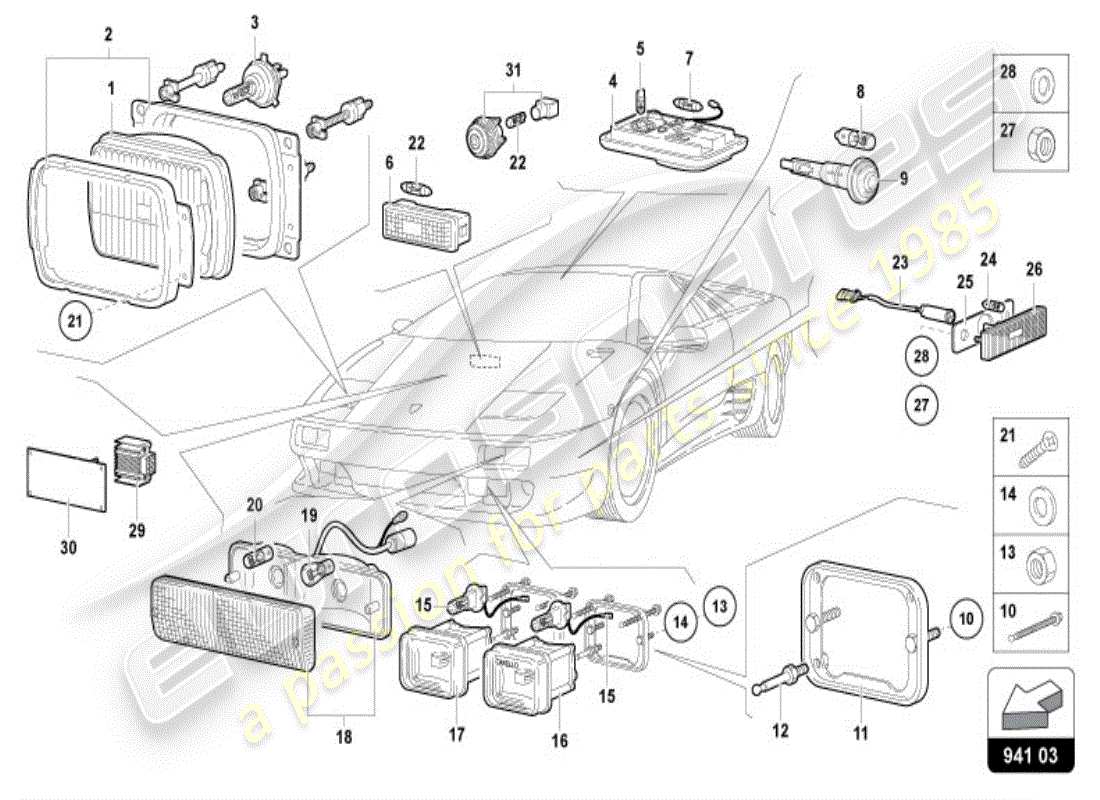

lamborghini diablo vt (1996) headlights part diagram
941.03.00

HEADLIGHTS
lamborghini diablo vt (1996) tail light rear part diagram

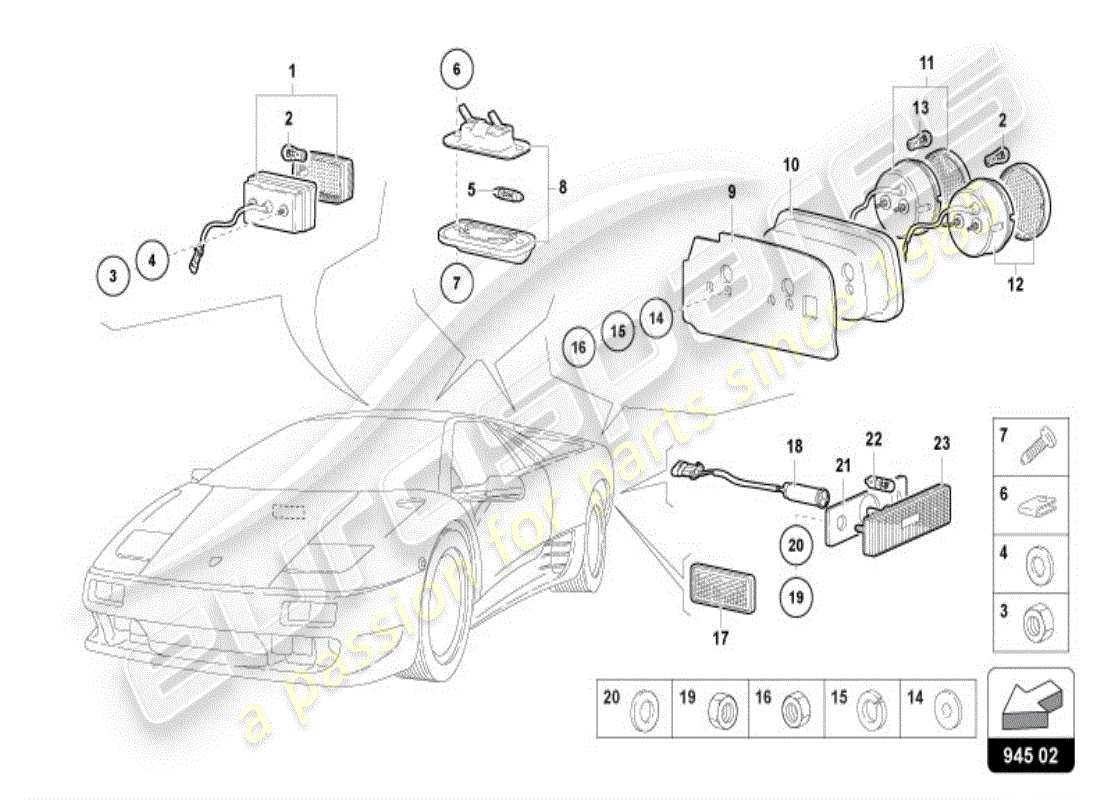

945.02.00

TAIL LIGHT REAR

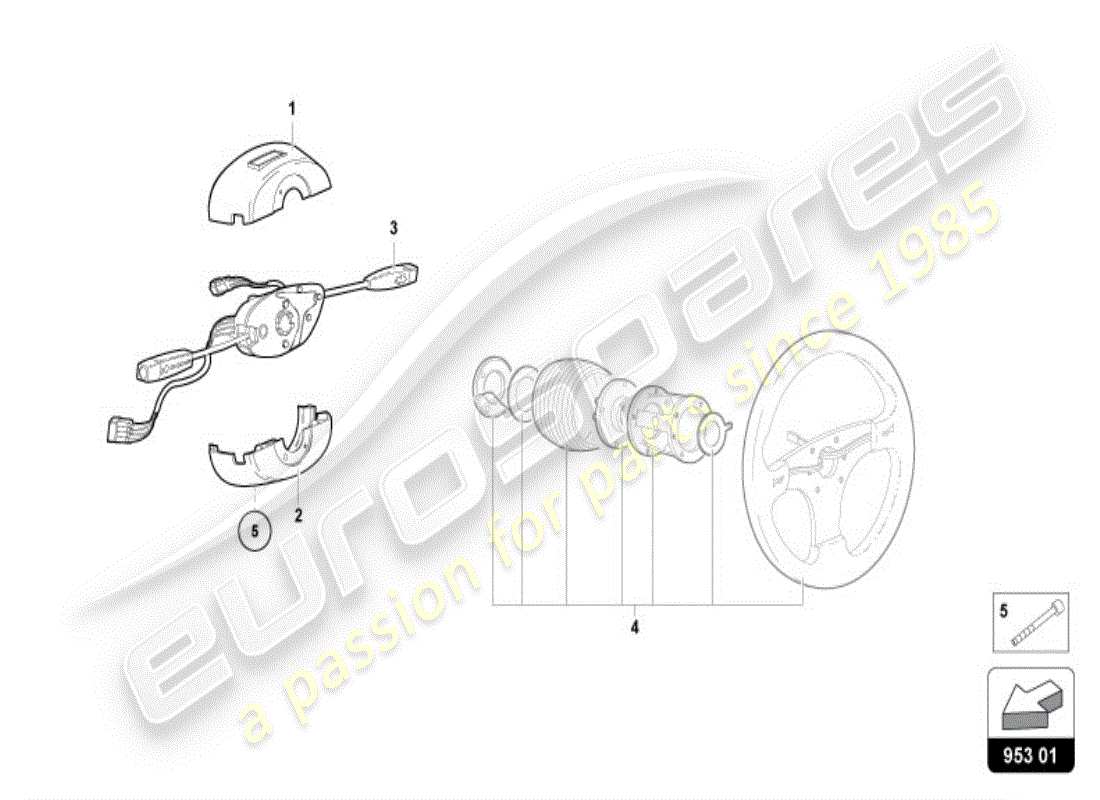

lamborghini diablo vt (1996) rack and pinion steering part diagram
953.01.00

RACK AND PINION STEERING

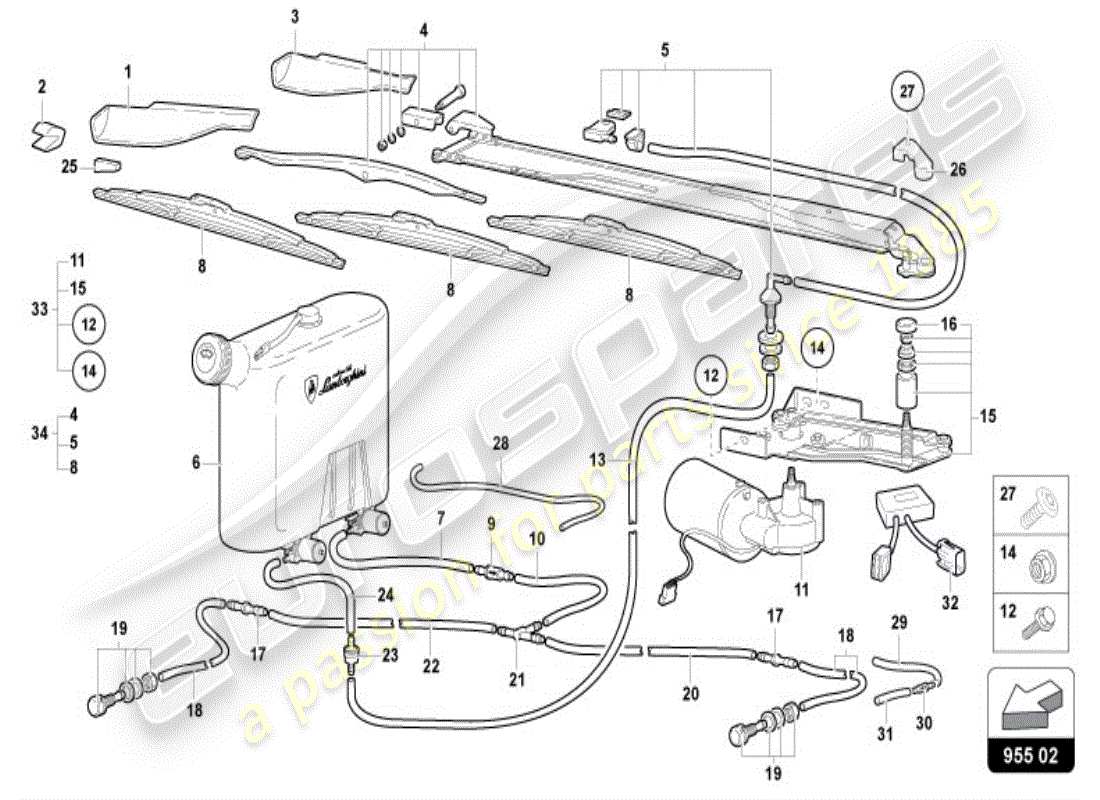

lamborghini diablo vt (1996) windshield wiper part diagram
955.02.00

WINDSHIELD WIPER

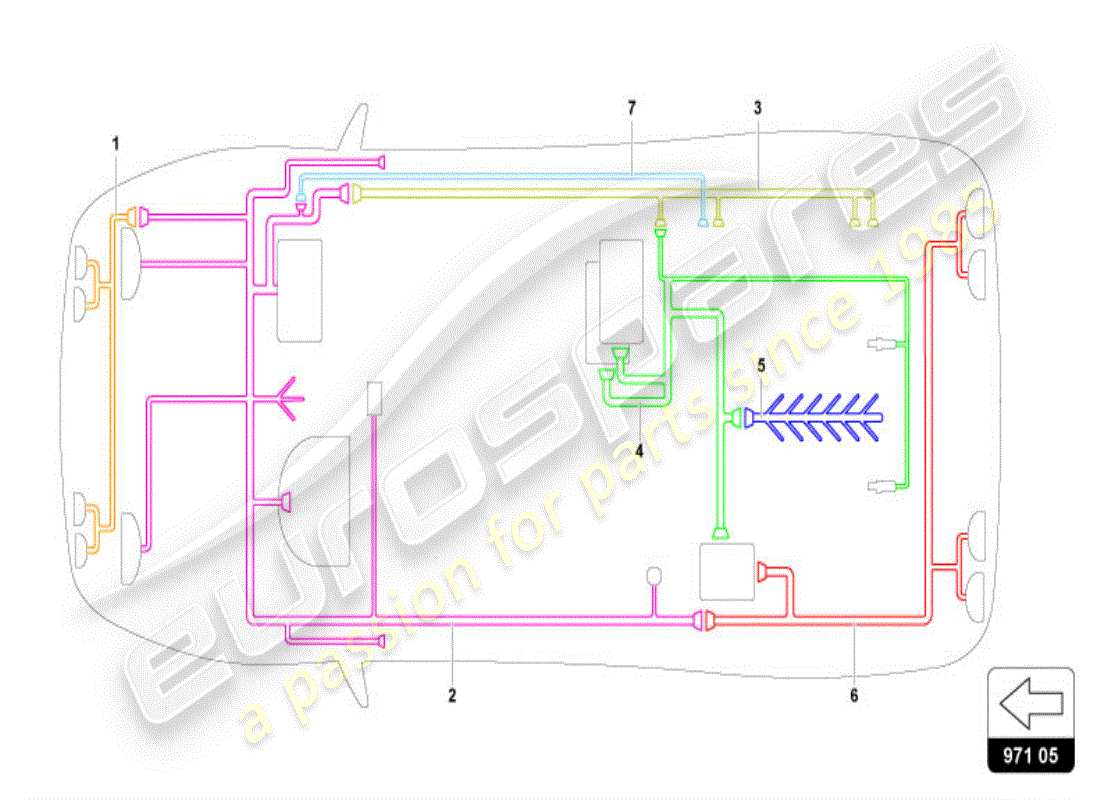

lamborghini diablo vt (1996) electrics part diagram
971.05.00

ELECTRICS

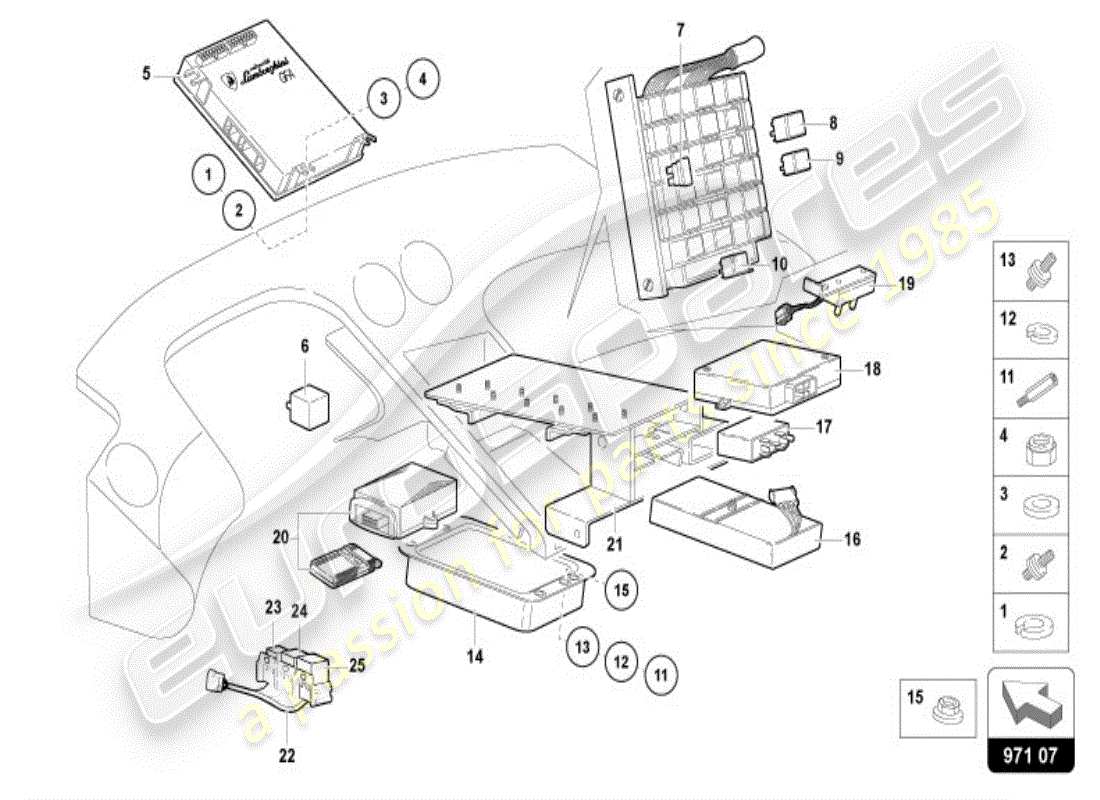

lamborghini diablo vt (1996) electrical system part diagram
971.07.00

ELECTRICAL SYSTEM

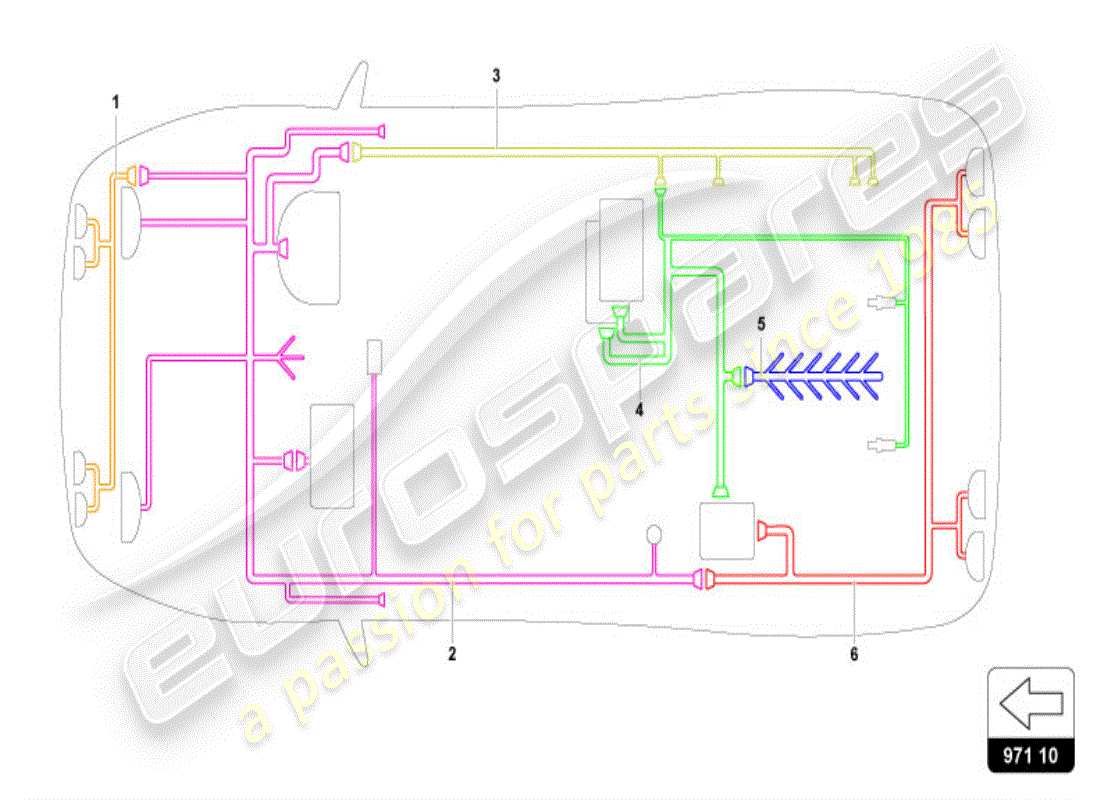

lamborghini diablo vt (1996) electrical system part diagram
971.10.00

ELECTRICAL SYSTEM

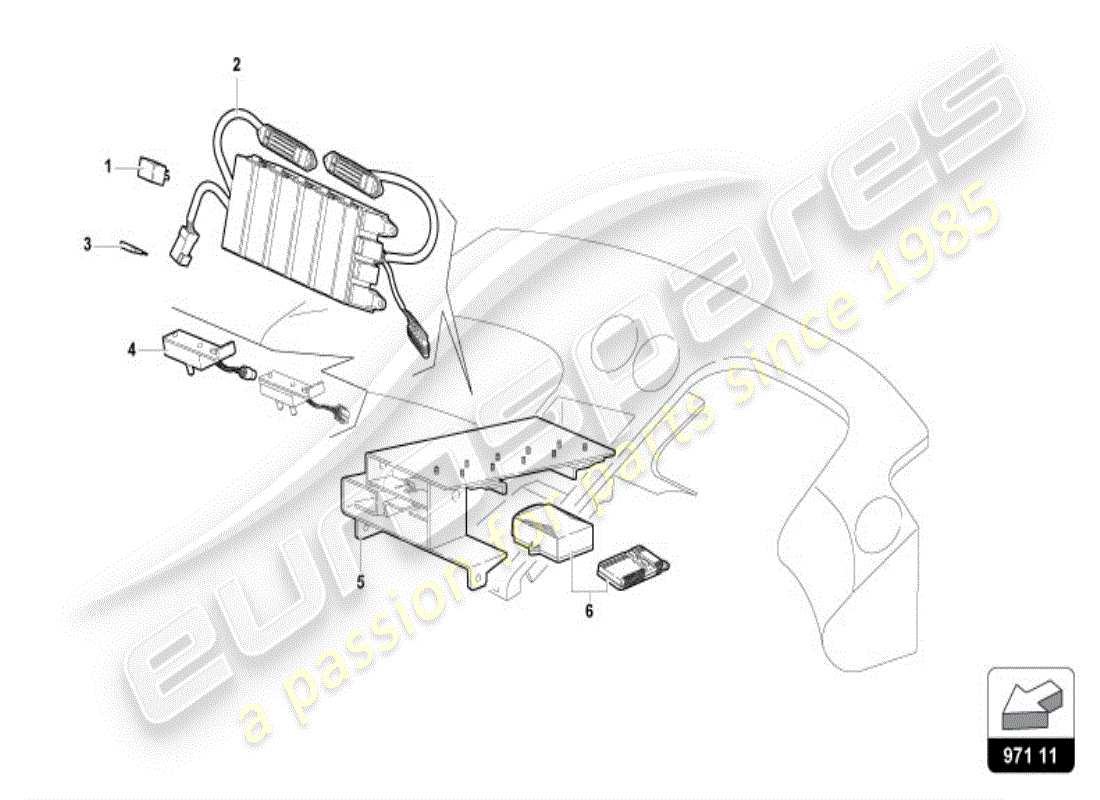

lamborghini diablo vt (1996) electrical system part diagram
971.11.00

ELECTRICAL SYSTEM
lamborghini diablo vt (1996) electrical system part diagram
971.12.00

ELECTRICAL SYSTEM

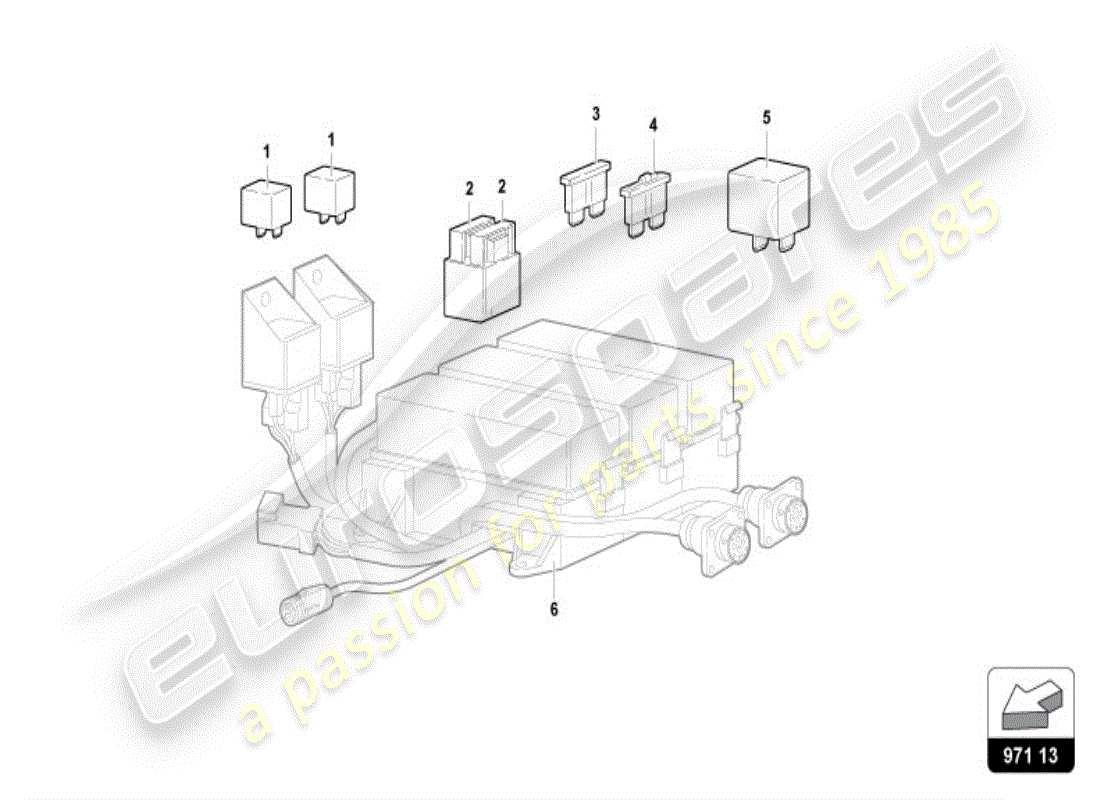

lamborghini diablo vt (1996) fuses part diagram
971.13.00

FUSES

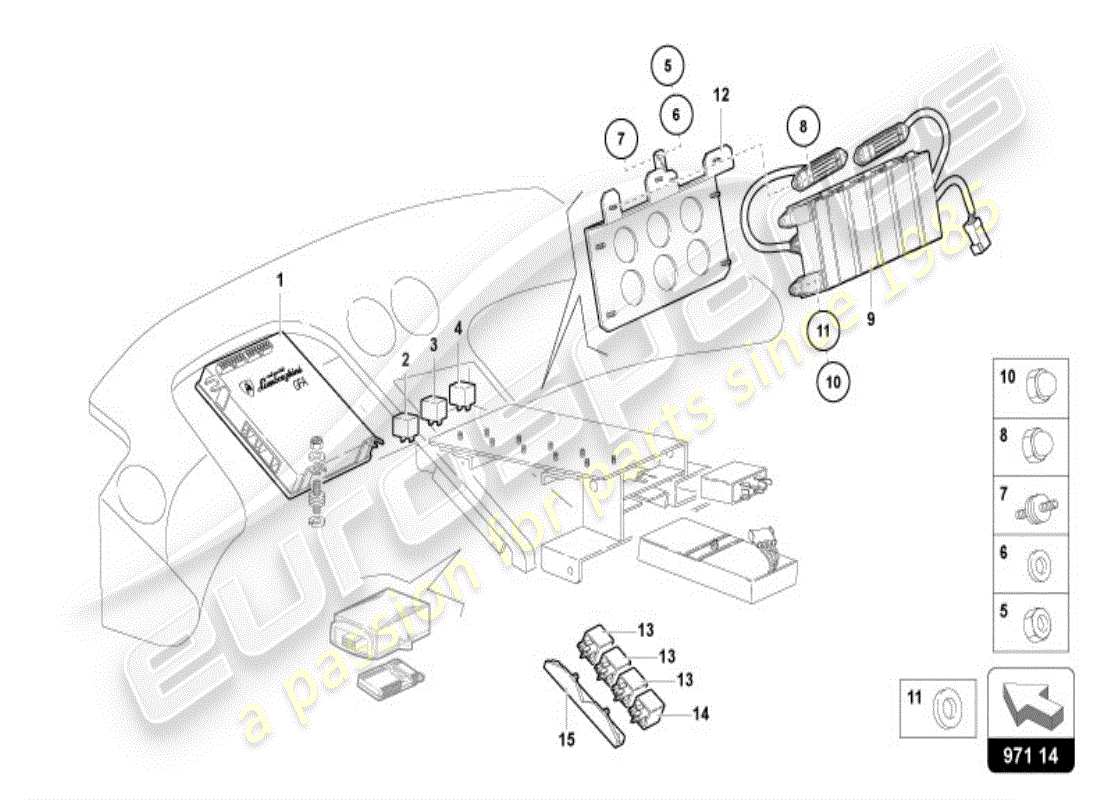

lamborghini diablo vt (1996) electrical system part diagram
971.14.00

ELECTRICAL SYSTEM
