115.03.00 - oil pump

Lamborghini Diablo VT (1996) OIL PUMP Parts Diagram

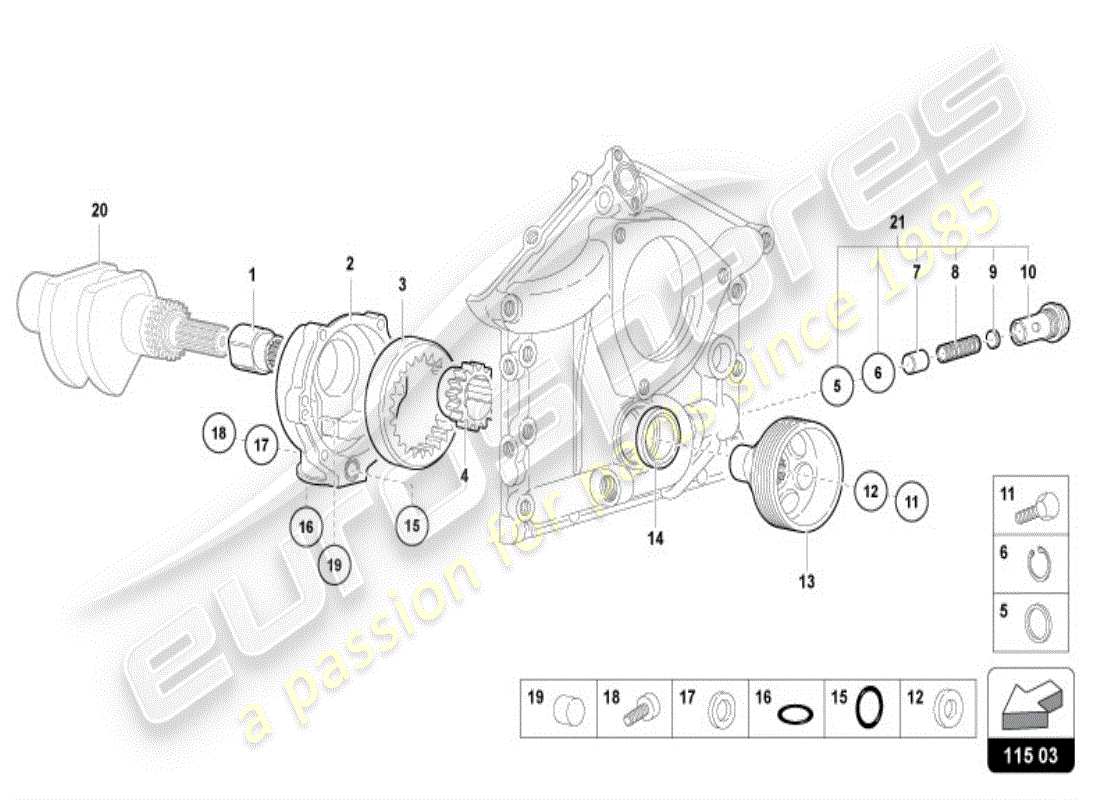

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                      #
                                      Part number
                                      Description
                                      Key
                                      Price
                                      # 001
                                      MPN: 001532187
                                      COUPLING
                                      from £146.67
                                      from £146.67
                                      CRANKSHAFT SLEEVE Genuine Lamborghini - New (to order)
                                      # 002
                                      MPN: 001532874
                                      COVER
                                      from £1,706.60
                                      from £1,706.60
                                      OIL PUMP COVER Genuine Lamborghini - New (to order)
                                      # 003
                                      MPN: 001528526
                                      DRIVEN GEAR
                                      from £2,990.46
                                      from £2,990.46
                                      IDLE GEAR Genuine Lamborghini - New (to order)
                                      # 004
                                      MPN: 001528525
                                      GEAR
                                      from £311.41
                                      from £311.41
                                      DRIVE GEAR Genuine Lamborghini - New (to order)
                                      # 005
                                      MPN: 008403006
                                      WASHER
                                      from £6.50
                                      from £6.50
                                      COPPER WASHER 30X40X0,04513888 8889 Genuine Lamborghini - New In stock
                                      # 006
                                      MPN: 008571901
                                      RETAINER RING
                                      from £3.78
                                      from £3.78
                                      O-RING I 19 UNI 3654 Genuine Lamborghini - New (to order)
                                      # 007
                                      MPN: 001232216
                                      BUSHING
                                      from £75.51
                                      from £75.51
                                      PRESSURE ADJUSTMENT VALVE PIST ON Genuine Lamborghini - New (to order)
                                      # 008
                                      MPN: 001519888
                                      SPRING
                                      from £16.05
                                      from £16.05
                                      LOCK PIN SPRING Genuine Lamborghini - New (to order)

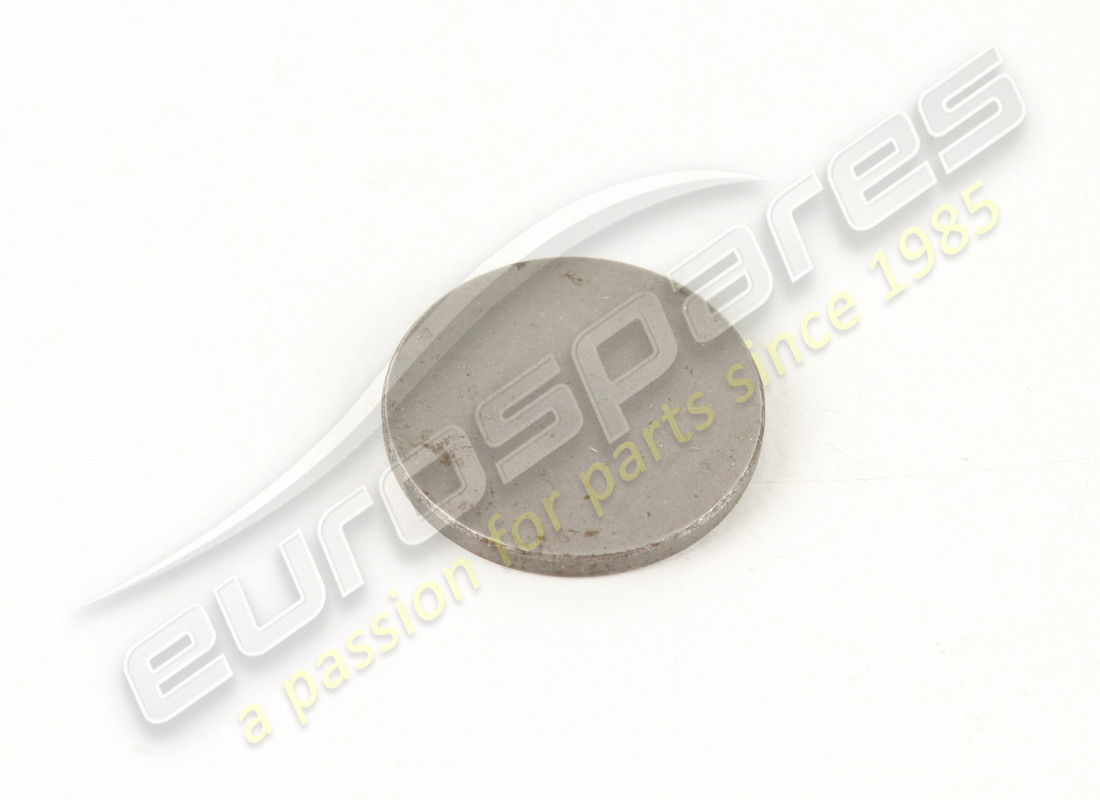

                                      # 009
                                      MPN: 001232217
                                      SPACER
                                      from £4.33
                                      from £4.33
                                      PRESSURE ADJUSTMENT VALVE PAD Genuine Lamborghini - New In stock
                                      # 010
                                      MPN: 001232215
                                      REGULATION VALVE
                                      from £166.73
                                      from £166.73
                                      PRESSURE REGULATOR VALVE UNIT Genuine Lamborghini - New (to order)
                                      # 011
                                      MPN: 008101641
                                      SCREW
                                      from £194.57
                                      from £194.57
                                      SCREW M16X1.5X40 UNI5740/F Genuine Lamborghini - New (to order)
                                      # 012
                                      MPN: 001433466
                                      WASHER
                                      from £56.05
                                      from £56.05
                                      AUXILIARY PULLEY FLAT WASHER Genuine Lamborghini - New (to order)
                                      # 013
                                      MPN: 001432192
                                      PULLEY
                                      from £1,073.65
                                      from £1,073.65
                                      PULLEY Genuine Lamborghini - New (to order)
                                      # 014
                                      MPN: 008613702
                                      SEAL
                                      FROM VT99 INCLUDED ALSO IN COVER GASKET KIT
                                      from £37.08
                                      from £37.08
                                      OIL SEAL 37X52X8 MM Genuine Lamborghini - New (to order)
                                      # 015
                                      MPN: 008601701
                                      SEAL
                                      from £0.54
                                      from £0.54
                                      RING 17 MM OR Genuine Lamborghini - New In stock
                                      # 016
                                      MPN: 008603501
                                      SEAL
                                      Supersession
                                      Supersession
                                      Genuine Lamborghini (no longer available to order)
                                      # 017
                                      MPN: 008410602
                                      WASHER
                                      from £28.42
                                      from £28.42
                                      WASHER 12X6.4X0.5 DIN 137/B Genuine Lamborghini - New In stock
                                      # 018
                                      MPN: 008700627
                                      SCREW
                                      Supersession
                                      Supersession
                                      Genuine Lamborghini (no longer available to order)
                                      # 020
                                      -
                                      SHAFT
                                      SEE ILLUSTRATION: 105.01
                                      # 021
                                      -
                                      VALVE ASSEMBLY
                                      NOT FOR THIS MODEL
                                      Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
