201.04.00 - FUEL TANK

Lamborghini Diablo VT (1996) FUEL TANK Parts Diagram

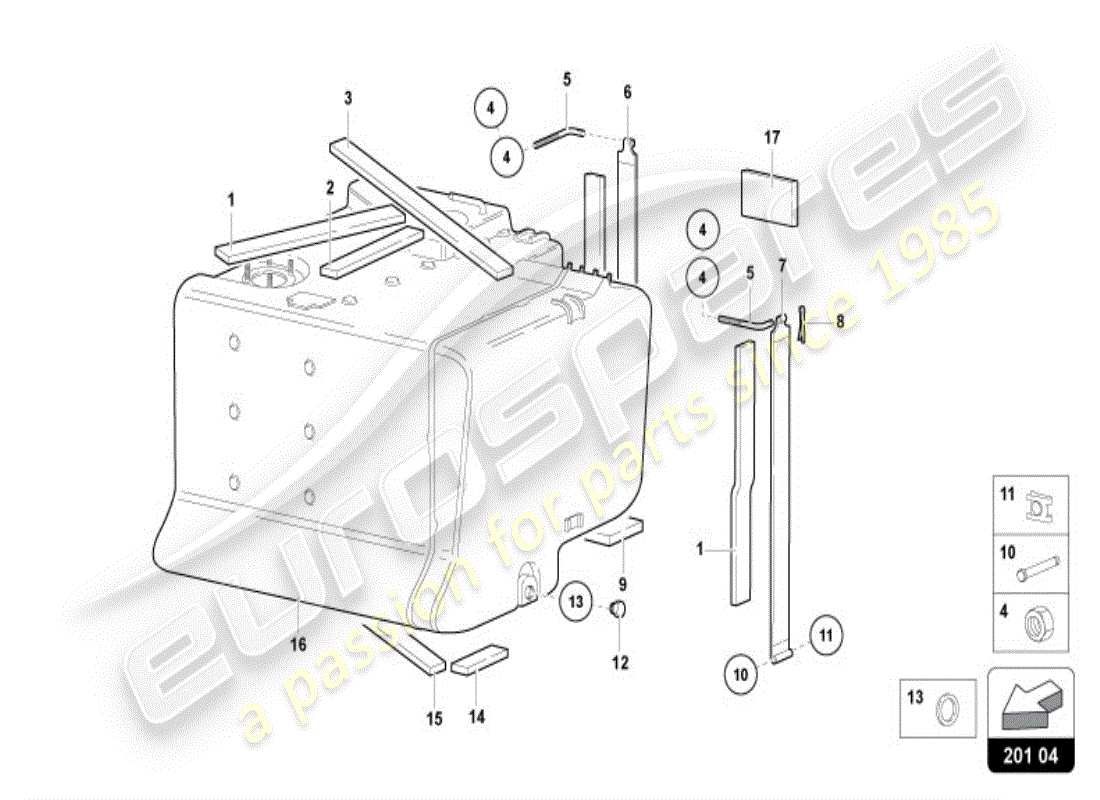

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                  #
                                  Part number
                                  Description
                                  Key
                                  Price
                                  # 001
                                  MPN: 006231704
                                  GASKET
                                  from £46.94
                                  from £46.94
                                  AERSTOP FA CN/20 5 MM Genuine Lamborghini - New In stock
                                  # 002
                                  MPN: 009453124
                                  GASKET
                                  from £4.58
                                  from £4.58
                                  PETROL PUMP GUARD SEAL Genuine Lamborghini - New (to order)
                                  # 003
                                  MPN: 006231703
                                  GASKET
                                  GASKET Genuine Lamborghini - New (to order)
                                  # 004
                                  MPN: 008200808
                                  NUT
                                  Supersession
                                  Supersession
                                  Genuine Lamborghini (no longer available to order)
                                  # 005
                                  MPN: 006226884
                                  TIE ROD
                                  Supersession
                                  Supersession
                                  Genuine Lamborghini (no longer available to order)
                                  # 006
                                  MPN: 006233764
                                  STRAP
                                  from £22.15
                                  from £22.15
                                  CHASSIS TANK CLIP Genuine Lamborghini - New (to order)
                                  # 007
                                  MPN: 006229506
                                  STRAP
                                  from £25.11
                                  from £25.11
                                  TANK CHASSIS CLIP Genuine Lamborghini - New (to order)
                                  # 008
                                  MPN: 008820304
                                  SPLIT PIN
                                  Supersession
                                  Supersession
                                  Genuine Lamborghini (no longer available to order)
                                  # 009
                                  MPN: 006231701
                                  GASKET
                                  from £37.55
                                  from £37.55
                                  AERSTOP FA CN/20 Genuine Lamborghini - New (to order)
                                  # 010
                                  MPN: 006233763
                                  PIN
                                  from £6.45
                                  from £6.45
                                  TANK CLIP PIN Genuine Lamborghini - New (to order)
                                  # 011
                                  MPN: 008580604
                                  CLIP
                                  from £1.37
                                  from £1.37
                                  CLIP 11X14.2X6 UNI 8834-6 Genuine Lamborghini - New (to order)
                                  # 012
                                  MPN: 008931203
                                  PLUG
                                  from £9.62
                                  from £9.62
                                  PLUG D.12X1.25X9 CH 19SS Genuine Lamborghini - New (to order)
                                  PLUG D.12X1.25X9 CH 19SS Genuine Lamborghini - Used In stock
                                  # 014
                                  MPN: 006231706
                                  GASKET
                                  from £26.33
                                  from £26.33
                                  AERSTOP FA CN/20 Genuine Lamborghini - New In stock
                                  # 015
                                  MPN: 006231702
                                  GASKET
                                  from £3.13
                                  from £3.13
                                  AERSTOP FA CN/20 Genuine Lamborghini - New (to order)
                                  # 016
                                  MPN: 006233289
                                  FUEL TANK
                                  from £1,663.87
                                  from £1,663.87
                                  FUEL TANK WITH PIPES& FILLER Genuine Lamborghini - New (to order)
                                  # 017
                                  -
                                  SHIELD
                                  NOT FOR THIS MODEL
