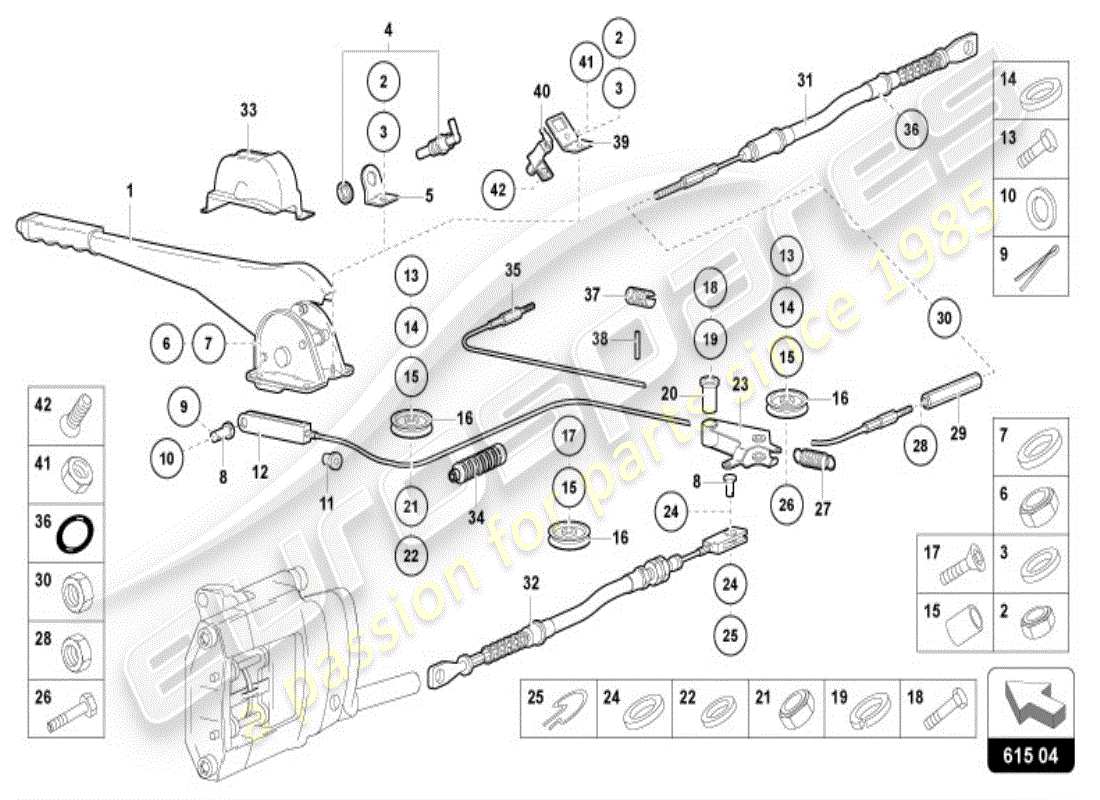

615.04.00 - Handbrake

Lamborghini Diablo VT (1996) HANDBRAKE Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                            #
                                            Part number
                                            Description
                                            Key
                                            Price
                                            # 001
                                            MPN: 003333334
                                            HAND BRAKE LEVER
                                            from £291.67
                                            from £291.67
                                            Handbrake Lever Genuine Lamborghini - New (to order)
                                            # 002
                                            MPN: 008200503
                                            NUT
                                            from £2.25
                                            from £2.25
                                            M5 UNI 7473 ZD SELF-LOCKIN GNUT Genuine Lamborghini - New (to order)
                                            # 003
                                            MPN: 008400502
                                            WASHER
                                            Supersession
                                            Supersession
                                            Genuine Lamborghini (no longer available to order)
                                            # 004
                                            -
                                            SWITCH
                                            NOT FOR THIS MODEL
                                            # 004
                                            MPN: 003319356
                                            SWITCH
                                            from £22.63
                                            from £22.63
                                            LEVER BUTTON Genuine Lamborghini - New (to order)
                                            # 005
                                            -
                                            SUPPORT
                                            NOT FOR THIS MODEL
                                            # 005
                                            MPN: 003330814
                                            SUPPORT
                                            from £70.93
                                            from £70.93
                                            WARNING LIGHT BRACKET ON LEVER Genuine Lamborghini - New (to order)
                                            # 006
                                            MPN: 008200606
                                            NUT
                                            Supersession
                                            Supersession
                                            Genuine Lamborghini (no longer available to order)
                                            # 007
                                            MPN: 008400606
                                            WASHER
                                            Supersession
                                            Supersession
                                            Genuine Lamborghini (no longer available to order)
                                            # 008
                                            MPN: 003301307
                                            PIN
                                            from £10.25
                                            from £10.25
                                            Genuine Lamborghini (no longer available to order)

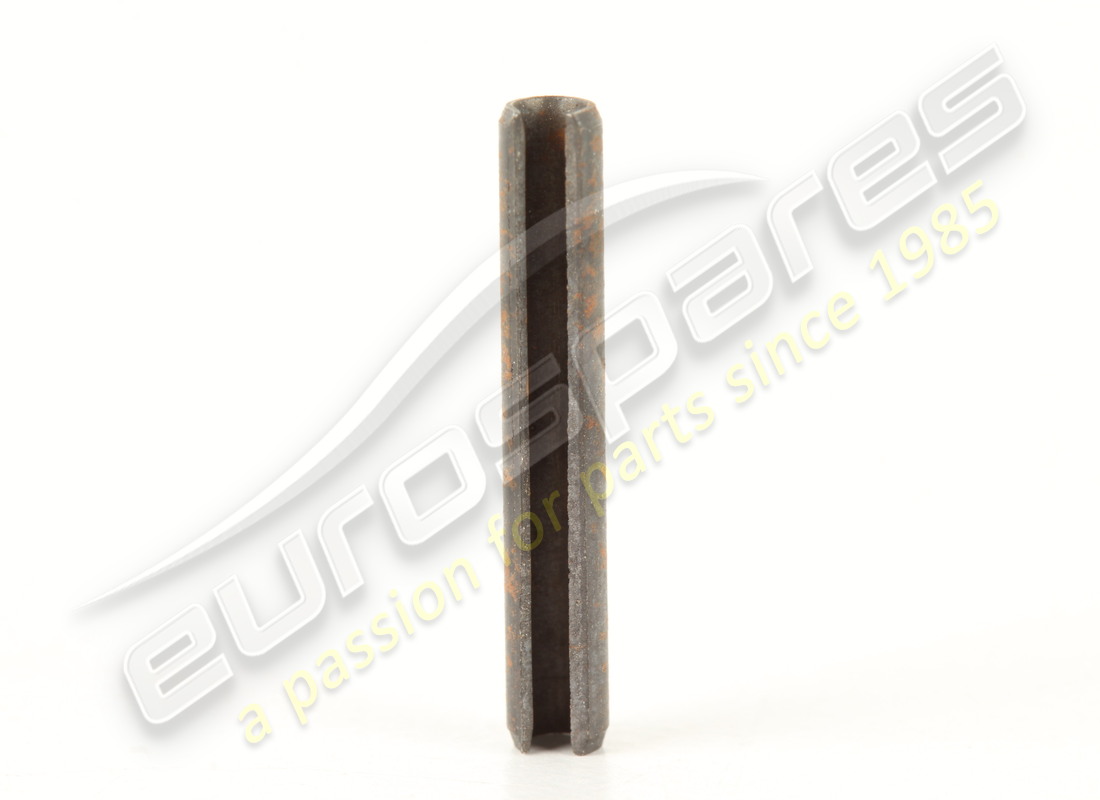

                                            PIN Genuine Lamborghini - Used In stock
                                            # 009
                                            MPN: 008820201
                                            SPLIT PIN
                                            from £4.18
                                            from £4.18
                                            SPLIT PIN 1.8X15 UNI 1336A Genuine Lamborghini - New (to order)
                                            # 010
                                            MPN: 008400806
                                            WASHER
                                            Supersession
                                            Supersession
                                            Genuine Lamborghini (no longer available to order)
                                            # 011
                                            MPN: 003330880
                                            RUBBER BUSHING
                                            RUBBER BUSHING Genuine Lamborghini - New (to order)
                                            # 012
                                            MPN: 003330816
                                            CENTRAL TIE ROAD
                                            (EUROPE, USA spec vehicles)
                                            from £176.13
                                            from £176.13
                                            HANDBRAKE WIRE ASSEMBLY Genuine Lamborghini - New (to order)
                                            # 012
                                            MPN: 003332746
                                            CENTRAL TIE ROAD
                                            (UK spec vehicles)
                                            from £27.77
                                            from £27.77
                                            HANDBRAKE WIRE FROM 1ST ADJUST MENT LEVE Genuine Lamborghini - New (to order)
                                            # 013
                                            MPN: 008700851
                                            SCREW
                                            from £0.58
                                            from £0.58
                                            SCREW M8X35 UNI 5933/8G/ZD Genuine Lamborghini - New (to order)
                                            # 014
                                            -
                                            WASHER
                                            NOT FOR THIS MODEL
                                            # 015
                                            MPN: 003330827
                                            BUSHING
                                            BUSHING Genuine Lamborghini - New (to order)
                                            # 016
                                            MPN: 003332512
                                            PULLEY
                                            Supersession
                                            Supersession
                                            Genuine Lamborghini (no longer available to order)
                                            # 018
                                            MPN: 008101407
                                            SCREW
                                            from £3.37
                                            from £3.37
                                            SCREW M14X55 UNI 5738/8G/Z Genuine Lamborghini - New (to order)
                                            # 019
                                            MPN: 008411502
                                            WASHER
                                            from £1.70
                                            from £1.70
                                            SNAP RING 24X15X3 UNI 1751 C72 /Z Genuine Lamborghini - New (to order)
                                            SNAP RING 24X15X3 UNI 1751 C72 /Z Genuine Lamborghini - New (other) In stock
                                            ROND. EL. A15 UNI 1751
                                            # 020
                                            MPN: 003330828
                                            SPACER
                                            SPACER Genuine Lamborghini - New (to order)
                                            # 021
                                            -
                                            NUT
                                            NOT FOR THIS MODEL
                                            # 022
                                            -
                                            WASHER
                                            NOT FOR THIS MODEL
                                            # 023
                                            MPN: 003333935
                                            ROCKER
                                            from £126.00
                                            from £126.00
                                            SUPPORT Genuine Lamborghini - New (to order)
                                            SUPPORT Genuine Lamborghini - Used In stock
                                            Complete
                                            # 024
                                            MPN: 008400806
                                            WASHER
                                            Supersession
                                            Supersession
                                            Genuine Lamborghini (no longer available to order)
                                            # 025
                                            MPN: 004207085
                                            SPLIT PIN
                                            REPLACE 008820104 - FROM 12621
                                            from £49.18
                                            from £49.18
                                            BRAKE CYLINDER PIN STOPPER Genuine Lamborghini - New In stock
                                            # 026
                                            -
                                            SCREW
                                            NOT FOR THIS MODEL
                                            # 027
                                            MPN: 003330829
                                            SPRING
                                            Supersession
                                            Supersession
                                            Genuine Lamborghini (no longer available to order)
                                            # 028
                                            MPN: 008200607
                                            NUT
                                            LEFT
                                            from £8.19
                                            from £8.19
                                            D 6X1 SIN. 8G NUT Genuine Lamborghini - New (to order)
                                            # 029
                                            MPN: 003304858
                                            ADJUSTING SLEEVE
                                            ADJUSTING SLEEVE Genuine Lamborghini - New (to order)
                                            # 030
                                            MPN: 008200603
                                            NUT
                                            from £0.54
                                            from £0.54
                                            M6 UNI 5588/5S/Z NUT Genuine Lamborghini - New (to order)
                                            # 031
                                            MPN: 003333588
                                            CABLE
                                            RIGHT
                                            from £555.21
                                            from £555.21
                                            BRAKE WIRE & SHEATH ASSEMBLY Genuine Lamborghini - New (to order)
                                            # 033
                                            MPN: 009458374
                                            CASE
                                            LEFT HAND DRIVE (EUROPE, USA spec vehicles)
                                            from £69.24
                                            from £69.24
                                            BOX ON HAND BRAKE BASE Genuine Lamborghini - New (to order)
                                            # 033
                                            MPN: 009458388
                                            CASE
                                            RIGHT HAND DRIVE (UK spec vehicles)
                                            from £158.16
                                            from £158.16
                                            HANDBRAKE BASE BOXING Genuine Lamborghini - New (to order)
                                            # 034
                                            MPN: 003332748
                                            SHIELD
                                            (UK spec vehicles)
                                            from £2.06
                                            from £2.06
                                            HANDBRAKE WIRE RUBBER GUARD Genuine Lamborghini - New In stock
                                            # 035
                                            -
                                            CABLE
                                            NOT FOR THIS MODEL
                                            # 035
                                            -
                                            CABLE
                                            ONLY FOR RHD
                                            # 035
                                            MPN: 003332749
                                            CABLE
                                            REAR (UK spec vehicles)
                                            from £71.10
                                            from £71.10
                                            HANDBRAKE WIRE 1ST/2ND POSITIO N Genuine Lamborghini - New (to order)
                                            # 036
                                            MPN: 008602302
                                            SEAL
                                            Supersession
                                            Supersession
                                            Genuine Lamborghini (no longer available to order)
                                            # 037
                                            MPN: 003330824
                                            BUSHING
                                            (UK spec vehicles)
                                            BUSHING Genuine Lamborghini - New (to order)
                                            # 038
                                            MPN: 008900204
                                            PIN
                                            (UK spec vehicles)
                                            from £0.54
                                            from £0.54
                                            ELASTIC PIN 2.5X18 DIN 1481 Genuine Lamborghini - New In stock
                                            # 039
                                            -
                                            SUPPORT
                                            NOT FOR THIS MODEL
                                            # 039
                                            MPN: 003335993
                                            SUPPORT
                                            SUPPORT Genuine Lamborghini - New (to order)
                                            # 040
                                            -
                                            button
                                            NOT FOR THIS MODEL
                                            # 040
                                            MPN: 003336007
                                            button
                                            from £18.46
                                            from £18.46
                                            HANDBRAKE LEVER BUTTON Genuine Lamborghini - New (to order)
                                            # 041
                                            -
                                            NUT
                                            NOT FOR THIS MODEL
                                            # 041
                                            MPN: 008200406
                                            NUT
                                            from £0.54
                                            from £0.54
                                            4X0.7X4.8 5S/Z NUT Genuine Lamborghini - New (to order)
                                            # 042
                                            -
                                            SCREW
                                            NOT FOR THIS MODEL
                                            # 042
                                            MPN: 008700431
                                            SCREW
                                            from £0.54
                                            from £0.54
                                            SCREW 4X12 UNI 6109 5S/Z WHITE Genuine Lamborghini - New (to order)
