809.01.00 - FUEL FILLER FLAP

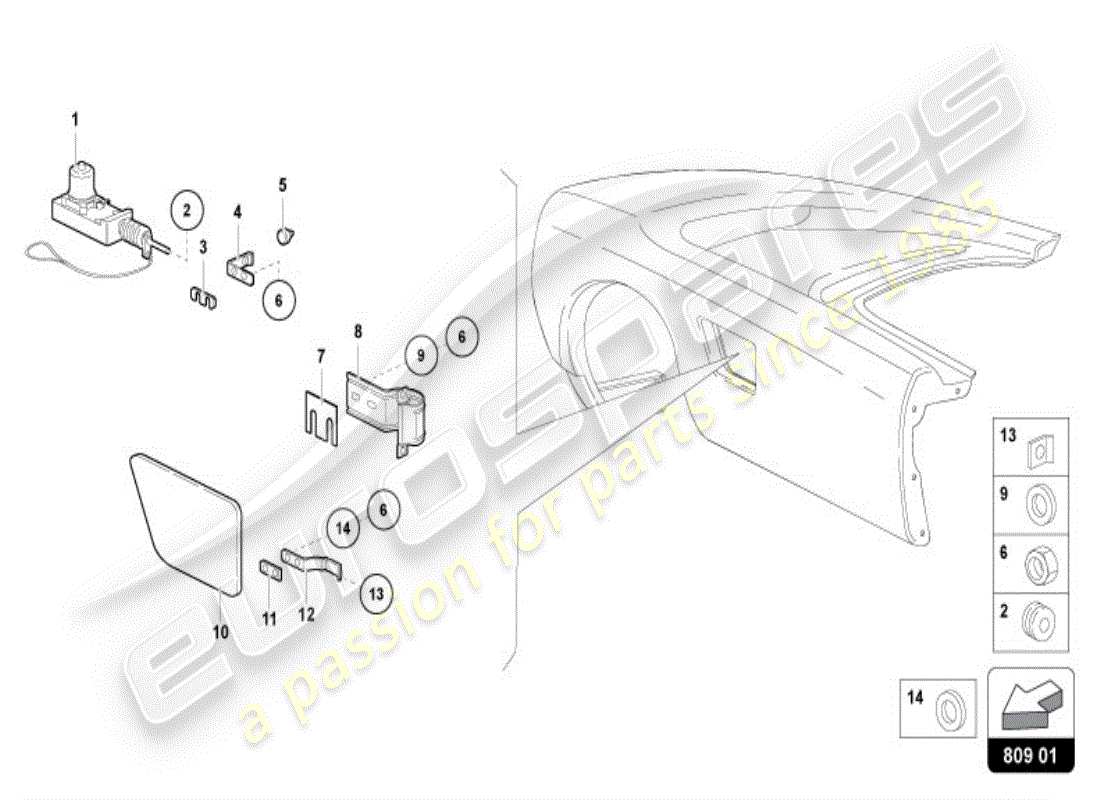

Lamborghini Diablo VT (1996) FUEL FILLER FLAP Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                      #
                                      Part number
                                      Description
                                      Key
                                      Price
                                      # 001
                                      MPN: 005930521
                                      SWITCH
                                      from £395.00
                                      from £395.00
                                      FUEL CAP ACTUATOR Genuine Lamborghini - New In stock
                                      # 002
                                      MPN: 008610602
                                      RING
                                      from £2.81
                                      from £2.81
                                      GROMMET 6X9X2 MM Genuine Lamborghini - New (to order)
                                      # 003
                                      MPN: 009490512
                                      SHIM
                                      from £23.84
                                      from £23.84
                                      ACTUATOR STRIKER SHIM Genuine Lamborghini - New (to order)
                                      # 004
                                      MPN: 009490511
                                      BRAKET
                                      from £94.20
                                      from £94.20
                                      ACTUATOR STRIKER Genuine Lamborghini - New (to order)
                                      # 006
                                      MPN: 008200503
                                      NUT
                                      from £2.13
                                      from £2.13
                                      M5 UNI 7473 ZD SELF-LOCKIN GNUT Genuine Lamborghini - New (to order)
                                      # 007
                                      MPN: 009490510
                                      SHIM
                                      from £24.31
                                      from £24.31
                                      FILLER FLAP HINGE SHIM Genuine Lamborghini - New (to order)
                                      # 008
                                      MPN: 009490501
                                      HINGE
                                      from £526.14
                                      from £526.14
                                      FILLER FLAP HINGE Genuine Lamborghini - New (to order)
                                      # 009
                                      MPN: 008400506
                                      WASHER
                                      from £0.53
                                      from £0.53
                                      FLAT WASHER 5.3X1.5X15 Genuine Lamborghini - New (to order)
                                      # 009
                                      MPN: 008400508
                                      WASHER
                                      Supersession
                                      Supersession
                                      Genuine Lamborghini (no longer available to order)
                                      # 010
                                      MPN: 009410209
                                      LID
                                      from £491.66
                                      from £491.66
                                      PETROL FLAP COVER Genuine Lamborghini - New (to order)
                                      PETROL FLAP COVER Genuine Lamborghini - Used In stock
                                      # 011
                                      MPN: 009490508
                                      SHIM
                                      from £2.89
                                      from £2.89
                                      SPRING REINFORCEMENT Genuine Lamborghini - New (to order)
                                      # 012
                                      MPN: 009490505
                                      PLATE
                                      from £5.45
                                      from £5.45
                                      FILLER FLAP HINGE SPRING Genuine Lamborghini - New (to order)
                                      # 013
                                      MPN: 009490507

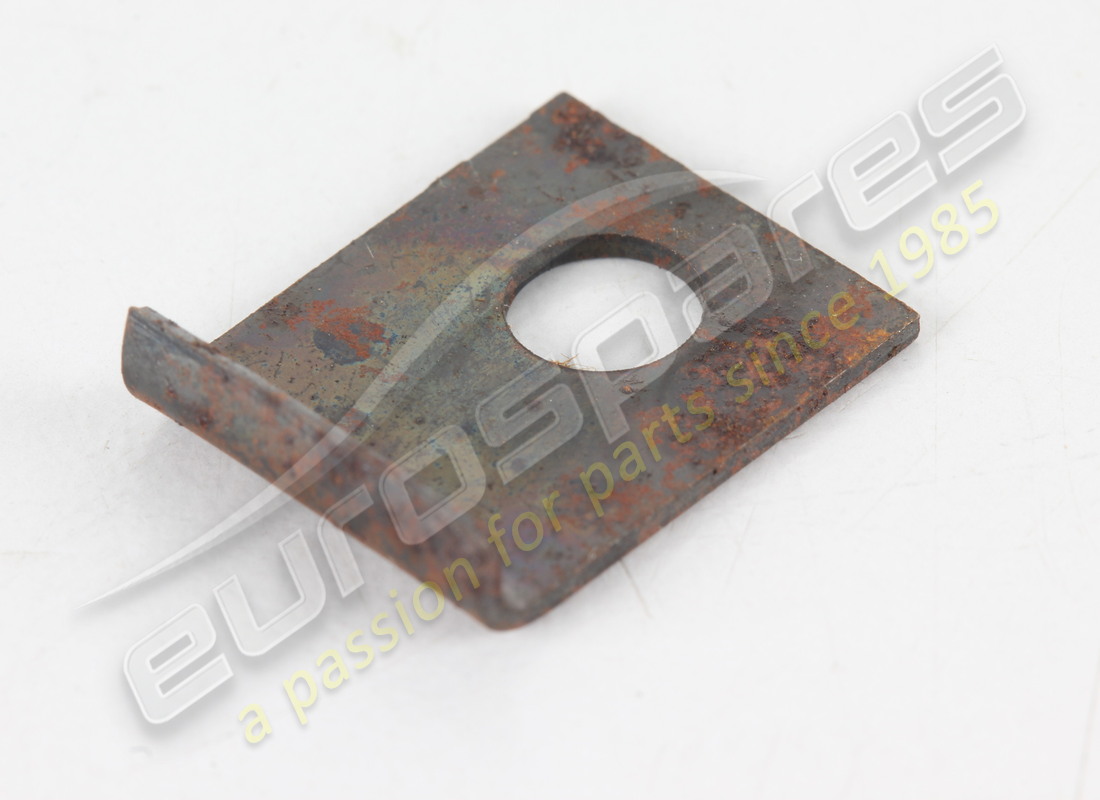

                                      PLATE
                                      from £1.98
                                      from £1.98
                                      SPRING STRIKER Genuine Lamborghini - New In stock
                                      # 015
                                      MPN: 008700450
                                      SCREW
                                      from £0.53
                                      from £0.53
                                      LOCK SCREW 3.9X32DIN7981/B Genuine Lamborghini - New In stock
                                      # 016
                                      MPN: 005932766
                                      SPACER
                                      from £4.18
                                      from £4.18
                                      FUEL FLAP ACTUATOR SHIM Genuine Lamborghini - New (to order)
                                      # 017
                                      MPN: 008220505
                                      CLIP
                                      Supersession
                                      Supersession
                                      Genuine Lamborghini (no longer available to order)
                                      # 018
                                      MPN: 009466106
                                      PLATE
                                      from £6.58
                                      from £6.58
                                      FUEL FLAP PLATE Genuine Lamborghini - New (to order)
                                      # 019
                                      MPN: 008700544
                                      SCREW
                                      from £1.06
                                      from £1.06
                                      SCREW FRONT M5 TBCE Genuine Lamborghini - New (to order)
