810.02.00 - FRONT WHEEL HOUSING

Lamborghini Diablo VT (1996) FRONT WHEEL HOUSING Parts Diagram

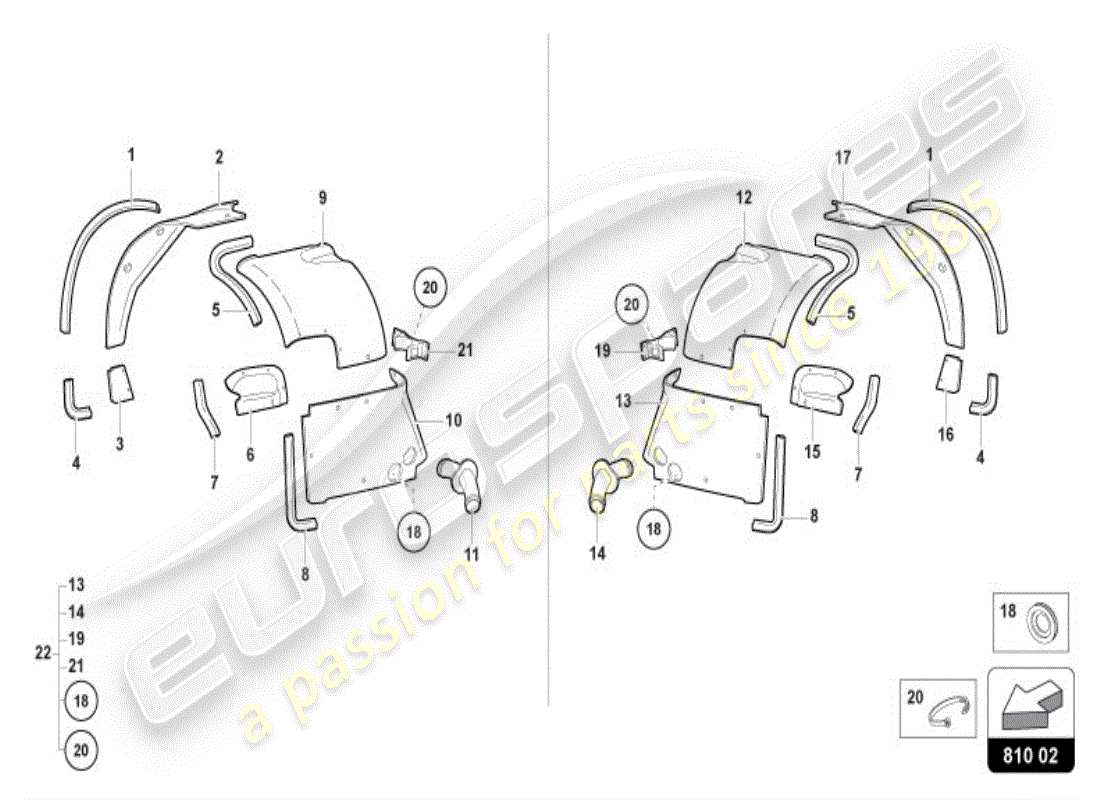

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                        #
                        Part number
                        Description
                        Price
                        # 001
                        MPN: 009411410
                        GASKET
                        from £58.17
                        from £58.17
                        # 002
                        MPN: 009411402
                        WHEELBOX
                        RIGHT
                        from £208.28
                        from £208.28
                        # 003
                        MPN: 009411406
                        PLATE
                        RIGHT
                        from £2.97
                        from £2.97
                        # 004
                        MPN: 009411411
                        GASKET
                        from £54.00
                        from £54.00
                        # 005
                        MPN: 009411417
                        GASKET
                        from £45.24
                        from £45.24
                        # 006
                        MPN: 009411412
                        WHEELBOX
                        FRONT
                        from £51.78
                        from £51.78
                        # 007
                        MPN: 009411416
                        GASKET
                        from £24.96
                        from £24.96
                        # 008
                        MPN: 009411408
                        GASKET
                        from £16.01
                        from £16.01
                        # 009
                        MPN: 009411401
                        WHEELBOX
                        FRONT
                        from £1,090.73
                        from £1,090.73
                        # 010
                        MPN: 009411419
                        WHEELBOX
                        FRONT
                        from £165.97
                        from £165.97
                        # 011
                        MPN: 009453134
                        UNION
                        RIGHT
                        from £84.42
                        from £84.42
                        # 012
                        MPN: 009411404
                        WHEELBOX
                        FRONT
                        from £1,090.73
                        from £1,090.73
                        # 013
                        MPN: 009411420
                        WHEELBOX
                        FRONT
                        from £126.21
                        from £126.21
                        # 014
                        MPN: 009453135
                        UNION
                        LEFT
                        from £84.42
                        from £84.42
                        # 015
                        MPN: 009411413
                        WHEELBOX
                        FRONT
                        from £51.78
                        from £51.78
                        # 016
                        MPN: 009411407
                        PLATE
                        LEFT
                        from £2.97
                        from £2.97
                        # 017
                        MPN: 009411405
                        WHEELBOX
                        FRONT
                        from £509.89
                        from £509.89
                        # 018
                        MPN: 009411418
                        RING
                        from £19.52
                        from £19.52
                        # 019
                        MPN: 009411422
                        RETAINER
                        LEFT
                        Supersession
                        Supersession
                        # 020
                        MPN: 008830306
                        STRAP
                        Supersession
                        Supersession
                        # 021
                        MPN: 009411421
                        RETAINER
                        LEFT
                        # 022
                        -
                        KIT
                        NOT FOR THIS MODEL
                        # 023
                        MPN: 008700455
                        SCREW
                        Supersession
                        Supersession
                        # 024
                        MPN: 008220507
                        CLIP
                        from £0.53
                        from £0.53
                        # 025
                        MPN: 008700659
                        SCREW
                        from £0.48
                        from £0.48
                        # 026
                        MPN: 008400623
                        WASHER
                        Supersession
                        Supersession
                        Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
