lamborghini diablo vt (1996) electrics parts diagram

907.01.00 - electrics

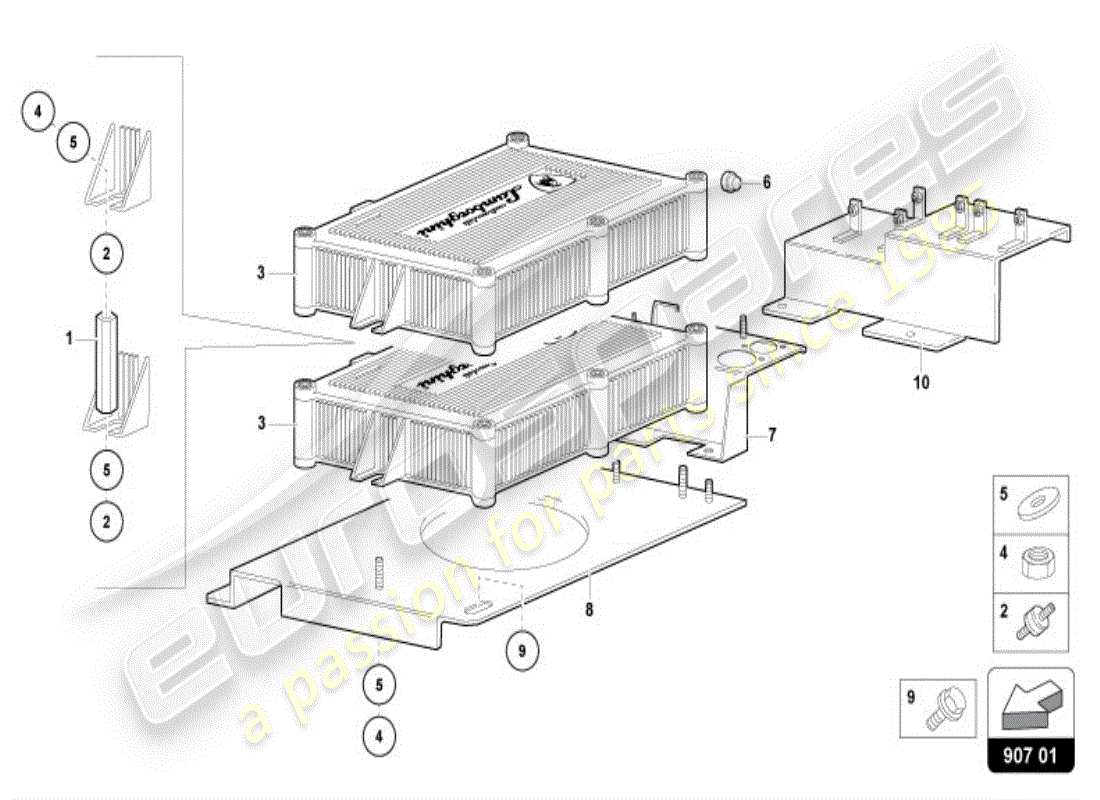

Lamborghini Diablo VT (1996) ELECTRICS Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
          #
          Part number
          Description
          Key
          Price
          # 002
          MPN: 008920602
          ELASTIC SUPPORT
          FROM 12240
          from £9.05
          from £9.05
          RUBBER SUPPORT D18X8.5 FIL.M6X 10/16 Genuine Lamborghini - New (to order)
          # 002
          MPN: 008920603
          ELASTIC SUPPORT
          FROM 12240
          Lamborghini PART 008920603 Genuine Lamborghini - New (to order)
          # 003
          MPN: 002029747
          INJECTION ELECT. CONTROL UNIT
          ONLY FOR SWITZERLAND (EUROPE spec vehicles)
          from £9,461.28
          from £9,461.28
          INJECTION ECU Genuine Lamborghini - New (to order)
          # 003
          MPN: 002033024
          INJECTION ELECT. CONTROL UNIT
          NOT FOR NORWAY, SWEDEN, SWITZERLAND, SOUTH AFRICA (EUROPE, UK spec vehicles)
          from £7,510.88
          from £7,510.88
          INJECTION ECU COMPLETE Genuine Lamborghini - New (to order)
          # 003
          MPN: 002033024
          INJECTION ELECT. CONTROL UNIT
          ONLY FOR CARS EQUIPPED WITHOUT STATIC IGNITION SYSTEM (EUROPE, UK spec vehicles)
          from £7,510.88
          from £7,510.88
          INJECTION ECU COMPLETE Genuine Lamborghini - New (to order)
          # 003
          MPN: 002033025
          INJECTION ELECT. CONTROL UNIT
          (UK spec vehicles)
          from £7,510.88
          from £7,510.88
          ARABIA INJECTION ECUCOMPLETE Genuine Lamborghini - New (to order)
          # 003
          MPN: 002035603
          INJECTION ELECT. CONTROL UNIT
          (USA spec vehicles)
          from £5,149.32
          from £5,149.32
          LIE' 96 INJECTION ECU Genuine Lamborghini - New (to order)
          # 003
          MPN: 002036431
          INJECTION ELECT. CONTROL UNIT
          ONLY FOR CARS EQUIPPED WITH STATIC IGNITION SYSTEM (EUROPE, UK spec vehicles)
          from £2,149.45
          from £2,149.45
          INJECTION ECU COMPLETE Genuine Lamborghini - New (to order)
          INJECTION ECU COMPLETE Genuine Lamborghini - Used In stock
          # 003
          MPN: 002036432
          INJECTION ELECT. CONTROL UNIT
          (USA spec vehicles)
          from £3,908.09
          from £3,908.09
          INJECTION ECU COMPLETE Genuine Lamborghini - New (to order)
          # 004
          MPN: 008200606
          NUT
          Supersession
          Supersession
          Genuine Lamborghini (no longer available to order)
          # 005
          MPN: 008400607
          WASHER
          Supersession
          Supersession
          Genuine Lamborghini (no longer available to order)
          # 006
          MPN: 002031276
          CAP
          from £20.54
          from £20.54
          ADJUSTMENT SCREW CAP Genuine Lamborghini - New (to order)
          # 007
          -
          PLATE
          NOT FOR THIS MODEL
          # 008
          MPN: 002032374
          PLATE
          FROM 12240
          Lamborghini PART 002032374 Genuine Lamborghini - New (to order)
          # 008
          MPN: 002035314
          PLATE
          Lamborghini PART 002035314 Genuine Lamborghini - New (to order)
          # 008
          MPN: 002036180
          PLATE
          from £177.53
          from £177.53
          L.I.E. ECU PLATE Genuine Lamborghini - New (to order)
          # 009
          MPN: 008700663
          SCREW
          FROM 12240
          from £0.53
          from £0.53
          SCREW M6 Genuine Lamborghini - New (to order)
          # 010
          MPN: 005937027
          PLATE
          from £22.23
          from £22.23
          REAR CENTRAL DUCT PIN BRACKET Genuine Lamborghini - New (to order)
          # 010
          MPN: 006135296
          PLATE
          from £182.64
          from £182.64
          UPPER PLATE Genuine Lamborghini - New (to order)
