109.06.00 - LEFT HEAD CAMSHAFT

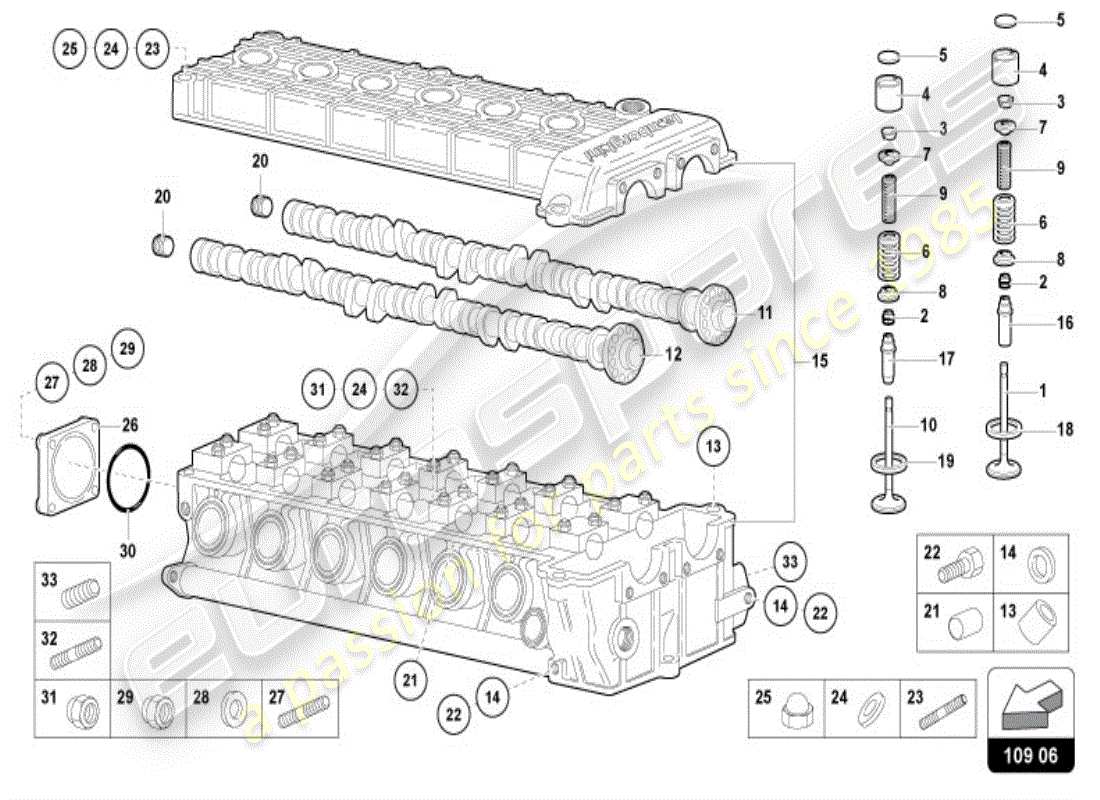

Lamborghini Diablo VT (1997) LEFT HEAD CAMSHAFT Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 001220819

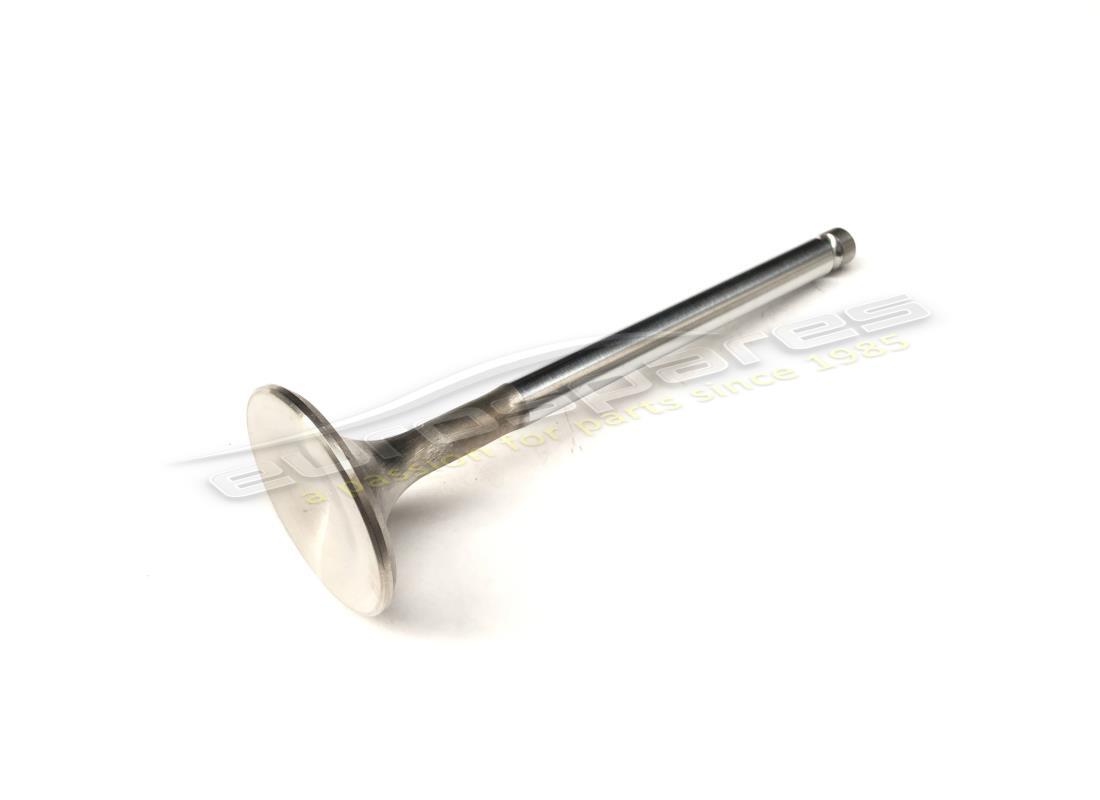

EXHAUST VALVE
from £78.75
from £78.75
# 002
MPN: 001220840
RING
4.05 MM - INCLUDED IN ENGINE SEAL KIT - UNTIL ENGINE 2219
# 003
MPN: 001220843
TAPPET LOCK CONE
from £4.90
from £4.90
# 004
MPN: 001220844
TAPPET
UNTIL ENGINE 2219
# 005
MPN: 001220877
SHIM
3.25 MM
Supersession
Supersession
# 005
MPN: 001220878
SHIM
3.30 MM
# 005
MPN: 001220879
SHIM
3.35 MM
# 005
MPN: 001220880
SHIM
3.40 MM
# 005
MPN: 001220881
SHIM
3.45 MM
# 005
MPN: 001220882
SHIM
3.50 MM
# 005
MPN: 001220883
SHIM
3.55 MM
# 005
MPN: 001220884
SHIM
3.60 MM
# 005
MPN: 001220885
SHIM
3.65 MM
# 005
MPN: 001220886
SHIM
3.70 MM
# 005
MPN: 001220887
SHIM
3.75 MM
# 005
MPN: 001220888
SHIM
3.80 MM
# 005
MPN: 001220889
SHIM
3.85 MM
# 005
MPN: 001220890
SHIM
3.90 MM
# 005
MPN: 001220891
SHIM
3.95 MM
# 005
MPN: 001220892
SHIM
4.00 MM
Supersession
Supersession
# 005
MPN: 001220893
SHIM
4.05 MM
# 005
MPN: 001220894
SHIM
4.10 MM
# 005
MPN: 001220895
SHIM
4.15 MM
# 005
MPN: 001220896
SHIM
4.20 MM
Supersession
Supersession
# 005
MPN: 001220897
SHIM
4.25 MM
# 005
MPN: 001220898
SHIM
4.30 MM
# 005
MPN: 001220899
SHIM
4.35 MM
# 005
MPN: 001220900
SHIM
4.40 MM
# 005
MPN: 001220901
SHIM
4.45 MM
# 005
MPN: 001220902
SHIM
4.50 MM
# 005
MPN: 001220903
SHIM
4.55 MM
# 005
MPN: 001220904
SHIM
4.60 MM
# 005
MPN: 001220905
SHIM
4.65 MM
# 005
MPN: 001220906
SHIM
4.70 MM
# 006
MPN: 001220988
SPRING
UNTIL ENGINE 2219
# 007
MPN: 001220992
TAPPET PLATE
UNTIL ENGINE 2219
# 008
MPN: 001220993
TAPPET PLATE
UNTIL ENGINE 2219
Supersession
Supersession
# 009
MPN: 001223097
SPRING
UNTIL ENGINE 2219
# 010
MPN: 001229714
INTAKE VALVE
from £75.00
from £75.00
# 011
MPN: 001232711
camshaft
UNTIL ENGINE 2219
from £7,238.62
from £7,238.62
# 012
MPN: 001232710
camshaft
from £1,065.10
from £1,065.10
# 013
MPN: 008800604
BUSHING
UNTIL ENGINE 2219
Supersession
Supersession
# 014
MPN: 008400609
WASHER
INCLUDED IN ENGINE SEAL KIT AND IN HEAD SEALING KIT - UNTIL ENGINE 2219
Supersession
Supersession
# 015
MPN: 463400250
head
LEFT
from £15,009.69
from £15,009.69
# 016
MPN: 001229718
VALVE GUIDE
from £92.59
from £92.59
# 017
MPN: 001229717
VALVE GUIDE
from £92.59
from £92.59
# 018
MPN: 001220823
VALVE SEAT
from £10.75
from £10.75
# 019
MPN: 001229713
VALVE SEAT
from £50.63
from £50.63
# 020
MPN: 008931409
SCREW
UNTIL ENGINE 2219
from £7.94
from £7.94
# 021
MPN: 001122089
DOWEL
4.35 - UNTIL ENGINE 2219
from £10.75
from £10.75
# 022
MPN: 008100631
QUICKLY
UNTIL ENGINE 2219
from £0.53
from £0.53
# 023
MPN: 008300649
PRISONER
UNTIL ENGINE 2219
from £6.10
from £6.10
# 024
MPN: 008410602
WASHER
UNTIL ENGINE 2219
from £26.78
from £26.78
# 025
MPN: 008200605
DICE
UNTIL ENGINE 2219
from £1.97
from £1.97
# 026
MPN: 001114502
COVER
UNTIL ENGINE 2219
from £121.25
from £121.25
# 027
MPN: 008300601
PRISONER
UNTIL ENGINE 2219
from £5.27
from £5.27
# 028
MPN: 008400620
WASHER
Supersession
Supersession
# 029
MPN: 008200605
DICE
UNTIL ENGINE 2219
from £1.81
from £1.81
# 030
MPN: 008606201
SEAL RING
Supersession
Supersession
# 031
MPN: 008200604
DICE
UNTIL ENGINE 2219
Supersession
Supersession
# 032
MPN: 008300640
PRISONER
from £10.83
from £10.83
# 033
-
HELI-COIL
NOT FOR THIS MODEL
