109.08.00 - CAMSHAFT, VALVES

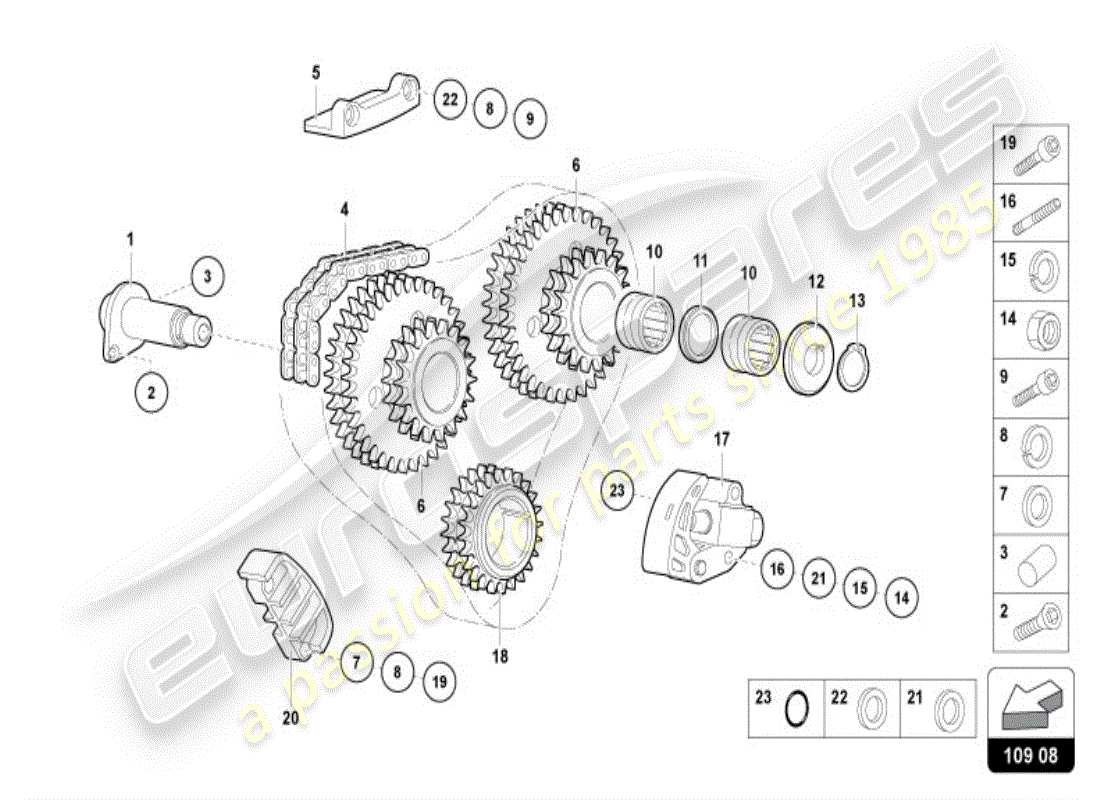

Lamborghini Diablo VT (1997) CAMSHAFT, VALVES Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 001232199
PIVOT
# 002
MPN: 008700638
QUICKLY
Supersession
Supersession
# 003
MPN: 008900203
THORN
from £0.53
from £0.53
# 004
MPN: 001232208
CHAIN
# 005
MPN: 001232448
GUIDE
# 006
MPN: 001232197
GEAR
# 007
MPN: 008400806
WASHER
Supersession
Supersession
# 008
MPN: 008410820
WASHER
Supersession
Supersession
# 009
MPN: 008700850
QUICKLY
# 010
MPN: 008522508
BEARING
# 011
MPN: 001232200
SPACER
# 012
MPN: 001231173
WASHER
from £21.54
from £21.54
# 013
MPN: 008581801
RING
Supersession
Supersession
# 014
MPN: 008200604
DICE
from £0.53
from £0.53
# 015
MPN: 008410612
WASHER
Supersession
Supersession
# 016
MPN: 008300660
PRISONER
from £9.31
from £9.31
# 017
MPN: 001234495
TENDICATENA
Supersession
Supersession
# 018
MPN: 001232196
GEAR
from £92.40
from £92.40
# 019
MPN: 008700848
QUICKLY
# 020
MPN: 001232447
GUIDE
# 021
MPN: 008400606
WASHER
Supersession
Supersession
# 022
MPN: 001231040
WASHER
# 023
-
SEAL
NOT FOR THIS MODEL
