121.04.00 - COOLANT PUMP

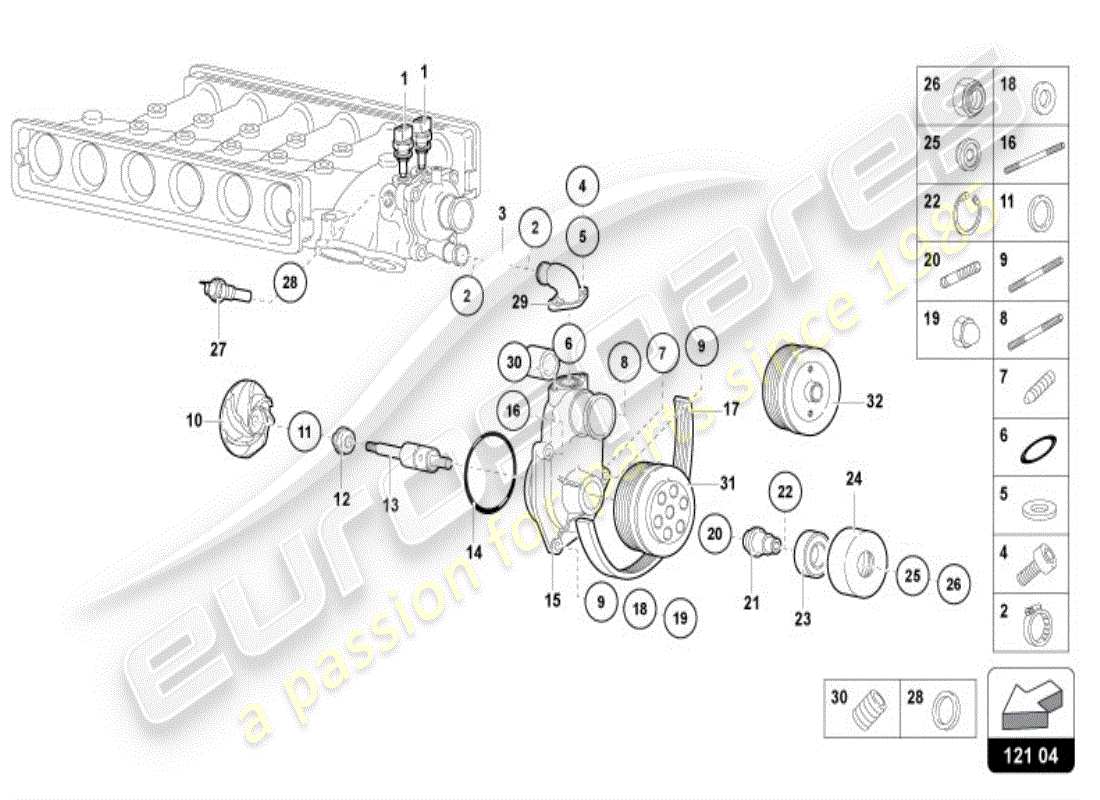

Lamborghini Diablo VT (1997) COOLANT PUMP Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 002024394
WATER TEMPERATURE SENSOR
Supersession
Supersession
# 002
MPN: 008832604
GIRDLE
from £2.37
from £2.37
# 003
MPN: 001732811
TUBE
from £16.21
from £16.21
# 004
MPN: 008700617
QUICKLY
from £0.53
from £0.53
This part replaces part number 008700670
# 005
MPN: 008410602
WASHER
from £29.19
from £29.19
# 006
MPN: 008602802
SEAL RING
Supersession
Supersession
# 007
MPN: 008700650
QUICKLY
from £1.70
from £1.70
# 008
MPN: 008301034
PRISONER
from £3.78
from £3.78
# 009
MPN: 008300809
PRISONER
from £4.94
from £4.94
# 010
MPN: 001734252
IMPELLER
FROM VIN 12284
from £361.79
from £361.79
# 011
MPN: 001734239
SHIM
1.0 MM
from £23.51
from £23.51
# 011
MPN: 001734240
SHIM
1.2 MM
from £23.51
from £23.51
# 011
MPN: 001734241
SHIM
1.4 MM
from £30.92
from £30.92
# 011
MPN: 001734242
SHIM
1.6 MM
from £23.51
from £23.51
# 011
MPN: 001734243
SHIM
1.8 MM
from £23.51
from £23.51
# 011
MPN: 001734244
SHIM
2.0 MM
from £23.51
from £23.51
# 011
MPN: 001734245
SHIM
2.2 MM
from £23.51
from £23.51
# 011
MPN: 001734246
SHIM
2.4 MM
from £23.51
from £23.51
# 011
MPN: 001734247
SHIM
2.6 MM
from £23.51
from £23.51
# 011
MPN: 001734248
SHIM
2.8 MM
from £23.51
from £23.51
# 012
MPN: 001734675
FRONT SEAL
FROM VIN 12284
from £29.85
from £29.85
# 013
MPN: 001727739
POST
from £269.44
from £269.44
# 014
MPN: 008609907
SEAL RING
Supersession
Supersession
# 015
MPN: 001734676
WATER PUMP BODY
FROM VIN 12284
# 016
MPN: 008300833
PRISONER
from £3.93
from £3.93
# 017
MPN: 001736517
WATER PUMP BELT AND TERNAT.
from £186.07
from £186.07
# 018
MPN: 008400806
WASHER
Supersession
Supersession
# 019
MPN: 008200809
DICE
Supersession
Supersession
# 020
MPN: 008301008
PRISONER
from £6.82
from £6.82
# 021
MPN: 001232211
COMPASS
from £69.62
from £69.62
# 022
MPN: 008575201
RETAINER RING
from £0.76
from £0.76
# 023
MPN: 008502501
BEARING
from £34.99
from £34.99
# 024
MPN: 001228675
belt tensioner
from £240.89
from £240.89
# 025
MPN: 001626949
WASHER
from £20.46
from £20.46
# 026
MPN: 008201008
DICE
from £0.54
from £0.54
# 027
MPN: 001724221
THERMOCOUPLE
from £81.43
from £81.43
# 028
MPN: 008401408
WASHER
from £1.29
from £1.29
# 029
MPN: 001732803
CONNECTION
from £211.35
from £211.35
# 030
MPN: 008840601
HELI-COIL
from £1.74
from £1.74
# 031
-
PULLEY
NOT FOR THIS MODEL
# 032
MPN: 001736801
PULLEY
from £762.76
from £762.76
