133.09.00 - LINKAGE

Lamborghini Diablo VT (1997) LINKAGE Parts Diagram

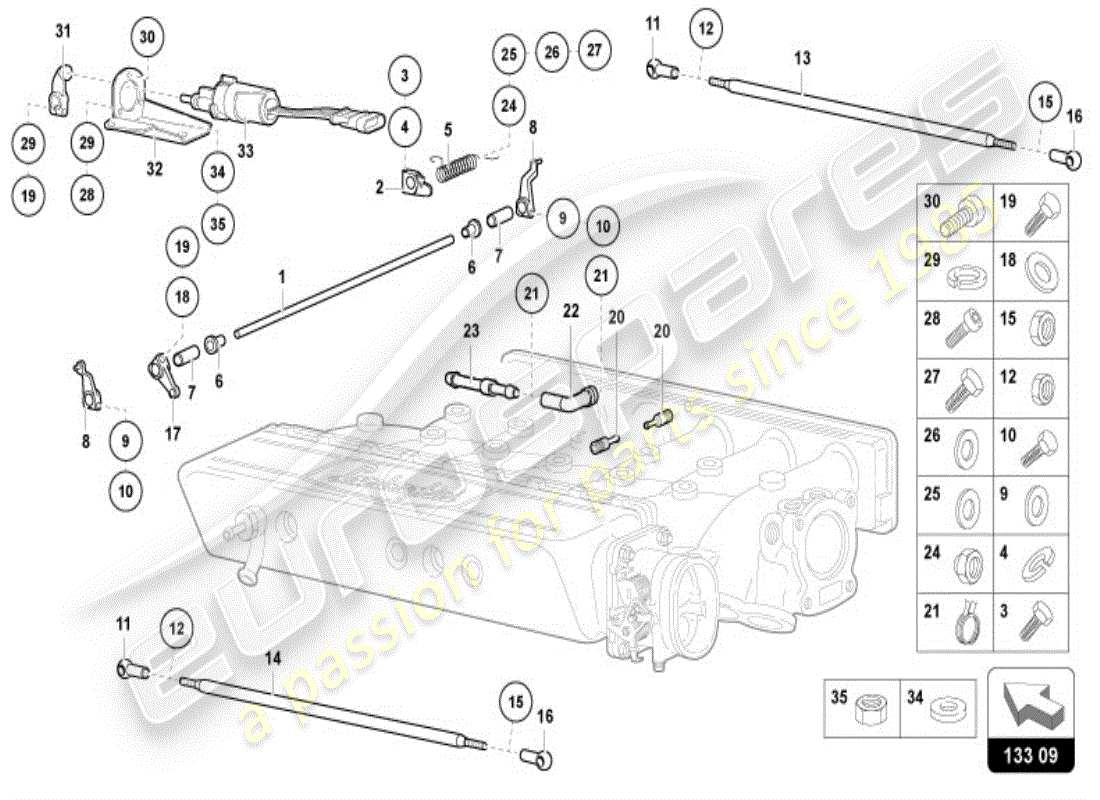

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                      #
                                      Part number
                                      Description
                                      Key
                                      Price
                                      # 001
                                      MPN: 001323135
                                      SHAFT
                                      from £21.18
                                      from £21.18
                                      INJECTION CONTROL SHAFT Genuine Lamborghini - New (to order)
                                      # 002
                                      MPN: 001331005
                                      LEVER
                                      from £24.39
                                      from £24.39
                                      SPRING LOCK LEVER Genuine Lamborghini - New (to order)
                                      # 003
                                      MPN: 008100607
                                      SCREW
                                      from £3.78
                                      from £3.78
                                      SCREW M6X18 UNI 5739/5S/Z Genuine Lamborghini - New (to order)
                                      # 004
                                      MPN: 008410603
                                      WASHER
                                      Supersession
                                      Supersession
                                      Genuine Lamborghini (no longer available to order)
                                      # 005
                                      MPN: 001335958
                                      SPRING
                                      from £21.35
                                      from £21.35
                                      THROTTLE TIEROD RETURN SPRING Genuine Lamborghini - New (to order)
                                      # 006
                                      MPN: 008801204
                                      BUSHING
                                      from £6.02
                                      from £6.02
                                      BUSHING 7X16X18 MM Genuine Lamborghini - New (to order)
                                      # 007
                                      MPN: 001323136
                                      SPACER
                                      from £8.74
                                      from £8.74
                                      SHIM ON INJECTION CONTROL SHAF T Genuine Lamborghini - New (to order)
                                      # 008
                                      MPN: 001311580
                                      LEVER
                                      from £212.23
                                      from £212.23
                                      CARBURETTOR DRIVE SHAFT LEVER Genuine Lamborghini - New (to order)
                                      # 009
                                      MPN: 008410603
                                      WASHER
                                      Supersession
                                      Supersession
                                      Genuine Lamborghini (no longer available to order)
                                      # 010
                                      MPN: 008100601
                                      SCREW
                                      Supersession
                                      Supersession
                                      Genuine Lamborghini (no longer available to order)
                                      # 011
                                      MPN: 001300804
                                      COUPLING HEAD
                                      from £7.54
                                      from £7.54
                                      HEAD UNIT Genuine Lamborghini - New In stock
                                      # 012
                                      MPN: 008200504
                                      NUT
                                      from £10.20
                                      from £10.20
                                      M5 LH SPECIAL NUT Genuine Lamborghini - New (to order)
                                      # 013
                                      MPN: 001328014
                                      TIE ROD
                                      LEFT
                                      from £231.82
                                      from £231.82
                                      LH THROTTLE LEVER TIEROD Genuine Lamborghini - New (to order)
                                      # 014
                                      MPN: 001328016
                                      TIE ROD
                                      RIGHT
                                      from £328.58
                                      from £328.58
                                      RH THROTTLE LEVER TIEROD Genuine Lamborghini - New (to order)
                                      # 015
                                      MPN: 008200501
                                      NUT
                                      Supersession
                                      Supersession
                                      Genuine Lamborghini (no longer available to order)
                                      # 016
                                      MPN: 001308539
                                      COUPLING HEAD
                                      TESTINA SIN Genuine Lamborghini - New (to order)
                                      # 017
                                      MPN: 001301093
                                      LEVER
                                      from £145.86
                                      from £145.86
                                      CARBURETTOR ROD LEVER Genuine Lamborghini - New In stock
                                      # 018
                                      MPN: 008410603
                                      WASHER
                                      Supersession
                                      Supersession
                                      Genuine Lamborghini (no longer available to order)
                                      # 019
                                      MPN: 008100601
                                      SCREW
                                      Supersession
                                      Supersession
                                      Genuine Lamborghini (no longer available to order)
                                      # 020
                                      MPN: 001328721
                                      CONNECTION
                                      from £12.84
                                      from £12.84
                                      UNION Genuine Lamborghini - New (to order)
                                      # 021
                                      MPN: 008830122
                                      STRAP
                                      FROM 12600 - part. compatibile sulle vetture precedenti
                                      from £0.53
                                      from £0.53
                                      CLAMP Genuine Lamborghini - New (to order)
                                      # 022
                                      MPN: 001329321
                                      90? CONNECTION
                                      FROM 12600 - part. compatibile sulle vetture precedenti
                                      Supersession
                                      Supersession
                                      Genuine Lamborghini (no longer available to order)
                                      # 023
                                      MPN: 001329319
                                      CONNECTION
                                      FROM 12600 - part. compatibile sulle vetture precedenti
                                      from £0.75
                                      from £0.75
                                      THROTTLE CASING CONNECTION PIP E REDUCTI Genuine Lamborghini - New (to order)
                                      # 024
                                      -
                                      NUT
                                      NOT FOR THIS MODEL
                                      # 025
                                      -
                                      WASHER
                                      NOT FOR THIS MODEL
                                      # 026
                                      -
                                      WASHER
                                      NOT FOR THIS MODEL
                                      # 027
                                      -
                                      SCREW
                                      NOT FOR THIS MODEL
                                      # 028
                                      -
                                      SCREW
                                      NOT FOR THIS MODEL
                                      # 029
                                      -
                                      WASHER
                                      NOT FOR THIS MODEL
                                      # 030
                                      -
                                      SCREW
                                      NOT FOR THIS MODEL
                                      # 031
                                      -
                                      LEVER
                                      NOT FOR THIS MODEL
                                      # 032
                                      -
                                      SUPPORT
                                      NOT FOR THIS MODEL
                                      # 033
                                      -
                                      CONTROL
                                      NOT FOR THIS MODEL
                                      # 034
                                      -
                                      WASHER
                                      NOT FOR THIS MODEL
                                      # 035
                                      -
                                      NUT
                                      NOT FOR THIS MODEL
