301.04.00 - CARDAN SHAFT

Lamborghini Diablo VT (1997) CARDAN SHAFT Parts Diagram

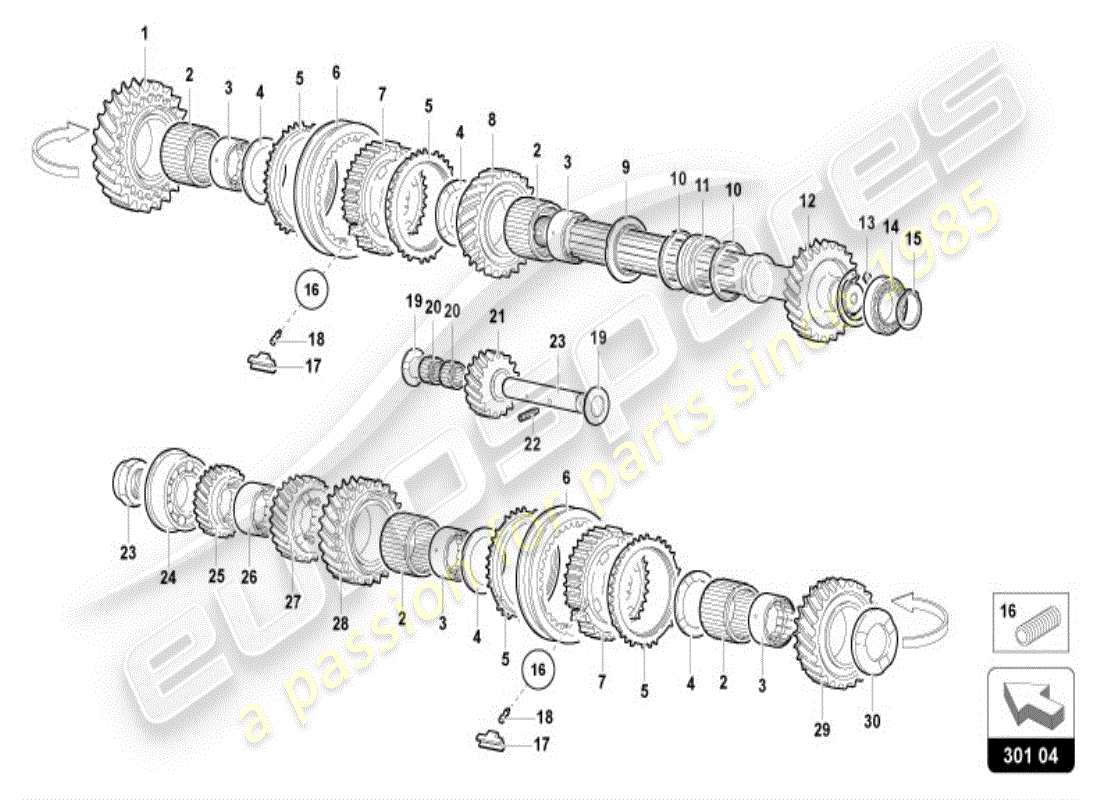

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                #
                                                                Part number
                                                                Description
                                                                Key
                                                                Price
                                                                # 001
                                                                MPN: 002424886
                                                                GEAR
                                                                from £1,265.87
                                                                from £1,265.87
                                                                1ST SPEED GEAR ON SECONDARY CO MPLETE Genuine Lamborghini - New (to order)
                                                                # 002
                                                                MPN: 008524701
                                                                ROLLER CAGE
                                                                from £30.66
                                                                from £30.66
                                                                BEARING Genuine Lamborghini - New (to order)
                                                                # 003
                                                                MPN: 002420124
                                                                SPLINED BUSHING
                                                                from £291.72
                                                                from £291.72
                                                                BUSHING Genuine Lamborghini - New (to order)
                                                                # 004
                                                                MPN: 002424864
                                                                WASHER
                                                                from £107.83
                                                                from £107.83
                                                                WASHERS Genuine Lamborghini - New (to order)
                                                                # 005
                                                                MPN: 002421416
                                                                FRICTION RING
                                                                from £772.52
                                                                from £772.52
                                                                SYNCHRO RING (106040) Genuine Lamborghini - New (to order)
                                                                SYNCHRO RING (106040) Original Equipment - New (to order)
                                                                # 006
                                                                MPN: 002425150
                                                                SLEEVE T/OBEARING
                                                                from £884.88
                                                                from £884.88
                                                                GEAR ENGAGEMENT RING Genuine Lamborghini - New (to order)
                                                                # 007
                                                                MPN: 002421680
                                                                SYNCHRONIZER
                                                                from £207.26
                                                                from £207.26
                                                                RING Genuine Lamborghini - New (to order)
                                                                # 008
                                                                MPN: 002424891
                                                                GEAR
                                                                from £285.97
                                                                from £285.97
                                                                REVERSE GEAR ON SECONDARY COMP LETE Genuine Lamborghini - New (to order)
                                                                # 009
                                                                MPN: 002424860
                                                                SHIM
                                                                from £82.33
                                                                from £82.33
                                                                REVERSE GEAR ADJUSTMENT SHIM O N SECONDA Genuine Lamborghini - New (to order)
                                                                # 010
                                                                MPN: 008576201
                                                                RETAINER RING
                                                                from £2.09
                                                                from £2.09
                                                                O-RING RING Genuine Lamborghini - New In stock
                                                                # 011
                                                                MPN: 008524011
                                                                BEARING
                                                                from £85.21
                                                                from £85.21
                                                                BEARING Genuine Lamborghini - New (to order)
                                                                # 012
                                                                MPN: 002433884
                                                                Countershaft
                                                                from £1,790.15
                                                                from £1,790.15
                                                                SECONDARY SHAFT Genuine Lamborghini - New (to order)
                                                                # 013
                                                                MPN: 008576601
                                                                RETAINER RING
                                                                from £0.54
                                                                from £0.54
                                                                O-RING I 62 UNI 3654 Genuine Lamborghini - New (to order)
                                                                # 014
                                                                MPN: 008523009
                                                                BEARING
                                                                from £38.54
                                                                from £38.54
                                                                BEARING Genuine Lamborghini - New (to order)
                                                                # 015
                                                                MPN: 008583001
                                                                RETAINER RING
                                                                from £7.06
                                                                from £7.06
                                                                CIRCLIP Genuine Lamborghini - New In stock
                                                                # 016
                                                                MPN: 002421418
                                                                SPRING
                                                                from £38.79
                                                                from £38.79
                                                                STRUT SPRING Genuine Lamborghini - New (to order)
                                                                # 017
                                                                MPN: 002421420
                                                                BRAKE PAD
                                                                from £17.00
                                                                from £17.00
                                                                SYNCHRONISER BLOCK Genuine Lamborghini - New (to order)
                                                                # 018
                                                                MPN: 002421419
                                                                PIN
                                                                from £20.02
                                                                from £20.02
                                                                BLOCK STRUT Genuine Lamborghini - New (to order)
                                                                # 019
                                                                MPN: 002424862
                                                                WASHER
                                                                from £146.27
                                                                from £146.27
                                                                GEARBOX WASHERS Genuine Lamborghini - New (to order)
                                                                # 020
                                                                MPN: 008522008
                                                                ROLLER CAGE
                                                                from £7.30
                                                                from £7.30
                                                                VS. CODE 30010001130 Genuine Lamborghini - New (to order)
                                                                # 021
                                                                MPN: 002424869
                                                                GEAR
                                                                from £155.67
                                                                from £155.67
                                                                INTERMEDIATE SPINDLEON REVERSE GEAR Genuine Lamborghini - New (to order)
                                                                # 022
                                                                MPN: 008700649
                                                                SCREW
                                                                from £5.05
                                                                from £5.05
                                                                SCREW M6X20 UNI 592512K/F Genuine Lamborghini - New (to order)
                                                                # 023
                                                                MPN: 002431824
                                                                NUT
                                                                from £172.92
                                                                from £172.92
                                                                PRIMARY & SECONDARY SHAFT NUT Genuine Lamborghini - New (to order)
                                                                # 024
                                                                MPN: 008503006
                                                                BEARING
                                                                from £362.96
                                                                from £362.96
                                                                This part replaces part number 008503004
                                                                BEARING Genuine Lamborghini - New (to order)
                                                                # 025
                                                                MPN: 002426685
                                                                GEAR
                                                                from £476.86
                                                                from £476.86
                                                                5TH SPEED GEAR ON SECONDARY Genuine Lamborghini - New (to order)
                                                                # 026
                                                                MPN: 002424866
                                                                SPLINED BUSHING
                                                                from £139.41
                                                                from £139.41
                                                                see 0024001451 Genuine Lamborghini - New (to order)
                                                                # 027
                                                                MPN: 002424872
                                                                GEAR
                                                                from £512.10
                                                                from £512.10
                                                                4TH SPEED GEAR ON SECONDARY Genuine Lamborghini - New (to order)
                                                                # 028
                                                                MPN: 002424888
                                                                GEAR
                                                                Supersession
                                                                Supersession
                                                                Genuine Lamborghini (no longer available to order)
                                                                # 029
                                                                MPN: 002427098
                                                                GEAR
                                                                from £988.01
                                                                from £988.01
                                                                2ND SPEED GEAR ON SECONDARY CO MPLETE Genuine Lamborghini - New (to order)
                                                                # 030
                                                                MPN: 002424863
                                                                WASHER
                                                                from £63.55
                                                                from £63.55
                                                                1ST/2ND SPEED GEAR ADJUSTMENT SHIM ON SE Genuine Lamborghini - New (to order)
                                                                # 031
                                                                MPN: 002424865
                                                                NUT
                                                                from £64.43
                                                                from £64.43
                                                                REVERSE PINS Genuine Lamborghini - New (to order)
