411.01.00 - SUSPENSION FRONT

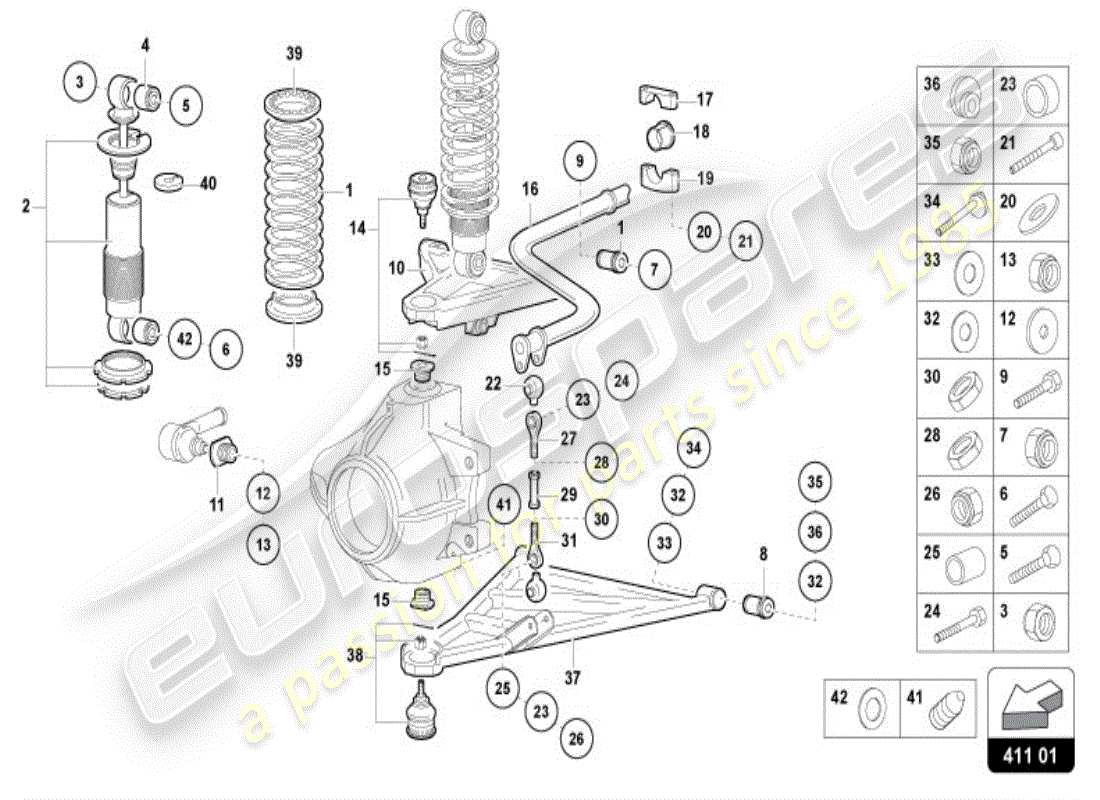

Lamborghini Diablo VT (1997) SUSPENSION FRONT Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 005133618
SPRING
FRONT
from £127.42
from £127.42
# 002
MPN: 005133241
DAMPER
FRONT
from £2,557.80
from £2,557.80
# 003
MPN: 008201226
NUT
REPLACE 008201206
from £2.63
from £2.63
# 004
MPN: 005131666
RESILIENT BUSHING
# 005
MPN: 008101269
SCREW
Supersession
Supersession
# 006
MPN: 005133229
SCREW
REPLACE 008101268
from £4.81
from £4.81
# 007
MPN: 008201226
NUT
from £2.63
from £2.63
# 008
MPN: 008921206
RESILIENT BUSHING
from £28.82
from £28.82
# 009
MPN: 008101269
SCREW
Supersession
Supersession
# 010
MPN: 005133344
UPPER ARM
FROM 12678 - INTERCHANGEABLE - RIGHT
from £529.31
from £529.31
# 010
MPN: 005133345
UPPER ARM
FROM 12678 - INTERCHANGEABLE - LEFT
from £555.21
from £555.21
# 011
MPN: 005129541
BUSHING
from £30.33
from £30.33
# 012
MPN: 008401030
WASHER
# 013
MPN: 008201003
NUT
from £2.19
from £2.19
# 014
MPN: 005125861
COUPLING
# 015
MPN: 005126008
BUSHING
# 016
MPN: 005134392
TORSION BAR
from £603.81
from £603.81
# 017
-
UPPER RETAINER
NOT FOR THIS MODEL
# 018
MPN: 005230804
BUSHING
Supersession
Supersession
# 019
-
LOWER RETAINER
NOT FOR THIS MODEL
# 020
MPN: 008410602
WASHER
from £28.81
from £28.81
# 021
MPN: 008700683
SCREW
from £0.53
from £0.53
# 022
MPN: 005109714
BOOT
from £16.85
from £16.85
# 023
MPN: 005227297
BUSHING
from £18.60
from £18.60
# 024
MPN: 008100807
SCREW
from £0.56
from £0.56
# 025
MPN: 005227298
BUSHING
from £11.27
from £11.27
# 026
MPN: 008200804
NUT
FROM 12609 REPLACE 008200809
from £0.73
from £0.73
# 027
MPN: 005227296
BALL JOINT
Supersession
Supersession
# 028
MPN: 008201035
NUT
from £0.90
from £0.90
# 029
MPN: 005209770
TIE ROD
from £73.18
from £73.18
# 030
MPN: 008201034
NUT
Supersession
Supersession
# 031
MPN: 005227295
COUPLING
from £73.89
from £73.89
# 032
MPN: 005133169
SHIM
SP = 3 MM
from £3.10
from £3.10
# 032
MPN: 005133170
SHIM
FROM 12678 SP = 1 MM
from £1.69
from £1.69
# 032
MPN: 005133488
SHIM
FROM 12678 SP = 1,5 MM
Supersession
Supersession
# 032
MPN: 005133489
SHIM
FROM 12678 SP = 2 MM
from £2.51
from £2.51
# 032
MPN: 005133490
SHIM
SP= 2,5 MM
from £2.84
from £2.84
# 033
-
WASHER
NOT FOR THIS MODEL
# 034
MPN: 005231923
CAM PIN
Supersession
Supersession
# 035
MPN: 008201226
NUT
from £2.63
from £2.63
# 036
MPN: 005231925
CAM
# 037
MPN: 005133038
UPPER ARM
FROM 12746 - INTERCHANGEABLE REPLACING EACH SIDE - RIGHT
from £748.49
from £748.49
# 037
MPN: 005133039
UPPER ARM
FROM 12746 - INTERCHANGEABLE REPLACING EACH SIDE - LEFT
from £748.49
from £748.49
# 038
MPN: 005125860
COUPLING
# 039
MPN: 005219380
RING
# 040
MPN: 005134315
SPACER
from £23.03
from £23.03
# 041
MPN: 008700606
DOWEL
FROM 12678
from £0.50
from £0.50
SCREW EI M6X1X10 12KD Genuine Lamborghini - New (other) In stock
(Valid for June 1992 version) GRAND (dalla 12678)
(Valid for June 1992 version) GRAND (dalla 12678)
# 042
MPN: 008401234
WASHER
Supersession
Supersession
# 043
MPN: 005230258
RETAINER
from £199.48
from £199.48
