419.01.00 - STEERING SYSTEM

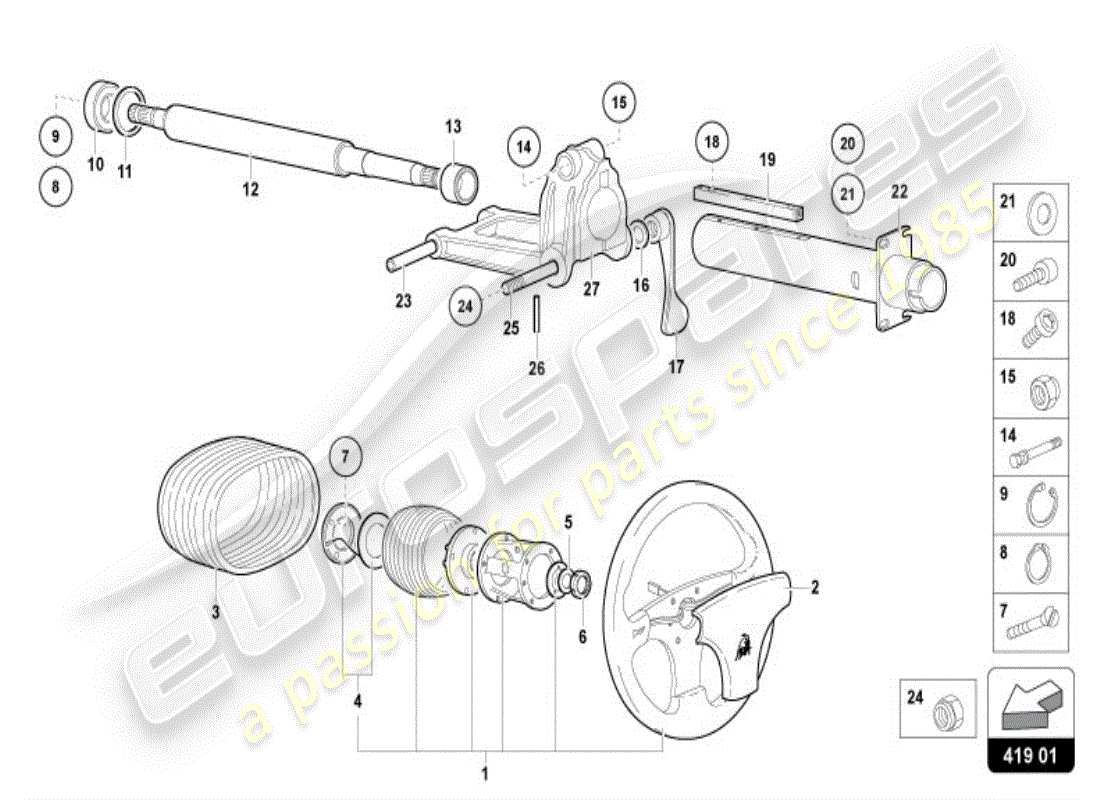

Lamborghini Diablo VT (1997) STEERING SYSTEM Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 004332346
STEERING WHEEL
WITHOUT 004331636 - WITH 004330673
from £1,047.92
from £1,047.92
# 002
MPN: 004331636
COVER
from £374.66
from £374.66
# 003
MPN: 009414206
COVERING
from £148.46
from £148.46
# 004
MPN: 004330673
CREEPING CONTACT
from £143.26
from £143.26
# 005
MPN: 008401417
WASHER
from £2.15
from £2.15
# 006
MPN: 008251501
PLUG
Supersession
Supersession
# 007
MPN: 008700404
SCREW
from £0.53
from £0.53
# 008
MPN: 008581501
RING
from £0.54
from £0.54
# 009
MPN: 008573501
RING
Supersession
Supersession
# 010
MPN: 008501703
BEARING
from £117.60
from £117.60
# 011
MPN: 004330714
SHIM
from £18.60
from £18.60
# 011
MPN: 004330715
SHIM
from £18.60
from £18.60
# 011
MPN: 004330716
SHIM
from £18.60
from £18.60
# 012
MPN: 004319324
Steering Column
from £419.49
from £419.49
# 013
MPN: 008522002
BEARING
from £6.74
from £6.74
# 014
MPN: 008100852
SCREW
from £16.45
from £16.45
# 015
MPN: 008200804
NUT
from £0.76
from £0.76
# 016
MPN: 008401427
WASHER
from £1.98
from £1.98
# 017
MPN: 004331626
LEVER
from £79.84
from £79.84
# 018
MPN: 008700512
SCREW
Supersession
Supersession
# 019
MPN: 004310698
GUIDE
from £308.92
from £308.92
# 020
MPN: 008700611
SCREW
from £0.53
from £0.53
# 021
MPN: 008410603
WASHER
Supersession
Supersession
# 022
MPN: 004330288
PIPE
from £630.85
from £630.85
# 023
MPN: 004309824
PIN
from £47.42
from £47.42
# 024
MPN: 008201416
NUT
from £1.25
from £1.25
# 025
MPN: 004331627
PIN
from £10.20
from £10.20
# 026
MPN: 008900401
PIN
from £0.54
from £0.54
# 027
MPN: 004327449
SUPPORT
from £361.85
from £361.85
# 028
MPN: 004330628
LOCK KEY
from £60.26
from £60.26
# 029
MPN: 008100401
SCREW
from £0.54
from £0.54
# 030
MPN: 008100815
SCREW
from £6.18
from £6.18
# 031
MPN: 008400801
WASHER
Supersession
Supersession
