615.05.00 - BRAKE DISC FRONT

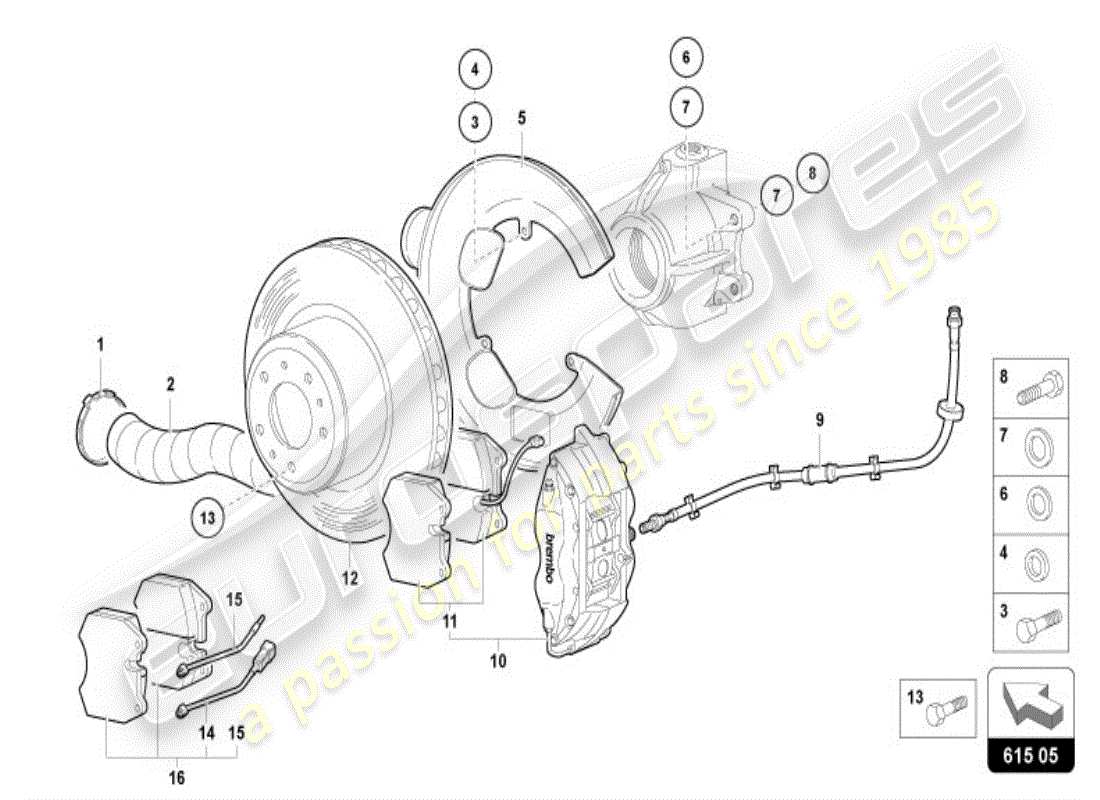

Lamborghini Diablo VT (1997) BRAKE DISC FRONT Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 008837501
STRAP
from £9.81
from £9.81
# 002
MPN: 009453128

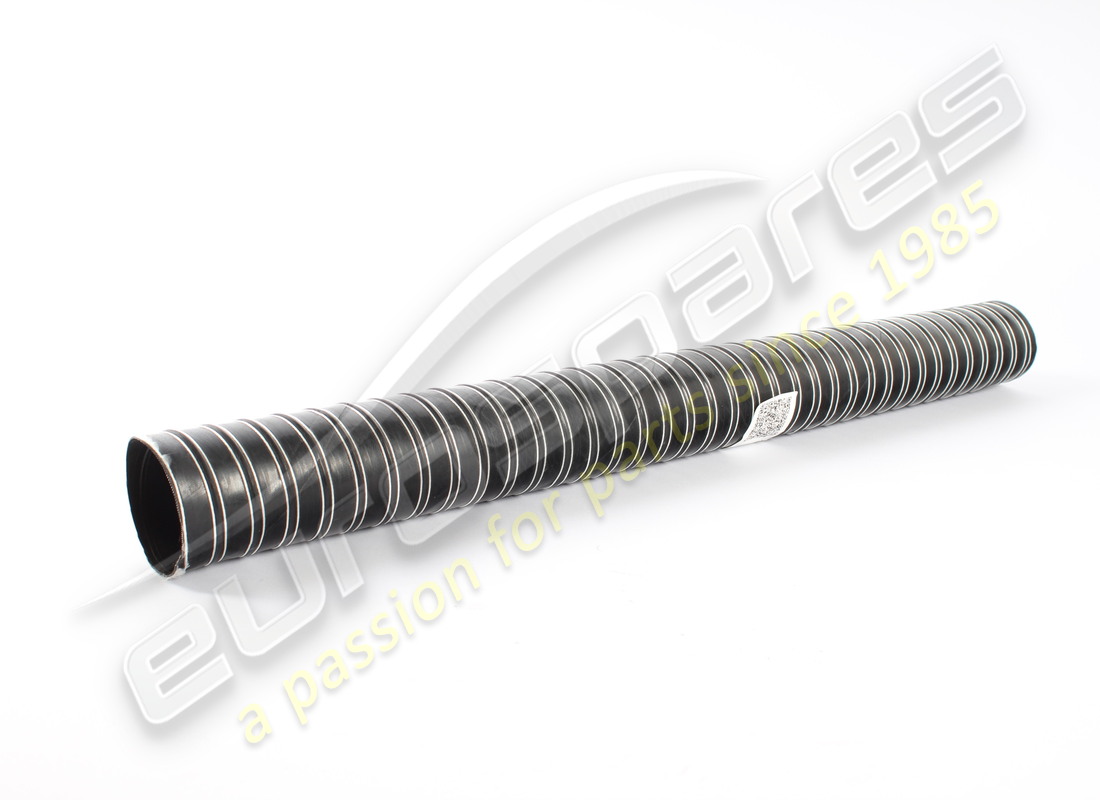

FLEX. HOSE
from £114.61
from £114.61
# 003
MPN: 008100504
SCREW
Supersession
Supersession
# 004
MPN: 008410503
WASHER
Supersession
Supersession
# 005
MPN: 003137075
RIGHT MUDGUARDS
from £191.69
from £191.69
# 005
MPN: 003137076
LEFT MUDGUARDS
from £191.69
from £191.69
# 006
MPN: 003230720
SPACER
from £4.25
from £4.25
# 006
MPN: 003230721
SPACER
from £0.54
from £0.54
# 006
MPN: 003230724
SPACER
from £0.54
from £0.54
# 006
MPN: 003230727
SPACER
from £2.34
from £2.34
# 007
MPN: 008401306
WASHER
from £1.48
from £1.48
# 008
MPN: 003132195
SCREW
from £19.74
from £19.74
# 009
MPN: 003229882
PIPE
from £106.96
from £106.96
# 010
MPN: 003133609
BRAKE CALIPER GPL.
LEFT
from £1,761.50
from £1,761.50
# 010
MPN: 003133610
BRAKE CALIPER CPL.
RIGHT
from £1,761.50
from £1,761.50
# 011
-
FRONT BRAK. PADS KIT
SEE REF. 10
# 012
MPN: 003133607
FRONT BRAKE DISC
from £656.28
from £656.28
# 013
MPN: 008100826
SCREW
from £0.52
from £0.52
# 014
MPN: 003135644
ELECT CABLE
from £226.11
from £226.11
# 015
MPN: 003135643
ELECT CABLE
from £19.74
from £19.74
# 016
MPN: 003136085
FRO. BRAK. PADS KIT
Pagid
from £661.98
from £661.98
This part replaces part number 003134505 - and 1 more. Click to view details
# 016
MPN: 003136086
FRO. BRAK. PADS KIT
GALFER
Supersession
Supersession
