837.05.00 - DOOR

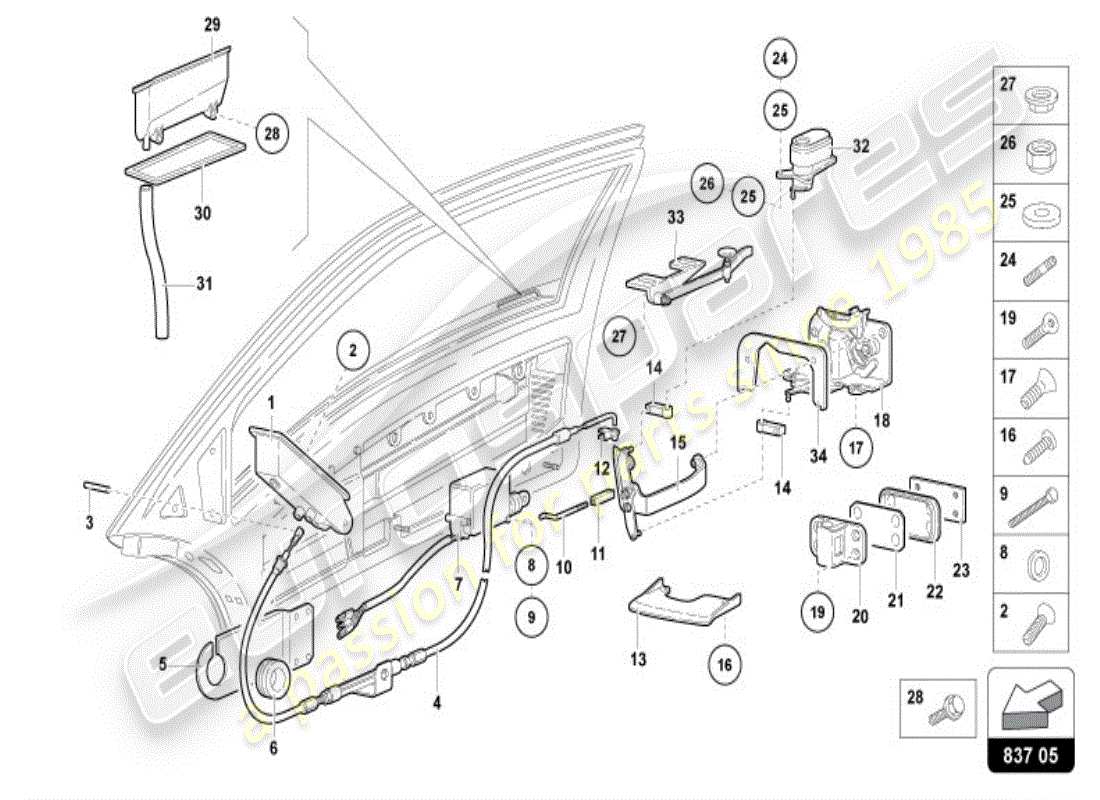

Lamborghini Diablo VT (1997) DOOR Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 008700539
SCREW
Supersession
Supersession
# 002
MPN: 009421008
HANDLE
# 003
MPN: 008850304
PIN
from £1.41
from £1.41
# 004
MPN: 009421011
CABLE
RIGHT
from £661.18
from £661.18
# 004
MPN: 009421012
CABLE
LEFT
from £773.37
from £773.37
# 005
MPN: 009421141
BRACKET
from £70.29
from £70.29
# 006
MPN: 008612503
GASKET
from £8.99
from £8.99
# 007
MPN: 005929912
CONTROL
from £130.02
from £130.02
# 008
MPN: 008400401
WASHER
Supersession
Supersession
# 009
MPN: 008100404
SCREW
Supersession
Supersession
# 010
MPN: 009421252
TIE ROD
from £16.13
from £16.13
# 011
MPN: 007021016
PAWL
Supersession
Supersession
# 012
MPN: 009421251
CLIP
Supersession
Supersession
# 013
MPN: 009421236
SHIELD
RIGHT
from £123.33
from £123.33
# 013
MPN: 009421237
SHIELD
LEFT
from £157.42
from £157.42
# 014
MPN: 009421214
COUPLING
Supersession
Supersession
# 015
MPN: 009421253
IDLE LEVER
RIGHT
from £325.29
from £325.29
# 015
MPN: 009421254
IDLE LEVER
LEFT
from £325.29
from £325.29
# 016
MPN: 008700332
SCREW
from £0.53
from £0.53
# 017
MPN: 008700613
SCREW
from £0.51
from £0.51
# 018
MPN: 009421238
lock
RIGHT
# 018
MPN: 009421239
lock
LEFT
# 019
MPN: 008700610
SCREW
from £0.51
from £0.51
# 020
MPN: 006821003
LOCK STRIKER
RIGHT
from £295.00
from £295.00
# 020
MPN: 006821004
LOCK STRIKER
LEFT
from £295.00
from £295.00
# 021
MPN: 007021249
SPACER
Supersession
Supersession
# 021
MPN: 007021250
SPACER
Supersession
Supersession
# 022
MPN: 007021281
Frame
Supersession
Supersession
# 023
MPN: 007021253
PLATE
from £18.94
from £18.94
# 024
MPN: 008300403
STUD
from £16.85
from £16.85
# 025
MPN: 008400401
WASHER
Supersession
Supersession
# 026
MPN: 008200406
NUT
from £0.52
from £0.52
# 027
MPN: 008200614
NUT
Supersession
Supersession
# 028
MPN: 008700660
SCREW
from £0.53
from £0.53
# 029
MPN: 009421200
HANDLE
RIGHT
from £197.21
from £197.21
# 029
MPN: 009421201
HANDLE
LEFT
from £206.61
from £206.61
# 030
MPN: 009421712
GASKET
RIGHT
from £3.45
from £3.45
# 030
MPN: 009421713
GASKET
LEFT
from £8.51
from £8.51
# 031
MPN: 009421245
PIPE
from £11.47
from £11.47
# 032
MPN: 009421267
button
LEFT
from £80.24
from £80.24
# 032
MPN: 009421268
button
RIGHT
# 033
MPN: 009421255
IOLE LEVER
RIGHT
from £325.29
from £325.29
# 033
MPN: 009421256
IOLE LEVER
LEFT
from £325.29
from £325.29
# 034
MPN: 009421272
GASKET
RIGHT
from £110.35
from £110.35
# 034
MPN: 009421273
GASKET
LEFT
from £110.35
from £110.35
