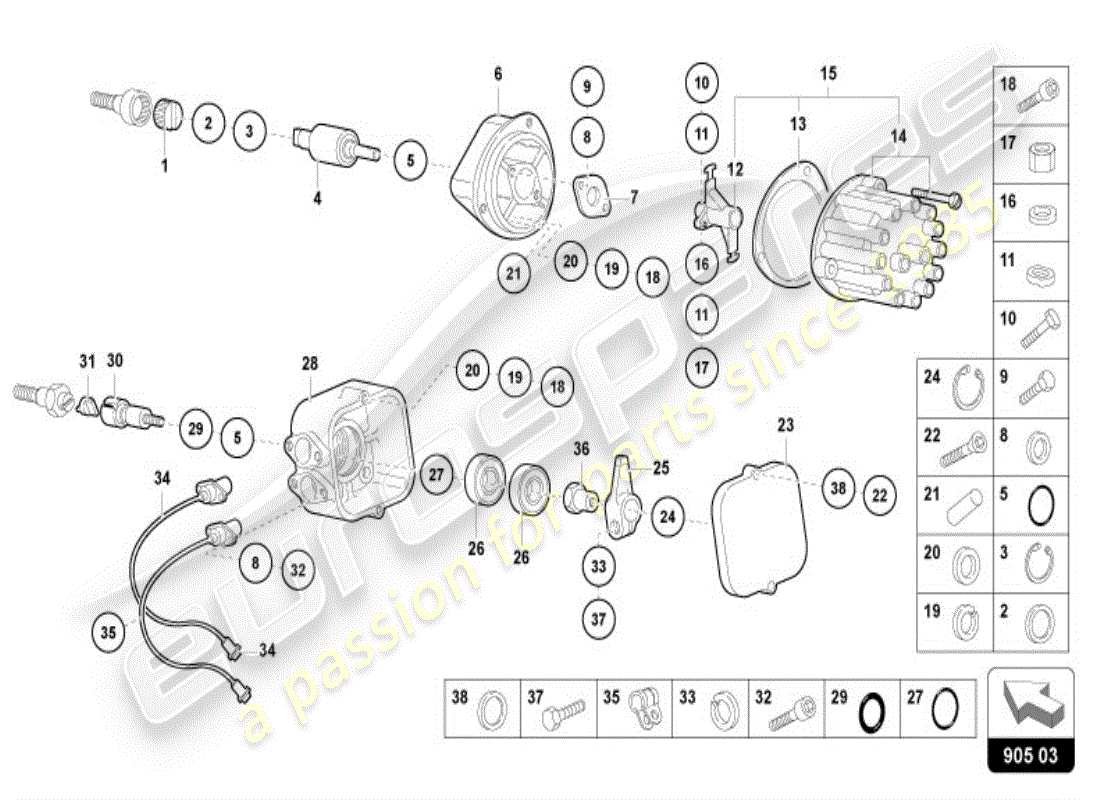

905.03.00 - IGNITION SYSTEM
Lamborghini Diablo VT (1997) IGNITION SYSTEM Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 001632296
COUPLING
from £105.28
from £105.28
# 002
MPN: 008611604
SEAL
from £14.67
from £14.67
# 003
MPN: 008573202
RETAINER RING
from £3.61
from £3.61
# 004
MPN: 001625446
BEARING
from £124.14
from £124.14
# 005
MPN: 008605001
SEAL
from £0.81
from £0.81
# 006
MPN: 001632283
FLANGE
from £639.03
from £639.03
# 007
MPN: 001629805
FLANGE
from £16.61
from £16.61
# 008
MPN: 008410502
WASHER
Supersession
Supersession
# 009
MPN: 008100508
SCREW
from £3.78
from £3.78
# 010
MPN: 008100516
SCREW
from £3.61
from £3.61
# 011
MPN: 008410503
WASHER
Supersession
Supersession
# 012
MPN: 001627730

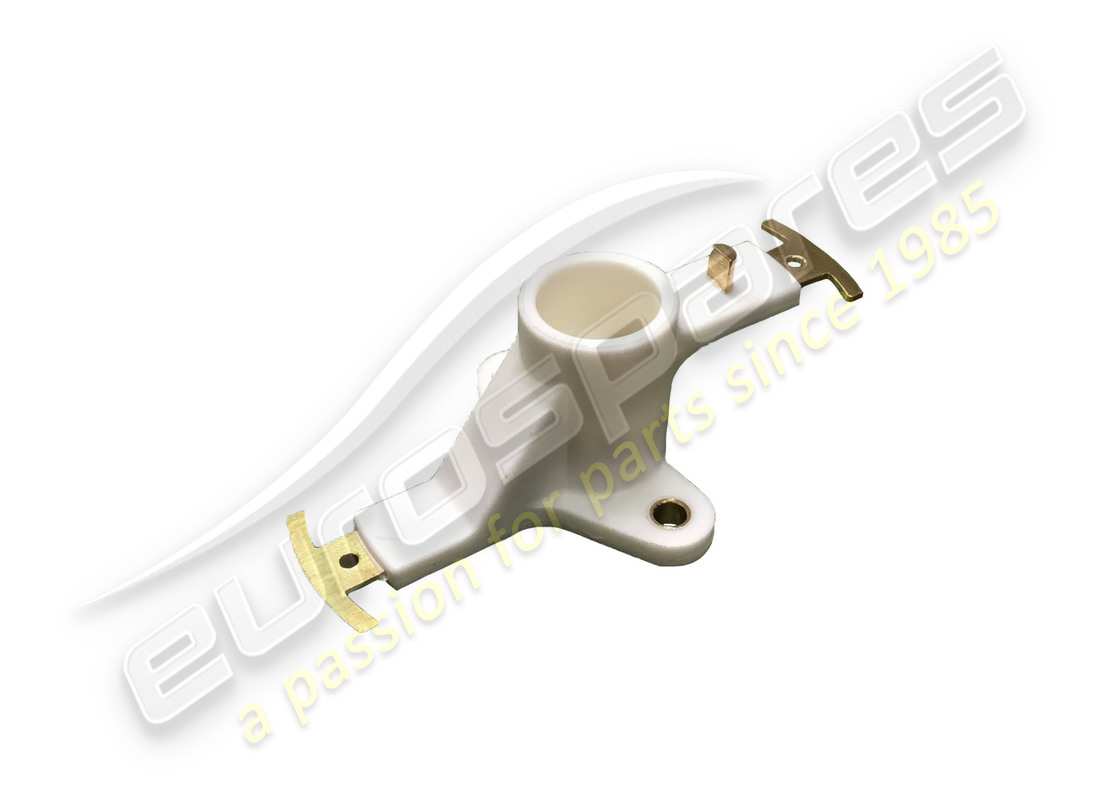

BRUSH
from £205.98
from £205.98
# 013
MPN: 001627729
GASKET
from £9.86
from £9.86
# 014
MPN: 001633864

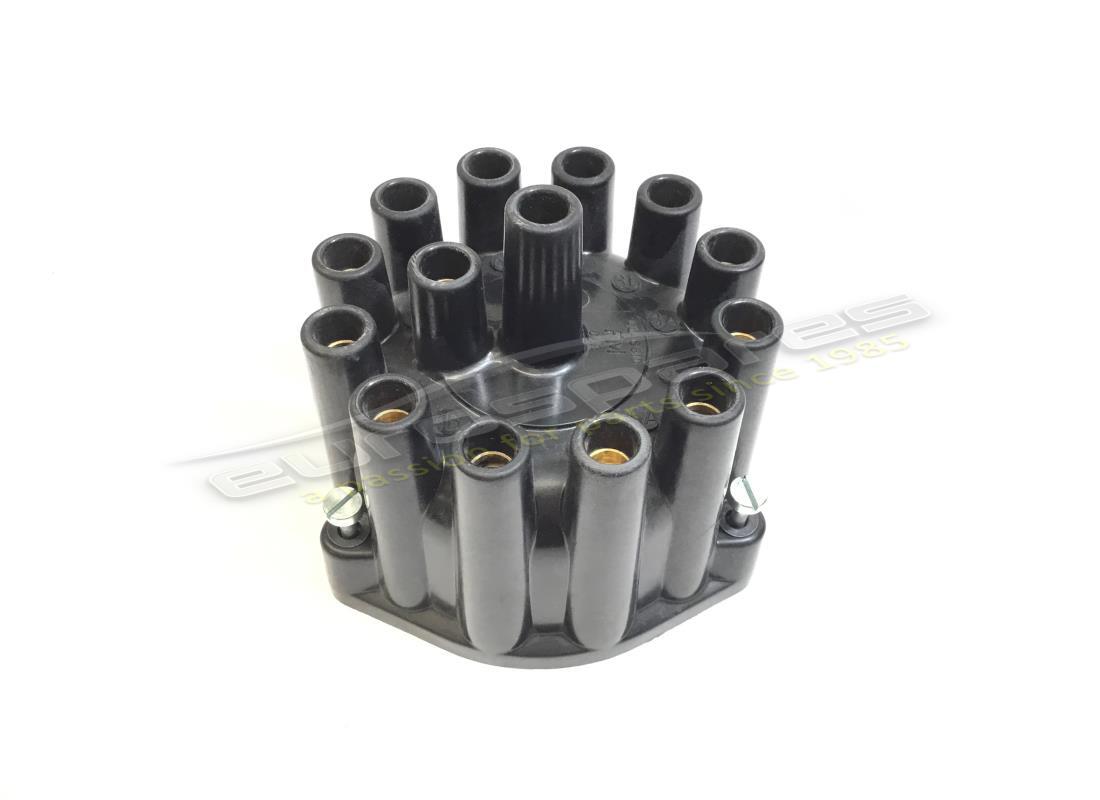

CAP
from £827.51
from £827.51
This part replaces part number 001627728
# 015
MPN: 001633845
IGNITION DISTRIBUTOR
# 016
MPN: 008400507
WASHER
# 017
MPN: 008200509
NUT
# 018
MPN: 008700627
SCREW
Supersession
Supersession
# 019
MPN: 008410611
WASHER
from £0.51
from £0.51
# 020
MPN: 008400606
WASHER
Supersession
Supersession
# 021
MPN: 008850201
DOWEL
from £32.64
from £32.64
# 022
MPN: 008700504
SCREW
from £0.53
from £0.53
# 023
MPN: 001634715
COVER
from £45.57
from £45.57
# 024
MPN: 008573501
RETAINER RING
Supersession
Supersession
# 025
MPN: 001632292
PULSE GENERATOR
from £142.19
from £142.19
# 026
MPN: 008501501
BEARING
Supersession
Supersession
# 027
MPN: 008603501
ESTATE
Supersession
Supersession
# 028
MPN: 001632281
CASE
from £323.60
from £323.60
# 029
MPN: 008600901
SEAL
Supersession
Supersession
# 030
MPN: 001632289
SMALL SHAFT
from £47.74
from £47.74
# 031
MPN: 001634052
COUPLING
from £222.03
from £222.03
# 032
MPN: 008700512
SCREW
Supersession
Supersession
# 033
MPN: 008410603
WASHER
Supersession
Supersession
# 034
MPN: 001625411
TIMING SENSOR
# 035
-
STRAP
NOT FOR THIS MODEL
# 036
MPN: 001632291
NUT
from £35.71
from £35.71
# 037
MPN: 008100607
SCREW
from £3.78
from £3.78
# 038
MPN: 008410503
WASHER
Supersession
Supersession
