905.04.00 - IGNITION SYSTEM

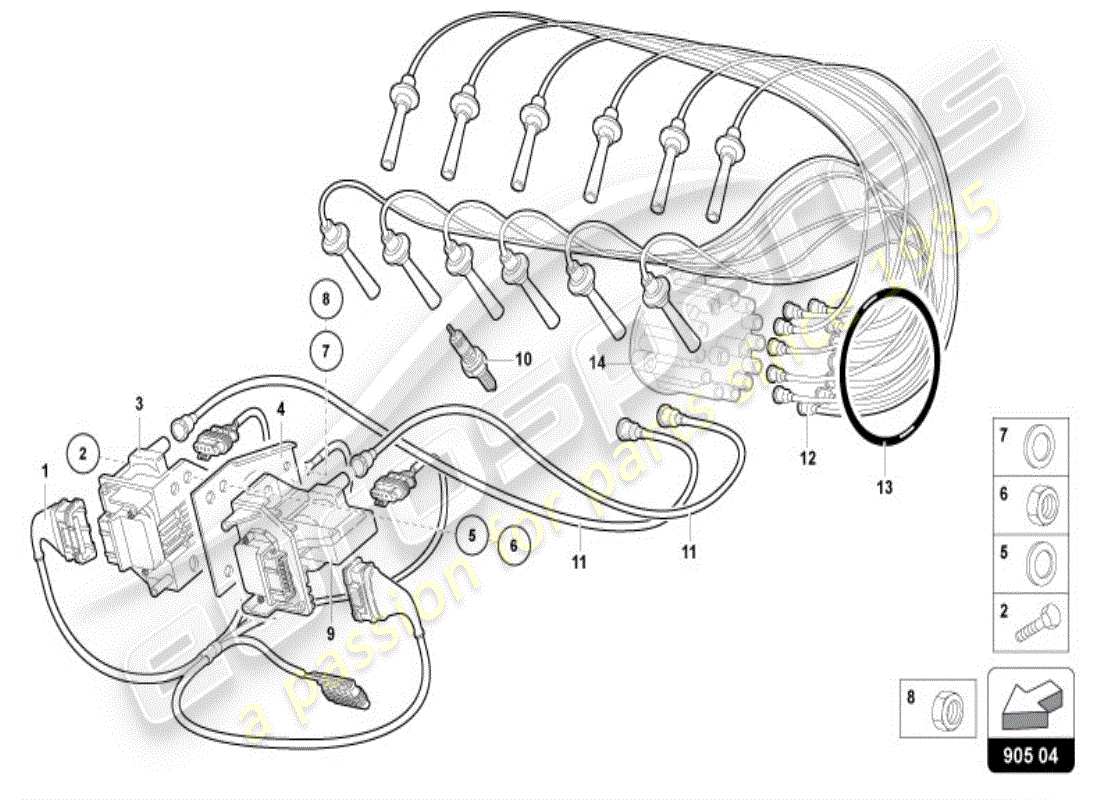

Lamborghini Diablo VT (1997) IGNITION SYSTEM Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                  #
                  Part number
                  Description
                  Key
                  Price
                  # 001
                  MPN: 006133731
                  ELECTRIC CABLE
                  from £441.64
                  from £441.64
                  MODULE WIRING Genuine Lamborghini - New (to order)
                  # 002
                  MPN: 008100827
                  QUICKLY
                  Supersession
                  Supersession
                  Genuine Lamborghini (no longer available to order)
                  # 003
                  MPN: 001631625
                  BANK IGNITION MODULE
                  LEFT
                  Supersession
                  Supersession
                  Genuine Lamborghini (no longer available to order)
                  # 004
                  MPN: 001630869
                  SLAB
                  from £23.67
                  from £23.67
                  POWER UNIT PLATE Genuine Lamborghini - New (to order)
                  # 005
                  MPN: 008400806
                  WASHER
                  Supersession
                  Supersession
                  Genuine Lamborghini (no longer available to order)
                  # 006
                  MPN: 008200804
                  DICE
                  from £0.75
                  from £0.75
                  NUT Genuine Lamborghini - New In stock
                  # 007
                  MPN: 008400606
                  WASHER
                  Supersession
                  Supersession
                  Genuine Lamborghini (no longer available to order)
                  # 008
                  MPN: 008200606
                  DICE
                  Supersession
                  Supersession
                  Genuine Lamborghini (no longer available to order)
                  # 009
                  MPN: 001630792
                  BANK IGNITION MODULE
                  RIGHT
                  from £1,581.29
                  from £1,581.29
                  This part replaces part number 001631625
                  POWER UNIT Genuine Lamborghini - New (to order)
                  # 010
                  MPN: 001630289
                  CANDELA CHAMPION A 59 GC
                  from £13.50
                  from £13.50
                  SPARK PLUG Genuine Lamborghini - New (to order)
                  Alternative (#174954) SPARK PLUG (NGK IRIDIUM IX) Uprated Original Equipment - New In stock
                  Uprated Iridium Spark Plug
                  # 011
                  MPN: 006134278
                  DIST. CABLE ASSEMBLY.
                  FROM VIN 12958
                  from £267.12
                  from £267.12
                  MODULE WIRES Genuine Lamborghini - New (to order)
                  # 012
                  MPN: 006134279
                  SPARK PLUG CABLE ASSEMBLY
                  FROM VIN 12958
                  from £2,162.95
                  from £2,162.95
                  MODULE WIRES Genuine Lamborghini - New (to order)
                  # 013
                  -
                  GIRDLE
                  NOT FOR THIS MODEL
                  # 014
                  -
                  CAP
                  SEE ILLUSTRATION: 905.03
                  Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
