133.12.00 - INTAKE MANIFOLD

Lamborghini Diablo VT (1998) INTAKE MANIFOLD Parts Diagram

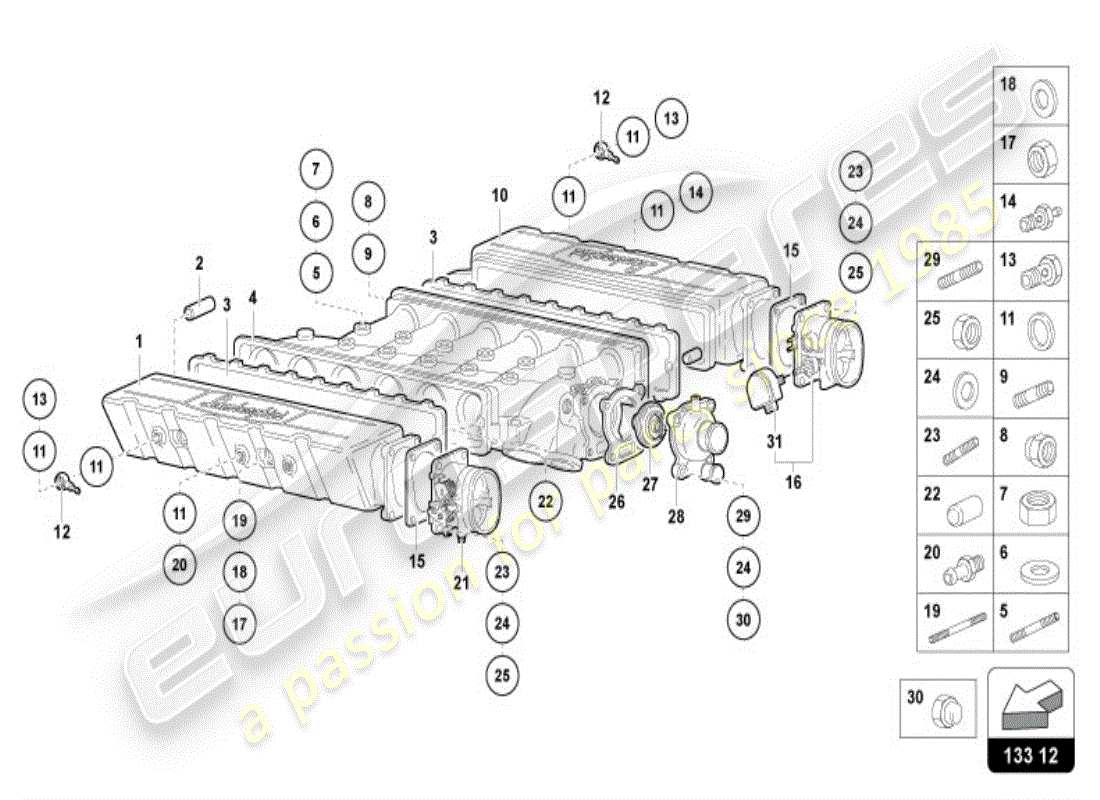

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 0013001063
COVER
RIGHT - FROM ENGINE N. 1889
from £3,400.47
from £3,400.47
# 002
MPN: 0013001226
SPACER
From engine n. 1889
from £27.92
from £27.92
# 003
MPN: 001323717
GASKET
From engine n. 1889
from £33.26
from £33.26
# 004
MPN: 490132008
Inlet Manifold
From engine n. 1889
from £4,690.51
from £4,690.51
# 005
MPN: 008300614
STUD
From engine n. 1889
Supersession
Supersession
# 006
MPN: 008400606
WASHER
From engine n. 1889
Supersession
Supersession
# 007
MPN: 008200606
NUT
From engine n. 1889
Supersession
Supersession
# 008
MPN: 008200605
NUT
From engine n. 1889
from £1.97
from £1.97
# 009
MPN: 008300613
STUD
From engine n. 1889
from £3.13
from £3.13
# 010
MPN: 0013001062
COVER
From engine n. 1889
from £3,400.47
from £3,400.47
# 011
MPN: 008401621
WASHER
From engine n. 1889
Supersession
Supersession
# 012
MPN: 0013001440
CONNECTION
From engine n. 1889
from £7.22
from £7.22
# 013
MPN: 0013001439
SCREW
From engine n. 1889
from £13.56
from £13.56
# 014
MPN: 001330455
CONNECTION
From engine n. 1889
from £21.26
from £21.26
# 015
MPN: 001326311
GASKET
From engine n. 1889
from £14.12
from £14.12
# 016
MPN: 001326293
L. THROTTLE HOLDER
From engine n. 1889
from £909.44
from £909.44
# 017
MPN: 008201003
NUT
From engine n. 1889
from £2.07
from £2.07
# 018
MPN: 008401008
WASHER
From engine n. 1889
Supersession
Supersession
# 019
MPN: 008301043
STUD
From engine n. 1889
from £3.37
from £3.37
# 020
MPN: 001330882
CONNECTION
From engine n. 1889
Supersession
Supersession
# 021
MPN: 001326181
R. THROTTLE HOLDER
RIGHT - FROM ENGINE N. 1889
from £748.49
from £748.49
# 022
MPN: 008850602
DOWEL
From engine n. 1889
# 023
MPN: 008300809
STUD
From engine n. 1889
from £4.94
from £4.94
# 024
MPN: 008410810
WASHER
From engine n. 1889
Supersession
Supersession
# 025
MPN: 008200808
NUT
From engine n. 1889
Supersession
Supersession
# 026
MPN: 001732808
GASKET
From engine n. 1889
from £15.01
from £15.01
# 027
MPN: 001726644
THERMOSTAT
From engine n. 1889
from £327.70
from £327.70
# 028
MPN: 001732806
COVER
From engine n. 1889
from £378.52
from £378.52
# 029
MPN: 008300803
STUD
From engine n. 1889
from £7.71
from £7.71
# 030
MPN: 008200816
NUT
From engine n. 1889
from £2.94
from £2.94
# 031
MPN: 001327641
POTENTIOMETER
From engine n. 1889
from £109.79
from £109.79
