201.06.00 - FUEL TANK

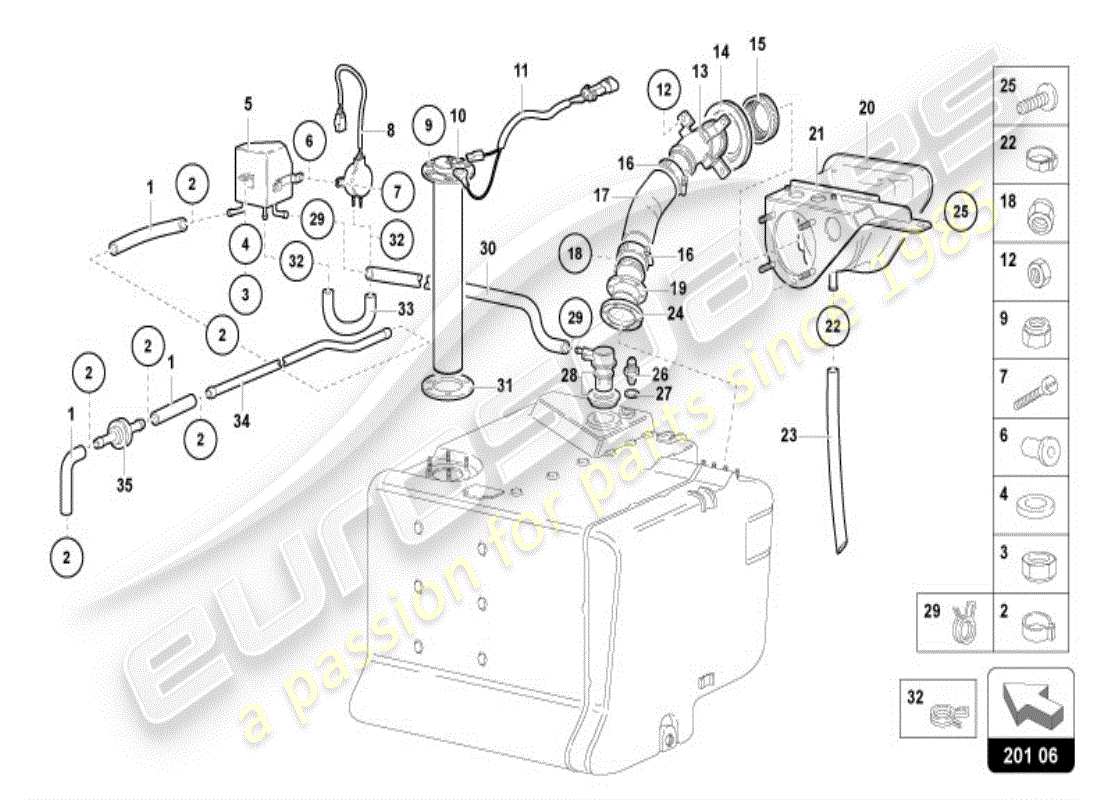

Lamborghini Diablo VT (1998) FUEL TANK Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                        #
                                                                        Part number
                                                                        Description
                                                                        Key
                                                                        Price
                                                                        # 001
                                                                        MPN: 0062001398
                                                                        PIPE
                                                                        from £8.51
                                                                        from £8.51
                                                                        HOSE Genuine Lamborghini - New (to order)
                                                                        # 002
                                                                        MPN: 008831528
                                                                        STRAP
                                                                        Supersession
                                                                        Supersession
                                                                        Genuine Lamborghini (no longer available to order)
                                                                        # 003
                                                                        MPN: 008200606
                                                                        NUT
                                                                        Supersession
                                                                        Supersession
                                                                        Genuine Lamborghini (no longer available to order)
                                                                        # 004
                                                                        MPN: 008400606
                                                                        WASHER
                                                                        Supersession
                                                                        Supersession
                                                                        Genuine Lamborghini (no longer available to order)
                                                                        # 005
                                                                        MPN: 0062001352
                                                                        SEGREGATOR
                                                                        SEGREGATOR Genuine Lamborghini - New (to order)
                                                                        # 006
                                                                        MPN: 0062001396
                                                                        RUBBER BUSHING
                                                                        from £1.43
                                                                        from £1.43
                                                                        RUBBER BUSHING Genuine Lamborghini - New (to order)
                                                                        # 007
                                                                        MPN: 008700346
                                                                        SCREW
                                                                        from £0.53
                                                                        from £0.53
                                                                        SCREW Genuine Lamborghini - New (to order)
                                                                        # 008
                                                                        MPN: 0062001689
                                                                        SENSOR
                                                                        from £473.58
                                                                        from £473.58
                                                                        WIRED SENSOR Genuine Lamborghini - New (to order)
                                                                        # 009
                                                                        MPN: 008200503
                                                                        NUT
                                                                        from £2.14
                                                                        from £2.14
                                                                        M5 UNI 7473 ZD SELF-LOCKIN GNUT Genuine Lamborghini - New (to order)
                                                                        # 010
                                                                        MPN: 006229648
                                                                        FUEL LEVEL GAUGE
                                                                        from £396.50
                                                                        from £396.50
                                                                        FUEL LEVEL GAUGE Genuine Lamborghini - New (to order)
                                                                        Alternative (#EAP1404995) FUEL SENDER UNIT Eurospares Approved Part - New (to order)
                                                                        # 011
                                                                        MPN: 006135126
                                                                        ELECT CABLE
                                                                        from £6.11
                                                                        from £6.11
                                                                        FUEL FLOAT WIRING Genuine Lamborghini - New (to order)
                                                                        # 012
                                                                        MPN: 008200513
                                                                        NUT
                                                                        Supersession
                                                                        Supersession
                                                                        Genuine Lamborghini (no longer available to order)
                                                                        # 013
                                                                        MPN: 006237498
                                                                        UNION
                                                                        from £328.89
                                                                        from £328.89
                                                                        FUEL FILLER - UPPER SIDE Genuine Lamborghini - New (to order)
                                                                        # 014
                                                                        MPN: 009409215
                                                                        GASKET
                                                                        from £20.88
                                                                        from £20.88
                                                                        This part replaces part number 009404215
                                                                        WINDSCREEN WASHER BAG SEAL Genuine Lamborghini - New In stock
                                                                        # 016
                                                                        MPN: 008834501
                                                                        STRAP
                                                                        Supersession
                                                                        Supersession
                                                                        Genuine Lamborghini (no longer available to order)
                                                                        # 017
                                                                        MPN: 006237500
                                                                        PIPE
                                                                        from £255.63
                                                                        from £255.63
                                                                        UPPER/LOWER FILLER SLEEVE Genuine Lamborghini - New (to order)
                                                                        # 018
                                                                        MPN: 008200406
                                                                        NUT
                                                                        from £0.52
                                                                        from £0.52
                                                                        4X0.7X4.8 5S/Z NUT Genuine Lamborghini - New (to order)
                                                                        # 019
                                                                        MPN: 006237497
                                                                        UNION
                                                                        from £81.81
                                                                        from £81.81
                                                                        FUEL FILLER Genuine Lamborghini - New (to order)
                                                                        # 020
                                                                        MPN: 0066001581
                                                                        CASE
                                                                        from £69.93
                                                                        from £69.93
                                                                        FUEL FILLER COMPARTMENT PANEL Genuine Lamborghini - New (to order)
                                                                        # 021
                                                                        MPN: 0066001339
                                                                        SUPPORT
                                                                        from £151.42
                                                                        from £151.42
                                                                        FUEL FLAP ACTUATOR BRACKET Genuine Lamborghini - New (to order)
                                                                        # 022
                                                                        MPN: 008832205
                                                                        STRAP
                                                                        from £13.15
                                                                        from £13.15
                                                                        CLAMP Genuine Lamborghini - New (to order)
                                                                        # 023
                                                                        MPN: 009490516
                                                                        PIPE
                                                                        from £8.46
                                                                        from £8.46
                                                                        FILLER COMPARTMENT DRAIN PIPE Genuine Lamborghini - New (to order)
                                                                        # 024
                                                                        MPN: 006205360
                                                                        GASKET
                                                                        from £47.36
                                                                        from £47.36
                                                                        FLOAT DIMMER SEAL Genuine Lamborghini - New (to order)
                                                                        FLOAT DIMMER SEAL Eurospares Approved Part - New (to order)
                                                                        # 025
                                                                        MPN: 008700685
                                                                        SCREW
                                                                        Supersession
                                                                        Supersession
                                                                        Genuine Lamborghini (no longer available to order)
                                                                        # 026
                                                                        MPN: 0062001267
                                                                        CONNECTION
                                                                        from £21.54
                                                                        from £21.54
                                                                        FITTING Genuine Lamborghini - New (to order)
                                                                        # 027
                                                                        MPN: 008401425
                                                                        WASHER
                                                                        Supersession
                                                                        Supersession
                                                                        Genuine Lamborghini (no longer available to order)
                                                                        # 028
                                                                        MPN: 0062001272
                                                                        ROLL OVER VALVE
                                                                        from £215.74
                                                                        from £215.74
                                                                        ROLL-OVER VALVE 2011 Genuine Lamborghini - New (to order)
                                                                        # 029
                                                                        MPN: 008830130
                                                                        STRAP
                                                                        from £0.53
                                                                        from £0.53
                                                                        CLAMP Genuine Lamborghini - New (to order)
                                                                        # 030
                                                                        MPN: 0062001160
                                                                        PIPE
                                                                        from £8.84
                                                                        from £8.84
                                                                        TUBO DA VALV.ROLL OVER/SEP.VAP Genuine Lamborghini - New (to order)
                                                                        # 031
                                                                        MPN: 006229649
                                                                        GASKET
                                                                        from £10.84
                                                                        from £10.84
                                                                        FUEL LEVEL GAUGE FLANGE SEAL Genuine Lamborghini - New In stock
                                                                        # 032
                                                                        MPN: 008830128
                                                                        STRAP
                                                                        Supersession
                                                                        Supersession
                                                                        Genuine Lamborghini (no longer available to order)
                                                                        # 033
                                                                        MPN: 0062001397
                                                                        PIPE
                                                                        from £3.71
                                                                        from £3.71
                                                                        TANK PRESSURE SENSORPIPE Genuine Lamborghini - New (to order)
                                                                        # 034
                                                                        MPN: 006237081
                                                                        PIPE
                                                                        from £28.50
                                                                        from £28.50
                                                                        THREE-WAY CANISTER PIPE Genuine Lamborghini - New (to order)
                                                                        # 035
                                                                        MPN: 0062001313
                                                                        VALVE
                                                                        from £20.28
                                                                        from £20.28
                                                                        VALVE Genuine Lamborghini - New (to order)
