311.02.00 - GEARBOX

Lamborghini Diablo VT (1998) GEARBOX Parts Diagram

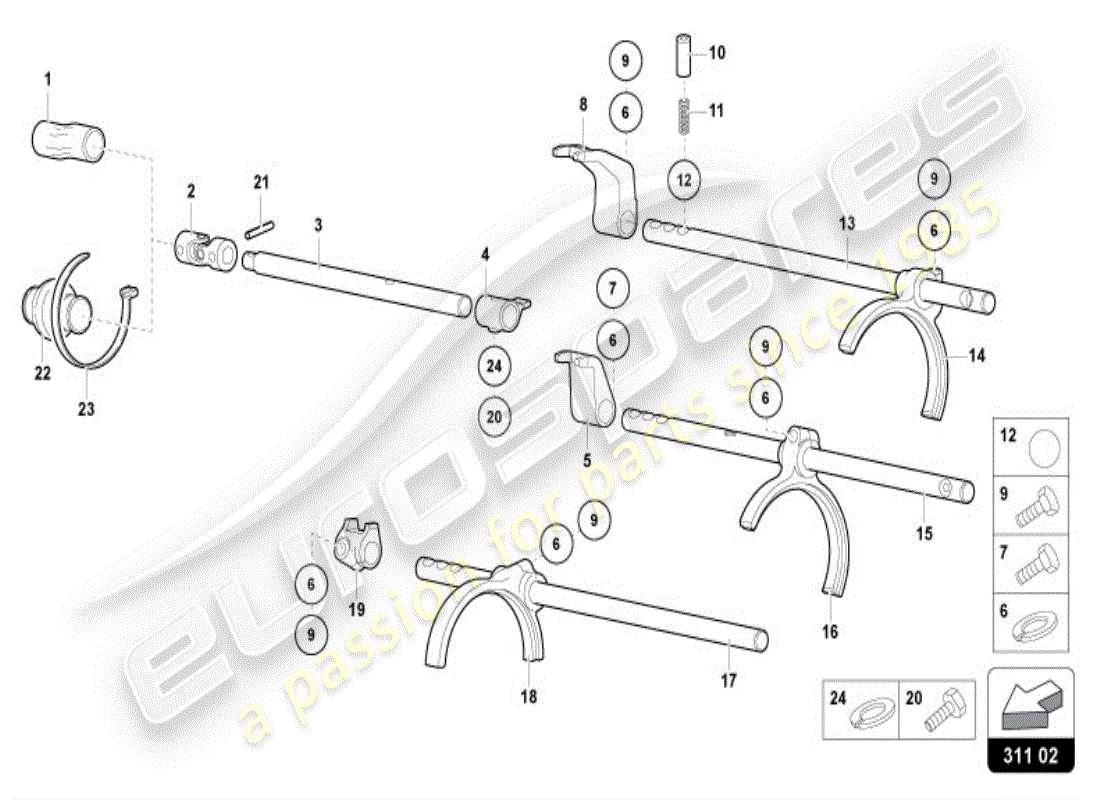

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                          #
                                          Part number
                                          Description
                                          Key
                                          Price
                                          # 001
                                          -
                                          LINER
                                          NOT FOR THIS MODEL
                                          # 002
                                          MPN: 002430983
                                          UNIVERSAL JOINT
                                          from £170.50
                                          from £170.50
                                          UNIVERSAL JOINT Genuine Lamborghini - New In stock
                                          # 003
                                          MPN: 002427211
                                          ROD
                                          from £212.23
                                          from £212.23
                                          GEARBOX ROD Genuine Lamborghini - New (to order)
                                          # 004
                                          MPN: 002425186
                                          SELECTOR
                                          from £110.65
                                          from £110.65
                                          GEARBOX ROD PRONG Genuine Lamborghini - New (to order)
                                          # 005
                                          MPN: 002425188
                                          SELECTOR
                                          from £106.96
                                          from £106.96
                                          2ND/3RD SPEED ROD PRONG Genuine Lamborghini - New (to order)
                                          # 006
                                          MPN: 008410817
                                          WASHER
                                          Supersession
                                          Supersession
                                          Genuine Lamborghini (no longer available to order)
                                          # 007
                                          MPN: 008100830
                                          SCREW
                                          Supersession
                                          Supersession
                                          Genuine Lamborghini (no longer available to order)
                                          # 007
                                          MPN: 008100878
                                          SCREW
                                          from £0.54
                                          from £0.54
                                          SCREW M8 X 20 10K ZDUNI 5739 Genuine Lamborghini - New (to order)
                                          # 008
                                          MPN: 002425189
                                          SELECTOR
                                          from £133.52
                                          from £133.52
                                          1ST SPEED/REVERSE ROD PRONG Genuine Lamborghini - New (to order)
                                          # 009
                                          MPN: 008100821
                                          SCREW
                                          Supersession
                                          Supersession
                                          Genuine Lamborghini (no longer available to order)
                                          # 010
                                          MPN: 002401765
                                          BUSHING
                                          from £11.15
                                          from £11.15
                                          GEAR LEVER BALL BUSHING Genuine Lamborghini - New (to order)
                                          # 011
                                          MPN: 002402242
                                          SPRING
                                          Supersession
                                          Supersession
                                          Genuine Lamborghini (no longer available to order)
                                          # 012
                                          MPN: 008910701
                                          BALL
                                          Supersession
                                          Supersession
                                          Genuine Lamborghini (no longer available to order)
                                          # 013
                                          MPN: 002425229
                                          ROD
                                          from £120.04
                                          from £120.04
                                          1ST SPEED/REVERSE ROD Genuine Lamborghini - New (to order)
                                          # 014
                                          MPN: 002425190
                                          FORK
                                          1? AND RETRO GEAR
                                          from £130.71
                                          from £130.71
                                          1ST SPEED/REVERSE FORK Genuine Lamborghini - New (to order)
                                          # 015
                                          MPN: 002425230
                                          ROD
                                          from £134.00
                                          from £134.00
                                          2ND/3RD SPEED ROD Genuine Lamborghini - New (to order)
                                          # 016
                                          MPN: 002425191
                                          FORK
                                          2? AND 3? GEAR
                                          from £340.05
                                          from £340.05
                                          2ND/3RD SPEED FORK Genuine Lamborghini - New (to order)
                                          # 017
                                          MPN: 002425231
                                          ROD
                                          from £272.01
                                          from £272.01
                                          4TH/5TH SPEED ROD Genuine Lamborghini - New (to order)
                                          # 018
                                          MPN: 002425192
                                          FORK
                                          4? AND 5? GEAR
                                          from £306.43
                                          from £306.43
                                          4TH/5TH SPEED FORK Genuine Lamborghini - New (to order)
                                          # 019
                                          MPN: 002425187
                                          SELECTOR
                                          from £119.64
                                          from £119.64
                                          4TH/5TH SPEED ROD PRONG Genuine Lamborghini - New (to order)
                                          # 020
                                          MPN: 008100628
                                          SCREW
                                          Supersession
                                          Supersession
                                          Genuine Lamborghini (no longer available to order)
                                          # 021
                                          MPN: 008900305
                                          PIN
                                          from £0.53
                                          from £0.53
                                          ELASTIC PIN 3X24 DIN1481 Genuine Lamborghini - New In stock
                                          # 022
                                          MPN: 002434614
                                          BOOT
                                          BOOT Genuine Lamborghini - New (to order)
                                          # 023
                                          MPN: 008830305
                                          STRAP
                                          Supersession
                                          Supersession
                                          Genuine Lamborghini (no longer available to order)
                                          # 024
                                          MPN: 008410602
                                          WASHER
                                          from £29.39
                                          from £29.39
                                          WASHER 12X6.4X0.5 DIN 137/B Genuine Lamborghini - New In stock
                                          # 024
                                          MPN: 008410817
                                          WASHER
                                          Supersession
                                          Supersession
                                          Genuine Lamborghini (no longer available to order)
