615.09.00 - Handbrake

Lamborghini Diablo VT (1998) HANDBRAKE Parts Diagram

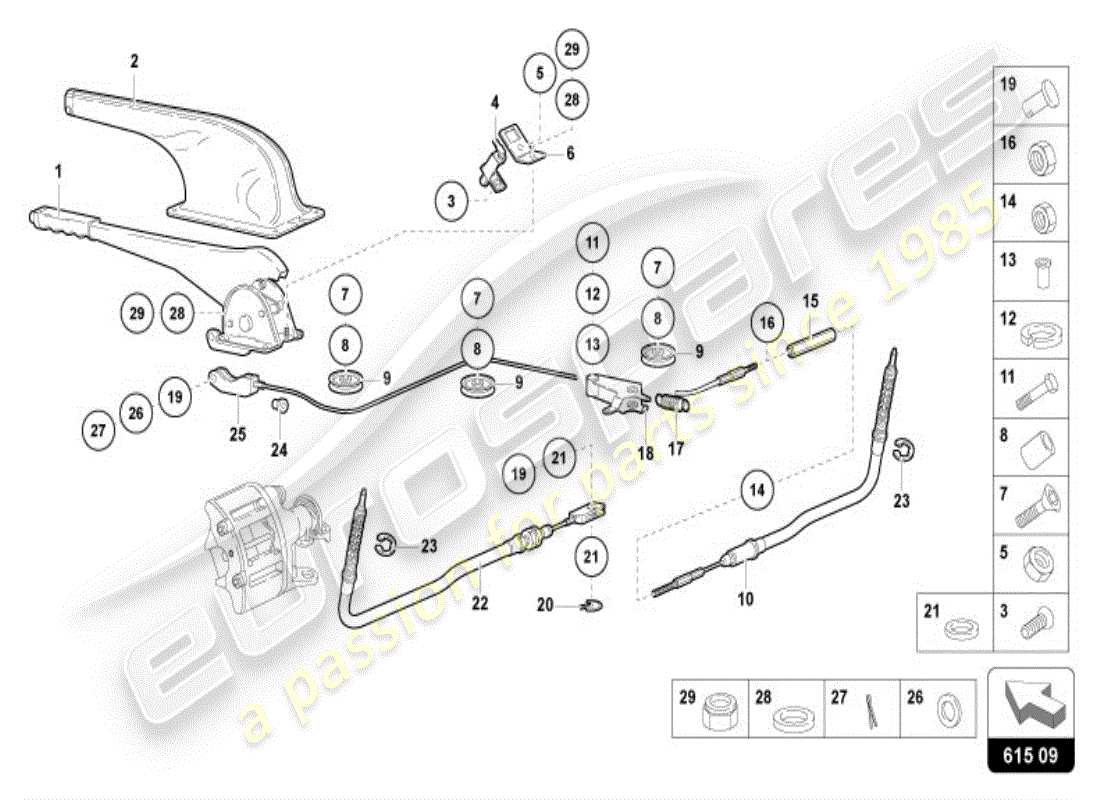

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                    #
                                                    Part number
                                                    Description
                                                    Key
                                                    Price
                                                    # 001
                                                    MPN: 0033000780
                                                    Handbrake Lever
                                                    Supersession
                                                    Supersession
                                                    Genuine Lamborghini (no longer available to order)
                                                    # 002
                                                    MPN: 0078001360
                                                    COVERING
                                                    from £103.67
                                                    from £103.67
                                                    HANDBRAKE GUARD Genuine Lamborghini - New (to order)
                                                    # 003
                                                    MPN: 008700404
                                                    SCREW
                                                    from £0.54
                                                    from £0.54
                                                    SCREW 4X10 UNI 6109/5S/F Genuine Lamborghini - New (to order)
                                                    # 004
                                                    MPN: 003336007
                                                    button
                                                    from £18.46
                                                    from £18.46
                                                    HANDBRAKE LEVER BUTTON Genuine Lamborghini - New (to order)
                                                    # 005
                                                    MPN: 008200406
                                                    NUT
                                                    from £0.54
                                                    from £0.54
                                                    4X0.7X4.8 5S/Z NUT Genuine Lamborghini - New (to order)
                                                    # 006
                                                    MPN: 003335993
                                                    SUPPORT
                                                    SUPPORT Genuine Lamborghini - New (to order)
                                                    # 007
                                                    MPN: 008700851
                                                    SCREW
                                                    from £0.56
                                                    from £0.56
                                                    SCREW M8X35 UNI 5933/8G/ZD Genuine Lamborghini - New (to order)
                                                    # 008
                                                    MPN: 003330827
                                                    BUSHING
                                                    BUSHING Genuine Lamborghini - New (to order)
                                                    # 009
                                                    MPN: 003332512
                                                    PULLEY
                                                    Supersession
                                                    Supersession
                                                    Genuine Lamborghini (no longer available to order)
                                                    # 010
                                                    MPN: 0033001133
                                                    TIE ROD
                                                    RIGHT
                                                    from £127.02
                                                    from £127.02
                                                    RH SHOE/HANDBRAKE WIRE ASSEMBL Y Genuine Lamborghini - New (to order)
                                                    # 011
                                                    MPN: 008101407
                                                    SCREW
                                                    from £3.37
                                                    from £3.37
                                                    SCREW M14X55 UNI 5738/8G/Z Genuine Lamborghini - New (to order)
                                                    # 012
                                                    MPN: 008411404
                                                    WASHER
                                                    from £0.54
                                                    from £0.54
                                                    SNAP RING D.14 DIN 7980 Genuine Lamborghini - New In stock
                                                    # 013
                                                    MPN: 003330828
                                                    SPACER
                                                    SPACER Genuine Lamborghini - New (to order)
                                                    # 014
                                                    MPN: 008200607
                                                    NUT
                                                    from £8.19
                                                    from £8.19
                                                    D 6X1 SIN. 8G NUT Genuine Lamborghini - New (to order)
                                                    # 015
                                                    MPN: 003304858
                                                    ADJUSTING SLEEVE
                                                    (EUROPE, USA spec vehicles)
                                                    ADJUSTING SLEEVE Genuine Lamborghini - New (to order)
                                                    # 016
                                                    MPN: 008200603
                                                    NUT
                                                    from £0.54
                                                    from £0.54
                                                    M6 UNI 5588/5S/Z NUT Genuine Lamborghini - New (to order)
                                                    # 017
                                                    MPN: 003330829
                                                    SPRING
                                                    Supersession
                                                    Supersession
                                                    Genuine Lamborghini (no longer available to order)
                                                    # 018
                                                    MPN: 003333935
                                                    SUPPORT
                                                    from £126.00
                                                    from £126.00
                                                    SUPPORT Genuine Lamborghini - New (to order)
                                                    SUPPORT Genuine Lamborghini - Used In stock
                                                    Complete
                                                    # 019
                                                    MPN: 003301307
                                                    PIN
                                                    from £10.25
                                                    from £10.25
                                                    Genuine Lamborghini (no longer available to order)
                                                    PIN Genuine Lamborghini - Used In stock
                                                    # 020
                                                    MPN: 004207085
                                                    CLIP
                                                    from £49.18
                                                    from £49.18
                                                    BRAKE CYLINDER PIN STOPPER Genuine Lamborghini - New In stock
                                                    # 020
                                                    MPN: 008820203
                                                    CLIP
                                                    Lamborghini PART 008820203 Genuine Lamborghini - New (to order)
                                                    # 021
                                                    MPN: 008400806
                                                    WASHER
                                                    Supersession
                                                    Supersession
                                                    Genuine Lamborghini (no longer available to order)
                                                    # 022
                                                    MPN: 0033001131
                                                    TIE ROD
                                                    LEFT
                                                    from £165.13
                                                    from £165.13
                                                    LH HANDBRAKE/DISTRIBUTOR WIRE ASSEMBLY Genuine Lamborghini - New (to order)
                                                    # 024
                                                    MPN: 003330880
                                                    RUBBER BUSHING
                                                    RUBBER BUSHING Genuine Lamborghini - New (to order)
                                                    # 025
                                                    MPN: 0033001129
                                                    TIE ROD
                                                    (EUROPE, USA spec vehicles)
                                                    from £223.28
                                                    from £223.28
                                                    RH HANDBRAKE/DISTRIBUTOR WIRE ASSEMBLY Genuine Lamborghini - New (to order)
                                                    # 026
                                                    MPN: 008400806
                                                    WASHER
                                                    Supersession
                                                    Supersession
                                                    Genuine Lamborghini (no longer available to order)
                                                    # 027
                                                    MPN: 008820201
                                                    SPLIT PIN
                                                    from £4.18
                                                    from £4.18
                                                    SPLIT PIN 1.8X15 UNI 1336A Genuine Lamborghini - New (to order)
                                                    # 028
                                                    MPN: 008400606
                                                    WASHER
                                                    Supersession
                                                    Supersession
                                                    Genuine Lamborghini (no longer available to order)
                                                    # 029
                                                    MPN: 008200606
                                                    NUT
                                                    Supersession
                                                    Supersession
                                                    Genuine Lamborghini (no longer available to order)
