809.01.00 - FUEL FILLER FLAP

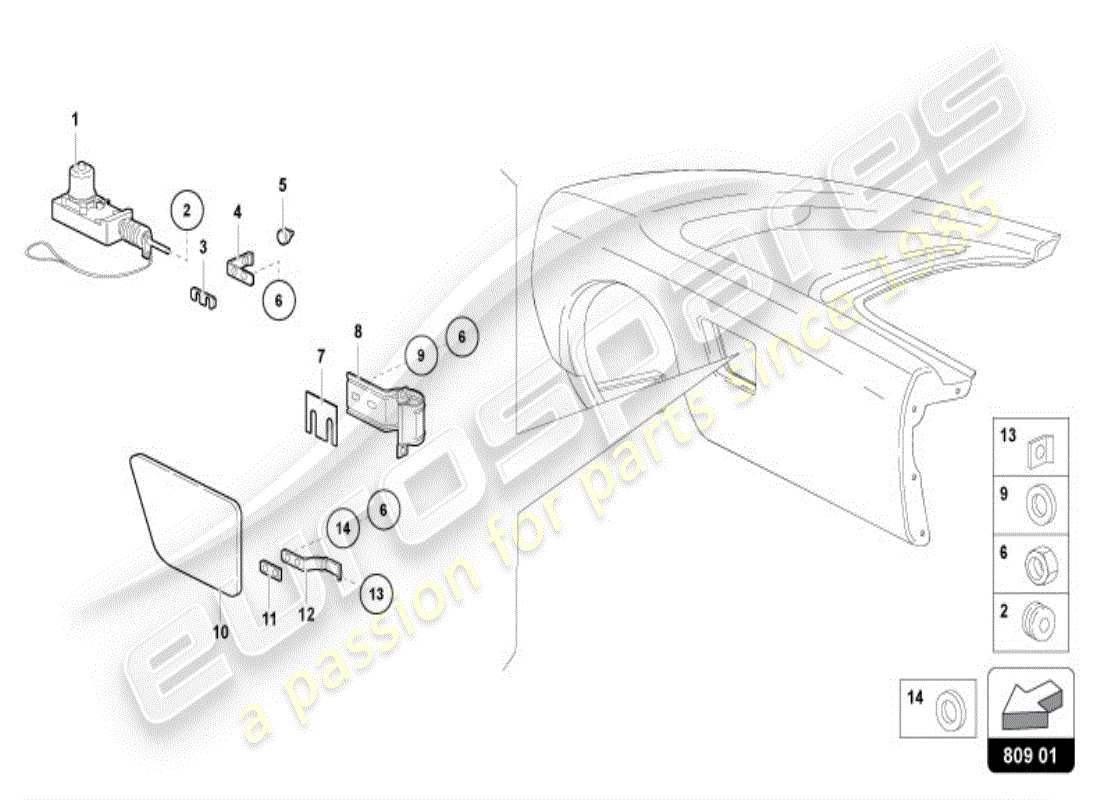

Lamborghini Diablo VT (1998) FUEL FILLER FLAP Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                    #
                                    Part number
                                    Description
                                    Key
                                    Price
                                    # 001
                                    MPN: 005930521
                                    SWITCH
                                    from £395.00
                                    from £395.00
                                    FUEL CAP ACTUATOR Genuine Lamborghini - New In stock
                                    # 002
                                    MPN: 008610602
                                    RING
                                    from £2.81
                                    from £2.81
                                    GROMMET 6X9X2 MM Genuine Lamborghini - New (to order)
                                    # 003
                                    MPN: 009490512
                                    SHIM
                                    from £23.84
                                    from £23.84
                                    ACTUATOR STRIKER SHIM Genuine Lamborghini - New (to order)
                                    # 004
                                    MPN: 009490511
                                    BRAKET
                                    from £94.20
                                    from £94.20
                                    ACTUATOR STRIKER Genuine Lamborghini - New (to order)
                                    # 006
                                    MPN: 008200503
                                    NUT
                                    from £2.13
                                    from £2.13
                                    M5 UNI 7473 ZD SELF-LOCKIN GNUT Genuine Lamborghini - New (to order)
                                    # 007
                                    MPN: 009490510
                                    SHIM
                                    from £24.31
                                    from £24.31
                                    FILLER FLAP HINGE SHIM Genuine Lamborghini - New (to order)
                                    # 008
                                    MPN: 009490501
                                    HINGE
                                    from £526.14
                                    from £526.14
                                    FILLER FLAP HINGE Genuine Lamborghini - New (to order)
                                    # 009
                                    MPN: 008400506
                                    WASHER
                                    from £0.53
                                    from £0.53
                                    FLAT WASHER 5.3X1.5X15 Genuine Lamborghini - New (to order)
                                    # 010
                                    MPN: 009410209
                                    LID
                                    from £491.66
                                    from £491.66
                                    PETROL FLAP COVER Genuine Lamborghini - New (to order)
                                    PETROL FLAP COVER Genuine Lamborghini - Used In stock
                                    # 011
                                    MPN: 009490508
                                    SHIM
                                    from £2.89
                                    from £2.89
                                    SPRING REINFORCEMENT Genuine Lamborghini - New (to order)
                                    # 012
                                    MPN: 009490505
                                    PLATE
                                    from £5.45
                                    from £5.45
                                    FILLER FLAP HINGE SPRING Genuine Lamborghini - New (to order)
                                    # 013
                                    MPN: 009490507
                                    PLATE
                                    from £1.98
                                    from £1.98
                                    SPRING STRIKER Genuine Lamborghini - New In stock
                                    # 015
                                    MPN: 008700450
                                    SCREW
                                    from £0.53
                                    from £0.53
                                    LOCK SCREW 3.9X32DIN7981/B Genuine Lamborghini - New In stock
                                    # 016
                                    -
                                    SPACER
                                    NOT FOR THIS MODEL
                                    # 016
                                    MPN: 005932766
                                    SPACER
                                    from £4.18
                                    from £4.18
                                    FUEL FLAP ACTUATOR SHIM Genuine Lamborghini - New (to order)
                                    # 017
                                    MPN: 008220505
                                    CLIP
                                    Supersession
                                    Supersession
                                    Genuine Lamborghini (no longer available to order)
                                    # 018
                                    MPN: 009466106
                                    PLATE
                                    from £6.58
                                    from £6.58
                                    FUEL FLAP PLATE Genuine Lamborghini - New (to order)
                                    # 019
                                    MPN: 008700544
                                    SCREW
                                    from £1.06
                                    from £1.06
                                    SCREW FRONT M5 TBCE Genuine Lamborghini - New (to order)
