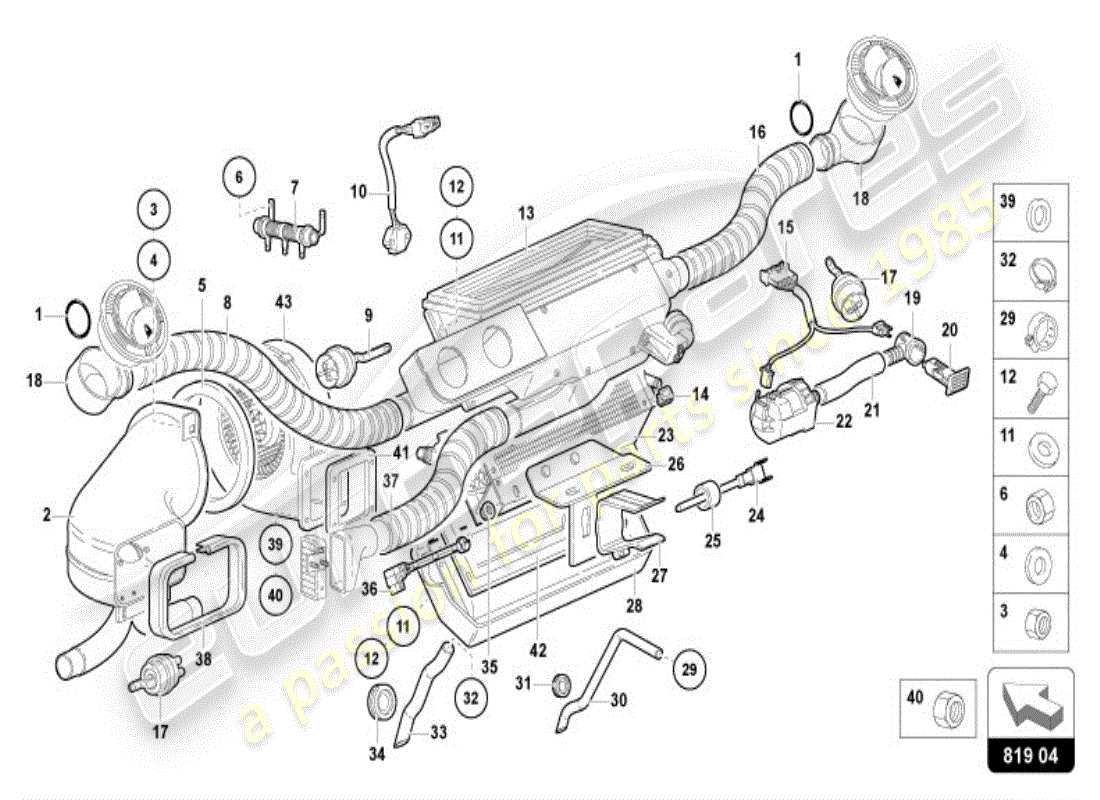

819.04.00 - AIR GUIDE CHANNEL

Lamborghini Diablo VT (1998) AIR GUIDE CHANNEL Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                  #
                                                                  Part number
                                                                  Description
                                                                  Key
                                                                  Price
                                                                  # 001
                                                                  MPN: 008604401
                                                                  SEAL
                                                                  from £0.53
                                                                  from £0.53
                                                                  RING 44 MM OR Genuine Lamborghini - New In stock
                                                                  # 002
                                                                  MPN: 009453112
                                                                  CONVEYOR
                                                                  (EUROPE, USA spec vehicles)
                                                                  from £477.66
                                                                  from £477.66
                                                                  EXTERNAL AIR INTAKE VENT Genuine Lamborghini - New (to order)
                                                                  # 002
                                                                  MPN: 009453131
                                                                  CONVEYOR
                                                                  (UK spec vehicles)
                                                                  from £1,290.42
                                                                  from £1,290.42
                                                                  EXTERNAL AIR INTAKE DUCT Genuine Lamborghini - New (to order)
                                                                  # 002
                                                                  MPN: 009453182
                                                                  CONVEYOR
                                                                  (EUROPE, USA spec vehicles)
                                                                  from £468.68
                                                                  from £468.68
                                                                  AIR DUCT Genuine Lamborghini - New (to order)
                                                                  # 003
                                                                  MPN: 008200606
                                                                  NUT
                                                                  Supersession
                                                                  Supersession
                                                                  Genuine Lamborghini (no longer available to order)
                                                                  # 004
                                                                  MPN: 008400607
                                                                  WASHER
                                                                  Supersession
                                                                  Supersession
                                                                  Genuine Lamborghini (no longer available to order)
                                                                  # 005
                                                                  MPN: 009490202
                                                                  GASKET
                                                                  from £6.74
                                                                  from £6.74
                                                                  MANIFOLD-A/C FAN SEAL Genuine Lamborghini - New (to order)
                                                                  # 006
                                                                  -
                                                                  NUT
                                                                  NOT FOR THIS MODEL
                                                                  # 006
                                                                  MPN: 008200503
                                                                  NUT
                                                                  from £2.19
                                                                  from £2.19
                                                                  M5 UNI 7473 ZD SELF-LOCKIN GNUT Genuine Lamborghini - New (to order)
                                                                  # 007
                                                                  -
                                                                  RESISTANCE
                                                                  NOT FOR THIS MODEL
                                                                  # 007
                                                                  MPN: 001619328
                                                                  RESISTANCE
                                                                  from £87.72
                                                                  from £87.72
                                                                  SPEED ADJUSTMENT RESISTOR Genuine Lamborghini - New (to order)
                                                                  # 008
                                                                  MPN: 009414532
                                                                  PIPE
                                                                  from £48.84
                                                                  from £48.84
                                                                  DASH AIR VENT PIPE Genuine Lamborghini - New (to order)
                                                                  # 008
                                                                  MPN: 009414546
                                                                  PIPE
                                                                  from £13.16
                                                                  from £13.16
                                                                  PIPE Genuine Lamborghini - New (to order)
                                                                  # 009
                                                                  -
                                                                  CONTROL
                                                                  NOT FOR THIS MODEL
                                                                  # 009
                                                                  MPN: 009014529
                                                                  CONTROL
                                                                  from £74.22
                                                                  from £74.22
                                                                  ACTUATOR Genuine Lamborghini - New (to order)
                                                                  # 010
                                                                  MPN: 004526662
                                                                  TEMPERATURE SENS.
                                                                  from £200.82
                                                                  from £200.82
                                                                  OIL SEAL RACE Genuine Lamborghini - New (to order)
                                                                  # 011
                                                                  MPN: 008400506
                                                                  WASHER
                                                                  from £0.51
                                                                  from £0.51
                                                                  FLAT WASHER 5.3X1.5X15 Genuine Lamborghini - New (to order)
                                                                  # 012
                                                                  MPN: 008100502
                                                                  SCREW
                                                                  from £0.51
                                                                  from £0.51
                                                                  SCREW 5X16 UNI 5739/8G/Z Genuine Lamborghini - New In stock
                                                                  # 013
                                                                  MPN: 009414003
                                                                  CONVEYOR
                                                                  (EUROPE, USA spec vehicles)
                                                                  from £689.43
                                                                  from £689.43
                                                                  UPPER AIR VENT Genuine Lamborghini - New (to order)
                                                                  UPPER AIR VENT Genuine Lamborghini - Used In stock
                                                                  # 013
                                                                  MPN: 009414027
                                                                  CONVEYOR
                                                                  (UK spec vehicles)
                                                                  from £1,829.54
                                                                  from £1,829.54
                                                                  CONVEYOR Genuine Lamborghini - New (to order)
                                                                  CONVEYOR Genuine Lamborghini - Used In stock
                                                                  # 013
                                                                  MPN: 009414038
                                                                  CONVEYOR
                                                                  (EUROPE, USA spec vehicles)
                                                                  CONVEYOR Genuine Lamborghini - New (to order)
                                                                  # 013
                                                                  MPN: 009414039
                                                                  CONVEYOR
                                                                  (UK spec vehicles)
                                                                  CONVEYOR Genuine Lamborghini - New (to order)
                                                                  # 014
                                                                  MPN: 008220503
                                                                  CLIP
                                                                  from £6.74
                                                                  from £6.74
                                                                  SPRING Genuine Lamborghini - New (to order)
                                                                  # 015
                                                                  -
                                                                  ELECT CABLE
                                                                  NOT FOR THIS MODEL
                                                                  # 015
                                                                  MPN: 006130619
                                                                  ELECT CABLE
                                                                  from £34.82
                                                                  from £34.82
                                                                  INTERNAL TEMPERATURE& FAN SENS OR WIRING Genuine Lamborghini - New (to order)
                                                                  # 016
                                                                  MPN: 009414531
                                                                  PIPE
                                                                  from £53.44
                                                                  from £53.44
                                                                  DASH AIR VENT PIPE Genuine Lamborghini - New (to order)
                                                                  # 016
                                                                  MPN: 009414545
                                                                  PIPE
                                                                  from £517.78
                                                                  from £517.78
                                                                  TUBO PORT.AR.BOCCH.LAT/DX Genuine Lamborghini - New (to order)
                                                                  # 017
                                                                  MPN: 007014137
                                                                  CONTROL
                                                                  from £71.50
                                                                  from £71.50
                                                                  ACTUATOR UNDER RH VENT Genuine Lamborghini - New (to order)
                                                                  # 017
                                                                  MPN: 009414548
                                                                  CONTROL
                                                                  CONTROL Genuine Lamborghini - New (to order)
                                                                  # 018
                                                                  MPN: 007014135
                                                                  CONNECTION
                                                                  Supersession
                                                                  Supersession
                                                                  Genuine Lamborghini (no longer available to order)
                                                                  # 019
                                                                  MPN: 004526666
                                                                  CONNECTION
                                                                  from £22.23
                                                                  from £22.23
                                                                  UNION Genuine Lamborghini - New (to order)
                                                                  # 020
                                                                  MPN: 004526661
                                                                  TEMPERATURE SENS.
                                                                  from £108.96
                                                                  from £108.96
                                                                  INTERNAL TEMPERATURESENSOR Genuine Lamborghini - New (to order)
                                                                  # 021
                                                                  MPN: 006032223
                                                                  PIPE
                                                                  from £6.18
                                                                  from £6.18
                                                                  SENSOR/FAN PIPE Genuine Lamborghini - New (to order)
                                                                  # 022
                                                                  MPN: 004526665
                                                                  ELECTROFAN
                                                                  from £217.13
                                                                  from £217.13
                                                                  TEMPERATURE SENSOR SOLENOID VA LVE Genuine Lamborghini - New (to order)
                                                                  # 023
                                                                  MPN: 004535410
                                                                  RADIATOR
                                                                  (EUROPE, USA spec vehicles)
                                                                  from £271.21
                                                                  from £271.21
                                                                  EVAPORATOR HEATER Genuine Lamborghini - New (to order)
                                                                  # 023
                                                                  MPN: 004535864
                                                                  RADIATOR
                                                                  (UK spec vehicles)
                                                                  from £271.21
                                                                  from £271.21
                                                                  MY '95 RHD EVAPORATOR HEATER Genuine Lamborghini - New (to order)
                                                                  # 024
                                                                  MPN: 004526663
                                                                  TEMPERATURE SENS.
                                                                  from £1,129.19
                                                                  from £1,129.19
                                                                  TEMPERATURE SENSOR Genuine Lamborghini - New (to order)
                                                                  # 025
                                                                  MPN: 004532839
                                                                  PIPE
                                                                  from £6.42
                                                                  from £6.42
                                                                  EVAPORATOR TEMPERATURE SENSOR GUARD PIPE Genuine Lamborghini - New (to order)
                                                                  # 026
                                                                  MPN: 005931538
                                                                  SUPPORT
                                                                  (EUROPE, USA spec vehicles)
                                                                  from £25.59
                                                                  from £25.59
                                                                  EVAPORATOR BRACKET Genuine Lamborghini - New (to order)
                                                                  # 026
                                                                  MPN: 005932695
                                                                  SUPPORT
                                                                  (UK spec vehicles)
                                                                  from £103.67
                                                                  from £103.67
                                                                  CONDITIONER BRACKET Genuine Lamborghini - New (to order)
                                                                  # 026
                                                                  MPN: 005937771
                                                                  SUPPORT
                                                                  (UK spec vehicles)
                                                                  from £79.44
                                                                  from £79.44
                                                                  EVAPORATOR AND SOUNDSYSTEM UNI T BRACKET Genuine Lamborghini - New (to order)
                                                                  # 027
                                                                  MPN: 005931539
                                                                  SUPPORT
                                                                  from £1.79
                                                                  from £1.79
                                                                  RADIO BRACKET Genuine Lamborghini - New In stock
                                                                  # 028
                                                                  MPN: 009414505
                                                                  CONVEYOR
                                                                  (EUROPE, USA spec vehicles)
                                                                  from £175.73
                                                                  from £175.73
                                                                  A/C RADIATOR VENT AIR MANIFOLD Genuine Lamborghini - New (to order)
                                                                  # 028
                                                                  MPN: 009414539
                                                                  CONVEYOR
                                                                  (UK spec vehicles)
                                                                  from £51.27
                                                                  from £51.27
                                                                  SIDE CONDITIONER RESERVOIR Genuine Lamborghini - New In stock
                                                                  # 029
                                                                  MPN: 008831117
                                                                  STRAP
                                                                  Supersession
                                                                  Supersession
                                                                  Genuine Lamborghini (no longer available to order)
                                                                  # 030
                                                                  MPN: 009414537
                                                                  PIPE
                                                                  from £24.79
                                                                  from £24.79
                                                                  A/C RADIATOR CONDENSE DRAIN PI PE Genuine Lamborghini - New (to order)
                                                                  # 031
                                                                  MPN: 008612507
                                                                  GASKET
                                                                  from £11.80
                                                                  from £11.80
                                                                  see 008612804 Genuine Lamborghini - New (to order)
                                                                  # 031
                                                                  MPN: 008612804
                                                                  GASKET
                                                                  from £4.01
                                                                  from £4.01
                                                                  GROMMET Genuine Lamborghini - New (to order)
                                                                  # 032
                                                                  MPN: 008832806
                                                                  STRAP
                                                                  from £2.15
                                                                  from £2.15
                                                                  CLAMP Genuine Lamborghini - New (to order)
                                                                  # 033
                                                                  MPN: 009414540
                                                                  PIPE
                                                                  from £40.84
                                                                  from £40.84
                                                                  RADIATOR CONDENSE DRAIN PIPE Genuine Lamborghini - New (to order)
                                                                  # 034
                                                                  MPN: 008611606
                                                                  GASKET
                                                                  from £1.25
                                                                  from £1.25
                                                                  GROMMET Genuine Lamborghini - New In stock
                                                                  # 035
                                                                  MPN: 008200614
                                                                  NUT
                                                                  Supersession
                                                                  Supersession
                                                                  Genuine Lamborghini (no longer available to order)
                                                                  # 036
                                                                  MPN: 004526664
                                                                  TEMPERATURE SENS.
                                                                  from £25.36
                                                                  from £25.36
                                                                  BLOWER AIR SENSOR Genuine Lamborghini - New (to order)
                                                                  # 037
                                                                  MPN: 009414536
                                                                  PIPE
                                                                  from £62.10
                                                                  from £62.10
                                                                  AIR PIPE UNDER DASHBOARD Genuine Lamborghini - New (to order)
                                                                  # 037
                                                                  MPN: 009414544
                                                                  PIPE
                                                                  from £8.66
                                                                  from £8.66
                                                                  TUBO PORT.AR.A PIEDI PIL. Genuine Lamborghini - New (to order)
                                                                  # 038
                                                                  MPN: 009490201
                                                                  GASKET
                                                                  from £28.08
                                                                  from £28.08
                                                                  A/C FAN OUTER MANIFOLD SEAL Genuine Lamborghini - New (to order)
                                                                  # 039
                                                                  MPN: 008400401
                                                                  WASHER
                                                                  Supersession
                                                                  Supersession
                                                                  Genuine Lamborghini (no longer available to order)
                                                                  # 040
                                                                  MPN: 008200406
                                                                  NUT
                                                                  from £0.53
                                                                  from £0.53
                                                                  4X0.7X4.8 5S/Z NUT Genuine Lamborghini - New (to order)
                                                                  # 041
                                                                  MPN: 004731661
                                                                  GASKET
                                                                  from £6.10
                                                                  from £6.10
                                                                  AERSTOP FA CN/20 3 MM Genuine Lamborghini - New (to order)
                                                                  # 042
                                                                  MPN: 009414534
                                                                  CONVEYOR
                                                                  (UK spec vehicles)
                                                                  from £190.09
                                                                  from £190.09
                                                                  VENT/RAD AIR MANIFOLD Genuine Lamborghini - New (to order)
                                                                  # 042
                                                                  MPN: 009490203
                                                                  CONVEYOR
                                                                  from £11.95
                                                                  from £11.95
                                                                  MANIFOLD-RADIATOR SEAL Genuine Lamborghini - New (to order)
                                                                  # 043
                                                                  MPN: 004537175
                                                                  ELECTROFAN
                                                                  (UK spec vehicles)
                                                                  from £248.26
                                                                  from £248.26
                                                                  FAN Genuine Lamborghini - New (to order)
                                                                  # 043
                                                                  MPN: 004537176
                                                                  ELECTROFAN
                                                                  (EUROPE, USA spec vehicles)
                                                                  from £248.26
                                                                  from £248.26
                                                                  SOLENOID VALVE Genuine Lamborghini - New (to order)
                                                                  # 043
                                                                  MPN: 004729405
                                                                  ELECTROFAN
                                                                  (EUROPE, USA spec vehicles)
                                                                  from £201.17
                                                                  from £201.17
                                                                  LH SCROLL SOLENOID VALVE Genuine Lamborghini - New (to order)
                                                                  # 043
                                                                  MPN: 004729406
                                                                  ELECTROFAN
                                                                  (UK spec vehicles)
                                                                  from £166.73
                                                                  from £166.73
                                                                  RH SCROLL SOLENOID VALVE Genuine Lamborghini - New (to order)
