825.06.00 - ENGINE INSULATION

Lamborghini Diablo VT (1998) ENGINE INSULATION Parts Diagram

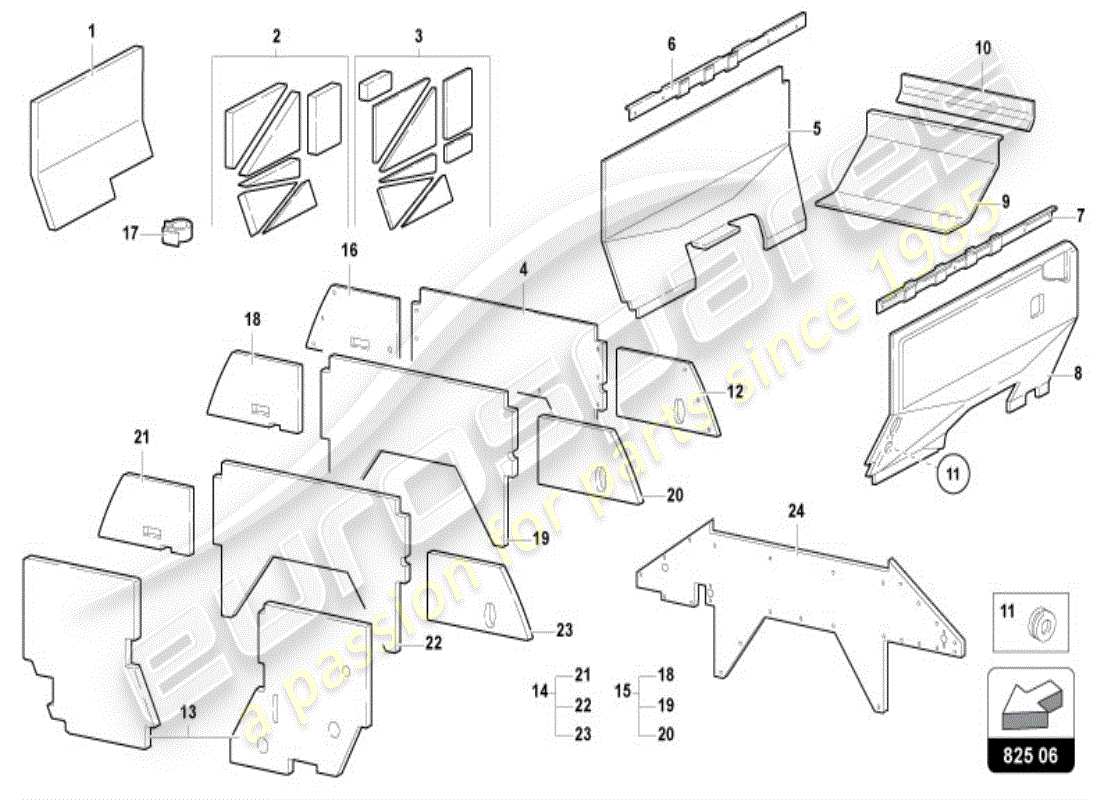

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                        #
                        Part number
                        Description
                        Key
                        Price
                        # 001
                        MPN: 009455229
                        LINING
                        from £43.01
                        from £43.01
                        INSULATION ON ENGINE/FUEL TANK FIREWALL Genuine Lamborghini - New (to order)
                        # 002
                        MPN: 310132020
                        LINING KIT
                        from £66.12
                        from £66.12
                        INTERMEDIATE FUEL TANK INSULAT ION Genuine Lamborghini - New (to order)
                        # 003
                        MPN: 310132018
                        LINING KIT
                        from £142.19
                        from £142.19
                        Insulation Genuine Lamborghini - New (to order)
                        # 004
                        MPN: 009955406
                        LINING
                        from £59.30
                        from £59.30
                        BULKHEAD CENTRAL INSULATION PA NEL Genuine Lamborghini - New (to order)
                        # 005
                        MPN: 009411633
                        LINING
                        RIGHT
                        from £673.45
                        from £673.45
                        RH ENGINE/PETROL PUMP WALL Genuine Lamborghini - New (to order)
                        # 006
                        MPN: 009411642
                        SUPPORT
                        RIGHT
                        from £63.15
                        from £63.15
                        RH WALL BRACKET Genuine Lamborghini - New (to order)
                        # 007
                        MPN: 009411643
                        SUPPORT
                        LEFT
                        from £69.49
                        from £69.49
                        LH WALL BRACKET Genuine Lamborghini - New (to order)
                        # 008
                        MPN: 009411634
                        LINING
                        LEFT
                        from £673.45
                        from £673.45
                        BATTERY/ENGINE LEFT BULKHEAD Genuine Lamborghini - New (to order)
                        # 009
                        MPN: 009411604
                        LINING
                        from £317.92
                        from £317.92
                        LOWER REAR MUFFLER BULKHEAD Genuine Lamborghini - New (to order)
                        # 010
                        MPN: 009455240
                        LINING
                        from £31.46
                        from £31.46
                        Insulation Genuine Lamborghini - New (to order)
                        # 011
                        MPN: 008612804
                        GASKET
                        from £4.01
                        from £4.01
                        GROMMET Genuine Lamborghini - New (to order)
                        # 012
                        MPN: 009955408
                        LINING
                        LEFT
                        from £39.08
                        from £39.08
                        ENGINE BULKHEAD LH INSULATION Genuine Lamborghini - New (to order)
                        # 013
                        MPN: 310144001
                        LINING KIT
                        from £71.73
                        from £71.73
                        FER 5/5 SA INSULATION Genuine Lamborghini - New (to order)
                        # 014
                        MPN: 310144002
                        LINING KIT
                        from £47.26
                        from £47.26
                        FER 5/5 SA INSULATION Genuine Lamborghini - New (to order)
                        # 015
                        MPN: 310144008
                        LINING KIT
                        from £95.49
                        from £95.49
                        THERMOGLASS 25 AL/SA Genuine Lamborghini - New (to order)
                        # 016
                        MPN: 009955407
                        LINING
                        RIGHT
                        from £37.71
                        from £37.71
                        ENGINE BULKHEAD RH INSULATION Genuine Lamborghini - New (to order)
                        # 017
                        MPN: 001731994
                        STRAP
                        from £6.42
                        from £6.42
                        CLAMP Genuine Lamborghini - New (to order)
                        # 018
                        -
                        LINING
                        SEE REF 15
                        # 019
                        -
                        LINING
                        SEE REF 15
                        # 020
                        -
                        LINING
                        SEE REF 15
                        # 021
                        -
                        LINING
                        SEE REF 14
                        # 022
                        -
                        LINING
                        SEE REF 14
                        # 023
                        -
                        LINING
                        SEE REF 14
                        # 024
                        -
                        LINING
                        NOT FOR THIS MODEL
