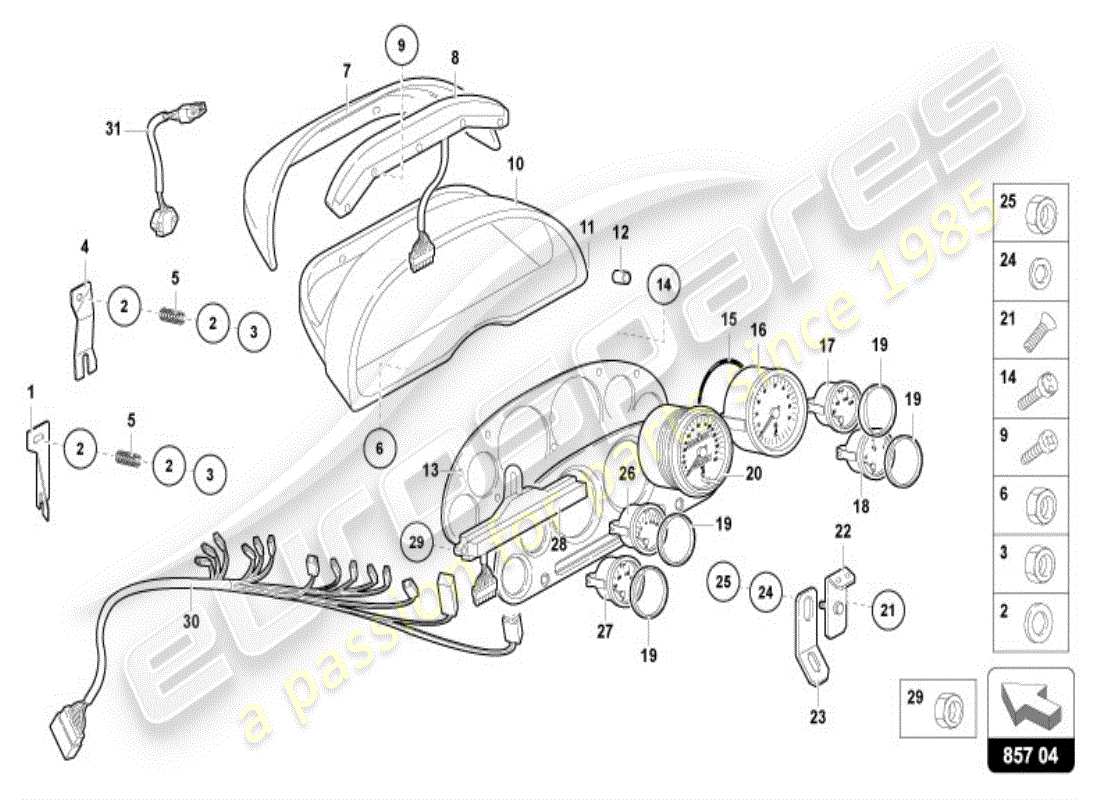

857.04.00 - COMBI-INSTRUMENT

Lamborghini Diablo VT (1998) COMBI-INSTRUMENT Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                        #
                                                        Part number
                                                        Description
                                                        Key
                                                        Price
                                                        # 001
                                                        MPN: 009414415
                                                        BRACKET
                                                        (EUROPE, USA spec vehicles)
                                                        from £44.30
                                                        from £44.30
                                                        LH DOME BRACKET Genuine Lamborghini - New (to order)
                                                        # 001
                                                        MPN: 009414422
                                                        BRACKET
                                                        (UK spec vehicles)
                                                        from £31.29
                                                        from £31.29
                                                        LH DASHBOARD DOME BRACKET Genuine Lamborghini - New (to order)
                                                        # 001
                                                        MPN: 009414435
                                                        BRACKET
                                                        (UK spec vehicles)
                                                        from £21.66
                                                        from £21.66
                                                        RIGHT DASHBOARD BRACKET Genuine Lamborghini - New (to order)
                                                        # 002
                                                        MPN: 008400606
                                                        WASHER
                                                        Supersession
                                                        Supersession
                                                        Genuine Lamborghini (no longer available to order)
                                                        # 002
                                                        MPN: 008400607
                                                        WASHER
                                                        Supersession
                                                        Supersession
                                                        Genuine Lamborghini (no longer available to order)
                                                        # 003
                                                        MPN: 008200604
                                                        NUT
                                                        Supersession
                                                        Supersession
                                                        Genuine Lamborghini (no longer available to order)
                                                        # 003
                                                        MPN: 008200606
                                                        NUT
                                                        Supersession
                                                        Supersession
                                                        Genuine Lamborghini (no longer available to order)
                                                        # 004
                                                        MPN: 009414414
                                                        BRACKET
                                                        (EUROPE, USA spec vehicles)
                                                        from £28.32
                                                        from £28.32
                                                        RH DOME BRACKET Genuine Lamborghini - New (to order)
                                                        # 004
                                                        MPN: 009414422
                                                        BRACKET
                                                        (UK spec vehicles)
                                                        from £31.29
                                                        from £31.29
                                                        LH DASHBOARD DOME BRACKET Genuine Lamborghini - New (to order)
                                                        # 004
                                                        MPN: 009414435
                                                        BRACKET
                                                        (UK spec vehicles)
                                                        from £21.66
                                                        from £21.66
                                                        RIGHT DASHBOARD BRACKET Genuine Lamborghini - New (to order)
                                                        # 005
                                                        MPN: 009414416
                                                        SPRING
                                                        from £12.04
                                                        from £12.04
                                                        DOME RETAINER SPRING Genuine Lamborghini - New (to order)
                                                        # 006
                                                        -
                                                        NUT
                                                        NOT FOR THIS MODEL
                                                        # 006
                                                        MPN: 008200503
                                                        NUT
                                                        from £2.01
                                                        from £2.01
                                                        M5 UNI 7473 ZD SELF-LOCKIN GNUT Genuine Lamborghini - New (to order)
                                                        # 007
                                                        MPN: 009414427
                                                        REAR DASHBOARD P.
                                                        from £102.87
                                                        from £102.87
                                                        WARNING LIGHT DOME Genuine Lamborghini - New (to order)
                                                        # 008
                                                        MPN: 006033214
                                                        WARNING LIGHTS
                                                        from £257.25
                                                        from £257.25
                                                        WARNING LIGHT HOOD Genuine Lamborghini - New (to order)
                                                        # 009
                                                        MPN: 008700449
                                                        SCREW
                                                        from £1.92
                                                        from £1.92
                                                        SCREW 1/56819/01 RIF. FIAT Genuine Lamborghini - New In stock
                                                        # 010
                                                        MPN: 009414437
                                                        FRONT DASHBOARD P.
                                                        from £378.50
                                                        from £378.50
                                                        FRONT DOME Genuine Lamborghini - New (to order)
                                                        # 011
                                                        MPN: 009414428
                                                        INSTRUMENT PANEL
                                                        from £106.48
                                                        from £106.48
                                                        INSTRUMENT PANEL Genuine Lamborghini - New (to order)
                                                        # 012
                                                        MPN: 009414407
                                                        SPACER
                                                        from £21.10
                                                        from £21.10
                                                        SHIM Genuine Lamborghini - New (to order)
                                                        # 013
                                                        MPN: 009414429
                                                        PLATE
                                                        from £124.08
                                                        from £124.08
                                                        INSTRUMENT PANEL COVER Genuine Lamborghini - New (to order)
                                                        # 014
                                                        MPN: 009414420
                                                        SCREW
                                                        from £21.03
                                                        from £21.03
                                                        INSTRUMENT PANEL COVER PIN Genuine Lamborghini - New (to order)
                                                        # 015
                                                        MPN: 008609802
                                                        SEAL
                                                        from £0.54
                                                        from £0.54
                                                        RING MM 97X1.78 OR Genuine Lamborghini - New (to order)
                                                        # 016
                                                        MPN: 006029656
                                                        REVOLUTION COUNT.
                                                        from £1,020.02
                                                        from £1,020.02
                                                        REV COUNTER Genuine Lamborghini - New (to order)
                                                        # 017
                                                        MPN: 006029660
                                                        WATER TEMP. GAUGE
                                                        from £256.45
                                                        from £256.45
                                                        COOLANT TEMPERATURE GAUGE Genuine Lamborghini - New (to order)
                                                        # 018
                                                        MPN: 006029657
                                                        FUEL LEVEL GAUGE
                                                        from £172.43
                                                        from £172.43
                                                        PETROL GAUGE Genuine Lamborghini - New (to order)
                                                        # 019
                                                        MPN: 006030886
                                                        SPACER
                                                        from £31.59
                                                        from £31.59
                                                        DASHBOARD INSTRUMENTSHIM Genuine Lamborghini - New (to order)
                                                        # 020
                                                        MPN: 006029655
                                                        SPEEDOMETER KM
                                                        (EUROPE spec vehicles)
                                                        from £756.20
                                                        from £756.20
                                                        ODOMETER Genuine Lamborghini - New (to order)
                                                        # 020
                                                        MPN: 006030773
                                                        SPEEDOMETER MILES
                                                        (UK, USA spec vehicles)
                                                        from £826.40
                                                        from £826.40
                                                        MILEOMETER Genuine Lamborghini - New (to order)
                                                        # 021
                                                        MPN: 008700457
                                                        SCREW
                                                        from £0.53
                                                        from £0.53
                                                        SCREW M4X12 UNI 59338G/Z Genuine Lamborghini - New (to order)
                                                        # 022
                                                        MPN: 009414433
                                                        BRACKET
                                                        from £40.36
                                                        from £40.36
                                                        LOWER CUP BRACKET Genuine Lamborghini - New (to order)
                                                        # 023
                                                        MPN: 009414432
                                                        BRACKET
                                                        from £20.70
                                                        from £20.70
                                                        LOWER CUP BRACKET Genuine Lamborghini - New (to order)
                                                        # 024
                                                        MPN: 008400509
                                                        WASHER
                                                        from £0.53
                                                        from £0.53
                                                        FLAT WASHER 5.3X11X1UNI1734 Genuine Lamborghini - New (to order)
                                                        # 024
                                                        MPN: 008400607
                                                        WASHER
                                                        Supersession
                                                        Supersession
                                                        Genuine Lamborghini (no longer available to order)
                                                        # 025
                                                        MPN: 008200501
                                                        NUT
                                                        Supersession
                                                        Supersession
                                                        Genuine Lamborghini (no longer available to order)
                                                        # 025
                                                        MPN: 008200606
                                                        NUT
                                                        Supersession
                                                        Supersession
                                                        Genuine Lamborghini (no longer available to order)
                                                        # 026
                                                        MPN: 006029658
                                                        OIL PRESSURE GAUGE
                                                        from £141.05
                                                        from £141.05
                                                        OIL PRESSURE GAUGE Genuine Lamborghini - New (to order)
                                                        OIL PRESSURE GAUGE Genuine Lamborghini - Used In stock
                                                        # 027
                                                        MPN: 006029659
                                                        OILTEMPERATURE GAUGE
                                                        from £404.73
                                                        from £404.73
                                                        OIL TEMPERATURE GAUGE Genuine Lamborghini - New (to order)
                                                        # 028
                                                        MPN: 006033213
                                                        WARNING LIGHTS
                                                        from £361.01
                                                        from £361.01
                                                        MY '97 HOOD WARNING LIGHT SET Genuine Lamborghini - New (to order)
                                                        # 029
                                                        MPN: 008200406
                                                        NUT
                                                        from £0.53
                                                        from £0.53
                                                        4X0.7X4.8 5S/Z NUT Genuine Lamborghini - New (to order)
                                                        # 030
                                                        MPN: 006133198
                                                        ELECT CABLE
                                                        from £113.78
                                                        from £113.78
                                                        DASHBOARD WIRING Genuine Lamborghini - New (to order)
                                                        # 031
                                                        MPN: 004526662
                                                        TEMPERATURE SENSOR
                                                        from £200.82
                                                        from £200.82
                                                        OIL SEAL RACE Genuine Lamborghini - New (to order)
