915.05.00 - Battery

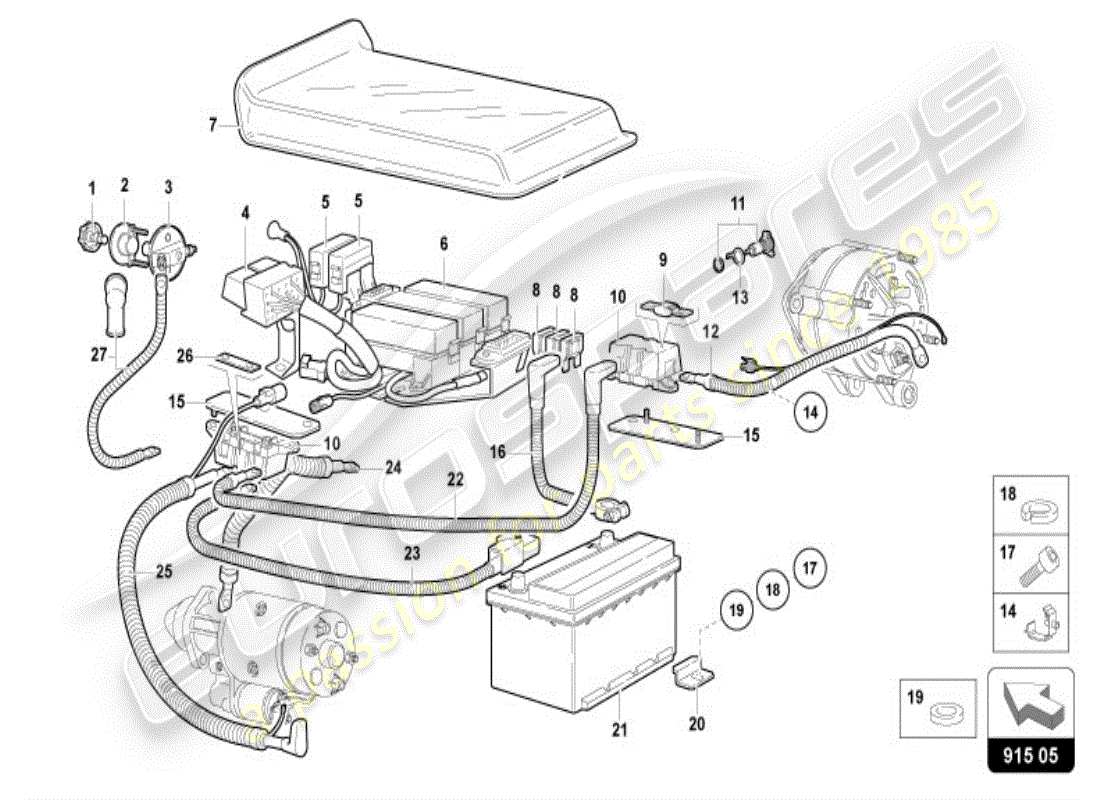

Lamborghini Diablo VT (1998) BATTERY Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                        #
                                                        Part number
                                                        Description
                                                        Key
                                                        Price
                                                        # 001
                                                        MPN: 005931167
                                                        KNOB
                                                        from £57.54
                                                        from £57.54
                                                        BATTERY DISCONNECT KNOB Genuine Lamborghini - New (to order)
                                                        # 002
                                                        MPN: 005931299
                                                        FLANGE
                                                        from £149.57
                                                        from £149.57
                                                        BATTERY DISCONNECT FLANGE Genuine Lamborghini - New (to order)
                                                        # 003
                                                        MPN: 005931163
                                                        CONNECTION
                                                        from £150.37
                                                        from £150.37
                                                        BATTERY DISCONNECT Genuine Lamborghini - New (to order)
                                                        # 004
                                                        MPN: 005937770
                                                        RELAY
                                                        from £22.87
                                                        from £22.87
                                                        RELAY Genuine Lamborghini - New (to order)
                                                        # 005
                                                        MPN: 006137478
                                                        MEGA FUSE CASE
                                                        Supersession
                                                        Supersession
                                                        Genuine Lamborghini (no longer available to order)
                                                        # 006
                                                        MPN: 006138338
                                                        CASE
                                                        from £827.51
                                                        from £827.51
                                                        REAR RELAY BOX WIRING Genuine Lamborghini - New (to order)
                                                        # 007
                                                        MPN: 005937289
                                                        SHIELD
                                                        from £108.16
                                                        from £108.16
                                                        RELAY BOX COVER Genuine Lamborghini - New (to order)
                                                        # 008
                                                        MPN: 006138009
                                                        MEGAFUSE
                                                        from £32.18
                                                        from £32.18
                                                        50 A FUSE Genuine Lamborghini - New (to order)
                                                        # 008
                                                        MPN: 006138010
                                                        MEGAFUSE
                                                        from £32.18
                                                        from £32.18
                                                        80 A FUSE Genuine Lamborghini - New (to order)
                                                        # 009
                                                        MPN: 006137479
                                                        FUSE
                                                        Supersession
                                                        Supersession
                                                        Genuine Lamborghini (no longer available to order)
                                                        # 010
                                                        MPN: 006137478
                                                        CASE
                                                        Supersession
                                                        Supersession
                                                        Genuine Lamborghini (no longer available to order)
                                                        # 011
                                                        MPN: 005936741
                                                        TAP BATTERY CHARG.
                                                        from £11.55
                                                        from £11.55
                                                        TWO-POLE SOCKET 8JB 001946-011 Genuine Lamborghini - New (to order)
                                                        # 012
                                                        MPN: 006137477
                                                        ELECT CABLE
                                                        from £51.59
                                                        from £51.59
                                                        ALTERNATOR-JOINT 1 WIRE Genuine Lamborghini - New (to order)
                                                        # 013
                                                        MPN: 005937868
                                                        GROUND CONNEC.
                                                        from £11.07
                                                        from £11.07
                                                        BATTERY CHARGER PLUGTAB Genuine Lamborghini - New (to order)
                                                        # 014
                                                        MPN: 008832006
                                                        STRAP
                                                        from £2.04
                                                        from £2.04
                                                        PEG Genuine Lamborghini - New (to order)
                                                        # 015
                                                        MPN: 005937655
                                                        SUPPORT
                                                        SUPPORT Genuine Lamborghini - New (to order)
                                                        # 016
                                                        MPN: 006136784
                                                        GROUND CABLE
                                                        from £55.13
                                                        from £55.13
                                                        CHASSIS BATTERY WIRE Genuine Lamborghini - New (to order)
                                                        # 017
                                                        MPN: 008700815
                                                        SCREW
                                                        from £0.54
                                                        from £0.54
                                                        SCREW M8X20 UNI 5931/8G/ZD Genuine Lamborghini - New In stock
                                                        # 018
                                                        MPN: 008400816
                                                        WASHER
                                                        Supersession
                                                        Supersession
                                                        Genuine Lamborghini (no longer available to order)
                                                        # 019
                                                        MPN: 008410819
                                                        WASHER
                                                        from £1.53
                                                        from £1.53
                                                        SNAP RING D.8 DIN 7980 Genuine Lamborghini - New (to order)
                                                        SNAP RING D.8 DIN 7980 Genuine Lamborghini - New (other) In stock
                                                        WASHER
                                                        # 020
                                                        MPN: 004130608
                                                        BRACKET
                                                        from £18.68
                                                        from £18.68
                                                        BATTERY MOUNTING PLATE Genuine Lamborghini - New In stock
                                                        # 021
                                                        MPN: 001624948
                                                        Battery
                                                        from £657.84
                                                        from £657.84
                                                        Battery Genuine Lamborghini - New (to order)
                                                        # 022
                                                        MPN: 006137474
                                                        ELECT CABLE
                                                        from £61.15
                                                        from £61.15
                                                        JOINT 1-JOINT 2 WIRE Genuine Lamborghini - New (to order)
                                                        # 023
                                                        MPN: 006137475
                                                        ELECT CABLE
                                                        from £147.12
                                                        from £147.12
                                                        BATTERY-JOINT 2 WIRE Genuine Lamborghini - New (to order)
                                                        # 024
                                                        MPN: 006135923
                                                        GROUND CABLE
                                                        from £52.47
                                                        from £52.47
                                                        ENGINE-CHASSIS WIRE Genuine Lamborghini - New (to order)
                                                        # 025
                                                        MPN: 006137473
                                                        ELECT CABLE
                                                        from £105.65
                                                        from £105.65
                                                        STARTER MOTOR-JOINT 2 WIRE Genuine Lamborghini - New (to order)
                                                        # 027
                                                        MPN: 006137476
                                                        ELECT CABLE
                                                        from £46.22
                                                        from £46.22
                                                        BATTERY DISCONNECT-JOINT 2 WIR E Genuine Lamborghini - New (to order)
