lamborghini diablo vt (1998) electrical system parts diagram

971.15.00 - electrical system

Lamborghini Diablo VT (1998) ELECTRICAL SYSTEM Parts Diagram

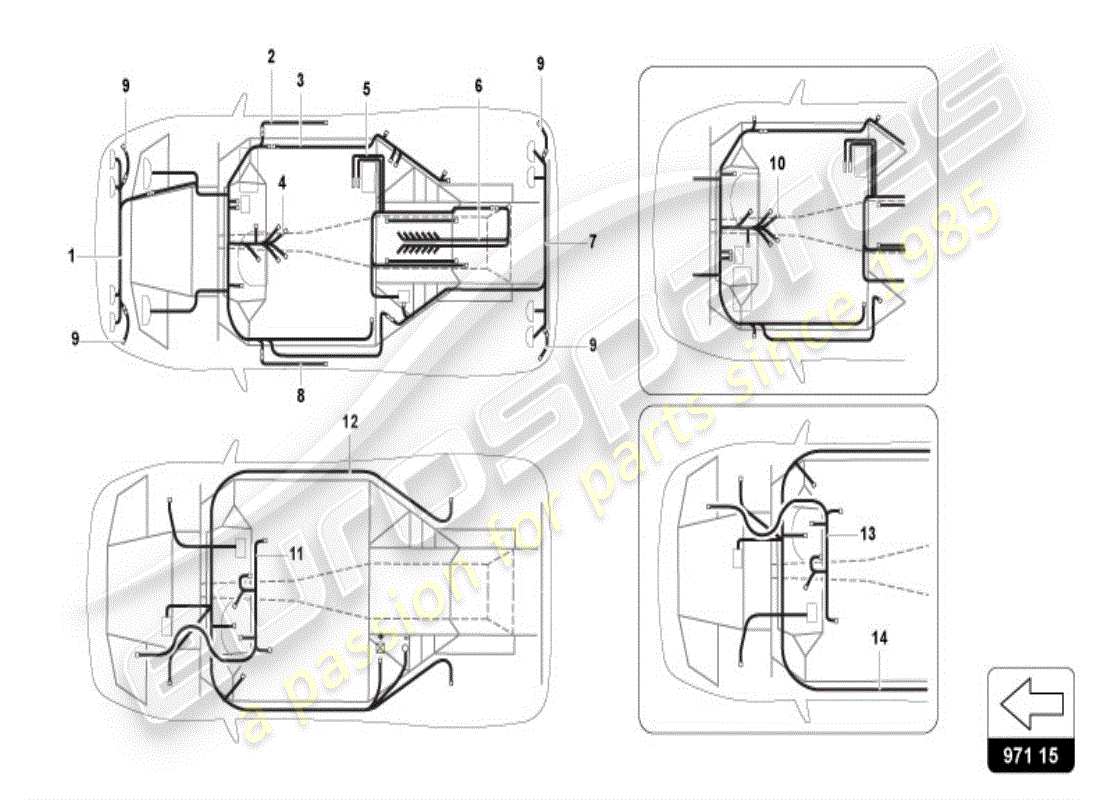

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 001
MPN: 006138167
CABLE
FRONT
from £114.74
from £114.74
FRONT BUMPER WIRING Genuine Lamborghini - New (to order)
# 002
MPN: 006137047
CABLE
RIGHT DOOR
from £202.37
from £202.37
LH DOOR WIRING Genuine Lamborghini - New (to order)
# 003
MPN: 006138163
CABLE
RIGHT REAR
from £206.45
from £206.45
RH REAR WIRING Genuine Lamborghini - New (to order)
# 004
MPN: 006138158
CABLE
CENTRE
from £3,932.65
from £3,932.65
CENTRAL WIRING Genuine Lamborghini - New (to order)
# 005
MPN: 006138337
CABLE
INJECTION
from £1,749.23
from £1,749.23
INJECTION WIRING Genuine Lamborghini - New (to order)
# 006
MPN: 006138160
CABLE
engine
from £426.88
from £426.88
ENGINE WIRING MY'98 Genuine Lamborghini - New (to order)
# 007
MPN: 006138164
CABLE
LEFT REAR
from £350.65
from £350.65
LH REAR WIRING Genuine Lamborghini - New (to order)
# 008
MPN: 006137046
CABLE
LEFT DOOR
from £183.51
from £183.51
RH DOOR WIRING Genuine Lamborghini - New (to order)
# 009
MPN: 006138210
CABLE
SIDE MARKER (USA spec vehicles)
from £31.13
from £31.13
SIDE MARKER WIRING Genuine Lamborghini - New (to order)
# 010
MPN: 006138159
CABLE
CENTRE (UK spec vehicles)
CABLE Genuine Lamborghini - New (to order)
# 011
MPN: 006137795
CABLE
AIRBAG
from £97.89
from £97.89
AIRBAG WIRING Genuine Lamborghini - New (to order)
# 012
MPN: 006138218
CABLE
ABS
from £353.94
from £353.94
ABS WIRING Genuine Lamborghini - New (to order)
# 013
MPN: 006137795
CABLE
AIRBAG (UK spec vehicles)
from £97.89
from £97.89
AIRBAG WIRING Genuine Lamborghini - New (to order)
# 014
MPN: 006138219
CABLE
ABS (UK spec vehicles)
from £353.94
from £353.94
RHD ABS WIRING Genuine Lamborghini - New (to order)
