103.13.00 - engine gasket kit

Lamborghini Diablo VT (1999) ENGINE GASKET KIT Parts Diagram

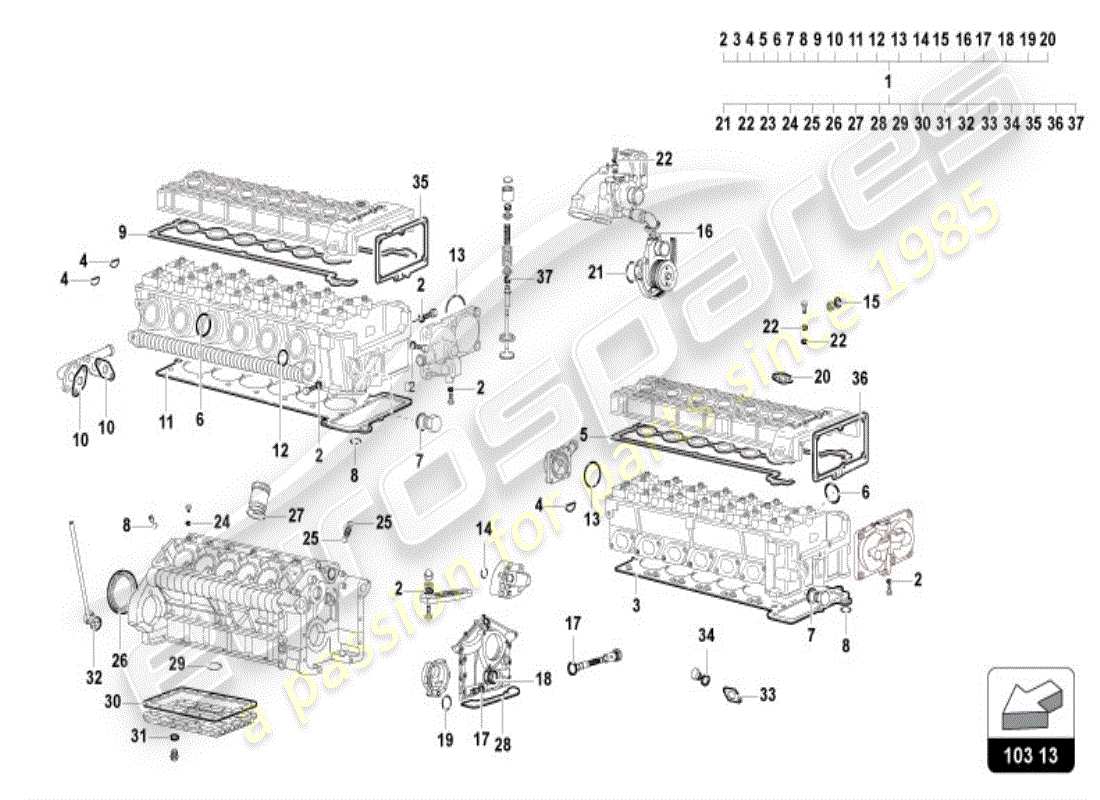

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 0011005352
KIT
FROM ENGINE 2220
from £2,078.75
from £2,078.75
# 002
MPN: 008400609
WASHER
FROM ENGINE 2220
Supersession
Supersession
# 003
MPN: 0011000987
GASKET
FROM ENGINE 2220
from £169.96
from £169.96
This part replaces part number 001129852 - and 1 more. Click to view details
# 004
MPN: 0011003411
COVER
FROM ENGINE 2220
Supersession
Supersession
# 005
MPN: 0011004920
GASKET
FROM ENGINE 2220
# 006
MPN: 008604703
SEAL
FROM ENGINE 2220
from £5.22
from £5.22
This part replaces part number 008604701
# 007
MPN: 008402609
WASHER
FROM ENGINE 2220
Supersession
Supersession
# 008
MPN: 008601203
SEAL
FROM ENGINE 2220
Supersession
Supersession
# 009
MPN: 0011004919
GASKET
FROM ENGINE 2220
# 010
MPN: 001121254
GASKET
FROM ENGINE 2220
from £5.36
from £5.36
# 011
MPN: 0011000988
GASKET
FROM ENGINE 2220
from £169.96
from £169.96
This part replaces part number 001129853 - and 1 more. Click to view details
# 012
MPN: 008603503
SEAL
FROM ENGINE 2220
from £2.64
from £2.64
This part replaces part number 008603501
# 013
MPN: 008606205
SEAL
FROM ENGINE 2220
from £4.10
from £4.10
This part replaces part number 008606201
# 014
MPN: 008601501
SEAL
FROM ENGINE 2220
from £3.78
from £3.78
# 015
MPN: 008401008
WASHER
FROM ENGINE 2220
Supersession
Supersession
# 016
MPN: 008602803
SEAL
FROM ENGINE 2220
# 017
MPN: 008403007
WASHER
FROM ENGINE 2220
from £0.75
from £0.75
# 018
MPN: 008613702
SEAL
FROM ENGINE 2220
from £37.08
from £37.08
# 019
MPN: 008601705
SEAL
FROM ENGINE 2220
from £0.51
from £0.51
# 020
MPN: 001831058
GASKET
FROM ENGINE 2220
from £3.02
from £3.02
# 021
MPN: 008609901
SEAL
FROM ENGINE 2220
# 022
MPN: 008400818
WASHER
FROM ENGINE 2220
Supersession
Supersession
# 023
MPN: 008601106
SEAL
FROM ENGINE 2220
# 024
MPN: 008401425
WASHER
FROM ENGINE 2220
Supersession
Supersession
# 025
MPN: 008600705
SEAL
FROM ENGINE 2220
# 026
MPN: 001829403
SEAL
FROM ENGINE 2220
# 027
MPN: 008608801
SEAL
FROM ENGINE 2220
# 028
MPN: 001232219
GASKET
FROM ENGINE 2220
from £3.04
from £3.04
# 029
MPN: 008609302
SEAL
FROM ENGINE 2220
# 030
MPN: 001826521
GASKET
FROM ENGINE 2220
from £79.76
from £79.76
# 031
MPN: 008402202
WASHER
FROM ENGINE 2220
from £2.73
from £2.73
# 032
MPN: 001830006
GASKET
FROM ENGINE 2220
from £4.78
from £4.78
# 033
MPN: 001121245
GASKET
FROM ENGINE 2220
Supersession
Supersession
# 034
MPN: 008401819
WASHER
FROM ENGINE 2220
Supersession
Supersession
# 035
MPN: 0011004551
GASKET
FROM ENGINE 2220
from £20.61
from £20.61
# 036
MPN: 0011003889
GASKET
FROM ENGINE 2220
from £18.60
from £18.60
# 037
MPN: 001220840
SEAL
FROM ENGINE 2220
Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
