105.01.00 - CRANKSHAFT WITH BEARINGS

Lamborghini Diablo VT (1999) CRANKSHAFT WITH BEARINGS Parts Diagram

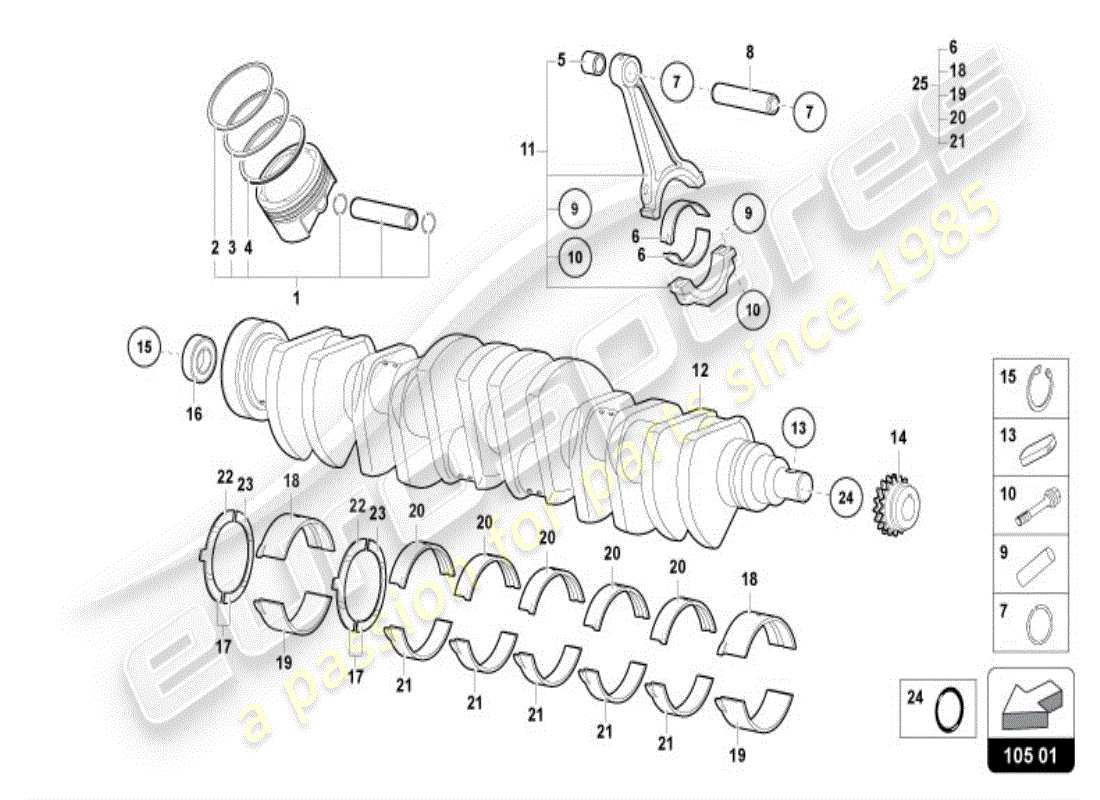

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                      #
                                      Part number
                                      Description
                                      Key
                                      Price
                                      # 001
                                      MPN: 001434827
                                      PISTON
                                      from £276.91
                                      from £276.91
                                      PISTON UNIT Genuine Lamborghini - New (to order)
                                      # 002
                                      MPN: 001431826
                                      PISTON RING
                                      PISTON RING Genuine Lamborghini - New (to order)
                                      # 003
                                      MPN: 001433747
                                      PISTON RING
                                      FROM 12467 - COMPATIBLE ONLY WITH 001433968
                                      PISTON RING Genuine Lamborghini - New (to order)
                                      # 004
                                      MPN: 001430432
                                      PISTON RING
                                      PISTON RING Genuine Lamborghini - New (to order)
                                      # 005
                                      -
                                      BUSHING
                                      NOT AVAILABLE SEPARATELY - INCLUDED IN REF. 11
                                      # 006
                                      MPN: 001434892
                                      HALF-BEARING
                                      BIG END BEARING SHELL Genuine Lamborghini - New (to order)
                                      # 007
                                      MPN: 001430537
                                      RING
                                      from £0.74
                                      from £0.74
                                      RING Genuine Lamborghini - New (to order)
                                      # 008
                                      MPN: 001430536
                                      PISTON PIN
                                      from £240.37
                                      from £240.37
                                      PISTON PIN Genuine Lamborghini - New (to order)
                                      # 009
                                      -
                                      DOWEL
                                      NOT AVAILABLE SEPARATELY - INCLUDED IN REF. 11
                                      # 010
                                      -
                                      CON. ROD BOLT
                                      NOT AVAILABLE SEPARATELY - INCLUDED IN REF. 11
                                      # 011
                                      MPN: 001429577
                                      LINK
                                      from £458.81
                                      from £458.81
                                      CONNECTING ROD & BOLTS/DOWELS Genuine Lamborghini - New (to order)
                                      # 012
                                      MPN: 423400400
                                      SHAFT
                                      from £5,206.69
                                      from £5,206.69
                                      This part replaces part number 423400200
                                      SV MACHINED CRANKSHAFT Genuine Lamborghini - New (to order)
                                      # 014
                                      -
                                      GEAR
                                      NOT FOR THIS MODEL
                                      # 015
                                      MPN: 008573501
                                      RING
                                      Supersession
                                      Supersession
                                      Genuine Lamborghini (no longer available to order)
                                      # 016
                                      MPN: 008501501
                                      BEARING
                                      Supersession
                                      Supersession
                                      Genuine Lamborghini (no longer available to order)
                                      # 017
                                      -
                                      HALF-BEARING
                                      NOT FOR THIS MODEL
                                      # 018
                                      MPN: 001427228
                                      HALF-BEARING
                                      BEARING Genuine Lamborghini - New (to order)
                                      # 019
                                      MPN: 001427231
                                      HALF-BEARING
                                      BEARING Genuine Lamborghini - New (to order)
                                      # 020
                                      MPN: 001427240
                                      HALF-BEARING
                                      BEARING Genuine Lamborghini - New (to order)
                                      # 021
                                      MPN: 001420926
                                      HALF-BEARING
                                      BEARING Genuine Lamborghini - New (to order)
                                      # 022
                                      MPN: 001434369
                                      HALF-BEARING
                                      HALF-BEARING Genuine Lamborghini - New (to order)
                                      # 023
                                      MPN: 001434370
                                      HALF-BEARING
                                      HALF-BEARING Genuine Lamborghini - New (to order)
                                      # 024
                                      MPN: 008602803
                                      SEAL
                                      INCLUDED IN ENGINE GASKET KIT AND COVER GASKET KIT
                                      Lamborghini PART 008602803 Genuine Lamborghini - New (to order)
                                      # 025
                                      MPN: 001434599
                                      SET OF BUSHES
                                      from £2,314.52
                                      from £2,314.52
                                      MAIN & BIG END BEARING SET +20 Genuine Lamborghini - New (to order)
