115.05.00 - Engine Oil System

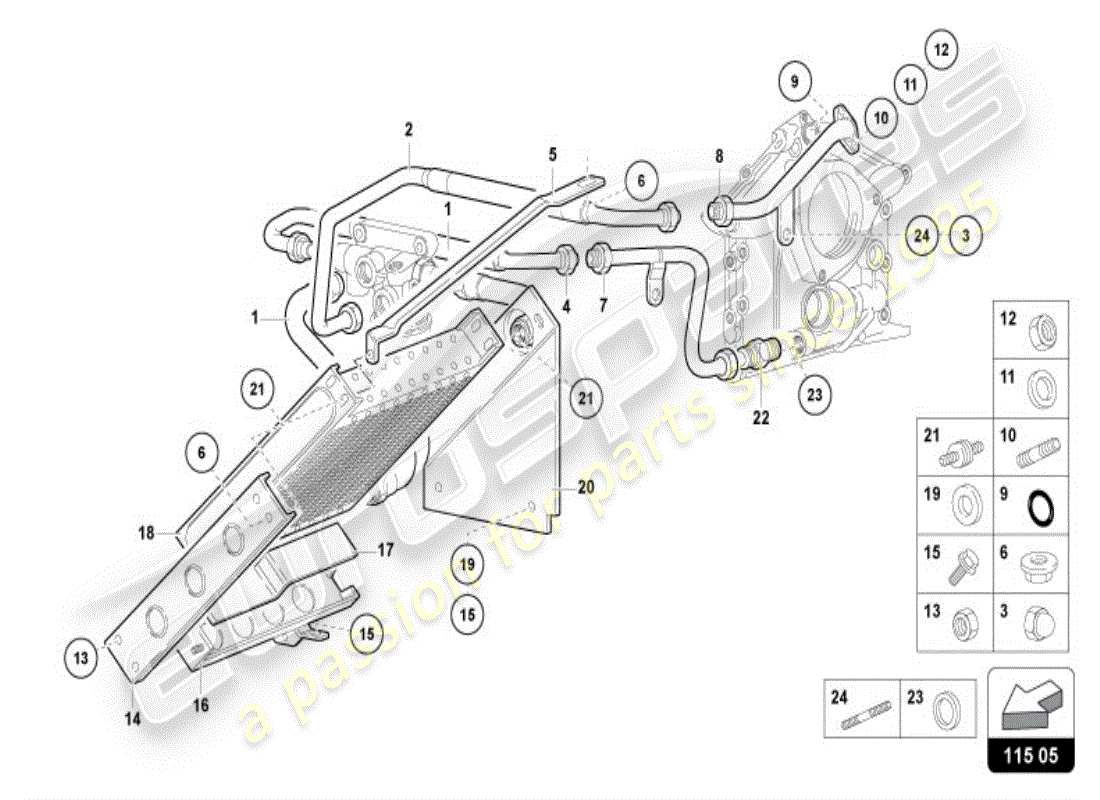

Lamborghini Diablo VT (1999) ENGINE OIL SYSTEM Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 0015001970
FLEX. HOSE
from £550.80
from £550.80
This part replaces part number 001535077 which we have in stock
# 002
MPN: 001535966
PIPE
from £168.41
from £168.41
# 003
MPN: 008200816
NUT
from £3.21
from £3.21
# 004
MPN: 001535965
PIPE
from £317.26
from £317.26
# 005
MPN: 004138028
TIE ROD
from £60.57
from £60.57
# 006
MPN: 008200614
NUT
Supersession
Supersession
# 007
MPN: 001537292
PIPE
from £245.04
from £245.04
# 008
MPN: 001535967
PIPE
from £80.19
from £80.19
# 009
MPN: 008602803
SEAL
# 010
MPN: 008300828
STUD
# 011
MPN: 008410810
WASHER
Supersession
Supersession
# 012
MPN: 008200801
NUT
Supersession
Supersession
# 013
MPN: 008200606
NUT
Supersession
Supersession
# 014
MPN: 004138030
BRACKET
from £18.48
from £18.48
# 015
MPN: 008700663
SCREW
from £0.52
from £0.52
# 016
MPN: 004138033
SUPPORT
from £127.46
from £127.46
# 017
MPN: 001533325
RUBBER WEATHEROIL
# 018
MPN: 001533283
RADIATOR
# 019
MPN: 008400607
WASHER
Supersession
Supersession
# 020
MPN: 004138040
SUPPORT
from £42.48
from £42.48
# 021
MPN: 008920602
ELASTIC SUPPORT
from £9.24
from £9.24
# 022
MPN: 001529610
CONNECTION
Supersession
Supersession
# 023
MPN: 008403007
WASHER
FROM VT99 ALSO INCLUDED IN ENGINE GASKET KIT
from £0.78
from £0.78
# 024
MPN: 008300905
STUD
from £11.85
from £11.85
