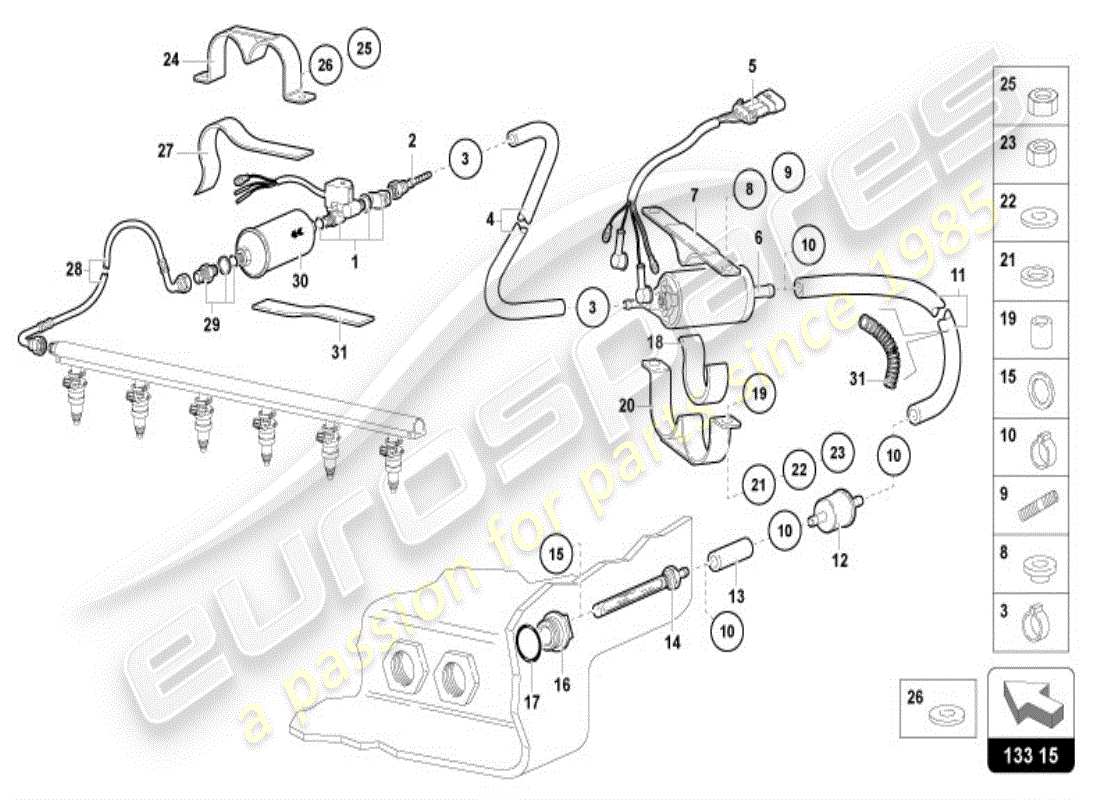

133.15.00 - FUEL SUPPLY SYSTEM
Lamborghini Diablo VT (1999) FUEL SUPPLY SYSTEM Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 006138349
ELECTRO-VALVE KIT
Supersession
Supersession
# 002
MPN: 006227630
CONNECTION
from £9.35
from £9.35
# 003
MPN: 008831528
STRAP
Supersession
Supersession
# 004
MPN: 006230218
PIPE
from £17.51
from £17.51
# 005
MPN: 006130194
ELECT CABLE
from £26.58
from £26.58
# 006
MPN: 002024398
fuel pump
from £429.73
from £429.73
# 007
MPN: 006229533
PLATE
from £38.79
from £38.79
# 008
MPN: 001701495
RUBBER RING
from £36.56
from £36.56
# 009
MPN: 008300803
STUD
from £8.37
from £8.37
# 010
MPN: 008832008
STRAP
# 011
MPN: 006230225
PIPE
from £14.01
from £14.01
# 012
MPN: 006229221
FILTER
from £57.70
from £57.70
# 013
MPN: 006230226
PIPE
from £44.33
from £44.33
# 014
MPN: 0062001649
PIPE
from £381.81
from £381.81
# 015
MPN: 008402208
WASHER
# 016
MPN: 0062001647
ADAPTER
from £254.93
from £254.93
# 017
MPN: 008603703
SEAL
from £13.27
from £13.27
# 018
MPN: 006226900
GASKET
from £16.70
from £16.70
# 019
MPN: 001701592
SPACER
from £18.04
from £18.04
# 020
MPN: 006229532
STRAP
from £38.28
from £38.28
# 021
MPN: 001707163
RUBBER RING
Supersession
Supersession
# 022
MPN: 008400804
WASHER
Supersession
Supersession
# 023
MPN: 008200804
NUT
from £0.82
from £0.82
# 024
MPN: 006230214
STRAP
# 025
MPN: 008200606
NUT
Supersession
Supersession
# 026
MPN: 008400607
WASHER
Supersession
Supersession
# 027
MPN: 006232169
GASKET
# 028
MPN: 006231552
PIPE
from £161.42
from £161.42
# 028
MPN: 006231554
PIPE
from £94.43
from £94.43
# 029
MPN: 006230564
CONNECTION
Supersession
Supersession
# 030
MPN: 002030563
FILTER
Supersession
Supersession
# 031
MPN: 006232168
GASKET
# 032
MPN: 0062002430
SPRING
Supersession
Supersession
