253.02.00 - SILENCER WITH CATALYST

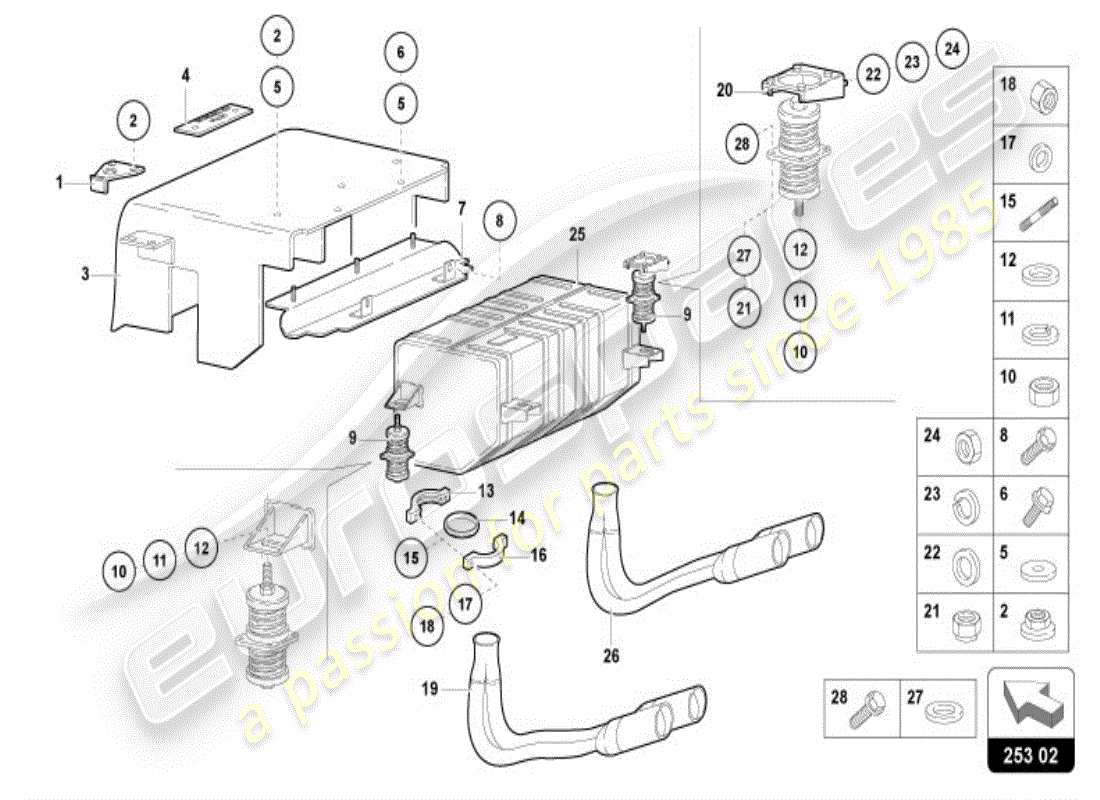

Lamborghini Diablo VT (1999) SILENCER WITH CATALYST Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
-
SUPPORT
NOT FOR THIS MODEL
# 002
MPN: 008200614
NUT
Supersession
Supersession
# 003
MPN: 004435003
SHIELD
from £3,148.04
from £3,148.04
# 004
-
PLATE
NOT FOR THIS MODEL
# 005
MPN: 009444151
WASHER
Supersession
Supersession
# 006
MPN: 008700660
SCREW
from £0.53
from £0.53
# 007
MPN: 0044001454
SHIELD
from £332.68
from £332.68
This part replaces part number 004432116
# 008
MPN: 008700449
SCREW
from £2.09
from £2.09
# 009
MPN: 004432031
SHOCK ABSORBER
Supersession
Supersession
# 010
MPN: 008201001
NUT
Supersession
Supersession
# 011
MPN: 008451005
WASHER
from £0.50
from £0.50
# 012
MPN: 008401006
WASHER
Supersession
Supersession
# 013
MPN: 004424067
HALF RING
# 014
MPN: 004424070
BI-CONE RING
from £95.84
from £95.84
# 015
MPN: 008300903
STUD
from £5.70
from £5.70
# 016
MPN: 004424068
HALF RING
# 017
MPN: 008440806
WASHER
from £0.53
from £0.53
# 018
MPN: 008200825
NUT
from £1.41
from £1.41
# 019
-
TERMINAL
LEFT - SEE ILLUSTRATION: 253.05
# 020
MPN: 004437428
SUPPORT
from £56.22
from £56.22
# 021
MPN: 008200503
NUT
from £2.07
from £2.07
# 022
MPN: 008400801
WASHER
Supersession
Supersession
# 023
MPN: 008410806
WASHER
Supersession
Supersession
# 024
MPN: 008200808
NUT
Supersession
Supersession
# 025
MPN: 004430979
SILENCER/MU FFLER
from £1,522.50
from £1,522.50
# 026
-
TERMINAL
RIGHT - SEE ILLUSTRATION: 253.05
# 027
MPN: 008410508
WASHER
from £0.73
from £0.73
# 028
MPN: 008100504
SCREW
Supersession
Supersession
