lamborghini diablo vt (1999) abs ecu parts diagram

611.05.00 - ABS ECU

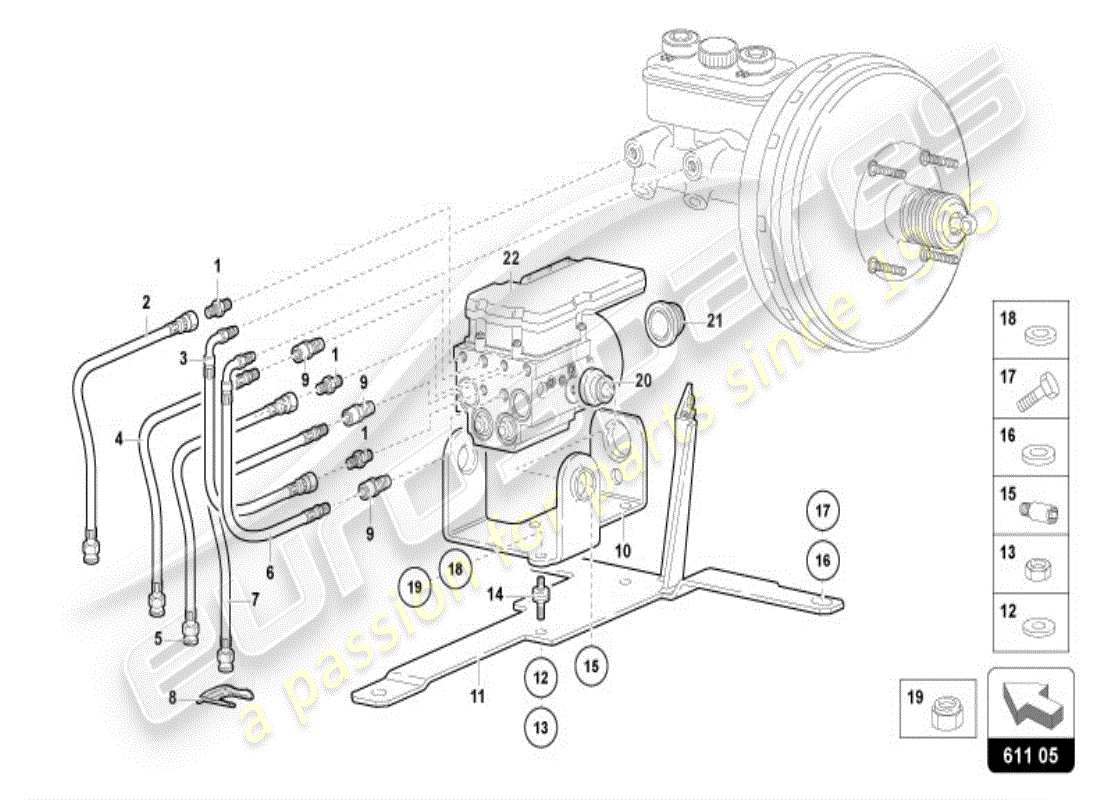

Lamborghini Diablo VT (1999) ABS ECU Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                #
                                Part number
                                Description
                                Key
                                Price
                                # 001
                                MPN: 0031001088
                                CONNECTION
                                CONNECTOR Genuine Lamborghini - New (to order)
                                # 002
                                MPN: 0032001097
                                FLEX. HOSE
                                (EUROPE, USA spec vehicles)
                                from £34.57
                                from £34.57
                                HOSE Genuine Lamborghini - New (to order)
                                # 002
                                MPN: 0032001508
                                FLEX. HOSE
                                (UK spec vehicles)
                                from £63.54
                                from £63.54
                                HOSE Genuine Lamborghini - New (to order)
                                # 003
                                MPN: 0032001096
                                FLEX. HOSE
                                (EUROPE, USA spec vehicles)
                                from £99.55
                                from £99.55
                                HOSE Genuine Lamborghini - New (to order)
                                # 003
                                MPN: 0032001504
                                FLEX. HOSE
                                (UK spec vehicles)
                                from £51.20
                                from £51.20
                                HOSE Genuine Lamborghini - New (to order)
                                # 004
                                MPN: 0032001101
                                FLEX. HOSE
                                (EUROPE, USA spec vehicles)
                                from £35.98
                                from £35.98
                                HOSE Genuine Lamborghini - New (to order)
                                # 004
                                MPN: 0032001507
                                FLEX. HOSE
                                (UK spec vehicles)
                                from £44.05
                                from £44.05
                                HOSE Genuine Lamborghini - New (to order)
                                # 005
                                MPN: 0031001091
                                FLEX. HOSE
                                (EUROPE, USA spec vehicles)
                                from £33.21
                                from £33.21
                                HOSE Genuine Lamborghini - New (to order)
                                # 005
                                MPN: 0031001506
                                FLEX. HOSE
                                (UK spec vehicles)
                                from £63.54
                                from £63.54
                                HOSE Genuine Lamborghini - New (to order)
                                # 006
                                MPN: 0031001090
                                FLEX. HOSE
                                (EUROPE, USA spec vehicles)
                                from £33.21
                                from £33.21
                                ABS PUMP-ECU PIPE Genuine Lamborghini - New (to order)
                                # 006
                                MPN: 0031001503
                                FLEX. HOSE
                                (UK spec vehicles)
                                from £63.54
                                from £63.54
                                HOSE Genuine Lamborghini - New (to order)
                                # 007
                                MPN: 0031001094
                                FLEX. HOSE
                                (EUROPE, USA spec vehicles)
                                from £69.13
                                from £69.13
                                HOSE Genuine Lamborghini - New (to order)
                                # 007
                                MPN: 0031001505
                                FLEX. HOSE
                                (UK spec vehicles)
                                from £44.05
                                from £44.05
                                HOSE Genuine Lamborghini - New (to order)
                                # 008
                                MPN: 003130840
                                PLATE
                                from £18.04
                                from £18.04
                                PIPE LOCK PLATE Genuine Lamborghini - New (to order)
                                # 009
                                MPN: 0031001089
                                CONNECTION
                                CONNECTION Genuine Lamborghini - New (to order)
                                # 010
                                MPN: 0031001291
                                BRACKET
                                BRACKET Genuine Lamborghini - New (to order)
                                # 011
                                MPN: 0031001083
                                SUPPORT
                                (EUROPE, USA spec vehicles)
                                from £111.94
                                from £111.94
                                CHASSIS MOUNT ON CHASSIS Genuine Lamborghini - New (to order)
                                # 011
                                MPN: 0031001552
                                SUPPORT
                                (UK spec vehicles)
                                from £63.74
                                from £63.74
                                ABS ECU BRACKET Genuine Lamborghini - New (to order)
                                # 012
                                MPN: 008400607
                                WASHER
                                Supersession
                                Supersession
                                Genuine Lamborghini (no longer available to order)
                                # 013
                                MPN: 008200606
                                NUT
                                Supersession
                                Supersession
                                Genuine Lamborghini (no longer available to order)
                                # 014
                                MPN: 008920602
                                ELASTIC SUPPORT
                                from £9.24
                                from £9.24
                                RUBBER SUPPORT D18X8.5 FIL.M6X 10/16 Genuine Lamborghini - New (to order)
                                # 015
                                MPN: 0031001000
                                PIN
                                PIN Genuine Lamborghini - New (to order)
                                # 016
                                MPN: 008410819
                                WASHER
                                from £1.48
                                from £1.48
                                SNAP RING D.8 DIN 7980 Genuine Lamborghini - New (to order)
                                SNAP RING D.8 DIN 7980 Genuine Lamborghini - New (other) In stock
                                WASHER
                                # 017
                                MPN: 008100826
                                SCREW
                                from £0.53
                                from £0.53
                                SCREW M8X16 UNI 5739/8G/Z Genuine Lamborghini - New (to order)
                                # 018
                                MPN: 008410612
                                WASHER
                                Supersession
                                Supersession
                                Genuine Lamborghini (no longer available to order)
                                # 020
                                MPN: 0031001001
                                ELASTIC SUPPORT
                                FLEXIBLE SUPPORT Genuine Lamborghini - New (to order)
                                # 021
                                MPN: 0031000999
                                ELASTIC SUPPORT
                                FLEXIBLE SUPPORT Genuine Lamborghini - New (to order)
                                # 022
                                MPN: 0031000998
                                ABS ECU
                                from £3,109.65
                                from £3,109.65
                                ABS HYDRAULIC ECU Genuine Lamborghini - New (to order)
                                ABS HYDRAULIC ECU Genuine Lamborghini - Used In stock
