lamborghini diablo vt (1999) trim frame front part parts diagram

701.05.00 - TRIM FRAME FRONT PART

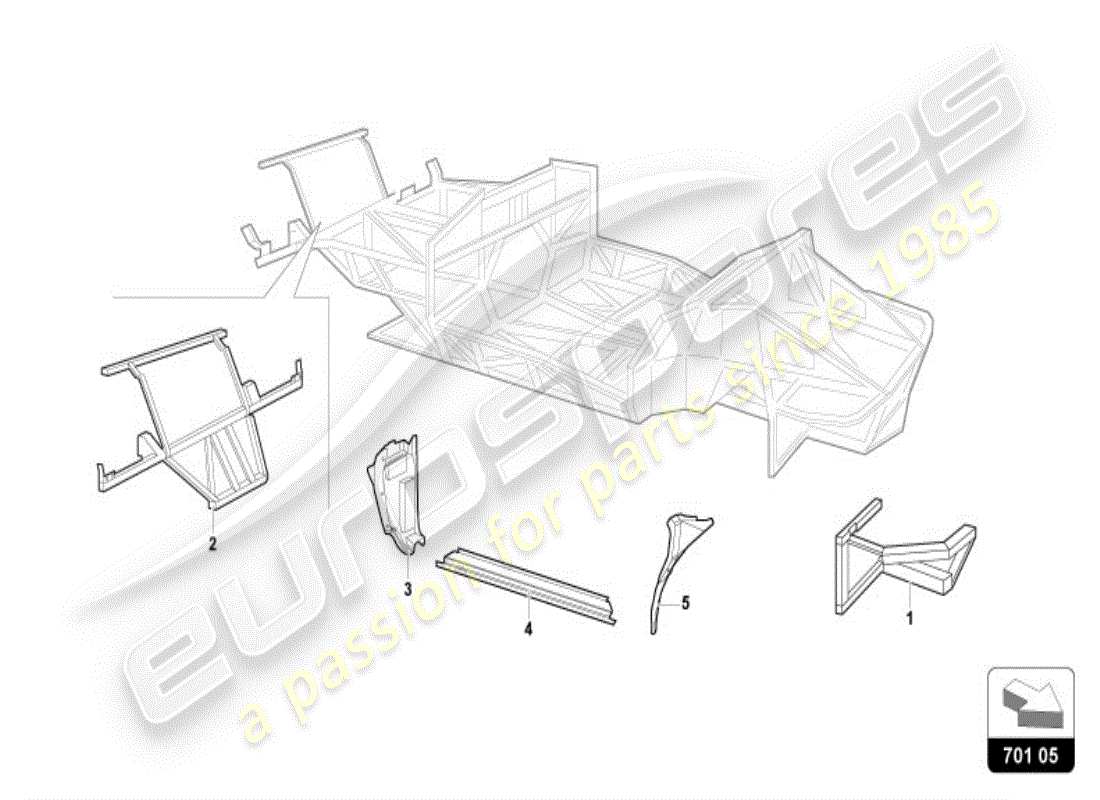

Lamborghini Diablo VT (1999) TRIM FRAME FRONT PART Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
            #
            Part number
            Description
            Key
            Price
            # 001
            MPN: 004137963
            FRONT LH FRAME
            from £595.45
            from £595.45
            MUDGUARD MOUNT LH FRONT FRAME Genuine Lamborghini - New (to order)
            # 001
            MPN: 004137964
            FRONT RH FRAME
            from £595.45
            from £595.45
            MUDGUARD MOUNT RH FRONT FRAME Genuine Lamborghini - New (to order)
            # 002
            MPN: 0041004924
            Rear Frame
            from £6,163.87
            from £6,163.87
            REAR FRAME FOR 132 Genuine Lamborghini - New (to order)
            # 003
            MPN: 009409132
            REAR RH COVERING
            from £397.28
            from £397.28
            *Right side cover ring for rear door Genuine Lamborghini - New (to order)
            # 003
            MPN: 009409133
            REAR LH COVERING
            from £438.79
            from £438.79
            *RIVEST.SX ANELLO PORTA Z. POST Genuine Lamborghini - New In stock
            # 004
            MPN: 009409134
            MIDDLE RH COVERING
            from £73.18
            from £73.18
            RIV.DX ANEL.PORTA CENTR. Genuine Lamborghini - New (to order)
            # 004
            MPN: 009409135
            MIDDLE LH COVERING
            from £73.18
            from £73.18
            RIV.SX ANEL.PORTA CENTR. Genuine Lamborghini - New (to order)
            # 005
            MPN: 009409136
            FRONT RH COVERING
            from £329.71
            from £329.71
            RIV.DX ANEL.PORTA ANTER. Genuine Lamborghini - New (to order)
            # 005
            MPN: 009409137
            FRONT LH COVERING
            from £329.71
            from £329.71
            RIV.SX ANEL.PORTA ANTER. Genuine Lamborghini - New (to order)
