819.06.00 - AIR GUIDE CHANNEL

Lamborghini Diablo VT (1999) AIR GUIDE CHANNEL Parts Diagram

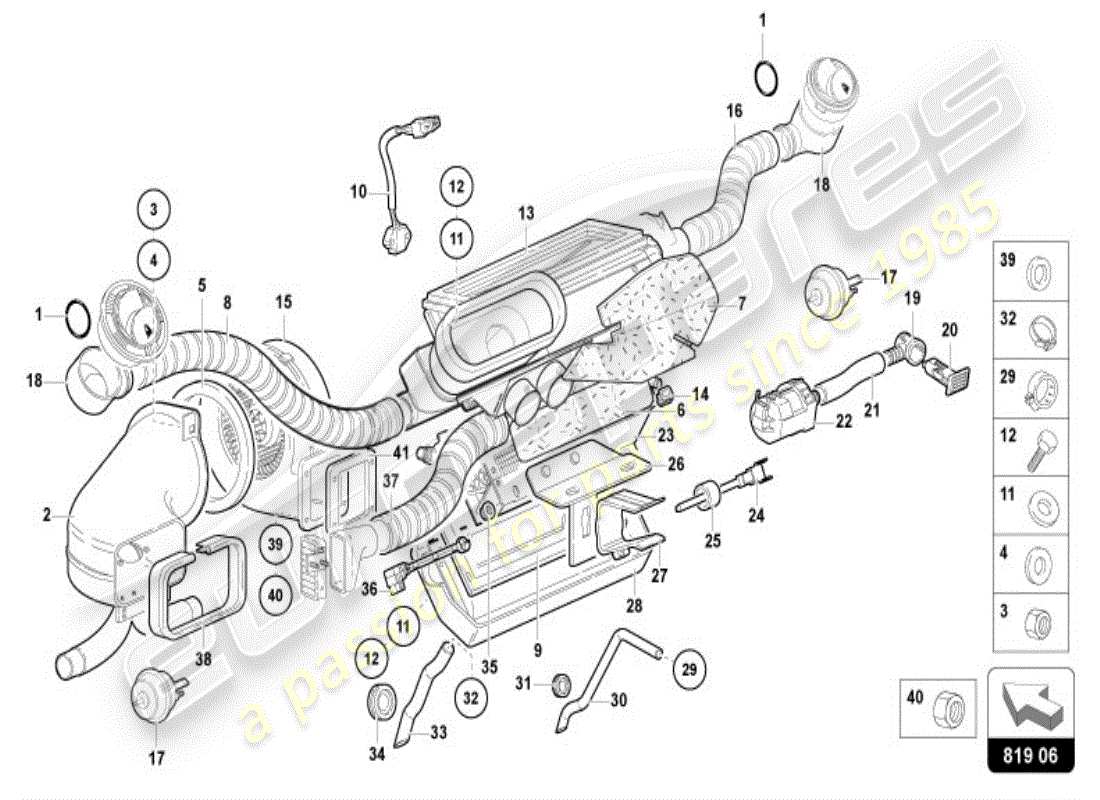

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                    #
                                                                    Part number
                                                                    Description
                                                                    Key
                                                                    Price
                                                                    # 001
                                                                    MPN: 008604401
                                                                    SEAL
                                                                    from £0.53
                                                                    from £0.53
                                                                    RING 44 MM OR Genuine Lamborghini - New In stock
                                                                    # 002
                                                                    MPN: 009453131
                                                                    CONVEYOR
                                                                    (UK spec vehicles)
                                                                    from £1,290.42
                                                                    from £1,290.42
                                                                    EXTERNAL AIR INTAKE DUCT Genuine Lamborghini - New (to order)
                                                                    # 002
                                                                    MPN: 009453182
                                                                    CONVEYOR
                                                                    (EUROPE, USA spec vehicles)
                                                                    from £468.68
                                                                    from £468.68
                                                                    AIR DUCT Genuine Lamborghini - New (to order)
                                                                    # 003
                                                                    MPN: 008200606
                                                                    NUT
                                                                    Supersession
                                                                    Supersession
                                                                    Genuine Lamborghini (no longer available to order)
                                                                    # 004
                                                                    MPN: 008400607
                                                                    WASHER
                                                                    Supersession
                                                                    Supersession
                                                                    Genuine Lamborghini (no longer available to order)
                                                                    # 005
                                                                    MPN: 009490202
                                                                    GASKET
                                                                    from £6.74
                                                                    from £6.74
                                                                    MANIFOLD-A/C FAN SEAL Genuine Lamborghini - New (to order)
                                                                    # 006
                                                                    MPN: 0069004894
                                                                    COVERING
                                                                    (EUROPE, USA spec vehicles)
                                                                    from £36.03
                                                                    from £36.03
                                                                    RADIATOR HEAT INSULATING PANEL Genuine Lamborghini - New (to order)
                                                                    # 006
                                                                    MPN: 0069005079
                                                                    COVERING
                                                                    (UK spec vehicles)
                                                                    from £9.79
                                                                    from £9.79
                                                                    RADIATOR HEAT INSULATING PANEL Genuine Lamborghini - New (to order)
                                                                    # 007
                                                                    MPN: 0069005078
                                                                    COVERING
                                                                    from £9.79
                                                                    from £9.79
                                                                    RADIATOR HEAT INSULATING PANEL Genuine Lamborghini - New (to order)
                                                                    # 008
                                                                    MPN: 009414546
                                                                    PIPE
                                                                    from £13.16
                                                                    from £13.16
                                                                    PIPE Genuine Lamborghini - New (to order)
                                                                    # 009
                                                                    MPN: 009414534
                                                                    CONVEYOR
                                                                    (UK spec vehicles)
                                                                    from £190.09
                                                                    from £190.09
                                                                    VENT/RAD AIR MANIFOLD Genuine Lamborghini - New (to order)
                                                                    # 009
                                                                    MPN: 009490203
                                                                    CONVEYOR
                                                                    (EUROPE, USA spec vehicles)
                                                                    from £11.95
                                                                    from £11.95
                                                                    MANIFOLD-RADIATOR SEAL Genuine Lamborghini - New (to order)
                                                                    # 010
                                                                    MPN: 004526662
                                                                    TEMPERATURE SENS.
                                                                    from £200.82
                                                                    from £200.82
                                                                    OIL SEAL RACE Genuine Lamborghini - New (to order)
                                                                    # 011
                                                                    MPN: 008400506
                                                                    WASHER
                                                                    from £0.51
                                                                    from £0.51
                                                                    FLAT WASHER 5.3X1.5X15 Genuine Lamborghini - New (to order)
                                                                    # 012
                                                                    MPN: 008100502
                                                                    SCREW
                                                                    from £0.51
                                                                    from £0.51
                                                                    SCREW 5X16 UNI 5739/8G/Z Genuine Lamborghini - New In stock
                                                                    # 013
                                                                    MPN: 0069003353
                                                                    CONVEYOR
                                                                    (EUROPE, USA spec vehicles)
                                                                    from £1,400.99
                                                                    from £1,400.99
                                                                    UPPER AIR MANIFOLD ASSEMBLY Genuine Lamborghini - New (to order)
                                                                    # 013
                                                                    MPN: 0069003431
                                                                    CONVEYOR
                                                                    (UK spec vehicles)
                                                                    from £1,433.81
                                                                    from £1,433.81
                                                                    UPPER AIR MANIFOLD ASSEMBLY Genuine Lamborghini - New (to order)
                                                                    # 014
                                                                    MPN: 008220503
                                                                    CLIP
                                                                    from £6.74
                                                                    from £6.74
                                                                    SPRING Genuine Lamborghini - New (to order)
                                                                    # 015
                                                                    MPN: 004537175
                                                                    ELECTROFAN
                                                                    (UK spec vehicles)
                                                                    from £248.26
                                                                    from £248.26
                                                                    FAN Genuine Lamborghini - New (to order)
                                                                    # 015
                                                                    MPN: 004537176
                                                                    ELECTROFAN
                                                                    (EUROPE, USA spec vehicles)
                                                                    from £248.26
                                                                    from £248.26
                                                                    SOLENOID VALVE Genuine Lamborghini - New (to order)
                                                                    # 016
                                                                    MPN: 009414544
                                                                    PIPE
                                                                    from £8.66
                                                                    from £8.66
                                                                    TUBO PORT.AR.A PIEDI PIL. Genuine Lamborghini - New (to order)
                                                                    # 017
                                                                    MPN: 009414548
                                                                    CONTROL
                                                                    CONTROL Genuine Lamborghini - New (to order)
                                                                    # 018
                                                                    MPN: 007014135
                                                                    CONNECTION
                                                                    Supersession
                                                                    Supersession
                                                                    Genuine Lamborghini (no longer available to order)
                                                                    # 019
                                                                    MPN: 004526666
                                                                    CONNECTION
                                                                    from £22.23
                                                                    from £22.23
                                                                    UNION Genuine Lamborghini - New (to order)
                                                                    # 020
                                                                    MPN: 004526661
                                                                    TEMPERATURE SENS.
                                                                    from £108.96
                                                                    from £108.96
                                                                    INTERNAL TEMPERATURESENSOR Genuine Lamborghini - New (to order)
                                                                    # 021
                                                                    MPN: 006032223
                                                                    PIPE
                                                                    from £6.18
                                                                    from £6.18
                                                                    SENSOR/FAN PIPE Genuine Lamborghini - New (to order)
                                                                    # 022
                                                                    MPN: 004526665
                                                                    ELECTROFAN
                                                                    from £217.13
                                                                    from £217.13
                                                                    TEMPERATURE SENSOR SOLENOID VA LVE Genuine Lamborghini - New (to order)
                                                                    # 023
                                                                    MPN: 004535410
                                                                    RADIATOR
                                                                    (EUROPE, USA spec vehicles)
                                                                    from £271.21
                                                                    from £271.21
                                                                    EVAPORATOR HEATER Genuine Lamborghini - New (to order)
                                                                    # 023
                                                                    MPN: 004535864
                                                                    RADIATOR
                                                                    (UK spec vehicles)
                                                                    from £271.21
                                                                    from £271.21
                                                                    MY '95 RHD EVAPORATOR HEATER Genuine Lamborghini - New (to order)
                                                                    # 024
                                                                    MPN: 004526663
                                                                    TEMPERATURE SENS.
                                                                    from £1,129.19
                                                                    from £1,129.19
                                                                    TEMPERATURE SENSOR Genuine Lamborghini - New (to order)
                                                                    # 025
                                                                    MPN: 004532839
                                                                    PIPE
                                                                    from £6.42
                                                                    from £6.42
                                                                    EVAPORATOR TEMPERATURE SENSOR GUARD PIPE Genuine Lamborghini - New (to order)
                                                                    # 026
                                                                    MPN: 005931538
                                                                    SUPPORT
                                                                    (EUROPE, USA spec vehicles)
                                                                    from £25.59
                                                                    from £25.59
                                                                    EVAPORATOR BRACKET Genuine Lamborghini - New (to order)
                                                                    # 026
                                                                    MPN: 005937771
                                                                    SUPPORT
                                                                    (UK spec vehicles)
                                                                    from £79.44
                                                                    from £79.44
                                                                    EVAPORATOR AND SOUNDSYSTEM UNI T BRACKET Genuine Lamborghini - New (to order)
                                                                    # 027
                                                                    MPN: 005931539
                                                                    SUPPORT
                                                                    from £1.79
                                                                    from £1.79
                                                                    RADIO BRACKET Genuine Lamborghini - New In stock
                                                                    # 028
                                                                    MPN: 009414505
                                                                    CONVEYOR
                                                                    (EUROPE, USA spec vehicles)
                                                                    from £175.73
                                                                    from £175.73
                                                                    A/C RADIATOR VENT AIR MANIFOLD Genuine Lamborghini - New (to order)
                                                                    # 028
                                                                    MPN: 009414539
                                                                    CONVEYOR
                                                                    (UK spec vehicles)
                                                                    from £51.27
                                                                    from £51.27
                                                                    SIDE CONDITIONER RESERVOIR Genuine Lamborghini - New In stock
                                                                    # 029
                                                                    MPN: 008831117
                                                                    STRAP
                                                                    Supersession
                                                                    Supersession
                                                                    Genuine Lamborghini (no longer available to order)
                                                                    # 030
                                                                    MPN: 009414537
                                                                    PIPE
                                                                    from £24.79
                                                                    from £24.79
                                                                    A/C RADIATOR CONDENSE DRAIN PI PE Genuine Lamborghini - New (to order)
                                                                    # 031
                                                                    MPN: 008612804
                                                                    GASKET
                                                                    from £4.01
                                                                    from £4.01
                                                                    GROMMET Genuine Lamborghini - New (to order)
                                                                    # 032
                                                                    MPN: 008832806
                                                                    STRAP
                                                                    from £2.15
                                                                    from £2.15
                                                                    CLAMP Genuine Lamborghini - New (to order)
                                                                    # 033
                                                                    MPN: 009414540
                                                                    PIPE
                                                                    from £40.84
                                                                    from £40.84
                                                                    RADIATOR CONDENSE DRAIN PIPE Genuine Lamborghini - New (to order)
                                                                    # 034
                                                                    MPN: 008611606
                                                                    GASKET
                                                                    from £1.25
                                                                    from £1.25
                                                                    GROMMET Genuine Lamborghini - New In stock
                                                                    # 035
                                                                    MPN: 008200614
                                                                    NUT
                                                                    Supersession
                                                                    Supersession
                                                                    Genuine Lamborghini (no longer available to order)
                                                                    # 036
                                                                    MPN: 004526664
                                                                    TEMPERATURE SENS.
                                                                    from £25.36
                                                                    from £25.36
                                                                    BLOWER AIR SENSOR Genuine Lamborghini - New (to order)
                                                                    # 037
                                                                    MPN: 009414544
                                                                    PIPE
                                                                    from £8.66
                                                                    from £8.66
                                                                    TUBO PORT.AR.A PIEDI PIL. Genuine Lamborghini - New (to order)
                                                                    # 038
                                                                    MPN: 009490201
                                                                    GASKET
                                                                    from £28.08
                                                                    from £28.08
                                                                    A/C FAN OUTER MANIFOLD SEAL Genuine Lamborghini - New (to order)
                                                                    # 039
                                                                    MPN: 008400401
                                                                    WASHER
                                                                    Supersession
                                                                    Supersession
                                                                    Genuine Lamborghini (no longer available to order)
                                                                    # 040
                                                                    MPN: 008200406
                                                                    NUT
                                                                    from £0.53
                                                                    from £0.53
                                                                    4X0.7X4.8 5S/Z NUT Genuine Lamborghini - New (to order)
                                                                    # 041
                                                                    MPN: 004731661
                                                                    GASKET
                                                                    from £6.10
                                                                    from £6.10
                                                                    AERSTOP FA CN/20 3 MM Genuine Lamborghini - New (to order)
