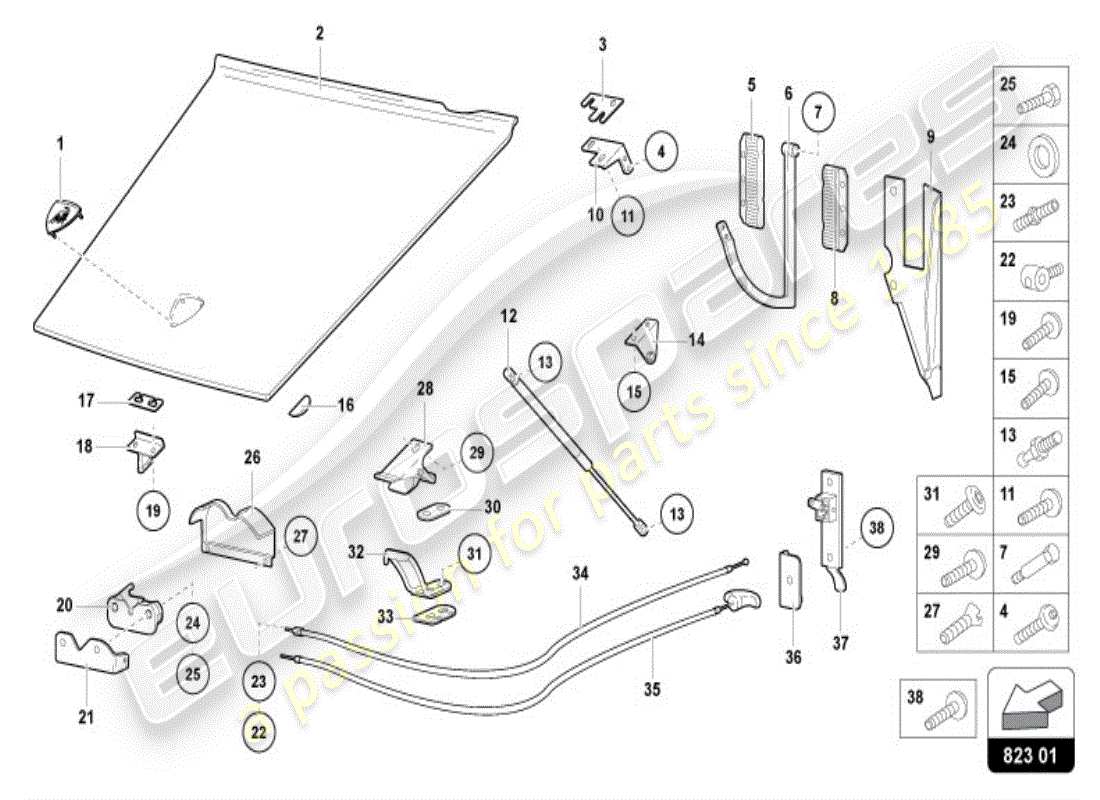

823.01.00 - BONNET FRONT
Lamborghini Diablo VT (1999) BONNET FRONT Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 0094002291
Lamborghini LOGO
# 002
MPN: 009459008
FRONT BONNET
FRONT (UK spec vehicles)
from £1,569.01
from £1,569.01
This part replaces part number 009459012
# 002
MPN: 009459010
FRONT BONNET
FRONT (EUROPE, USA spec vehicles)
from £1,224.86
from £1,224.86
# 003
-
SHIM
NOT FOR THIS MODEL
# 004
MPN: 008700674
SCREW
Supersession
Supersession
# 005
MPN: 0079001335
BRUSH
from £27.05
from £27.05
# 006
MPN: 0079001733
ARM
LEFT (EUROPE, USA spec vehicles)
from £175.73
from £175.73
# 006
MPN: 0079001734
ARM
RIGHT (EUROPE, USA spec vehicles)
from £183.48
from £183.48
# 006
MPN: 009459324
ARM
RIGHT (UK spec vehicles)
# 006
MPN: 009459326
ARM
LEFT (UK spec vehicles)
# 007
MPN: 009459323
PIN
from £31.25
from £31.25
# 008
MPN: 0079001336
BRUSH
from £27.05
from £27.05
# 009
MPN: 0079001337
PLATE
RIGHT
from £34.27
from £34.27
# 009
MPN: 0079001338
PLATE
LEFT
from £34.27
from £34.27
# 010
MPN: 009459321
BASE
RIGHT
from £32.41
from £32.41
# 010
MPN: 009459322
BASE
LEFT
from £32.41
from £32.41
# 011
MPN: 008700658
SCREW
# 012
MPN: 0079004387
DAMPER
Silver
from £80.35
from £80.35
This part replaces part number 009459318
# 012
MPN: 009459318
DAMPER
Black
Supersession
Supersession
# 013
MPN: 009459305
PIN
from £1.73
from £1.73
# 014
MPN: 009459309
BRACKET
from £24.47
from £24.47
# 015
MPN: 008700658
SCREW
# 016
MPN: 009459108
DOWEL
RIGHT
from £22.38
from £22.38
# 016
MPN: 009459109
DOWEL
LEFT
from £22.38
from £22.38
# 017
MPN: 009459228
SHIM
from £6.25
from £6.25
# 018
MPN: 009459227
HOOK
from £81.28
from £81.28
# 019
MPN: 008740685
SCREW
from £12.32
from £12.32
# 020
MPN: 009459216
lock
(EUROPE, USA spec vehicles)
from £109.50
from £109.50
# 020
MPN: 009459219
lock
(UK spec vehicles)
from £114.74
from £114.74
# 021
MPN: 009459213
SUPPORT
(EUROPE, USA spec vehicles)
from £14.28
from £14.28
# 021
MPN: 009459220
SUPPORT
(UK spec vehicles)
from £45.34
from £45.34
# 022
MPN: 009459217
CLAMP
Supersession
Supersession
# 023
MPN: 009460213
ADJUSTING SLEEVE
Supersession
Supersession
# 024
MPN: 008400607
WASHER
Supersession
Supersession
# 025
MPN: 008100623
SCREW
Supersession
Supersession
# 026
MPN: 009459230
SHIELD
from £26.72
from £26.72
# 027
MPN: 008700333
SCREW
# 028
MPN: 009459208
HOOK
from £73.74
from £73.74
# 029
MPN: 008700658
SCREW
# 030
MPN: 009459226
PLATE
from £19.42
from £19.42
# 031
MPN: 008700665
SCREW
from £32.41
from £32.41
# 032
MPN: 009459224
RETAINER
from £97.94
from £97.94
# 033
MPN: 009459225
SHIM
1MM
from £10.20
from £10.20
# 033
MPN: 009459235
SHIM
2MM
from £4.65
from £4.65
# 034
MPN: 009459001
CABLE
from £12.99
from £12.99
# 035
MPN: 009459003
CABLE
Emergency
# 036
MPN: 009459223
PLATE
from £9.06
from £9.06
# 037
MPN: 009459200
OPENI. HOOD HANDLE
from £332.68
from £332.68
# 038
MPN: 008700544
SCREW
from £1.09
from £1.09
# 039
MPN: 008400627
WASHER
from £14.04
from £14.04
# 040
MPN: 009459222
PIN
(UK spec vehicles)
from £14.28
from £14.28
# 041
MPN: 009459221
SUPPORT
(UK spec vehicles)
from £18.69
from £18.69
