825.06.00 - ENGINE INSULATION

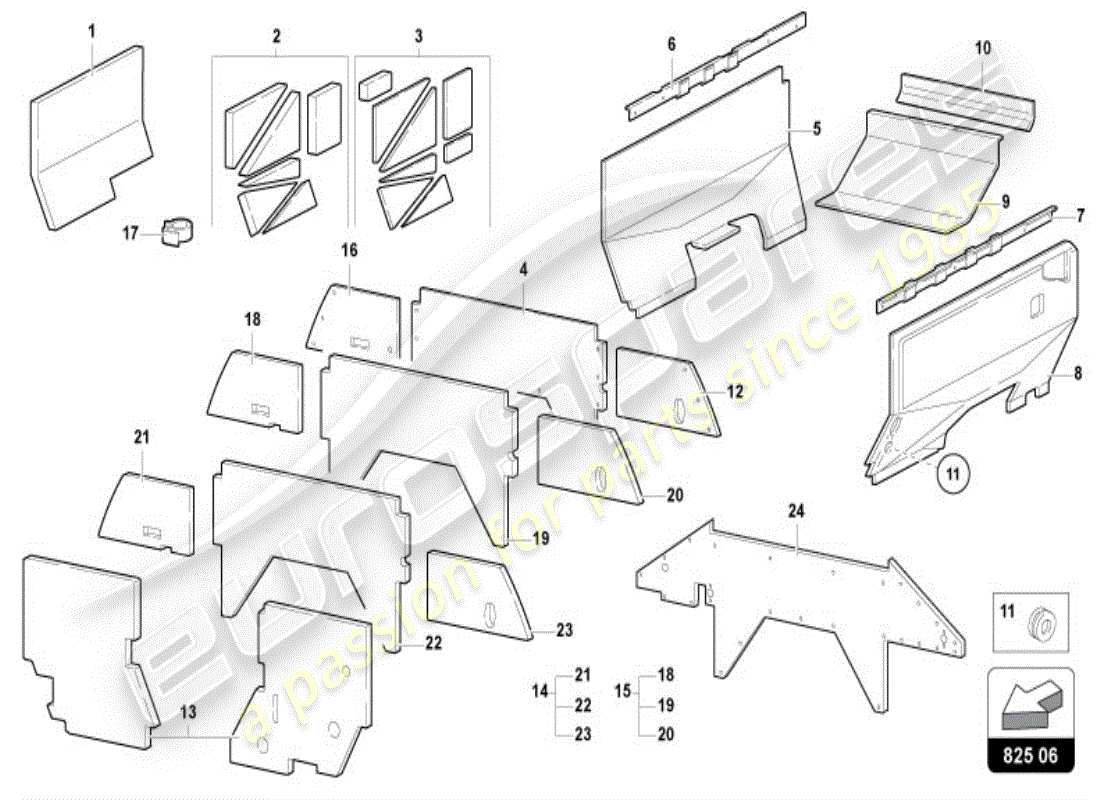

Lamborghini Diablo VT (1999) ENGINE INSULATION Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                      #
                      Part number
                      Description
                      Key
                      Price
                      # 001
                      MPN: 009455229
                      LINING
                      from £43.01
                      from £43.01
                      INSULATION ON ENGINE/FUEL TANK FIREWALL Genuine Lamborghini - New (to order)
                      # 002
                      MPN: 310132020
                      LINING KIT
                      from £66.12
                      from £66.12
                      INTERMEDIATE FUEL TANK INSULAT ION Genuine Lamborghini - New (to order)
                      # 003
                      MPN: 310132018
                      LINING KIT
                      from £142.19
                      from £142.19
                      Insulation Genuine Lamborghini - New (to order)
                      # 004
                      -
                      LINING
                      NOT FOR THIS MODEL
                      # 005
                      MPN: 009411633
                      LINING
                      RIGHT
                      from £673.45
                      from £673.45
                      RH ENGINE/PETROL PUMP WALL Genuine Lamborghini - New (to order)
                      # 006
                      MPN: 009411642
                      SUPPORT
                      RIGHT
                      from £63.15
                      from £63.15
                      RH WALL BRACKET Genuine Lamborghini - New (to order)
                      # 007
                      MPN: 009411643
                      SUPPORT
                      LEFT
                      from £69.49
                      from £69.49
                      LH WALL BRACKET Genuine Lamborghini - New (to order)
                      # 008
                      MPN: 009411634
                      LINING
                      LEFT
                      from £673.45
                      from £673.45
                      BATTERY/ENGINE LEFT BULKHEAD Genuine Lamborghini - New (to order)
                      # 009
                      MPN: 009411604
                      LINING
                      from £317.92
                      from £317.92
                      LOWER REAR MUFFLER BULKHEAD Genuine Lamborghini - New (to order)
                      # 010
                      -
                      LINING
                      NOT FOR THIS MODEL
                      # 011
                      MPN: 008612804
                      GASKET
                      from £4.01
                      from £4.01
                      GROMMET Genuine Lamborghini - New (to order)
                      # 012
                      -
                      LINING
                      NOT FOR THIS MODEL
                      # 013
                      MPN: 310144001
                      LINING KIT
                      from £71.73
                      from £71.73
                      FER 5/5 SA INSULATION Genuine Lamborghini - New (to order)
                      # 014
                      MPN: 310144002
                      LINING KIT
                      from £47.26
                      from £47.26
                      FER 5/5 SA INSULATION Genuine Lamborghini - New (to order)
                      # 015
                      MPN: 310144008
                      LINING KIT
                      from £95.49
                      from £95.49
                      THERMOGLASS 25 AL/SA Genuine Lamborghini - New (to order)
                      # 016
                      -
                      LINING
                      NOT FOR THIS MODEL
                      # 017
                      MPN: 001731994
                      STRAP
                      from £6.42
                      from £6.42
                      CLAMP Genuine Lamborghini - New (to order)
                      # 018
                      -
                      LINING
                      SEE REF 15
                      # 019
                      -
                      LINING
                      SEE REF 15
                      # 020
                      -
                      LINING
                      SEE REF 15
                      # 021
                      -
                      LINING
                      SEE REF 14
                      # 022
                      -
                      LINING
                      SEE REF 14
                      # 023
                      -
                      LINING
                      SEE REF 14
                      # 024
                      MPN: 009455239
                      LINING
                      from £106.96
                      from £106.96
                      PARTITION INSULATION Genuine Lamborghini - New (to order)
