lamborghini gallardo coupe (2005) activated charcoal container parts diagram

201.04.00 - ACTIVATED CHARCOAL CONTAINER

Lamborghini Gallardo Coupe (2005) ACTIVATED CHARCOAL CONTAINER Parts Diagram

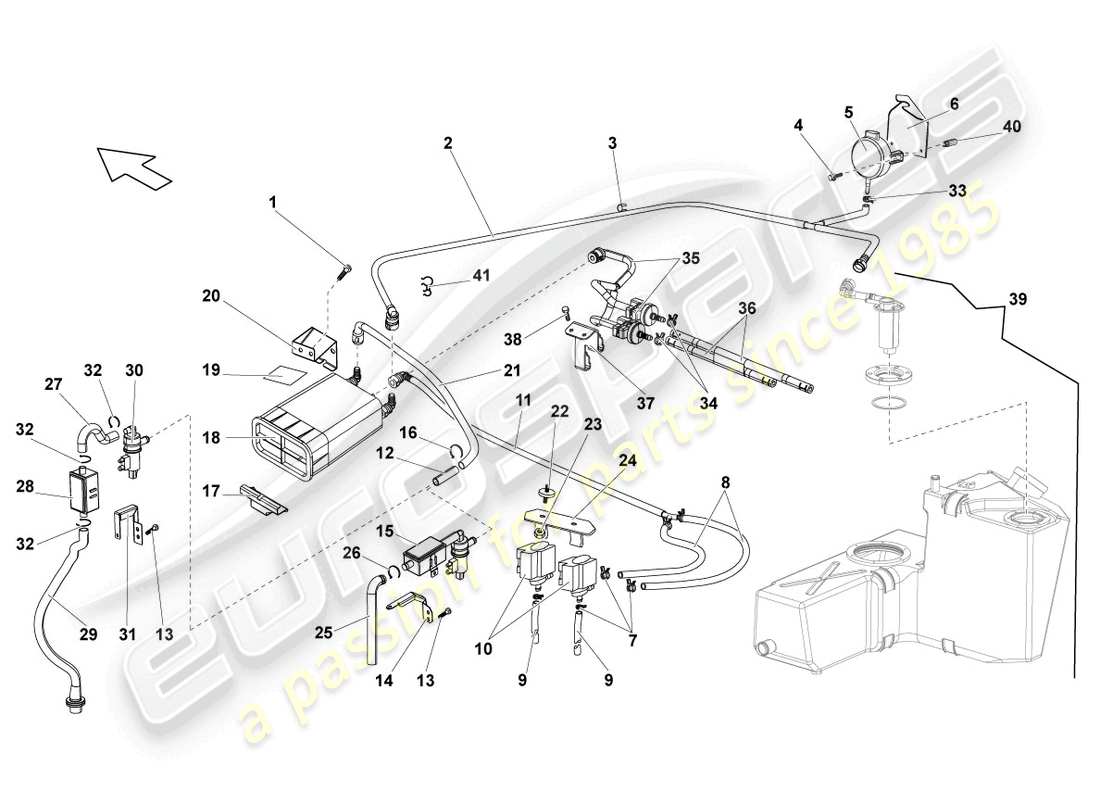

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                          #
                                          Part number
                                          Description
                                          Key
                                          Price
                                          # 000
                                          MPN: 400133739A
                                          breather line
                                          ORDERABLE FOR CAMPAING NR L140-A.11.05- L140-A.11.05
                                          from £23.44
                                          from £23.44
                                          breather line Genuine Lamborghini - New (to order)
                                          # 001
                                          MPN: N10005204
                                          HEXAGON HEAD BOLT (COMBI)
                                          M8X18
                                          from £0.53
                                          from £0.53
                                          SCREW W. WASHER M8X18 Genuine Lamborghini - New (to order)
                                          # 002
                                          MPN: 400201166
                                          breather line
                                          from £96.06
                                          from £96.06
                                          PIPE AKF CANIST/VALVE Genuine Lamborghini - New (to order)
                                          PIPE AKF CANIST/VALVE Genuine Lamborghini - Used In stock
                                          # 003
                                          MPN: 400611799A
                                          BRACKET
                                          Ø-10
                                          from £0.51
                                          from £0.51
                                          SUPPORT, HOSE Genuine Lamborghini - New In stock
                                          # 003
                                          MPN: 400611799C
                                          BRACKET
                                          Ø-16
                                          from £0.58
                                          from £0.58
                                          SUPPORT, HOSE Genuine Lamborghini - New (to order)
                                          # 003
                                          MPN: 400611799D
                                          BRACKET
                                          Ø-20
                                          from £0.66
                                          from £0.66
                                          SUPPORT, HOSE Genuine Lamborghini - New (to order)
                                          # 004
                                          MPN: WHT001389
                                          SOCKET HEAD BOLT
                                          M3X0,5X16
                                          from £0.67
                                          from £0.67
                                          PAN HEAD BOLT Genuine Lamborghini - New (to order)
                                          # 005
                                          MPN: 400906206
                                          PRESSURE SENSOR
                                          from £1,316.10
                                          from £1,316.10
                                          SENSOR Genuine Lamborghini - New (to order)
                                          SENSOR Genuine Lamborghini - Used In stock
                                          # 006
                                          MPN: 400906217A
                                          BRACKET
                                          from £11.13
                                          from £11.13
                                          BRACKET, SENSOR SUPPORT Genuine Lamborghini - New (to order)
                                          BRACKET, SENSOR SUPPORT Genuine Lamborghini - Used In stock
                                          # 007
                                          MPN: 400251189E
                                          CLAMP
                                          from £8.73
                                          from £8.73
                                          This part replaces part number 008831528
                                          CLAMP Genuine Lamborghini - New (to order)
                                          # 008
                                          MPN: 408133371
                                          CONNECTING HOSE
                                          from £16.65
                                          from £16.65
                                          ACC LINE Genuine Lamborghini - New (to order)
                                          # 009
                                          MPN: 400133595
                                          CONNECTING HOSE
                                          LEFT
                                          from £69.34
                                          from £69.34
                                          HOSE Genuine Lamborghini - New (to order)
                                          # 009
                                          MPN: 400133606
                                          CONNECTING HOSE
                                          RIGHT
                                          from £69.34
                                          from £69.34
                                          HOSE Genuine Lamborghini - New (to order)
                                          # 010
                                          MPN: 400906283
                                          VALVE
                                          from £59.40
                                          from £59.40
                                          SOLENOID VALVE Genuine Lamborghini - New (to order)
                                          # 011
                                          MPN: 400133352
                                          breather line
                                          from £49.20
                                          from £49.20
                                          ACC.HOSE FROM ACC.RESERV./Y Genuine Lamborghini - New (to order)
                                          # 012
                                          MPN: 400133769A
                                          CONNECTOR UNION
                                          from £34.94
                                          from £34.94
                                          NECK Genuine Lamborghini - New (to order)
                                          # 013
                                          MPN: N10082911
                                          HEXAGON HEAD BOLT (COMBI)
                                          M6X16
                                          from £0.53
                                          from £0.53
                                          HEXAGON HEAD BOLT M6X16-S1-N Genuine Lamborghini - New In stock
                                          bolt, hex. hd. (combi.) (N 10082911) Genuine Porsche Part - New (to order)
                                          # 014
                                          MPN: 408201181
                                          BRACKET
                                          from £7.74
                                          from £7.74
                                          BRACKET,VALVE Genuine Lamborghini - New (to order)
                                          # 015
                                          MPN: 400906311
                                          AIR FILTER
                                          from £58.45
                                          from £58.45
                                          FILTER+VALVE ASS. Genuine Lamborghini - New (to order)
                                          # 016
                                          MPN: N91115201
                                          CLAMP
                                          16-27X9
                                          from £4.45
                                          from £4.45
                                          HOSE CLIP Genuine Lamborghini - New (to order)
                                          # 017
                                          MPN: 408201898
                                          BRACKET
                                          from £15.23
                                          from £15.23
                                          AKF-TANK SUPPORT Genuine Lamborghini - New (to order)
                                          # 018
                                          MPN: 400201799
                                          ACTIVATED CHARCOAL CONTAINER
                                          408201938C
                                          from £91.55
                                          from £91.55
                                          This part replaces part number 400133563A - and 1 more. Click to view details
                                          ACTIVATED CARBON CANISTER Genuine Lamborghini - New (to order)
                                          ACTIVATED CARBON CANISTER Genuine Lamborghini - Used In stock
                                          # 019
                                          MPN: 400133338
                                          SEAL
                                          from £41.03
                                          from £41.03
                                          GASKET Genuine Lamborghini - New (to order)
                                          # 020
                                          MPN: 408201938B
                                          BRACKET FOR ACTIVATED CARBON CONTAINER
                                          TO BE USED WITH CARBO CANISTER CODE 400133563A
                                          from £9.52
                                          from £9.52
                                          BRACKET Genuine Lamborghini - New (to order)
                                          BRACKET Genuine Lamborghini - Used In stock
                                          # 020
                                          MPN: 408201938C
                                          BRACKET FOR ACTIVATED CARBON CONTAINER
                                          TO BE USED WITH CARBO CANISTER CODE 400201799
                                          from £99.01
                                          from £99.01
                                          BRACKET Genuine Lamborghini - New (to order)
                                          # 021
                                          MPN: 400133739
                                          breather line
                                          from £38.71
                                          from £38.71
                                          BREATHER PIPE Genuine Lamborghini - New (to order)
                                          BREATHER PIPE Genuine Lamborghini - Used In stock
                                          # 022
                                          MPN: 400972081
                                          MOUNTING BUFFER
                                          Supersession
                                          Supersession
                                          Genuine Lamborghini (no longer available to order)
                                          # 023
                                          MPN: N90265703
                                          HEXAGON NUT, SELF-LOCKING
                                          from £5.63
                                          from £5.63
                                          NUT Genuine Lamborghini - New (to order)
                                          # 024
                                          MPN: 400906303
                                          BRACKET
                                          from £7.92
                                          from £7.92
                                          BRACKET Genuine Lamborghini - New (to order)
                                          # 025
                                          MPN: 400133785A
                                          breather line
                                          from £45.48
                                          from £45.48
                                          BREATHER HOSE Genuine Lamborghini - New (to order)
                                          # 026
                                          MPN: N10255601
                                          CLAMP
                                          23,5X7X0,6
                                          from £1.36
                                          from £1.36
                                          EAR HOSE CLAMP 23.5X7X0.6 Genuine Lamborghini - New In stock
                                          # 027
                                          -
                                          VACUUM HOSE
                                          # 028
                                          -
                                          AIR FILTER
                                          # 029
                                          -
                                          breather line
                                          # 030
                                          -
                                          VALVE FOR ACTIVE CHARCOAL CANISTER
                                          # 031
                                          -
                                          BRACKET
                                          # 032
                                          -
                                          CLAMP
                                          # 033
                                          MPN: 400251189E
                                          CLAMP
                                          from £8.73
                                          from £8.73
                                          This part replaces part number 008831528
                                          CLAMP Genuine Lamborghini - New (to order)
                                          # 034
                                          -
                                          SPRING BAND CLAMP
                                          # 035
                                          -
                                          SOLENOID VALVE
                                          # 036
                                          -
                                          VACUUM HOSE
                                          # 037
                                          -
                                          BRACKET
                                          # 038
                                          -
                                          HEXAGON HEAD BOLT (COMBI)
                                          # 039
                                          -
                                          FUEL TANK
                                          # 040
                                          MPN: 400906310
                                          RUBBER BUSH
                                          from £1.42
                                          from £1.42
                                          BUSH Genuine Lamborghini - New (to order)
                                          # 041
                                          MPN: N10312901
                                          BRACKET
                                          from £1.56
                                          from £1.56
                                          SWIVEL CLIP A01-15XC01-9.5 Genuine Lamborghini - New (to order)
