lamborghini gallardo coupe (2005) gear housing parts diagram

301.02.00 - GEAR HOUSING

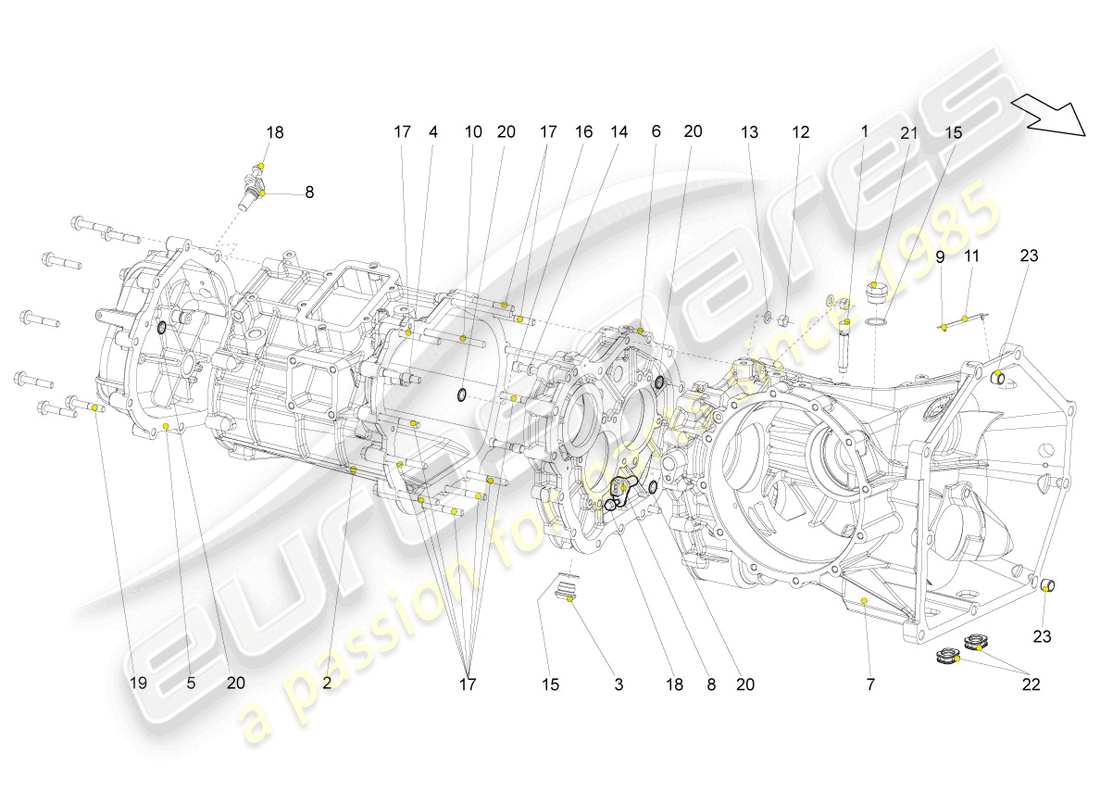

Lamborghini Gallardo Coupe (2005) GEAR HOUSING Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                  #
                  Part number
                  Description
                  Key
                  Price
                  # 001
                  -
                  CAP FOR VENTING THE GEARBOX
                  # 001
                  MPN: 086301047B
                  CAP FOR VENTING THE GEARBOX
                  from £59.15
                  from £59.15
                  Ventilation Genuine Lamborghini - New (to order)
                  # 002
                  MPN: 086301051
                  GEAR HOUSING
                  from £1,331.55
                  from £1,331.55
                  TRANSMISSION CASE Genuine Lamborghini - New (to order)
                  # 003
                  MPN: 086301141
                  SEALING PLUG
                  M22X1,5
                  from £16.61
                  from £16.61
                  MAGNETIC PLUG Genuine Lamborghini - New In stock
                  # 004
                  MPN: 086301153
                  DOWEL SLEEVE
                  from £4.55
                  from £4.55
                  SLEEVE 11X12 Genuine Lamborghini - New (to order)
                  # 005
                  MPN: 086301201
                  TRANSMISSION HOUSING COVER
                  rear
                  from £549.92
                  from £549.92
                  REAR COVER Genuine Lamborghini - New (to order)
                  # 006
                  -
                  SPACER PLATE
                  # 006
                  MPN: 086301293A
                  SPACER PLATE
                  from £627.73
                  from £627.73
                  INTERMEDIATE PLATE Genuine Lamborghini - New (to order)
                  # 007
                  -
                  CLUTCH HOUSING
                  # 007
                  MPN: 086323209A
                  CLUTCH HOUSING
                  from £2,421.00
                  from £2,421.00
                  CLUTCH HOUSING Genuine Lamborghini - New (to order)
                  # 008
                  MPN: 086927321
                  GEARBOX SPEED SENDER
                  from £110.25
                  from £110.25
                  ELECTROMAGNETIC PROBE Genuine Lamborghini - New (to order)
                  # 009
                  -
                  RIVET
                  # 010
                  MPN: N91031301
                  THREADED PIN
                  M8X110
                  from £4.45
                  from £4.45
                  STUD M8X16X110 Genuine Lamborghini - New (to order)
                  # 011
                  -
                  DATA PLATE
                  # 012
                  MPN: N01100830
                  HEXAGON NUT
                  M8
                  from £1.24
                  from £1.24
                  HEXAG.NUT M6 Genuine Lamborghini - New (to order)
                  hex. nut (N 01100830) Genuine Porsche Part - New (to order)
                  # 014
                  MPN: N0115586
                  WASHER
                  8,4X15X1,6
                  from £1.24
                  from £1.24
                  WASHER M8X14 Genuine Lamborghini - New (to order)
                  # 015
                  MPN: N0138271
                  SEAL RING
                  22X27
                  from £1.88
                  from £1.88
                  SEALING WASHER Genuine Lamborghini - New In stock
                  seal ring (N 0138271) Genuine Porsche Part - New (to order)
                  # 016
                  MPN: N0147151
                  SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD
                  M8X45
                  from £1.24
                  from £1.24
                  CHEESE HEAD SCREW M8X45 Genuine Lamborghini - New (to order)
                  bolt, with hex. socket - hd. - M 8 X 45 (N 0147151) Genuine Porsche Part - New (to order)
                  # 017
                  MPN: N10120803
                  HEX COLLARED BOLT
                  M8X85
                  from £1.21
                  from £1.21
                  HEXAG.SCREW FLANGED M8X85 Genuine Lamborghini - New (to order)
                  # 017
                  MPN: N91071801
                  HEX COLLARED BOLT
                  M8X85
                  from £2.08
                  from £2.08
                  HEXAGON FLANGE AM8X85 Genuine Lamborghini - New (to order)
                  bolt, hex. hd. with shoulder (N 91071801) Genuine Porsche Part - New (to order)
                  # 018
                  MPN: N10338901
                  HEX COLLARED BOLT
                  M6X16
                  from £0.53
                  from £0.53
                  HEX.SCREW FLANGED M6X16 Genuine Lamborghini - New In stock
                  # 019
                  MPN: N90173302
                  HEXAGON BOLT
                  M8X45
                  from £2.99
                  from £2.99
                  HEX.SCREW BM8X45 Genuine Lamborghini - New (to order)
                  # 020
                  MPN: N91028801
                  O-RING
                  9,92X2,62
                  from £1.93
                  from £1.93
                  O RING Genuine Lamborghini - New (to order)
                  # 021
                  -
                  SEALING PLUG
                  # 021
                  MPN: 086301114A
                  SEALING PLUG
                  M22X1,5
                  from £13.32
                  from £13.32
                  This part replaces part number 086301114
                  PLUG Genuine Lamborghini - New (to order)
                  # 022
                  MPN: 086323578
                  BUNGS
                  from £7.01
                  from £7.01
                  RUBBER PLUG Genuine Lamborghini - New (to order)
                  # 023
                  -
                  BUSH
                  # 023
                  MPN: 07L301155
                  BUSH
                  from £34.94
                  from £34.94
                  This part replaces part number 008851501
                  BUSH Genuine Lamborghini - New (to order)
                  # 024
                  MPN: N91028801
                  O-RING
                  9,92X2,62
                  from £2.04
                  from £2.04
                  O RING Genuine Lamborghini - New (to order)
