505.01.00 - rear axle

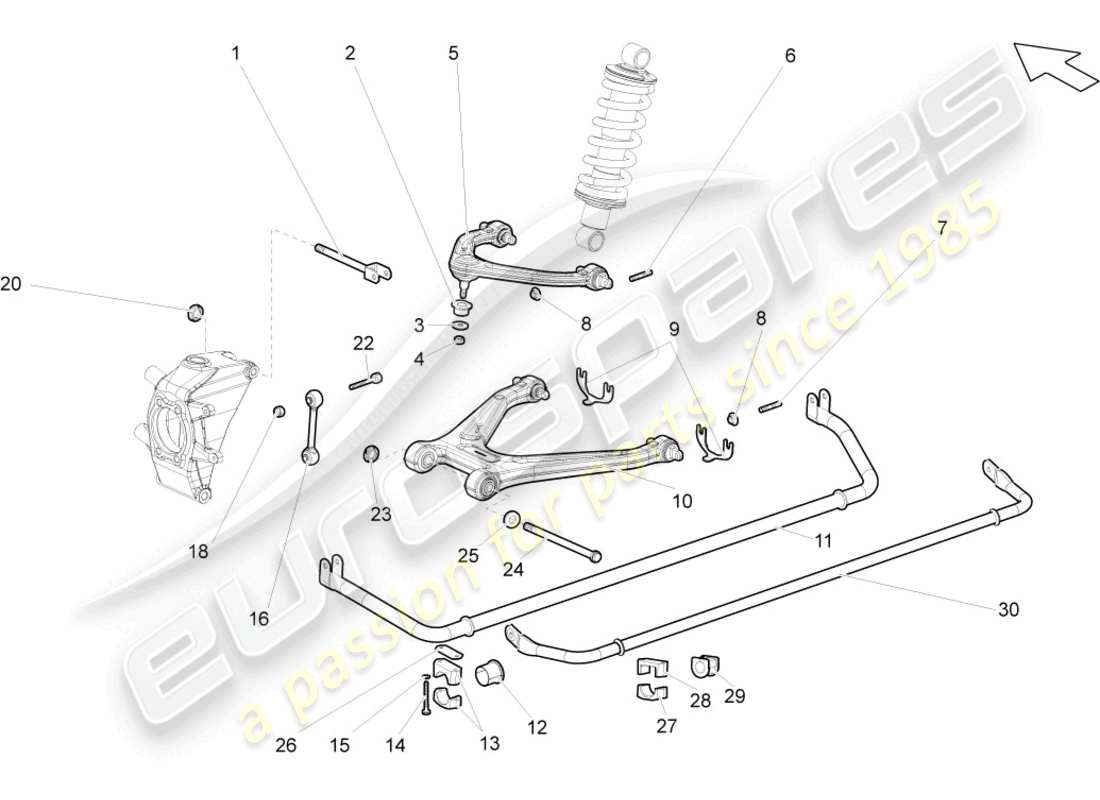

Lamborghini Gallardo Coupe (2005) REAR AXLE Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 400505183
SECURING ELEMENT
from £25.40
from £25.40
# 002
MPN: 400407171B
BUSH
from £247.29
from £247.29
# 003
MPN: 400505179B
SPACER BUSH
from £29.06
from £29.06
# 004
MPN: N90323704
HEXAGON COLLAR NUT SELF-LOCKING
M12X1,5
Supersession
Supersession
# 005
MPN: 400505323B
WISHBONE
LEFT A. RIGHT
from £701.44
from £701.44
This part replaces part number 400505323 - and 2 more. Click to view details
# 006
MPN: N91062101
THREADED PIN
M8X23
from £14.09
from £14.09
# 007
MPN: N91062001
THREADED PIN
M8X31
from £11.29
from £11.29
# 008
MPN: N90226404
HEXAGON COLLAR NUT SELF-LOCKING
M8
from £1.28
from £1.28
# 009
MPN: 400407203
BALANCING PLATE
0,5
from £58.63
from £58.63
This part replaces part number 400407379
# 009
MPN: 400407379A
BALANCING PLATE
1,0
from £19.20
from £19.20
# 009
MPN: 400407379B
BALANCING PLATE
1,5
from £7.53
from £7.53
# 009
MPN: 400407379C
BALANCING PLATE
2,0
from £7.53
from £7.53
# 009
MPN: 400407379D
BALANCING PLATE
2,5
from £7.53
from £7.53
# 009
MPN: 400407379E
BALANCING PLATE
3,0
from £82.15
from £82.15
# 009
MPN: 400407379F
BALANCING PLATE
0,3
from £3.98
from £3.98
# 010
MPN: 400505311
WISHBONE
LEFT A. RIGHT
from £679.62
from £679.62
# 011
MPN: 400511409A
ANTI-ROLL BAR
FROM VIN 4LA01399
from £554.24
from £554.24
# 012
MPN: 400511324C
RUBBER BUSH
FROM VIN 4LA01399 - UNTIL VIN 4LA01398 ALSO USE 400411031H
from £33.69
from £33.69
# 013
MPN: 400411031D
CLAMP
FROM VIN 4LA01399
from £66.10
from £66.10
# 014
MPN: WHT000923
SCREW WITH INT. SERRATIONS
M6X52
from £4.80
from £4.80
# 015
MPN: WHT001197A
WASHER
12X6,4X0,5
from £0.54
from £0.54
This part replaces part number WHT001197
# 016
MPN: 400505465A
COUPLING ROD
UNTIL THE VIN 6LA03288
from £345.85
from £345.85
# 018
MPN: N10286102
HEXAGON COLLAR NUT SELF-LOCKING
UNTIL THE VIN 6LA03288-M10
from £0.94
from £0.94
# 020
MPN: N90323704
HEXAGON COLLAR NUT SELF-LOCKING
M12X1,5
Supersession
Supersession
# 022
MPN: N10314503
HEX COLLARED BOLT
UNTIL THE VIN 6LA63288-M10X50
from £1.52
from £1.52
# 023
MPN: N10268602
HEXAGON NUT
M14X1,50
from £1.80
from £1.80
# 024
MPN: 400505445
HEX COLLARED BOLT
Supersession
Supersession
# 025
MPN: 400407739
SHIM
1MM
from £2.43
from £2.43
# 025
MPN: 400407740
SHIM
1,5MM
from £1.66
from £1.66
# 025
MPN: 400407742
SHIM
2MM
from £1.90
from £1.90
# 025
MPN: 400407749
SHIM
0,5MM
from £1.30
from £1.30
# 026
MPN: 400411175A
DISTANCE PLATE
from £82.15
from £82.15
# 027
-
ANTI-ROLL BAR BEARING BRACKET
# 028
-
ANTI-ROLL BAR BEARING BRACKET
# 029
-
RUBBER BUSH
# 030
-
ANTI-ROLL BAR
