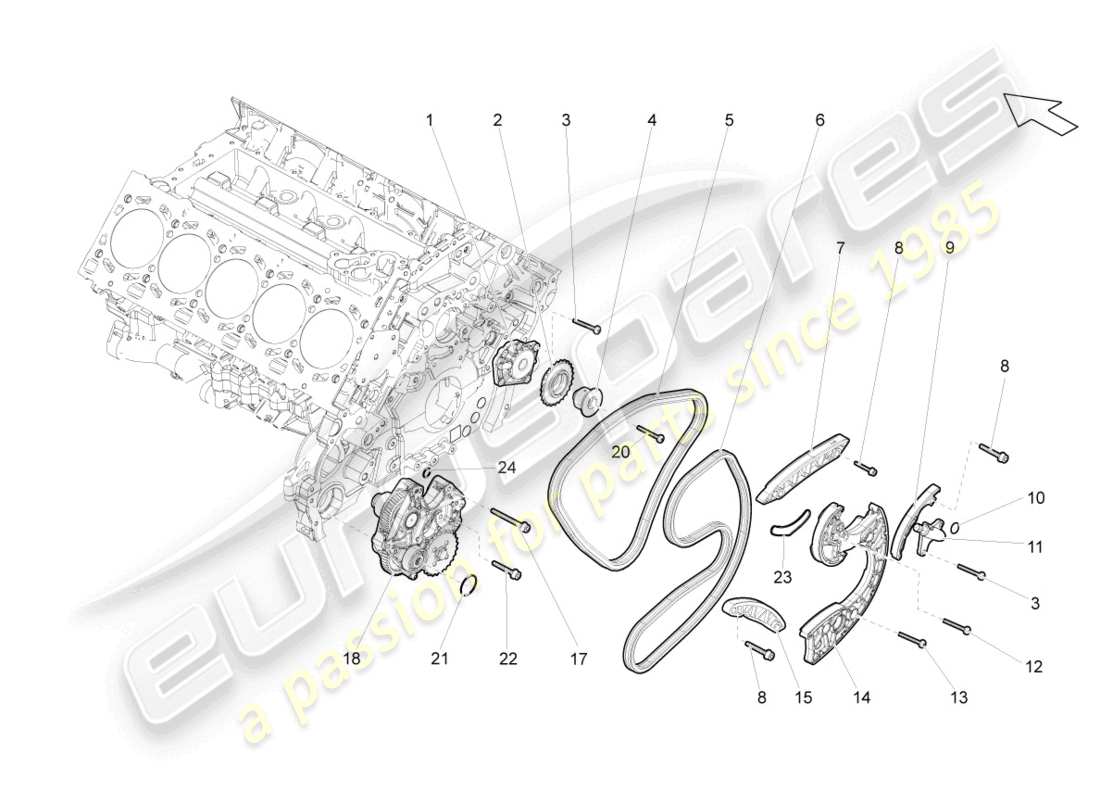

109.03.00 - TIMING CHAIN

Lamborghini Gallardo Coupe (2008) TIMING CHAIN Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 001
MPN: 079103337B
BRACKET
(EUROPE spec vehicles)
from £74.99
from £74.99
BRACKET Genuine Lamborghini - New (to order)
# 002
MPN: 079109570AD
CHAIN SPROCKET
Z=25 (EUROPE spec vehicles)
from £60.32
from £60.32
SPROCKET Genuine Lamborghini - New (to order)
# 003
MPN: N10124308
OVAL HEXAGON SOCKET HEAD BOLT
M6X20 (EUROPE spec vehicles)
from £1.22
from £1.22
This part replaces part number N10124303
HEXALOBULAR SOCKETM6X20 Genuine Lamborghini - New In stock
# 004
MPN: 079109512E
BEARING PIN
(EUROPE spec vehicles)
from £57.30
from £57.30
STUD SUPPORT D34 Genuine Lamborghini - New (to order)
# 005
MPN: 079109229
TIMING CHAIN
UPPER CENTRE (EUROPE spec vehicles)
from £70.46
from £70.46
CHAIN Genuine Lamborghini - New In stock
# 006
MPN: 079109229D
TIMING CHAIN
LOWER CENTRE (EUROPE spec vehicles)
from £121.07
from £121.07
CHAIN Genuine Lamborghini - New In stock
# 007
MPN: 079109469AD
GUIDE RAIL
(EUROPE spec vehicles)
from £41.22
from £41.22
GUIDE PIECE Genuine Lamborghini - New In stock
# 008
MPN: 079109426
AXLE
(EUROPE spec vehicles)
from £6.79
from £6.79
PIVOT PIN Genuine Lamborghini - New In stock
# 009
MPN: 079109510F
GUIDE RAIL
UPPER CENTRE (EUROPE spec vehicles)
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 010
MPN: N90638402
O-RING
5X1,5 (EUROPE spec vehicles)
from £2.43
from £2.43
O RING 5X1,5 ACM-C70 Genuine Lamborghini - New In stock
# 011
MPN: 079109467AE
CHAIN TENSIONER
(EUROPE spec vehicles)
from £77.33
from £77.33
TENSIONER CHAIN A Genuine Lamborghini - New In stock
# 012
MPN: N10554001
ROUND HD. SCREW
M6X35 (EUROPE spec vehicles)
from £1.56
from £1.56
SCREW INNER HEX.HEAD M6X35 Genuine Lamborghini - New In stock
# 013
MPN: N10124308
OVAL HEXAGON SOCKET HEAD BOLT
M6X20 (EUROPE spec vehicles)
from £1.28
from £1.28
This part replaces part number N10124303
HEXALOBULAR SOCKETM6X20 Genuine Lamborghini - New In stock
# 014
MPN: 079109507G
CHAIN TENSIONER
(EUROPE spec vehicles)
from £86.38
from £86.38
TENSIONER CHAIN Genuine Lamborghini - New In stock
# 015
MPN: 079109469AA
GUIDE RAIL
(EUROPE spec vehicles)
from £18.35
from £18.35
GUIDE PAD A Genuine Lamborghini - New In stock
# 017
MPN: N10652501
HEXAGON SOCKET FLAT HEAD BOLT
M6X40 (EUROPE spec vehicles)
from £9.64
from £9.64
HEXALOBULAR SOCKET Genuine Lamborghini - New (to order)
# 018
MPN: 07L109359G
PLATE
(EUROPE spec vehicles)
from £653.57
from £653.57
SUPPORTING PLATE Genuine Lamborghini - New In stock
# 020
MPN: N91135801
SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD
M10X40 (EUROPE spec vehicles)
from £2.15
from £2.15
TRIPLE SQUARE BOLTM10X40 Genuine Lamborghini - New (to order)
# 021
MPN: WHT000417
SEAL RING
16,6X2,6 (EUROPE spec vehicles)
from £1.69
from £1.69
This part replaces part number N0282112 - and 1 more. Click to view details
SEALING WASHER Genuine Lamborghini - New In stock
# 022
MPN: N10632202
ROUND HD. SCREW
M6X30 (EUROPE spec vehicles)
from £1.22
from £1.22
This part replaces part number N90965801
HEXAL.SOCKET SCREW W. FLANGE M6X30 8.8 Genuine Lamborghini - New In stock
# 023
MPN: 079109139A
SEAL
LOWER CENTRE (EUROPE spec vehicles)
from £2.35
from £2.35
GASKET Genuine Lamborghini - New In stock
# 024
MPN: N90740801
O-RING
7,65X1,78 (EUROPE spec vehicles)
from £2.16
from £2.16
O RING Genuine Lamborghini - New In stock
O-RING Genuine Porsche Part - New (to order)
