lamborghini gallardo coupe (2008) activated charcoal container parts diagram

201.04.00 - ACTIVATED CHARCOAL CONTAINER

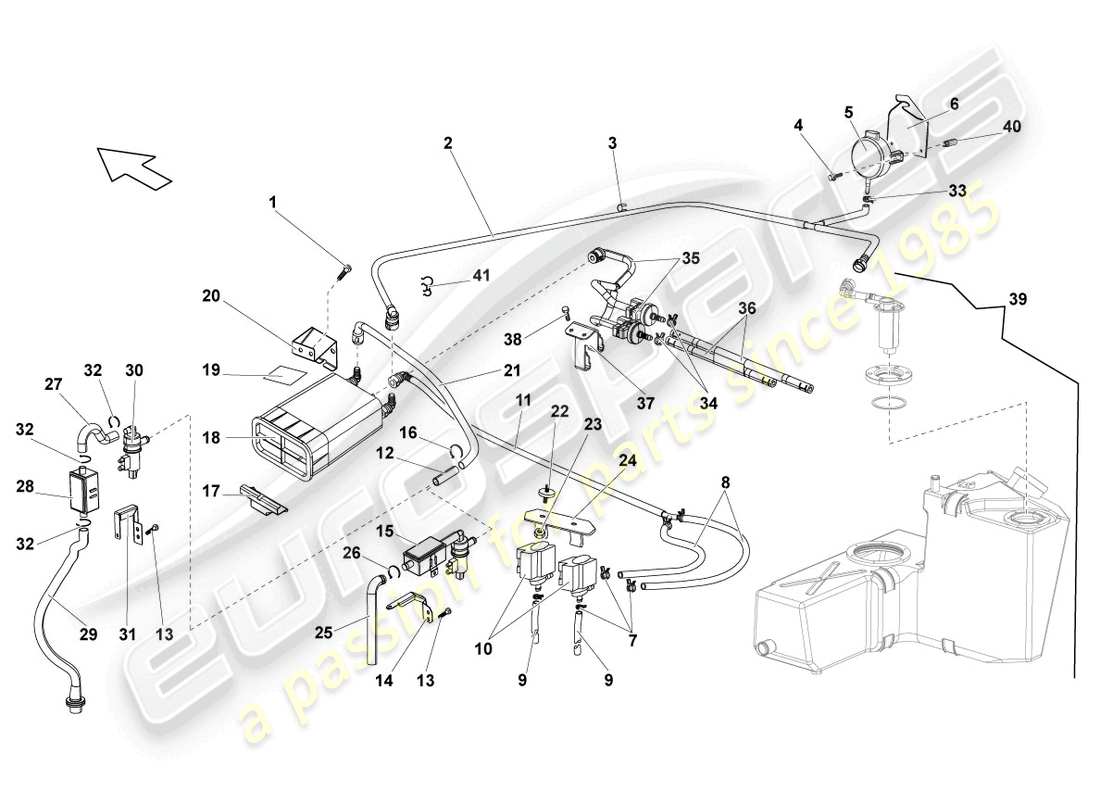

Lamborghini Gallardo Coupe (2008) ACTIVATED CHARCOAL CONTAINER Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 001
MPN: N10005207
HEXAGON HEAD BOLT (COMBI)
M8X18 (EUROPE spec vehicles)
from £4.78
from £4.78
HEX. BOLT WITH FLANGE Genuine Lamborghini - New In stock
# 002
MPN: 400201166
breather line
(EUROPE spec vehicles)
from £97.87
from £97.87
PIPE AKF CANIST/VALVE Genuine Lamborghini - New (to order)
PIPE AKF CANIST/VALVE Genuine Lamborghini - Used In stock
# 003
MPN: 400611799A
BRACKET
Ø-10 (EUROPE spec vehicles)
from £0.54
from £0.54
SUPPORT, HOSE Genuine Lamborghini - New In stock
# 003
MPN: 400611799C
BRACKET
Ø-16 (EUROPE spec vehicles)
from £0.63
from £0.63
SUPPORT, HOSE Genuine Lamborghini - New (to order)
# 003
MPN: 400611799D
BRACKET
Ø-20 (EUROPE spec vehicles)
from £0.73
from £0.73
SUPPORT, HOSE Genuine Lamborghini - New (to order)
# 004
MPN: WHT001389
SOCKET HEAD BOLT
M3X0,5X16 (EUROPE spec vehicles)
from £0.66
from £0.66
PAN HEAD BOLT Genuine Lamborghini - New (to order)
# 005
MPN: 400906206C
PRESSURE SENSOR
(EUROPE spec vehicles)
from £1,231.90
from £1,231.90
This part replaces part number 400906206B
SENSOR Genuine Lamborghini - New (to order)
# 006
MPN: 400906217A
BRACKET
(EUROPE spec vehicles)
from £11.34
from £11.34
BRACKET, SENSOR SUPPORT Genuine Lamborghini - New (to order)
BRACKET, SENSOR SUPPORT Genuine Lamborghini - Used In stock
# 013
MPN: N10082911
HEXAGON HEAD BOLT (COMBI)
M6X16 (EUROPE spec vehicles)
from £0.53
from £0.53
HEXAGON HEAD BOLT M6X16-S1-N Genuine Lamborghini - New In stock
BOLT, HEX. HD. (COMBI.) Genuine Porsche Part - New (to order)
# 016
MPN: N91115201
CLAMP
16-27X9 (EUROPE spec vehicles)
from £4.61
from £4.61
HOSE CLIP Genuine Lamborghini - New (to order)
# 017
MPN: 408201898A
BRACKET
(EUROPE spec vehicles)
from £23.29
from £23.29
BRACKET Genuine Lamborghini - New (to order)
# 018
MPN: 400201799
ACTIVATED CHARCOAL CONTAINER
408201938C (EUROPE spec vehicles)
from £169.83
from £169.83
This part replaces part number 400133563A
ACTIVATED CARBON CANISTER Genuine Lamborghini - New (to order)
# 019
MPN: 400133338
SEAL
(EUROPE spec vehicles)
from £41.81
from £41.81
GASKET Genuine Lamborghini - New (to order)
# 020
MPN: 408201938B
BRACKET FOR ACTIVATED CARBON CONTAINER
TO BE USED WITH CARBO CANISTER CODE 400133563A (EUROPE spec vehicles)
from £9.70
from £9.70
BRACKET Genuine Lamborghini - New (to order)
BRACKET Genuine Lamborghini - Used In stock
# 020
MPN: 408201938C
BRACKET FOR ACTIVATED CARBON CONTAINER
TO BE USED WITH CARBO CANISTER CODE 400201799 (EUROPE spec vehicles)
from £100.54
from £100.54
BRACKET Genuine Lamborghini - New (to order)
# 021
MPN: 403133739
breather line
(EUROPE spec vehicles)
from £47.00
from £47.00
BREATHER PIPE Genuine Lamborghini - New (to order)
# 027
MPN: 408131179
VACUUM HOSE
(EUROPE spec vehicles)
from £11.39
from £11.39
HOSE Genuine Lamborghini - New (to order)
HOSE Genuine Lamborghini - Used In stock
# 028
MPN: 400131575
AIR FILTER
(EUROPE spec vehicles)
from £3.88
from £3.88
AIR CLEANER Genuine Lamborghini - New (to order)
# 029
MPN: 408133785
breather line
(EUROPE spec vehicles)
from £72.21
from £72.21
BREATHER HOSE Genuine Lamborghini - New (to order)
BREATHER HOSE Genuine Lamborghini - Used In stock
# 030
MPN: 400906252
VALVE FOR ACTIVE CHARCOAL CANISTER
(EUROPE spec vehicles)
from £25.46
from £25.46
FRESH AIR VALVE Genuine Lamborghini - New (to order)
# 031
MPN: 408201181A
BRACKET
(EUROPE spec vehicles)
from £10.64
from £10.64
BRACKET,VALVE Genuine Lamborghini - New (to order)
# 032
MPN: N10255601
CLAMP
23,5X7X0,6 (EUROPE spec vehicles)
from £1.41
from £1.41
EAR HOSE CLAMP 23.5X7X0.6 Genuine Lamborghini - New In stock
# 033
MPN: 400251189E
CLAMP
(EUROPE spec vehicles)
from £8.89
from £8.89
This part replaces part number 008831528
CLAMP Genuine Lamborghini - New (to order)
# 034
MPN: N90686701
SPRING BAND CLAMP
14X12 (EUROPE spec vehicles)
from £1.31
from £1.31
SPRING CLAMP B14X12 Genuine Lamborghini - New In stock
SPRING CLIP Genuine Porsche Part - New (to order)
# 035
MPN: 403906270
SOLENOID VALVE
(EUROPE spec vehicles)
from £64.69
from £64.69
VALVOLA CAMBIAM ELETT Genuine Lamborghini - New (to order)
VALVOLA CAMBIAM ELETT Genuine Lamborghini - Used In stock
# 036
MPN: 403133240
VACUUM HOSE
(EUROPE spec vehicles)
from £129.19
from £129.19
TUBO FLESSIBILE Genuine Lamborghini - New (to order)
# 037
MPN: 400906303A
BRACKET
(EUROPE spec vehicles)
from £22.87
from £22.87
BRACKET Genuine Lamborghini - New (to order)
# 038
MPN: N90847903
HEXAGON HEAD BOLT (COMBI)
M6X15 (EUROPE spec vehicles)
from £0.59
from £0.59
This part replaces part number N90847901
HEXAGON FLANGE M6 X 15 Genuine Lamborghini - New In stock
BOLT HEX HD (COMBI) Genuine Porsche Part - New (to order)
# 040
MPN: 400906310
RUBBER BUSH
(EUROPE spec vehicles)
from £1.47
from £1.47
BUSH Genuine Lamborghini - New (to order)
# 041
MPN: N10312901
BRACKET
(EUROPE spec vehicles)
from £1.56
from £1.56
SWIVEL CLIP A01-15XC01-9.5 Genuine Lamborghini - New (to order)
